3.2 Volt 120Ah LiFePO4 Prismatic Lithium Ion Battery Cells
3.2 Volt 120Ah LiFePO4 Prismatic Lithium Ion Battery Cells with Aluminium Case
- Category: LiFePO4 Battery Cell
- Tag: lifepo4 battery cell

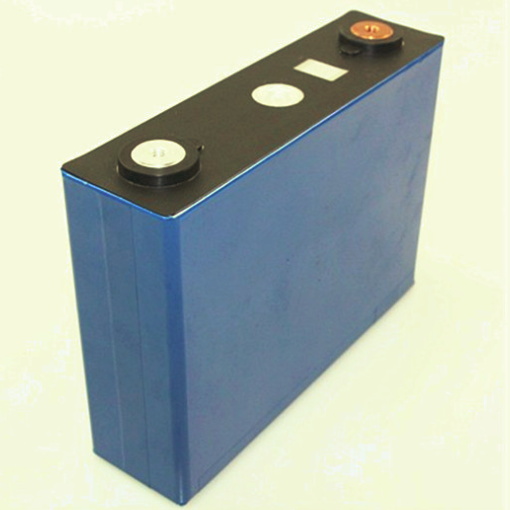

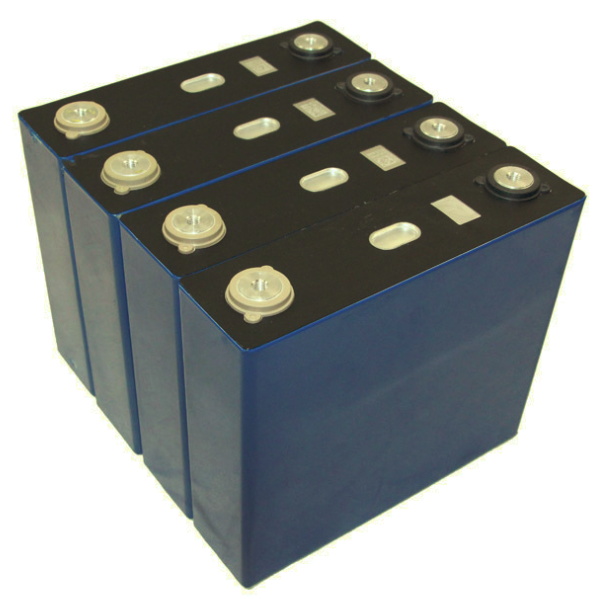

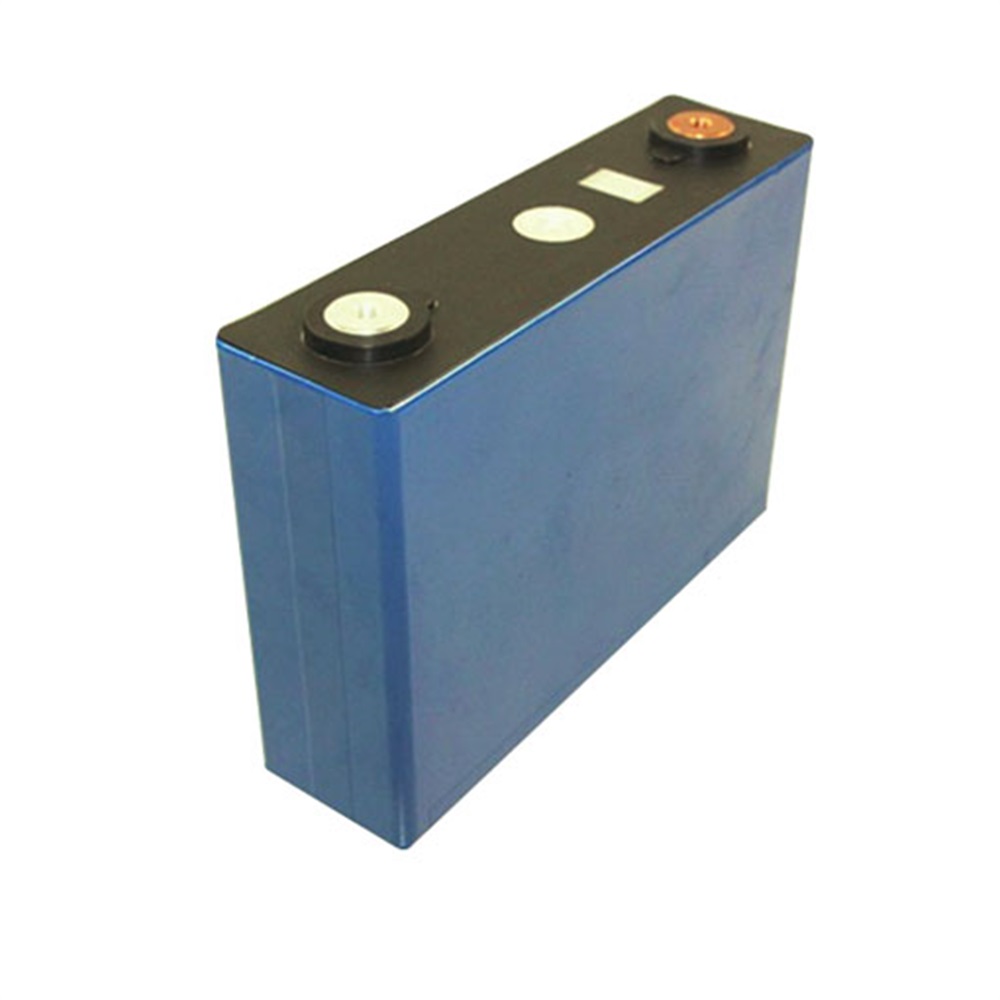

3.2 Volt 120Ah LiFePO4 Prismatic Lithium Ion Battery Cells
120AH LiFePO4 Battery with metal case produced by CATL, the world's leading lithium battery producer from China.
The battery is widely used in electric bus, electric cars, and energy storage systems. The weight is only 2.8kg. The energy density of the battery is high, as much as 140Wh/Kg.

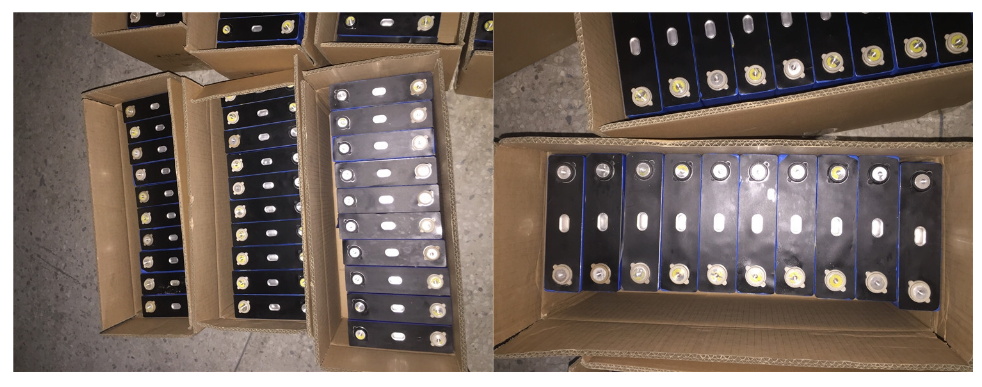

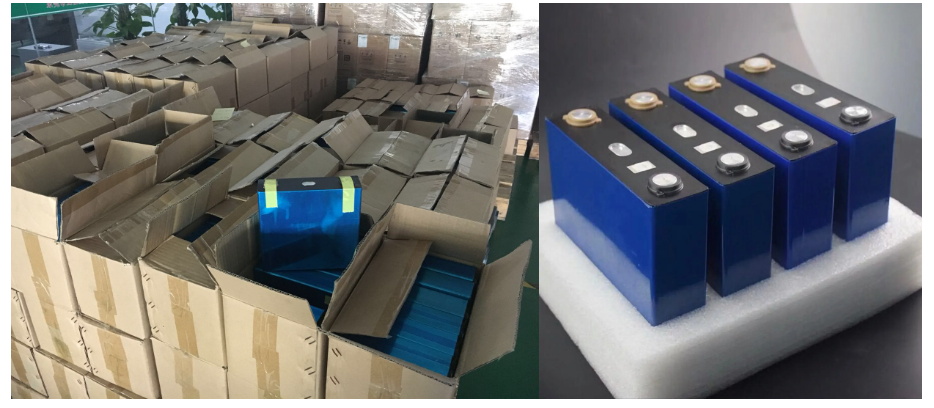

We have hundreds of high-quality 120Ah LiFePO4 batteries in stock, we provide them at reasonable prices and deliver them worldwide. we have a warehouse in Hongkong and they batteries are delivered by air (for sample orders) or by sea (for volume orders) to overseas markets.
Specifications
Item | Parameter Specification |
Battery Module | 120AH LiFePO4 Battery |
Nominal Capacity | 120Ah @ 1C Discharging |
Minimum Capacity | 120Ah @1C Discharging |
Nominal Voltage | 3.2 V |
Internal Resistance | ≤1mΩ |
Charging (CC-CV) | 1C Maximum Charging Current |
3.65V Charging Upper Limit Voltage | |
Discharging | 2C Maximum Discharging Current |
2.5V Discharging Cut-off Voltage | |
Charging Time | 4h Standard Charging |
1h Quick-acting Charging | |
Recommended SOC Usage Window | SOC: 10%~90% |
Operation Thermal Ambient | Charging: 0°C ~ 45°C |
Discharging: -20°C ~ 55°C | |
Storage Thermal Ambient | -20°C ~ 45°C Short-term (within 1 month) |
-20°C ~ 20°C Long term (within 1 year) | |
Storage Humidity | < 70% |
Battery Weight | Around 2.8kg |
Battery Dimension | 180 x 180 x 50 mm |
Shell Material | aluminum |
