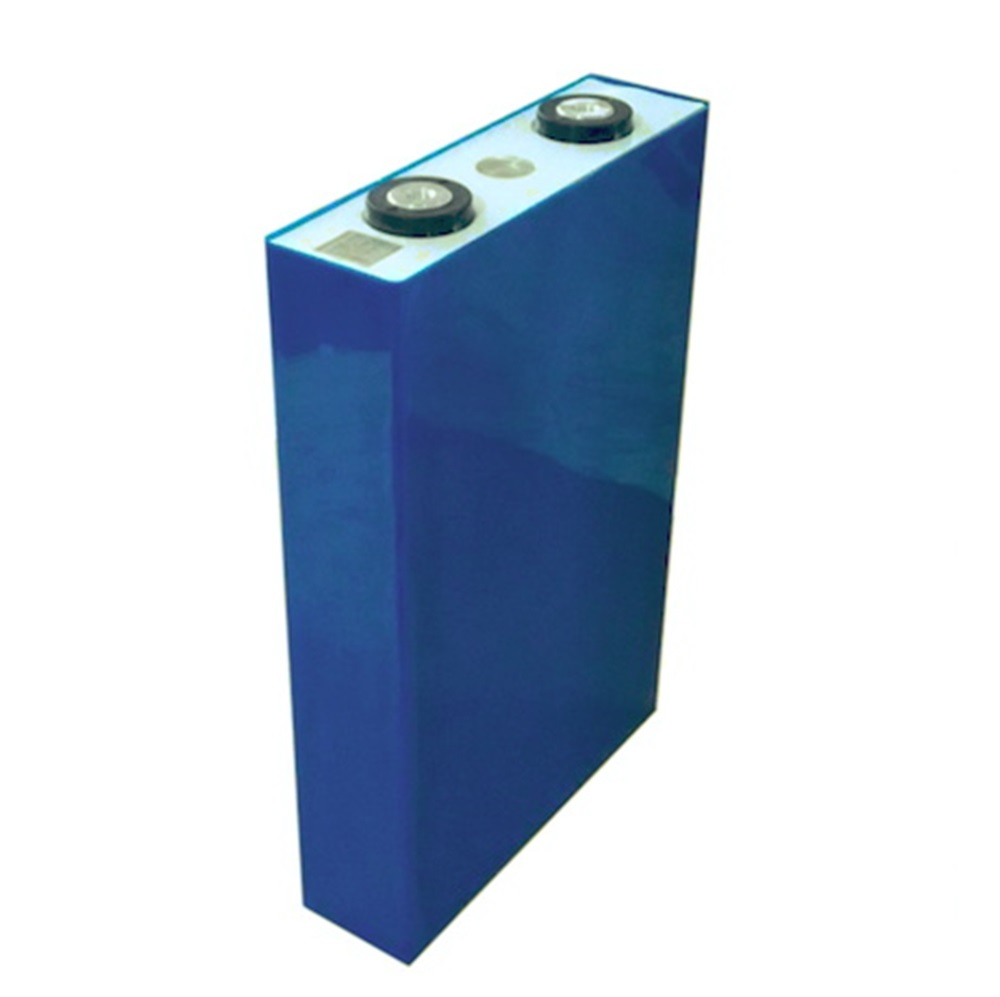

3.2 Volt 75Ah LiFePO4 Prismatic Lithium Ion Battery Cells

3.2 Volt 75Ah LiFePO4 Prismatic Lithium Ion Battery Cells with Aluminium Case

3.2 Volt 75Ah LiFePO4 Prismatic Lithium Ion Battery Cells

3.2 Volt 75Ah LiFePO4 Prismatic Lithium Ion Battery Cells3.2 Volt 75Ah LiFePO4 Prismatic Lithium Ion Battery Cells


Brand New designed 75Ah LiFePO4 Battery with Aluminium case. the battery has very good performance on high rate discharge. Maximum discharge rate is 5Ccontinously and peak 10C. the weight is only 1.88kg and the energy density is as much as 120WH/Kg.


75AH LiFePO4 Battery


Specifications


 Item

Parameter Specification

Battery Module

LF75AH

Nominal Capacity

75Ah @ 1C Discharging

Minimum Capacity

75Ah @1C Discharging

Nominal Voltage

3.2 V

Internal Resistance

≤0.6mΩ

 Charging(CC-CV)

Maximum Charging Current 1C

Charging Upper Limit Voltage 3.65V

Discharging

Maximum Discharging Current 10C

Discharging Cut-off Voltage 2.5V

 Charging Time

 4h Standard Charging

1h Quick-acting Charging

Recommended SOC Usage Windom

SOC: 10%~90%

 Operation Thermal Ambient

Charging 0°C ~ 45°C

Discharging -20°C ~ 55°C

 Storage Thermal Ambient

-20°C ~ 45°C Short-term (within 1 month)

-20°C ~ 20°C Long term (within 1 year)

Storage Humidity

< 70%

Battery Weight

Around 1.88kg

Battery Dimension

200 x 130 x 36 mm

Shell Material

Aluminium
