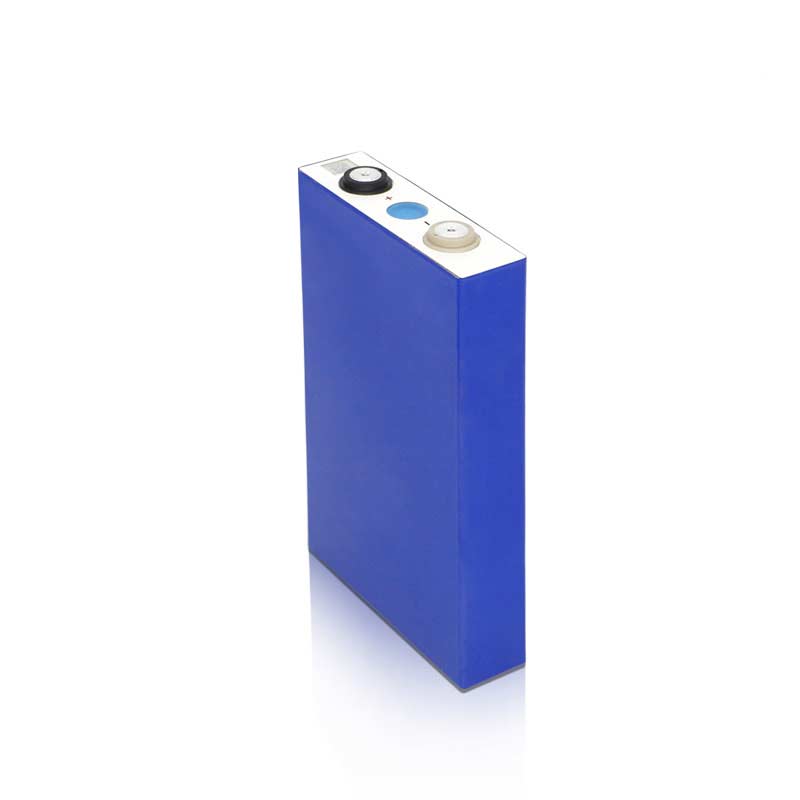

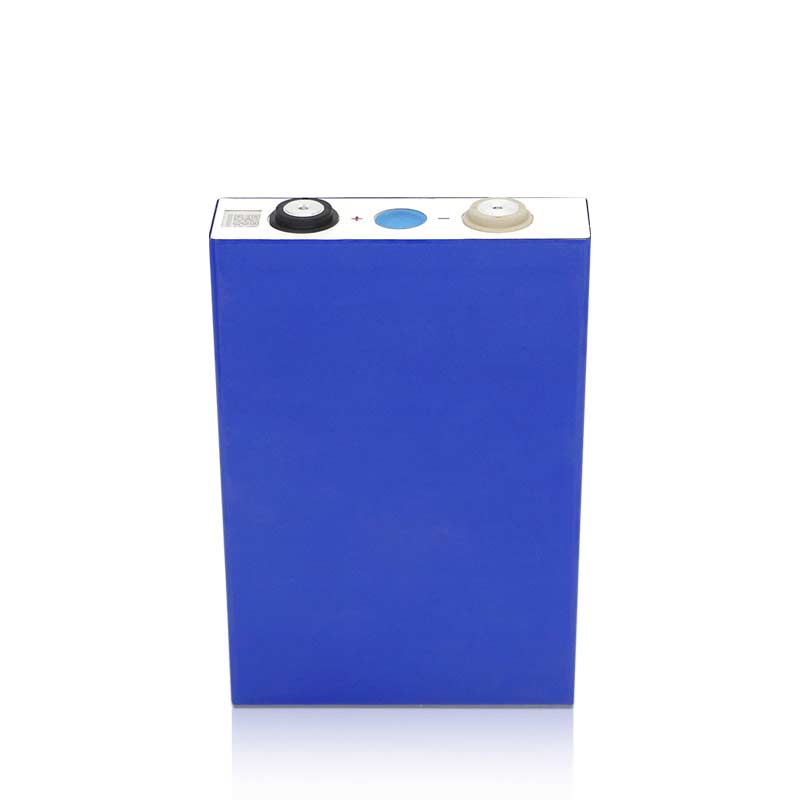

EVE LF90K 3.2 Volt 90Ah LiFePO4 Prismatic Lithium Ion Battery Cells

EVE LF90K 3.2 Volt 90Ah LiFePO4 Prismatic Lithium Ion Battery Cells with Aluminium case

EVE LF90K 3.2 Volt 90Ah LiFePO4 Prismatic Lithium Ion Battery Cells


Brand New designed EVE 3.2V 90Ah LiFePO4 Battery with Aluminium case. The battery performs very well on high-rate discharge.  The maximum discharge rate is 5C continuously, and the peak is 10C. The weight is only 1.92kg and the energy density is as much as 130WH/Kg.

EVE 3.2v 90ah lifepo4 battery

· Intelligent factory design, and high-performance consistency.

· Square aluminum shell structure, high precision explosion-proof valve, high safety performance

· Low internal resistance, high discharge rate, and stable discharge platform.

· Long cycle life, capacity retention rate over 80% after 4000 cycles at 1C/1CGreen environmental protection


Specifications

Item

Parameter Specification

Battery Module

LF90AH

Nominal Capacity

90Ah @ 1C Discharging

Minimum Capacity

90Ah @1C Discharging

Nominal Voltage

3.2 V

Internal Resistance

≤0.4mΩ

Charging(CC-CV)

Maximum Charging Current 1C

Charging Upper Limit Voltage 3.65V

Discharging

Maximum Discharging Current 10C

Discharging Cut-off Voltage 2.5V

Charging Time

Standard Charging 4h

Quick-acting Charging 1h

Recommended SOC Usage Window

SOC: 10%~90%

Operation Thermal Ambient

Charging 0°C ~ 45°C

Discharging -20°C ~ 55°C

Storage Thermal Ambient

Short-term (within 1 month) -20°C ~ 45°C

Long term  (within 1 year) -20°C ~ 20°C

Storage Humidity

< 70%

Battery Weight

Around 1.92kg

Battery Dimension

200 x 130 x 36 mm

Shell Material

Aluminium

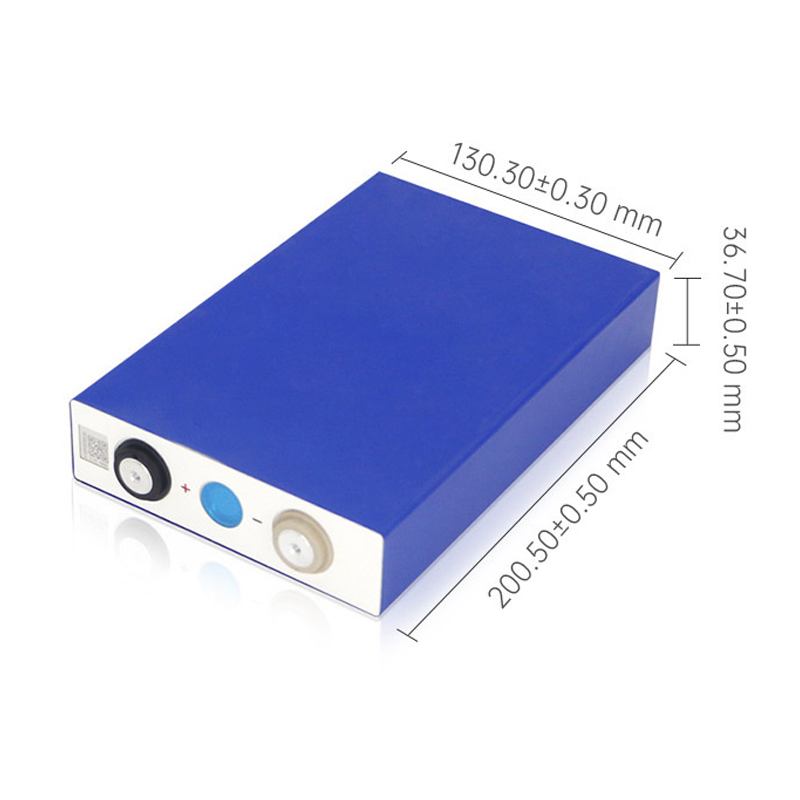

Dimension

EVE LF90K dimension

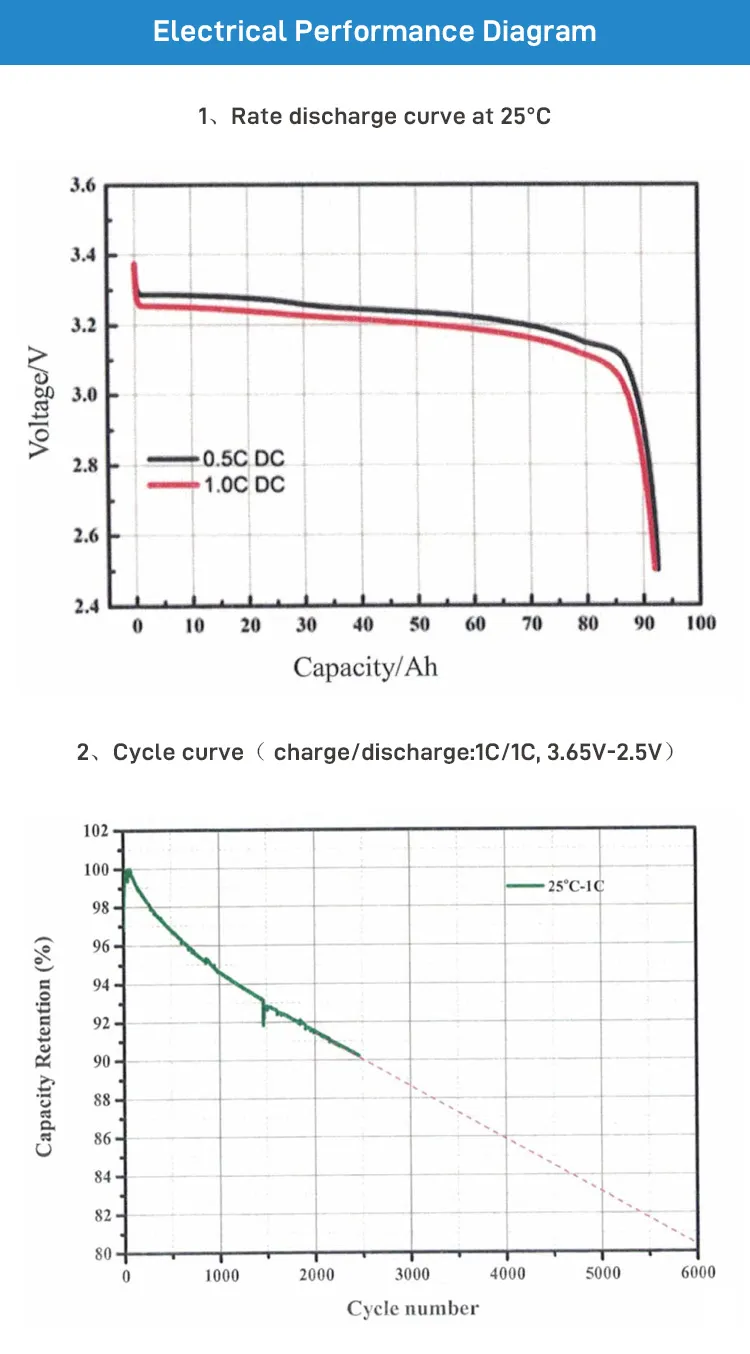

Performance Diagram
