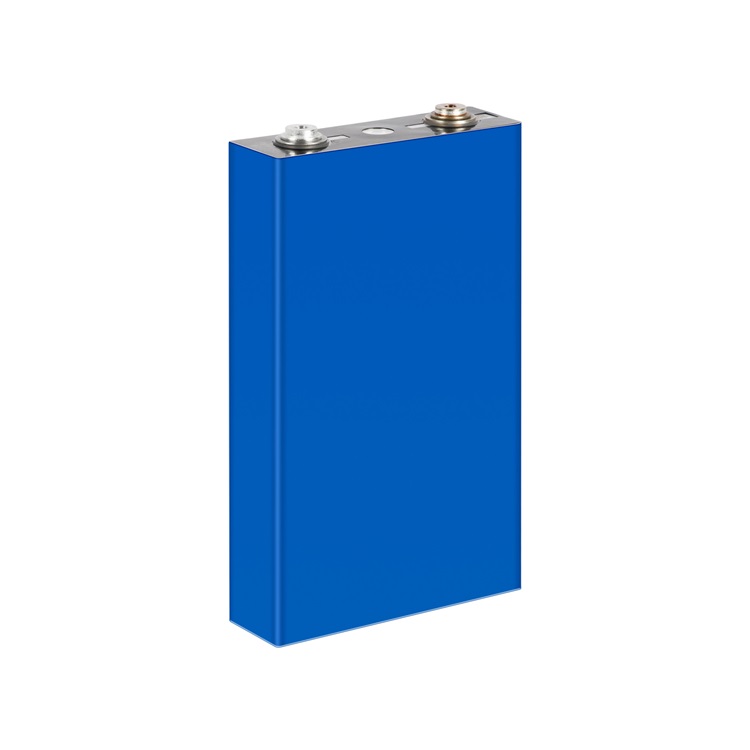

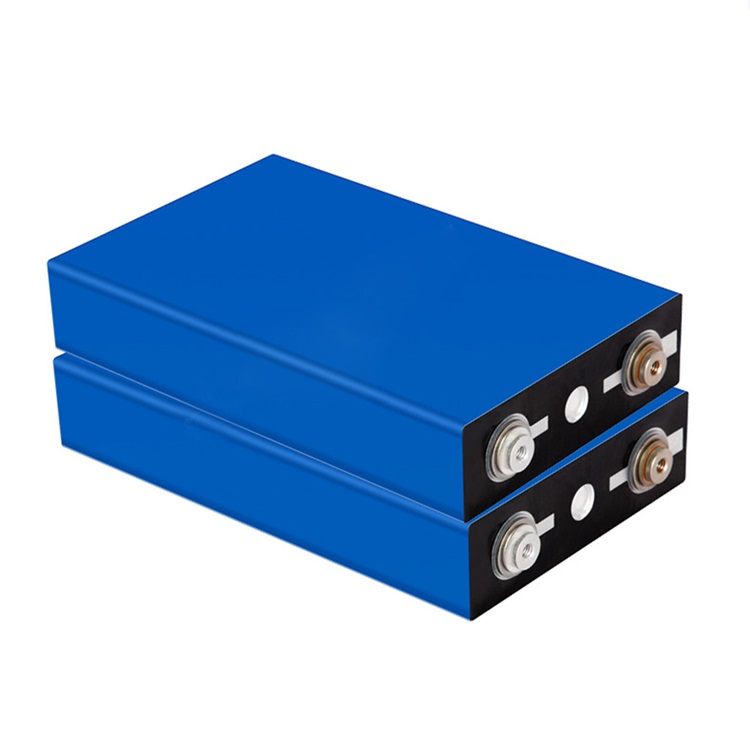

FP40130220-100 3.2v 100ah lithium iron phosphate prismatic lifepo4 battery cells for sale

FP40130220-100 3.2v 100ah lithium iron phosphate prismatic lifepo4 battery cells for sale: EV, Energy storage, RV, etc.

Bran New A Grade Quality 100ah LiFePO4 battery prismatic cell with QR code for Sale, MSDS certification, more than 3500 times cycle life, high discharge rate.


Specification


Item

Parameters

Maximum charging voltage

3.65V

Nominal voltage

3.2V

Rated capacity

100Ah

Standard charging current

0.5C

Max. continuous charging current

1C

Max. continuous discharging current

3C (30S, 100%SOC 25℃±2℃)

Discharging cut-off voltage

2.5V

Operating temperature range

Charging:0~45℃, Discharging: -20~60℃

Relative humidity

60±20%RH

Recommended storage temperature

15~35℃

Cell weight

2.3kg

Impedance

≤0.6mΩ

Cell dimension (inclusive wrap foil)

40.2(T)*130.2(W)*220(L)mm

Cycle life

3500 cycles @80%DOD

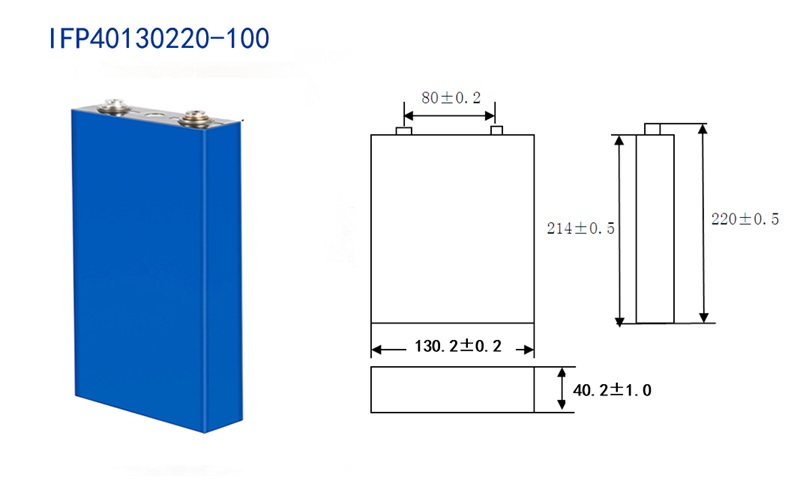

details and dimension


The terminal poles are both M6*1.0 internal thread, torque ≤8N*m, the positive terminal is aluminum, the negative terminal is red cooper with nickel plated; we provide the free busbars, screws and other accessories for easy connection.

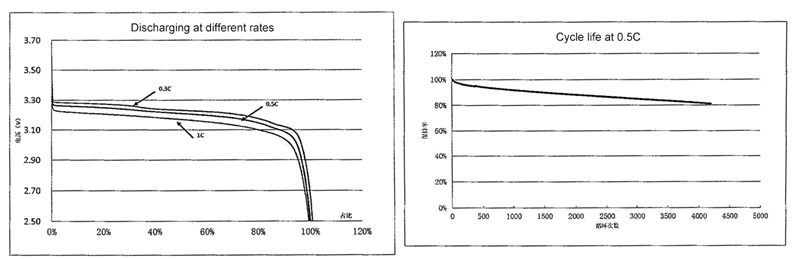

curve
