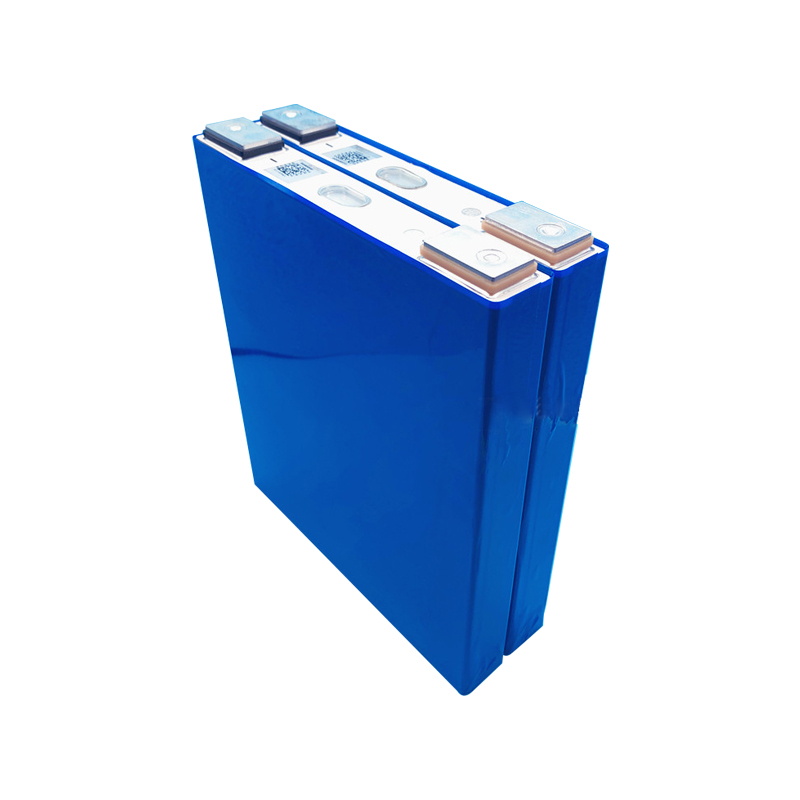

3.2V 105ah Lifepo4 Power Battery Cell with High-power
3.2V 105ah lifepo4 prismatic cells with more than 3000 times cycle life, high energy density, high discharge rate and a wide opearting temp
- Category: LiFePO4 Battery Cell
- Tag: lifepo4 battery cell
Features of 105Ah LiFePO4 Battery
Safety
Wide temperature range
Long cycle and aging life
Environmental protection
High-power
Quick Charge
High discharge rate(5C)
This 105Ah LiFePO4 Battery cell with 2C continuous and 5C pulse discharge rate is an excellent choice for your power lithium battery applications.
Standard Performance
Feature | Specification | Notes |
Nominal Voltage | 3.2V | |
AC Internal Resistance | (0.4~0.7)mΩ | |
DC Internal Resistance | ≤1.5mΩ | 50% SOC |
Rated Capacity | 105Ah | |
Working Voltage | 2.0V~3.65V | |
Energy Density | 163wh/kg | |
Max. Continuous Charging Current | 0.1C | 0~5℃ 0%~80%SOC |
0.5C | 5~15℃ 0~100%SOC | |
1.0C | 15~35℃ 0~100%SOC | |
2.0C | 15~35℃ 0~80%SOC | |
0.5C | 35~55℃ 0~100%SOC | |
Max. Allowable Charging Voltage | 3.9V | |
Max. Allowable Charging Temperature Range | 0~55℃ | |
Max. Continuous Discharge Current | 2C | Temperature rise ＜15℃(25℃) |
Max. Pulse Discharge Current | 5C(10S) | Battery surface temperature ≤45℃, duration 10S(at 25℃) |
Max. Allowable Discharge Voltage | 1.8V | Below 0℃ discharge lower limit voltage |
Max. Allowable Discharge Temperature Range | -30~60℃ | |
Optimal Discharge Temperature Range | 10~35℃ | |
Standard Cycle Life | 3000 cycles | 80%DOD |
Dimension | 27*175*200mm | |
Weight | 2.06±0.05kg |

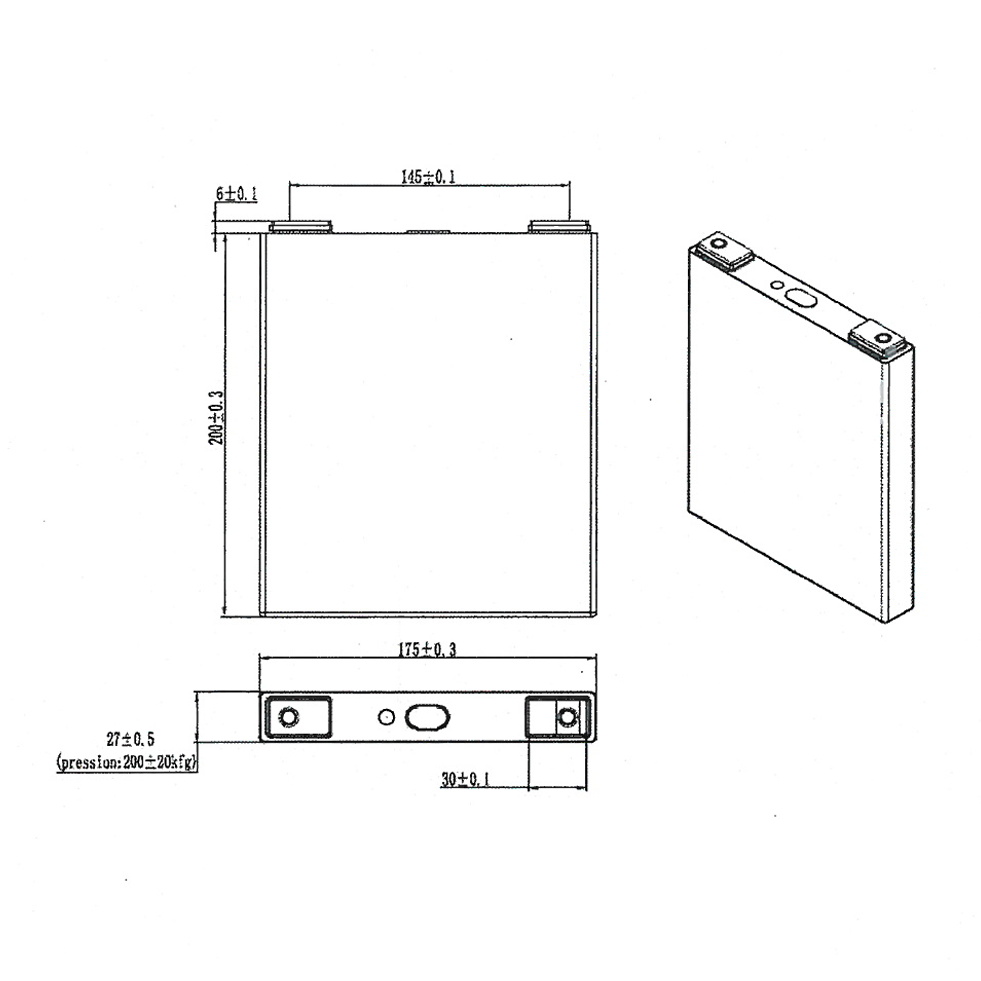

Dimension
Whether you need an electrolyte solution for your cell development or a large pack for backup power generation, Evlithium offers a range of products to meet your varied business needs.
Contact us for more details.
