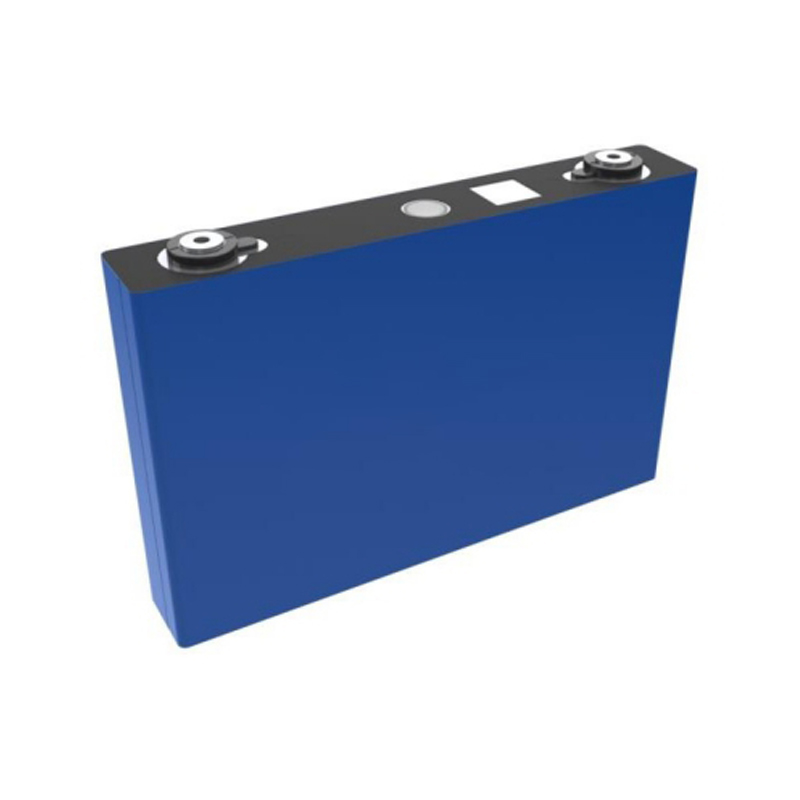

Lithium 125Ah 3.2V LiFePO4 Prismatic Battery Cell for EV or Energy Storage, Etc

3.2V Lithium 125ah LFP Battery Cell for EV or Energy Storage, Etc

Product Features

· Long cycle life

· High rate continuous discharge

· Fast charge at 1C rate

· High energy density

· Good performance at high/low temperature

· Good stability for application

· Excellent safety performance

· Automatic production, good consistency

· Environment-Friendly


Technical Parameters


Item

Specification

Product Model

SP-FA41255AM(NA)

Nominal Capacity

125 Ah; RT /0.33C;3.65 to 2.5V

Nominal Voltage

3.2 V(NA)

Weight

3.32±0. 50 Kg; REF

Internal Impedance

≤0.4mΩ; AC1kHz

RT Cycle Life

≥4000 Cycles; RT ,0.33C/0.33C,80%DOD

Self-discharge Rate

≤4.5%; Per Month

Dimension(Packaged)

Height (pole): 172.0±1.0mm

Height (can): 165±1.0 mm

Length: 254.8±0.5 mm

Thickness
: 41.0±1.0mm

Charge

0.33C(Standard Current; CC & CV)

1C

(Max. Continues Current; Max. Pulse Current 2C)

3.65V(Limited Voltage; NA)

0.033C(Cut-off Current; NA)

Discharge

0.33C(Standard Current; NA)

2C(Max. Continuous Current;

Max. Pulse Current 3C)

2.5V(End Voltage;

Low-Temp. discharge to 2.0V (<0℃))

Operating Temperature

0 ~ 45 ℃

(Charge; Cell Surface Temp. ≤60℃)

-20 ~ 55 ℃

(Discharge; Cell Surface Temp. ≤60℃)

Storage Temperature

5~ 35 ℃(Short term:-40 ~ 50℃)

Storage Humidity

15% ~ 90% RH

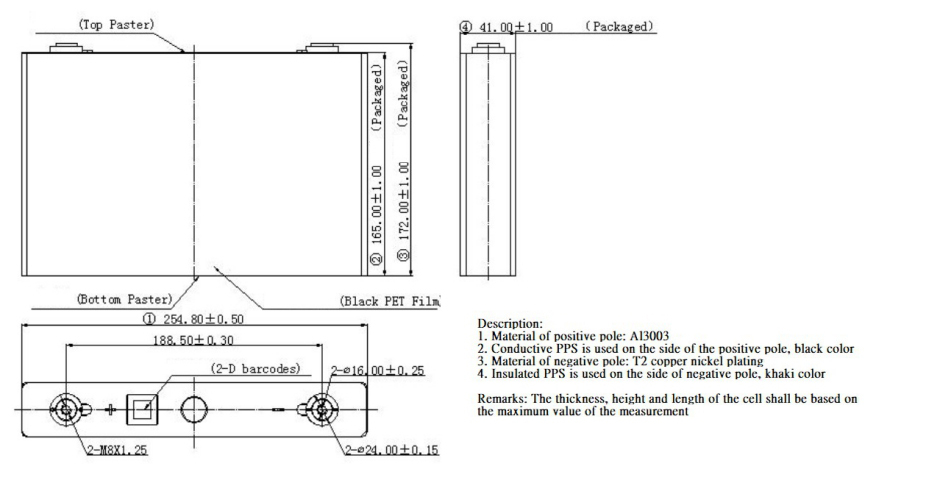

Dimension and details

details


dimension


Product Characteristic Curve

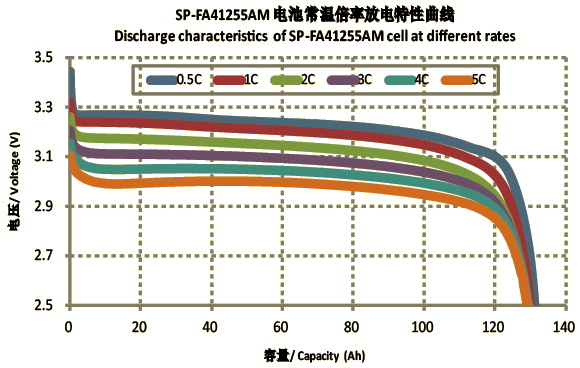

Discharge characteristics ofSP-FA41255AM cell at different rates

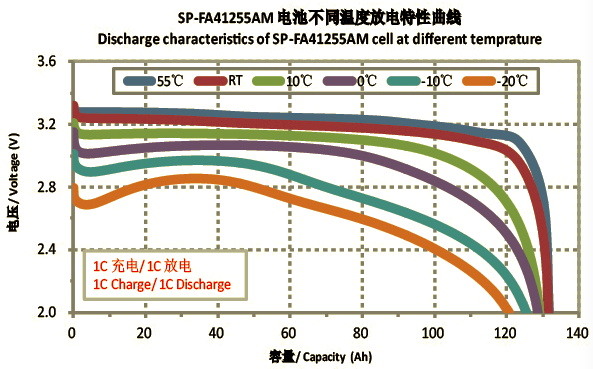

Discharge characteristics ofSP-FA41255AM cell at different temprature

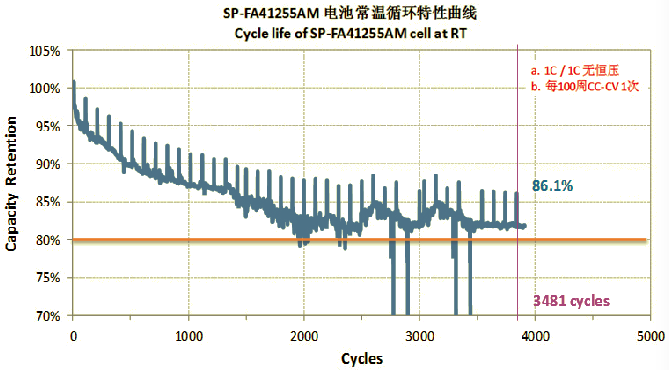

cycle life curve


Application

EV, energy storage & other power source system
