L194F130B 3.2V 130Ah LiFePo4 Prismatic lithium Ion Battery Cell

3.2v 130ah LiFePo4 Prismatic lithium Ion Battery Cell is suitable for electric vehicle sightseeing car RV solar street lamp battery

L194F130B 3.2V 130Ah LiFePo4 Prismatic Lithium Ion Battery Cell

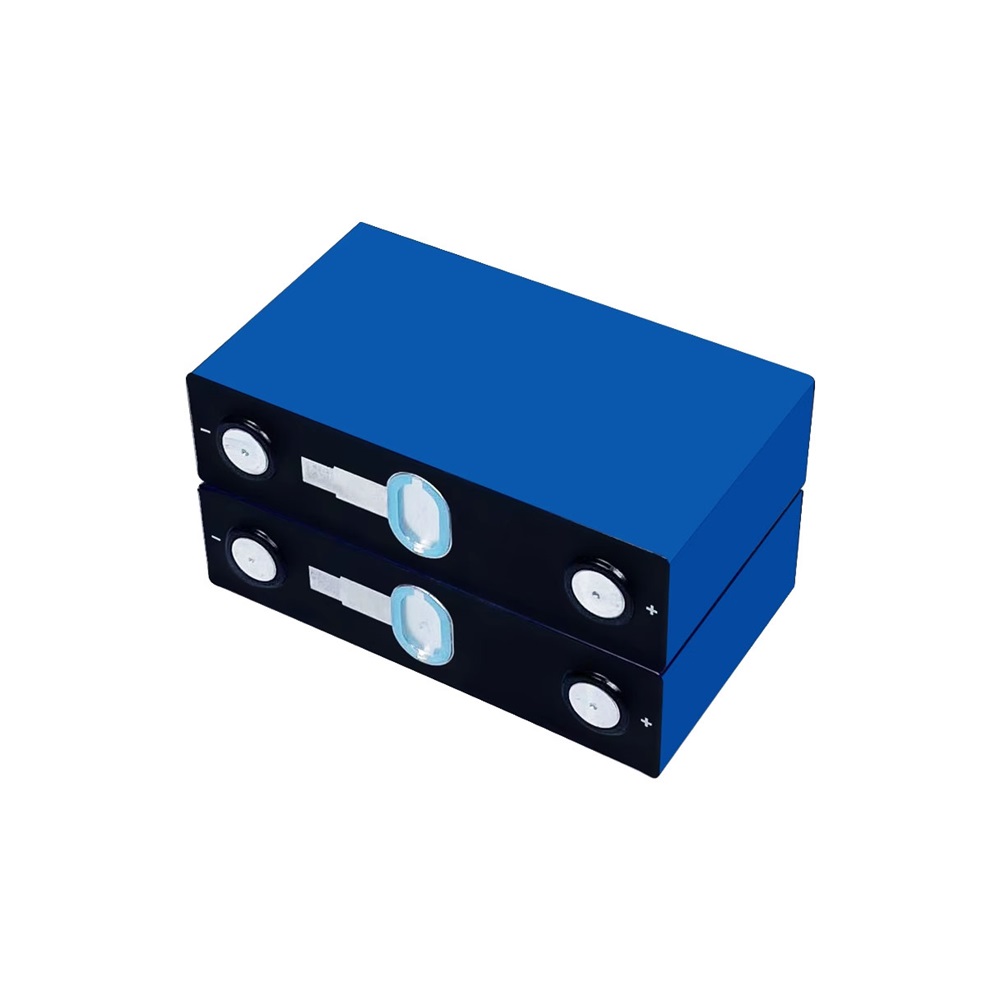

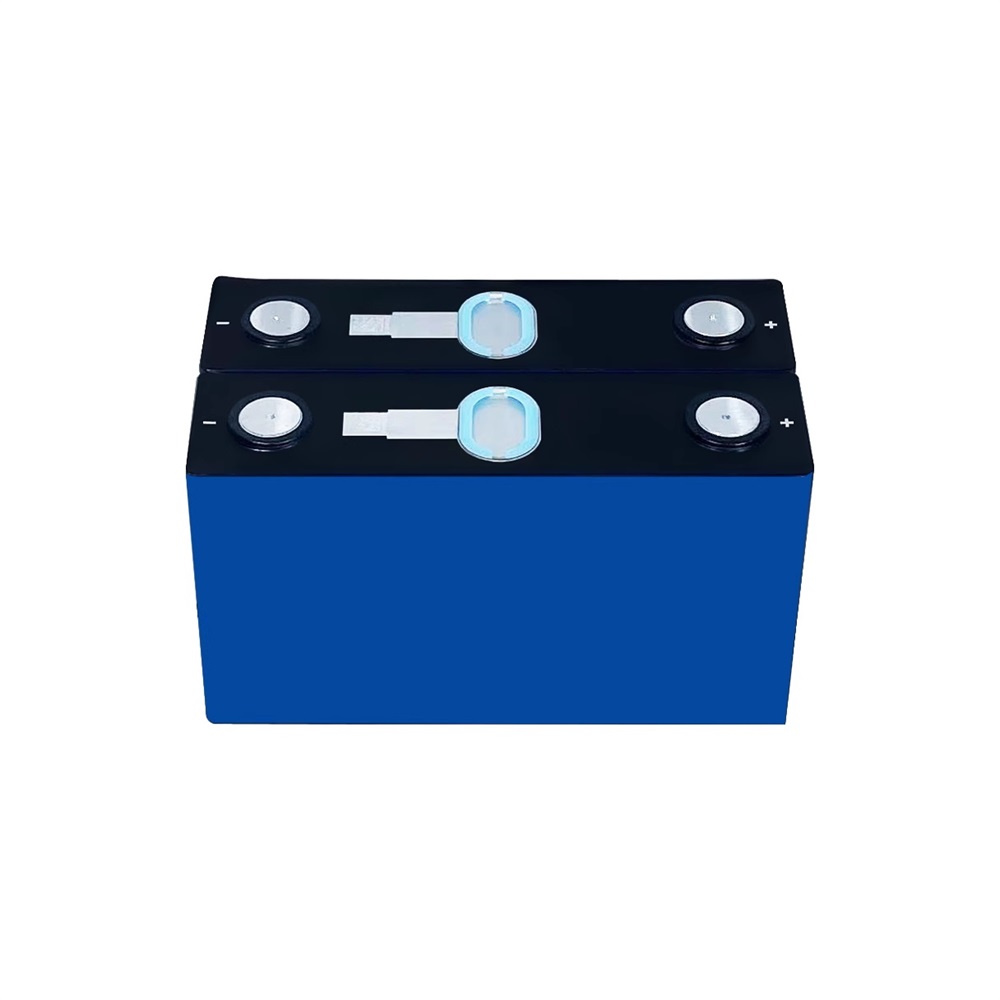

CALB L194F130B cell .jpgCALB L194F130B cell 4.jpg

3.2V 130Ah LiFePo4 Prismatic Lithium Ion Battery Cell is suitable for electric vehicle sightseeing car RV solar street lamp battery with ultra-low internal resistance and ultra-long life.


Feature

· Safe and stable

· Sufcient capacity

· Good consistency

· Flameproof and explosion-proof

· Environmentally friendly and durable

· Super long endurance


Specification


Parameter

Specification

Rated Capacity

130Ah(1C Discharge)

133.2Ah(Standard Discharge)

Rated Voltage

3.2V(1C Discharge)

3.22V(Standard Discharge)

Rated Energy

416Wh(1C Discharge)

428.9Wh(Standard Discharge)

Cell Weight

2.34±0.025kg

Mass Energy Density

(Standard Discharge)

185Wh/kg

(Standard Discharge)

Cell Volume

1.08L

(without terminal)

Volume Energy Density

(Standard Discharge)

395Wh/L

ACR

(Alternating Current Resistance)

＜0.3mΩ

20%SOC, Room Temperature, AC

Impedance, 1000 Hz

Temperature

Range

Charging Temperature: -20~55°C

Discharging Temperature: -30~55°C

Storage Temperature: -40~60°C

Fast Charging Time

≤20 min(10~80% SOC)

Voltage Range

2.5~3.65 V(0℃≤T≤55℃)

2.5~3.65 V(-30℃≤T＜0℃)

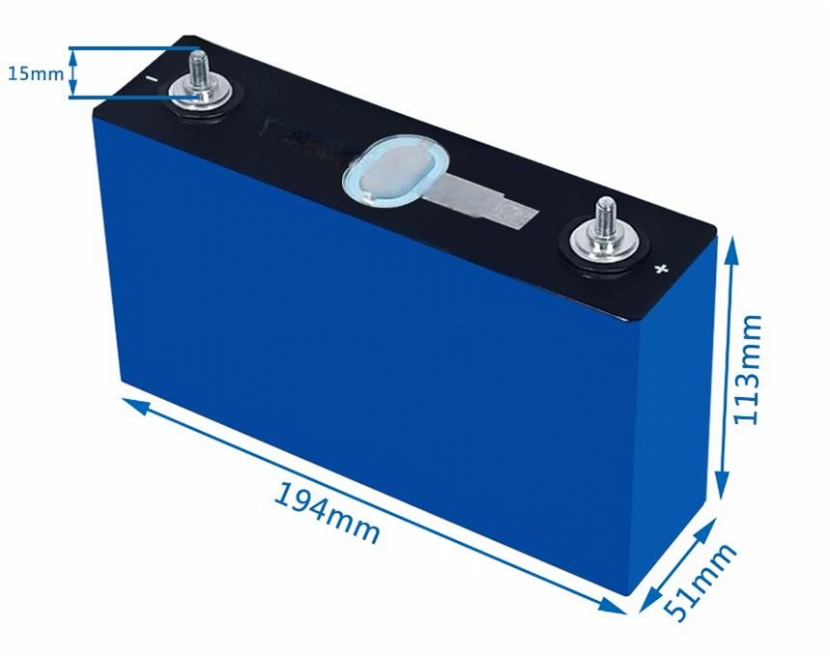

Dimensions

(194.3±0.3)×(50.7±0.3)×(110.2±0.4)mm

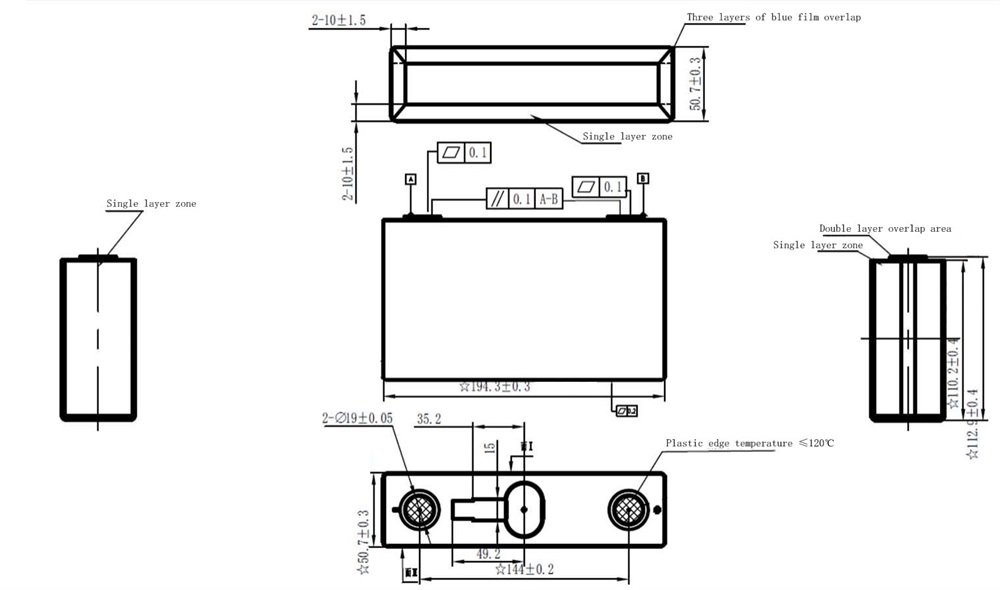

Dimension


dimensiondimension



Details

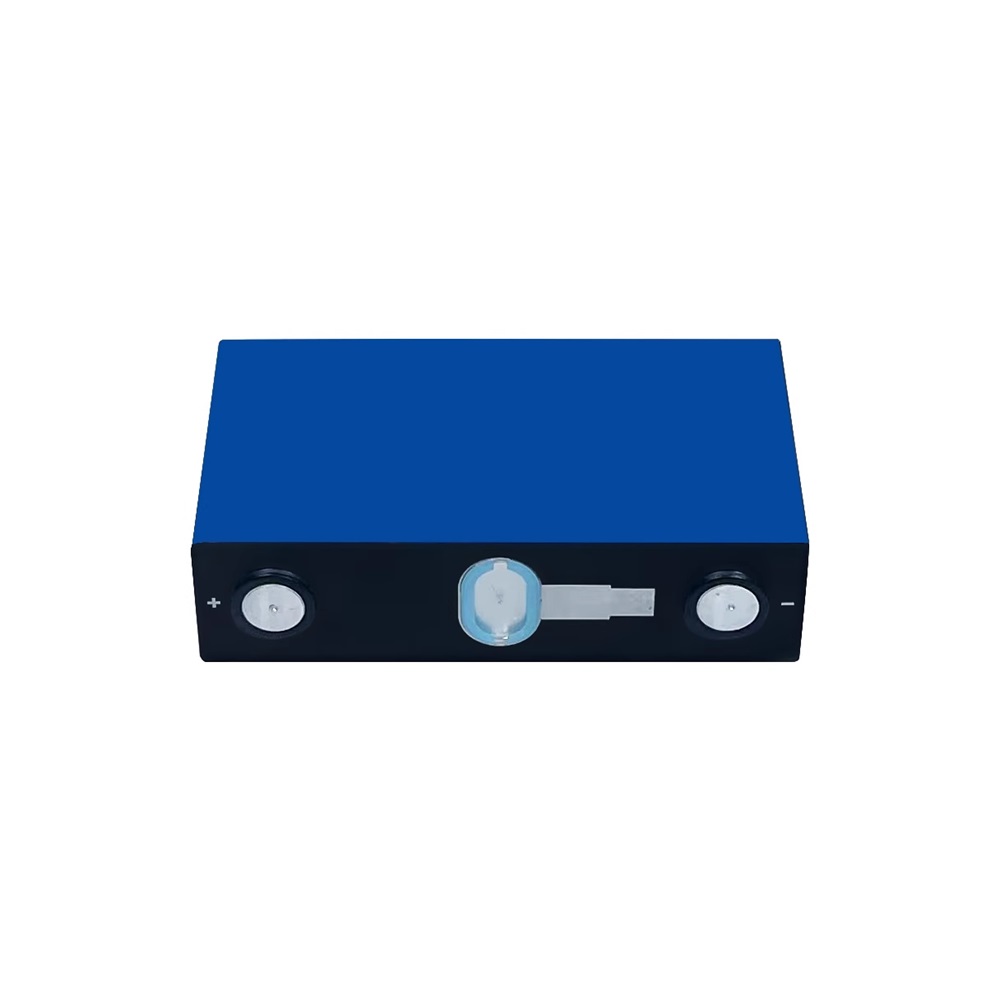

CALB L194F130B cell 5.jpg

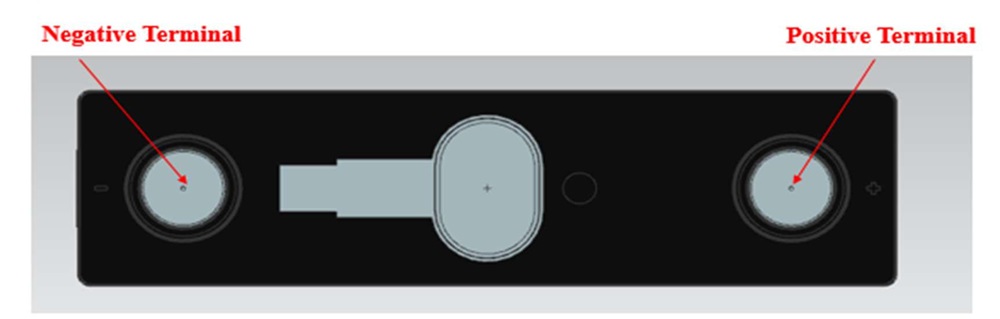

Battery positive and negative


Prohibition

1) It is forbidden to throw the battery into the fire or place it near the heat source, and it is forbidden to throw or soak the battery

in water.

2) It is forbidden to short-circuit conductive objects to the positive and negative poles of the battery. Do not place conductive

objects near the battery, such as screwdrivers, pliers and wires.

3) Do not puncture the battery with sharp objects, do not hit the battery with heavy objects, do not step on or drop the battery,

and do not weld on the battery surface.

4) It is forbidden to disassemble the battery without the guidance of professional personnel and in an unspecified environment.
