3.2V 135Ah LFP Lithium Iron Phosphate Prismatic Cells On Sale
3.2V 135Ah LFP Lithium Iron Phosphate Prismatic Cells On Sale
3.2V 135Ah LFP Lithium Iron Phosphate Prismatic Cells On Sale
3.2V 135Ah LFP Lithium Iron Phosphate Prismatic Cells On Sale

3.2V 135Ah LFP Lithium Iron Phosphate Prismatic Cells On Sale

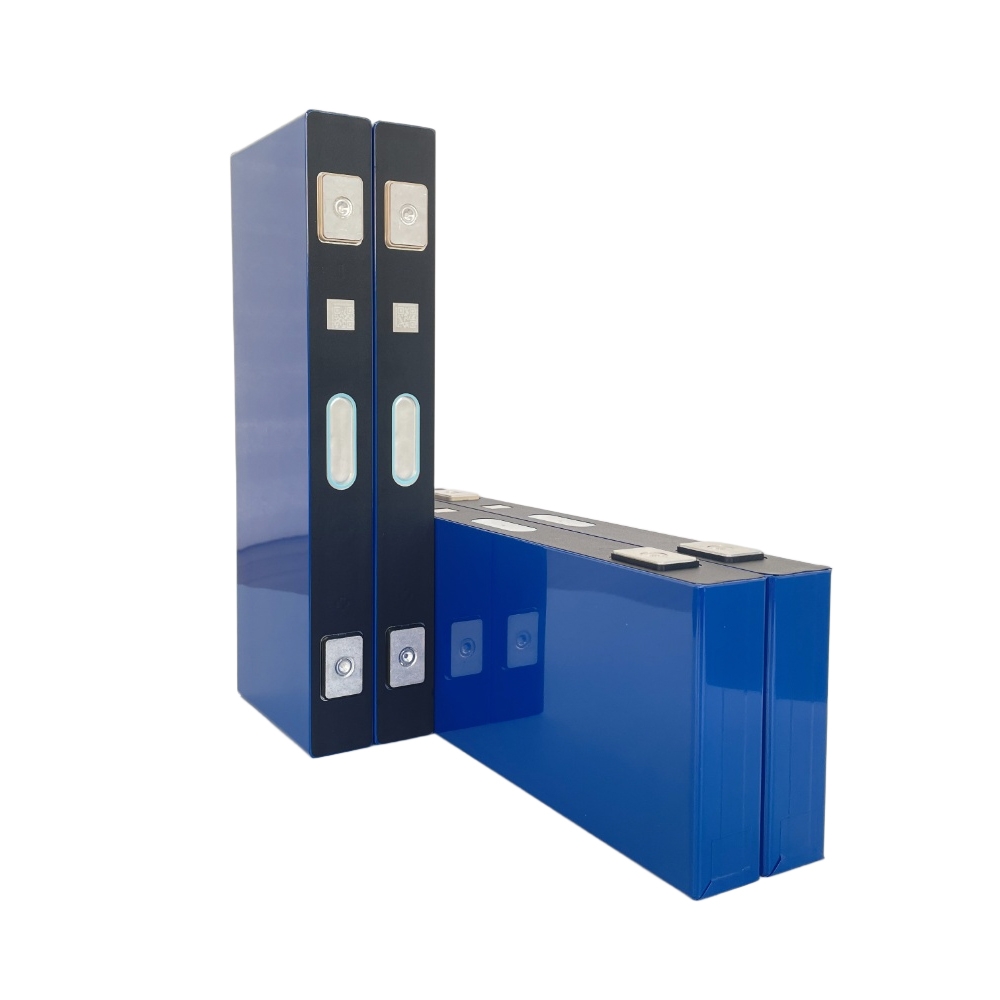

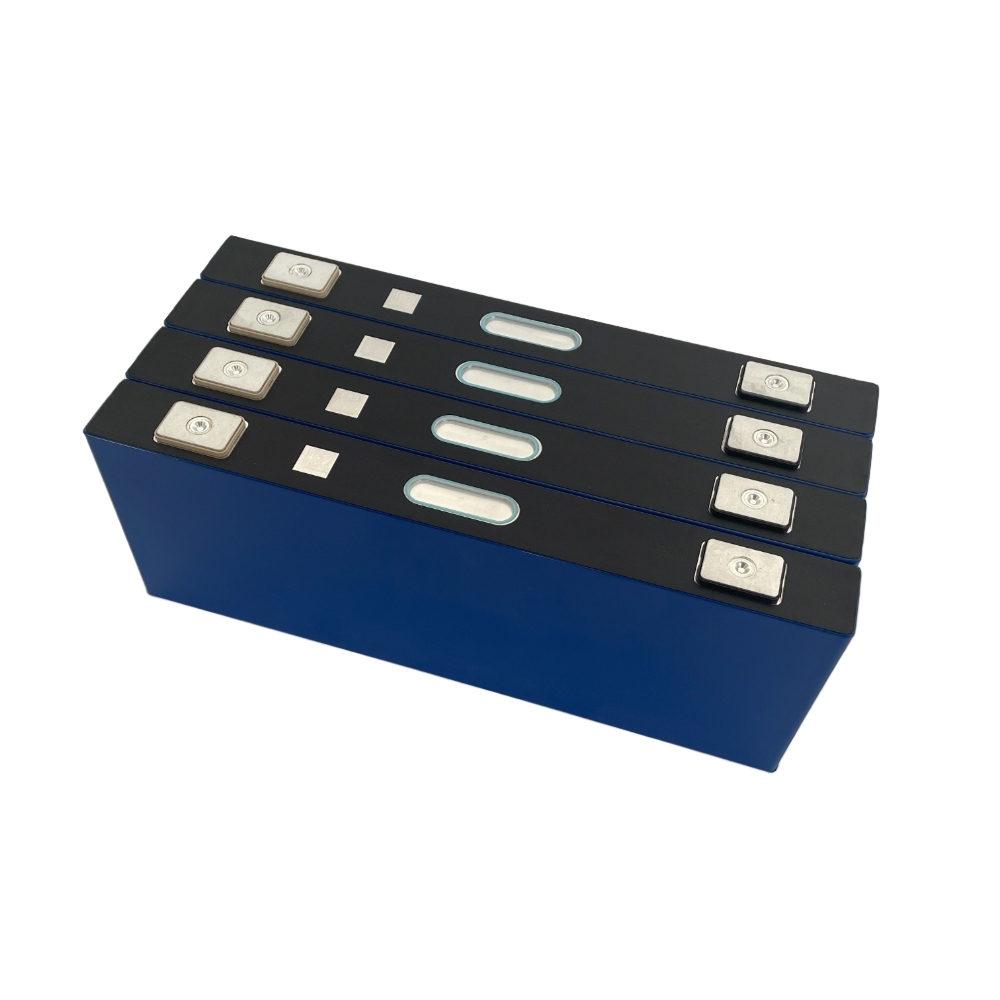

100% brand new, Grade-A 3.2V 135Ah LiFePO4battery, offers a long cycle life, high energy density, and a wide operating temperature range

100% brand new, Grade-A 3.2V 135Ah LiFePO4 Battery, offers a long cycle life, high energy density, and a wide operating temperature range, for Solar energy storage, solar power system, UPS supply, Engine starting battery, Electric bicycle/motorcycle/scooter, Golf trolley/carts, RV, EV, Caravan So on.


Specifications


Item
Spec
Remark
Nominal voltage
3.20V
RT
AC internal resistance
≤0.6mΩ
RT ，1KHz
Rated discharging capacity
135Ah
RT ，2.5V-3.65V，
Operating voltage
2.5V～3.65V
>0℃
2.0V～3.65V
≤0℃
Energy density
～180Wh/kg

Weight
2.47kg±0.10Kg
N.A
Dimension
Thickness：（33.2±0.5）mm
Thickness test condition:
SOC≤30% ，pressure of
300±10kgf
Width：（300.7±0.5）mm
Shoulder height：（109.8±0.5）mm
Total height：112.4±0.5mm
Cut-off charging
3.65V

Maximum pulse charging
current
2.7C
RT ，0~80%SOC ，10s
Maximum continuous charging current
1.10C
15℃ ~45℃
Maximum continuous
discharging current
1.30C
15℃~45℃
Maximum pulse discharging
current
3C
RT ，≥20% SOC ，30s
Cut-off discharging voltage
2.5V
>0℃
2.0V
≤0℃
Allowable discharging
temperature range
-30℃~55℃

Cycle life
≥2500 cycles（80%EOL）
25℃

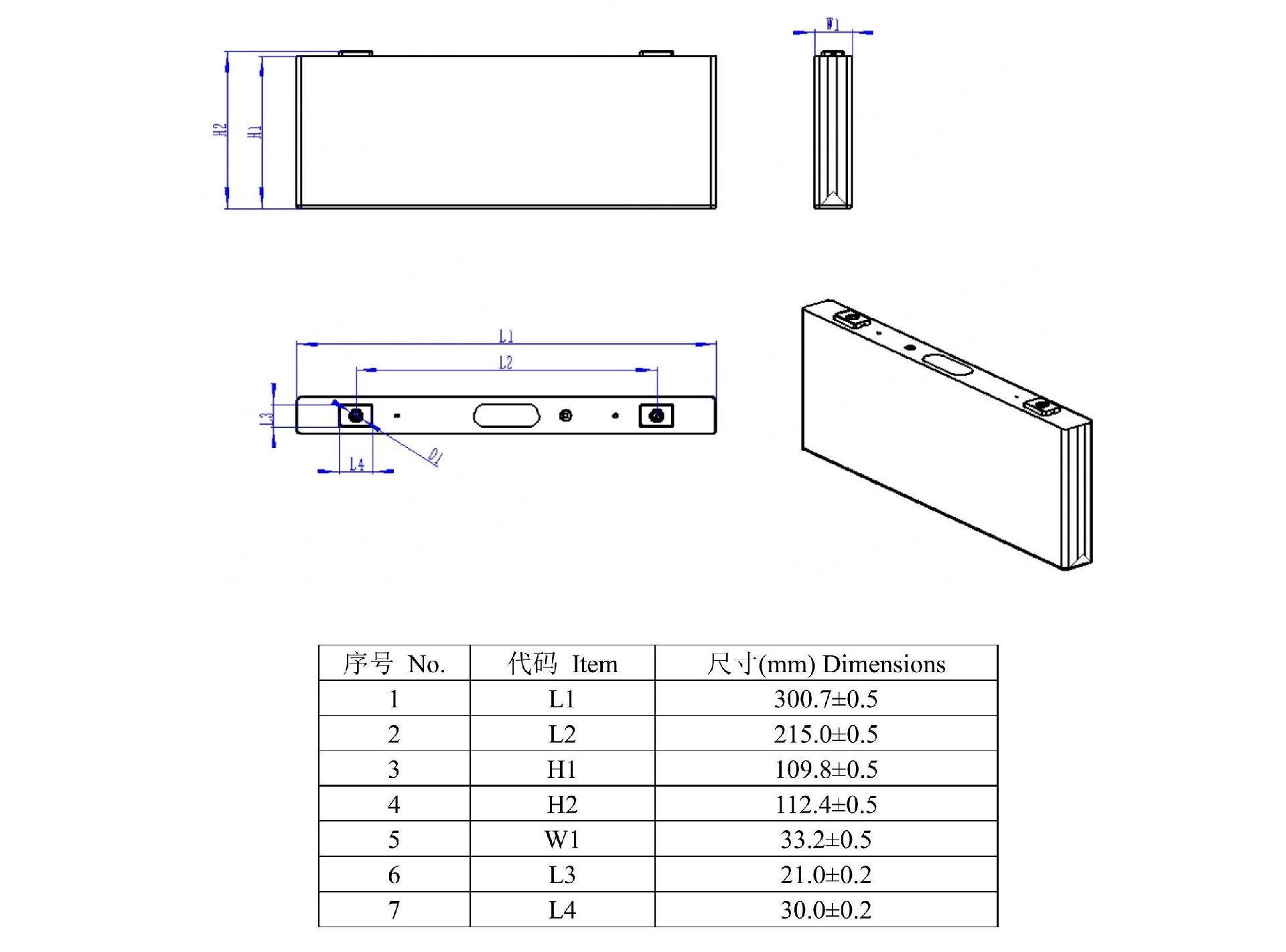

Dimension


3.2V 135Ah LiFePO4 Cell Lithium Battery Prismatic
