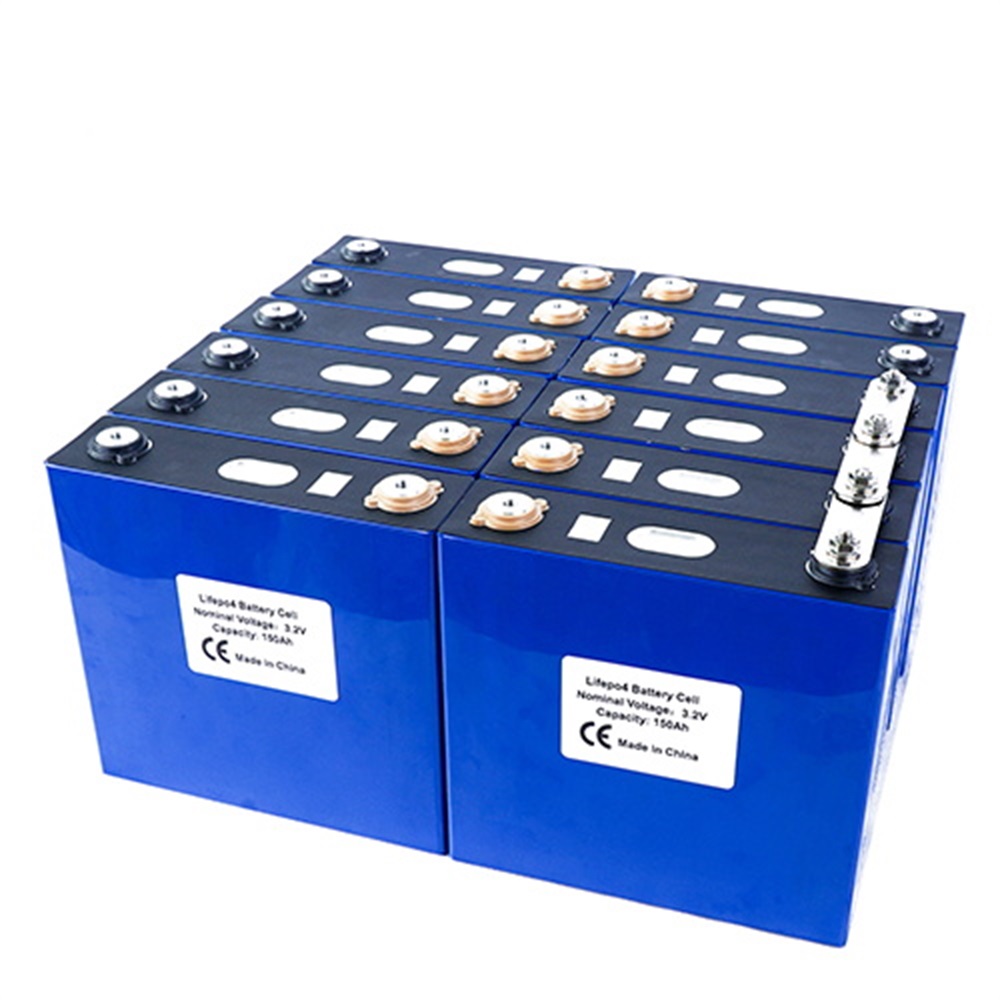

3.2V 150Ah Lithium ion LiFePO4 Battery Cell

3.2V 150Ah Lithium ion LiFePO4 Battery Cell high-power lithium battery for power lithium-ion battery for RV/solar system/yacht/golf carts storage and car

The 3.2V 150Ah lifepo4 lithium battery have a long cycle life and high energy density,the weight of it is only around 2.95kg, it is a perfect choice for diy 24v 12V 200Ah Solar energy storage/RV/electric bicyle/Caravan.

Specification

Item

Parameter Specification

Battery Module

Lithium iron phosphate cell

Nominal Capacity

150Ah

Nominal Voltage

3.2 V

Internal Resistance

≤0.3mΩ

Charging(CC-CV)

Recommend Constant Current

150A (1C)

Charging Upper Limit Voltage

3.65V

Discharging

Max Continuous Discharge Current

150A (1C)

Discharging Cut-off Voltage

2.5V

Recommended SOC Usage Window

SOC: 10%~90%

Operation Thermal Ambient

Charging

0°C ~ 65°C

Discharging

-20°C ~ 55°C

Storage Thermal Ambient

Short-term (within 1 month)

-20°C ~ 65°C

Long term  (within 1 year)

-20°C ~ 55°C

Storage Humidity

< 70%

Battery Weight

2.95±0.10kg

Battery Dimension

174*48*171mm

Shell Material

Aluminium


Application:

Engine starting battery, electric bicycle/motorcycle/scooter, golf trolley/carts, power tools... Solar and wind power system, RV, caravan... Back-up system and UPS... Torch LED light emergency light.

application


We provide 3.2V 150Ah high-power Lithium iron phosphate cell which has long cycles for Solar Energy Storage Solar power system UPS, Engine starting battery, electric bicycle/motorcycle/scooter, golf trolley carts, power tools, solar and wind power system, RV, caravan...

You can contact us if you need to
