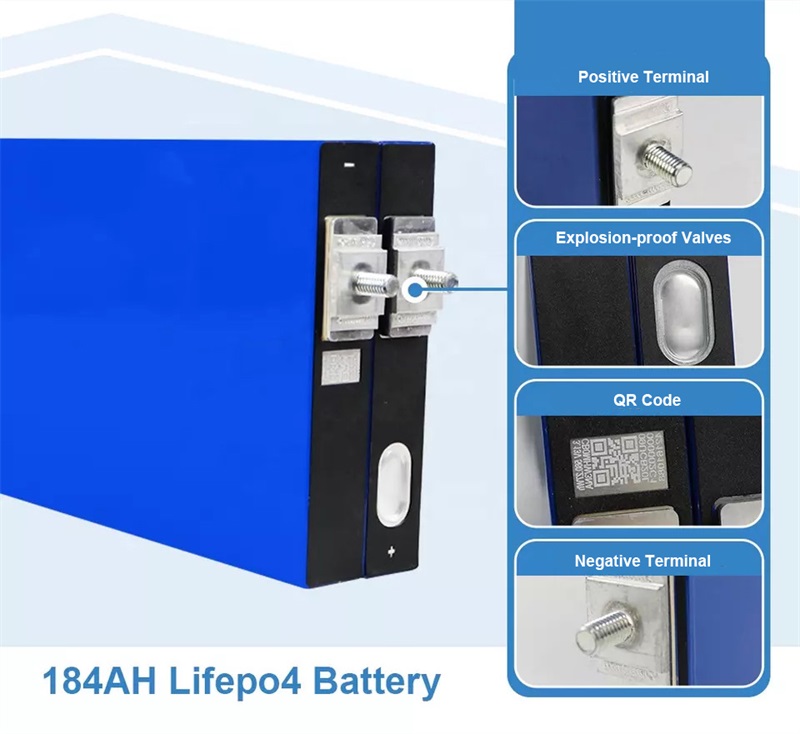

Blade Battery: 3.2V 184Ah LiFePO4 Prismatic Cells for Sale
3.2V 184Ah blade lfp battery lithium iron phosphate LiFePO4 prismatic battery cells for sale , high energy of 175wh/kg
- Category: LiFePO4 Battery Cell
- Tag: lifepo4 battery cell
The blade battery uses lithium iron phosphate as the cathode material; has excellent safety features and long cycle life; Good temperature performance, wide battery operating temperature range; High energy density, and is environmentally friendly.
Blade battery technology has an innovative structure, good thermal stability, and higher safety performance than the traditional battery; under high temperature, overcharge, extrusion, acupuncture, and other conditions, the cell is less likely to be hot, effectively improving the safety;
The energy density per unit volume is 1/3 higher than traditional batteries, bringing better spatial performance for new energy.
Main Performance of 184ah Blade Battery
Items | Parameters |
Nominal Capacity | ≥184Ah |
Energy | ≥588Wh |
Specific Energy | ≥175Wh/kg |
Operating voltage | 2.0~3.65V |
Internal Resistance (AC, 1khz) | ≤0.45mΩ |
Outgoing voltage | 3.305±0.004V |
Outgoing capacity | ≥184Ah |
Operating temperature | Charging: -20~60℃ |
Discharge: -30~60℃ | |
Cycle life | ≥2500 25℃, 80% SOH |
Discharge power@25℃ | ≥1753W (25±3℃, 50%SOC, 10s ) |

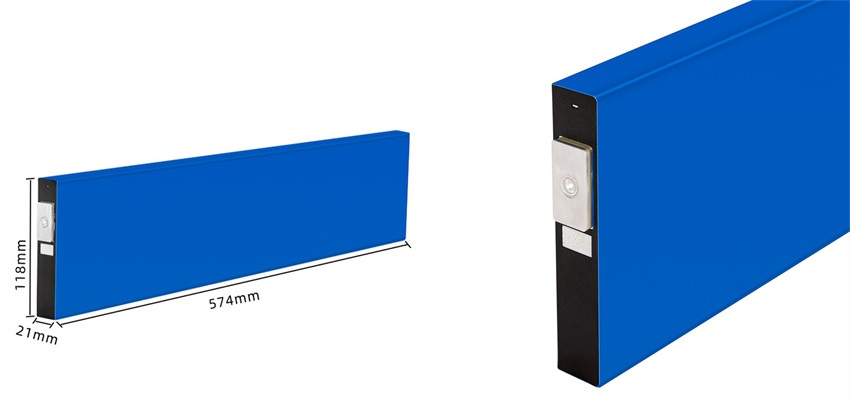

Dimension | 21*574*118mm |
Weight | 3370±45g |
Details

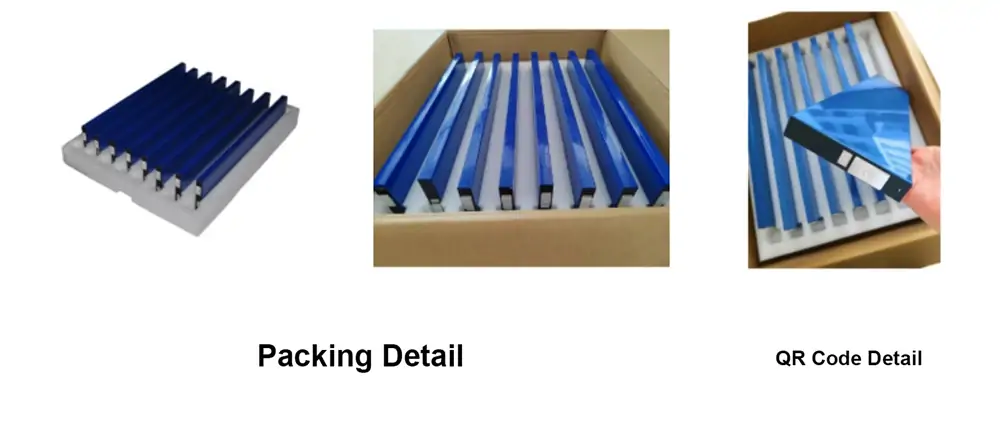

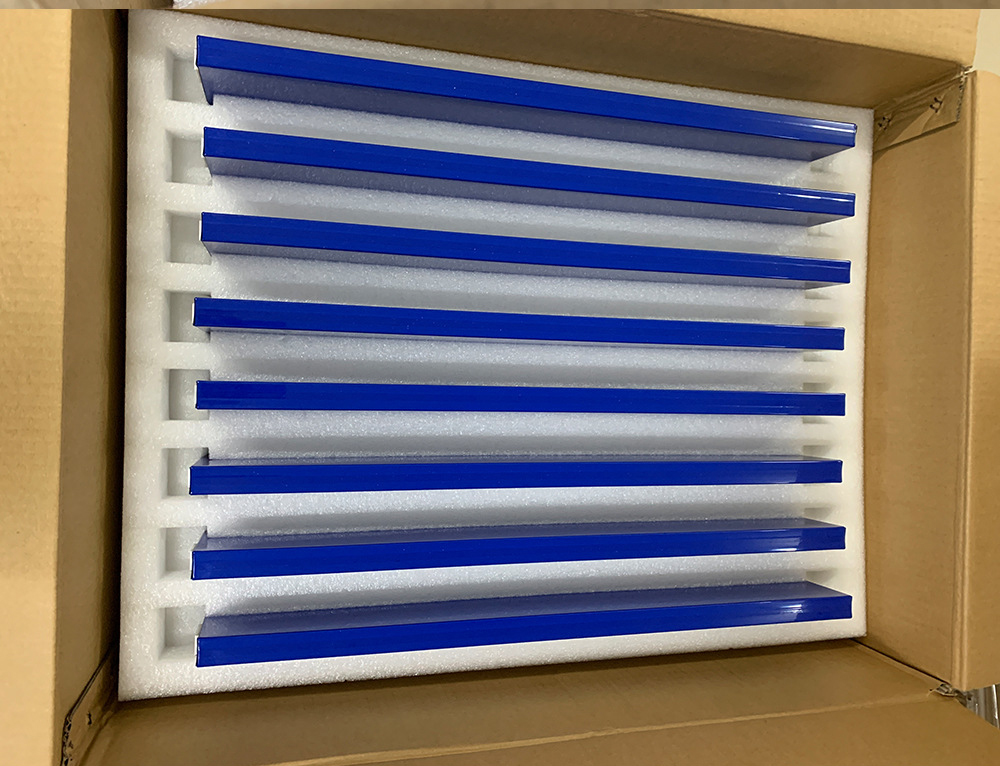

Packing Details

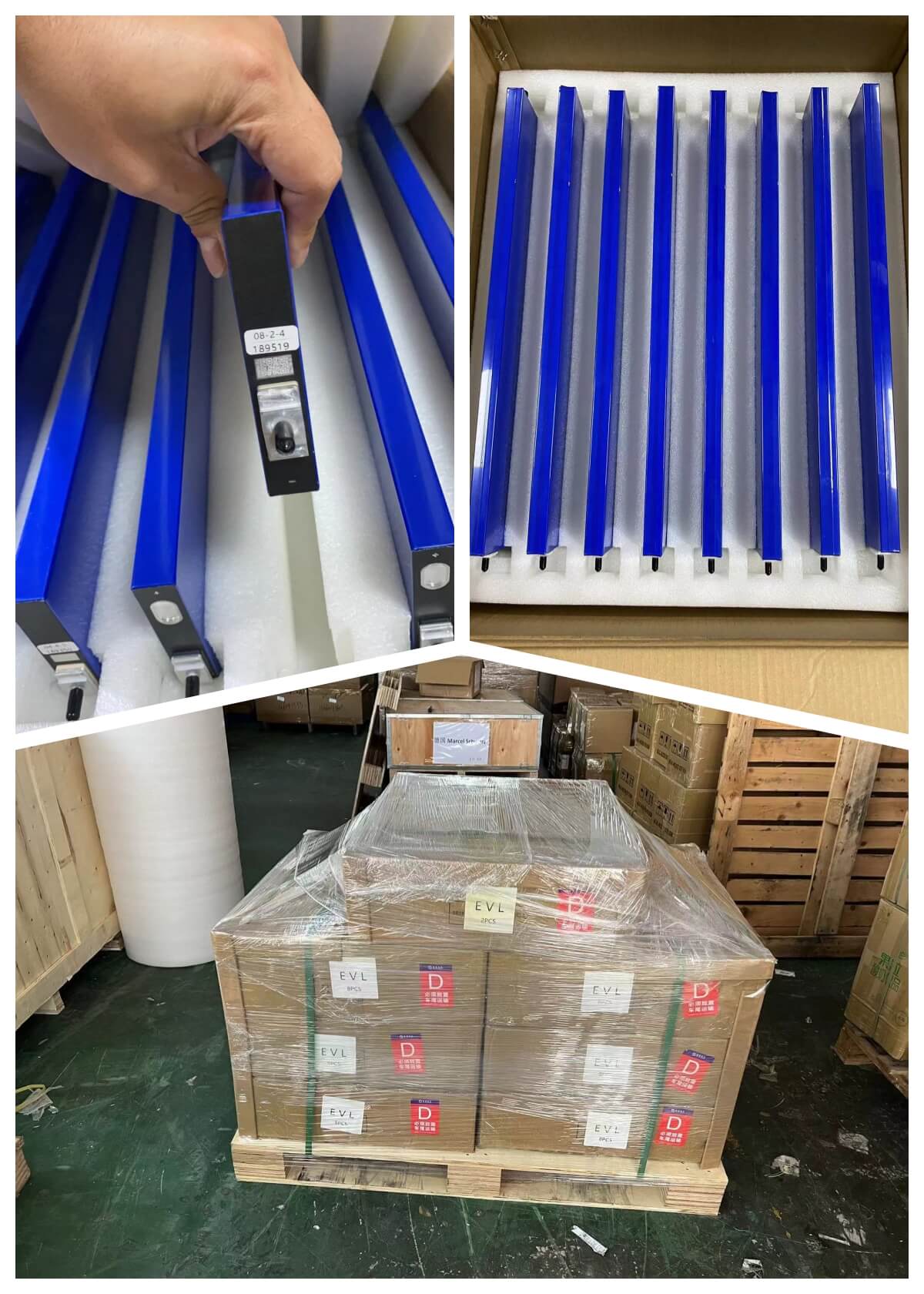

Newly Updated Shipment Records for SVOLT 3.2V 184AH lifepo4 battery Cells Orders
