3.2 v lifepo4 battery 280ah Prismatic Cell with Aluminum Case

3.2 v lifepo4 battery 280ah Prismatic Battery Cell with Aluminum Case it is more than 10000 times super long cycle life.

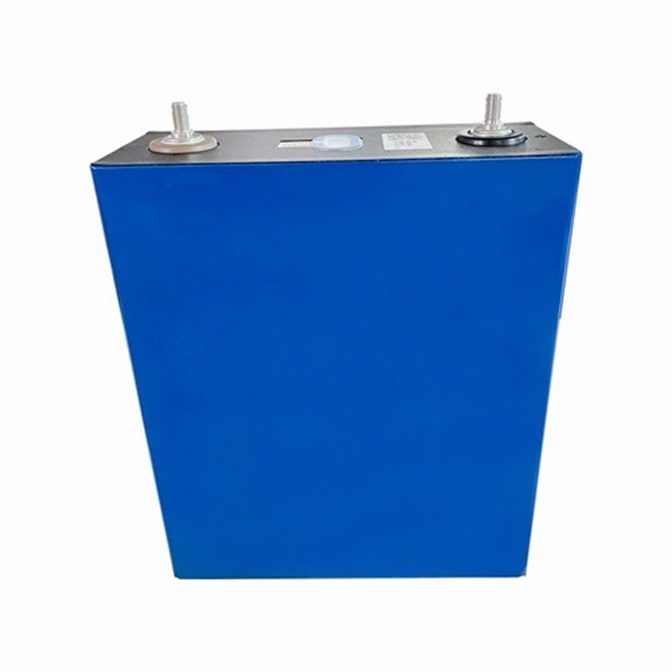

3.2v 280ah lifepo4 Prismatic aluminum Battery case Cell is a new model with an aluminum case produced by CATL, a leading lithium battery supplier from China; this battery cell has a super long cycle life of more than 12000times, has a stable performance used for ESS(energy storage system). All the cells we provide are brand new grade A with test report and all kinds of certifications.


Performance 3.2 v lifepo4 battery 280ah Prismatic aluminum Battery case Cell

1. This model is a 280Ah model, With an intact QR code and brand new grade A cell.

2. The 280ah cell's terminal has been welded with bolts for easy connection, and we provide free busbars.

3. The cell has a maximum cycle life of 12,000 times.

4. All batteries are tested before shipment, and the test report is provided


pack

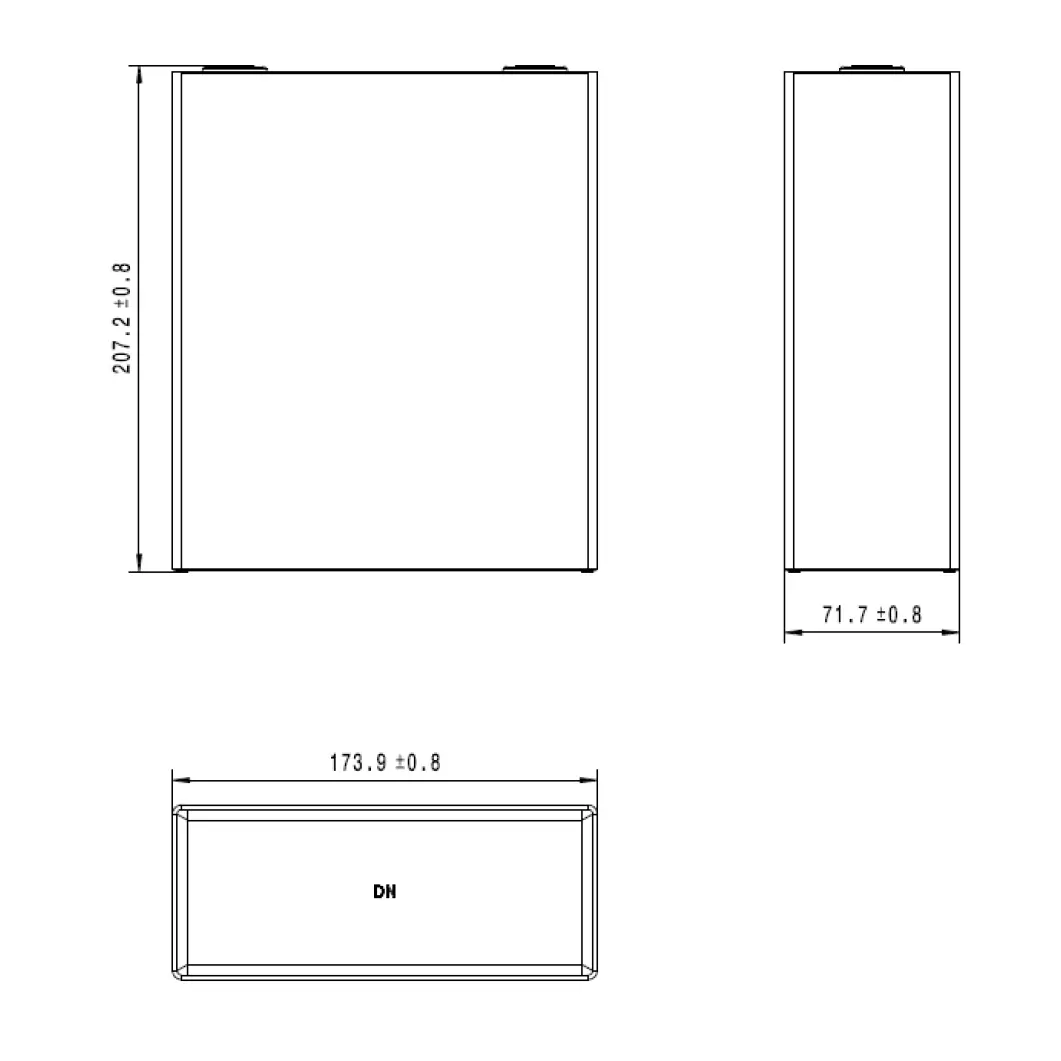

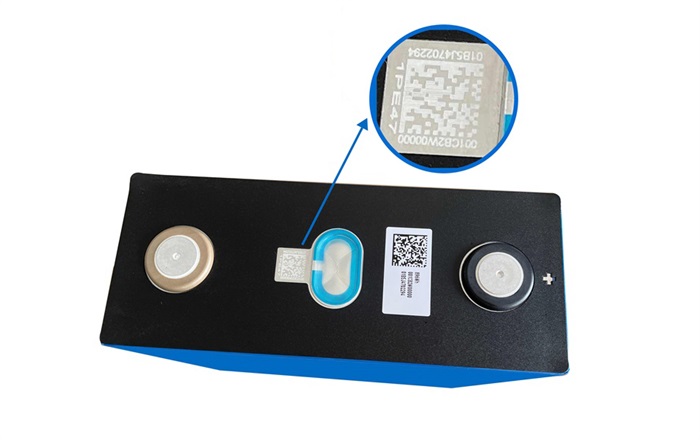

Battery QR codedimension



Specifications


Item

Parameter

Nominal Capacity

280Ah

Nominal Voltage

3.2 V

Internal Resistance

≤0.18mΩ

Charging (CC-CV)

Continuous Charging Current

1C

Maximum Charging Current

3C

Charging Upper Limit Voltage

3.65V

Discharging

Continuous Discharging Current

1C

Maximum Discharging Current

3C

Discharging Cut-off Voltage

2.5V

Recommended SOC Usage Windom

SOC: 10%~90%

Operation Thermal Ambient

Charging

0°C ~ 65°C

Discharging

-35°C ~ 65°C

Storage Thermal Ambient

Short-term (within 1 month)

-20°C ~ 65°C

Long-term (within 1 year)

-20°C ~ 55°C

Storage Humidity

< 70%

Battery Weight

Around 5.34kg

Shell Material

Aluminum

Cell Dimensions

207 x 174 x 72 mm




There are many vendors provide 280ah cells at a very low price. However, the batteries they provided are grade B cells. They renew batteries to make them look new, but these cells with poor performance can only work for 1 or 2 years. We provide brand new grade A cells with three years warranty, and our battery will last 7-8 years on average.



3.2v 280ah

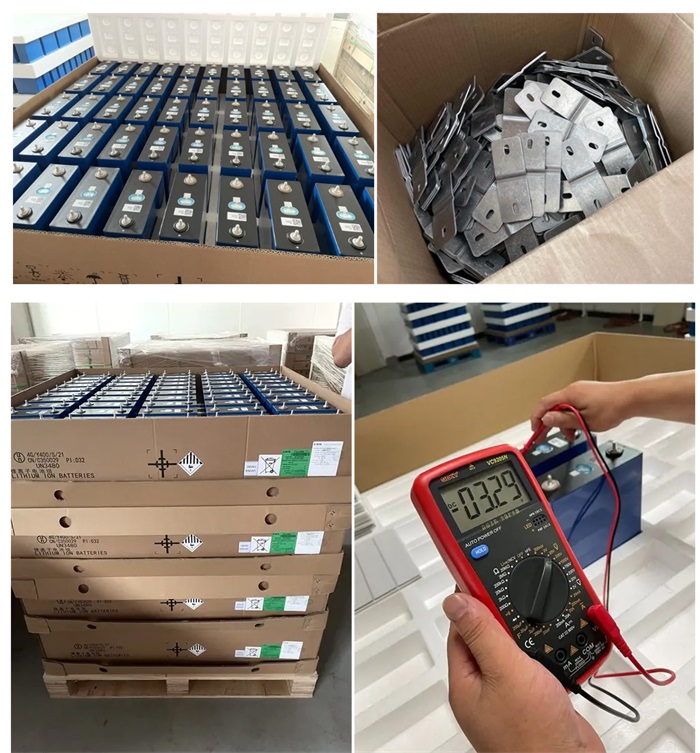

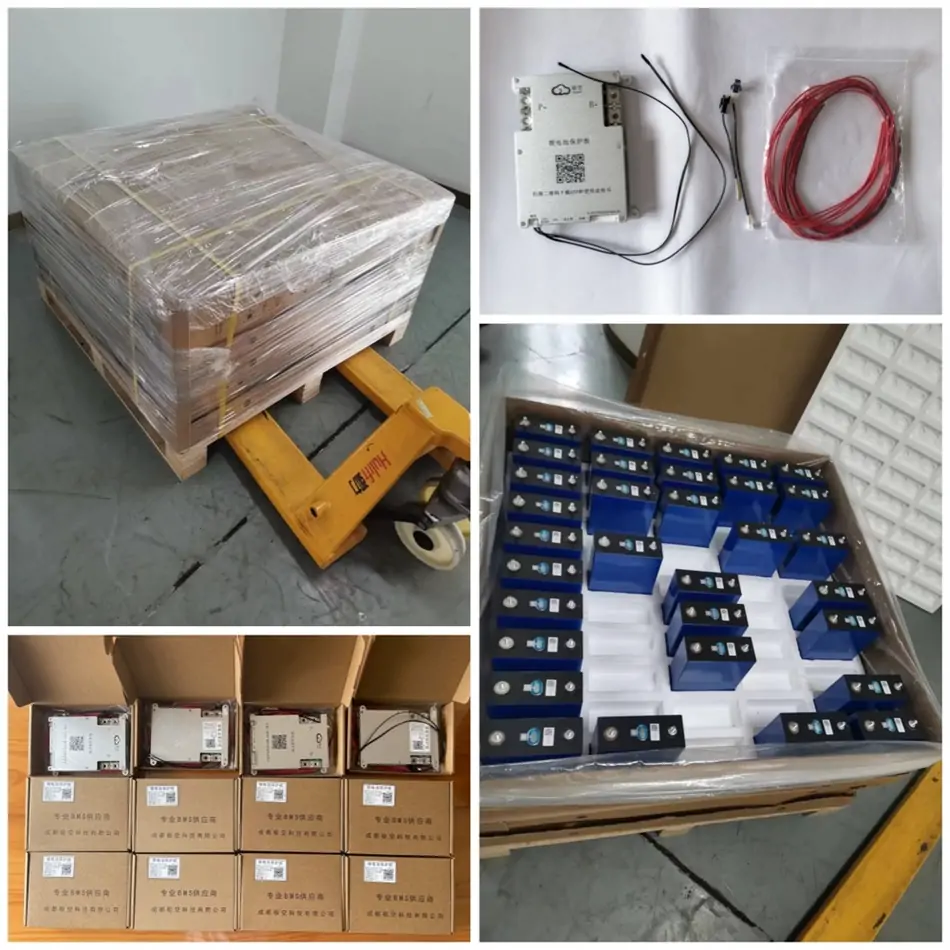

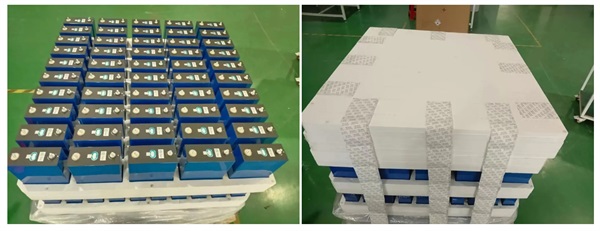

Newly Updated Shipment Records for 3.2V 280AH lifepo4 battery Cells Orders


3.2v 280ah shipment
