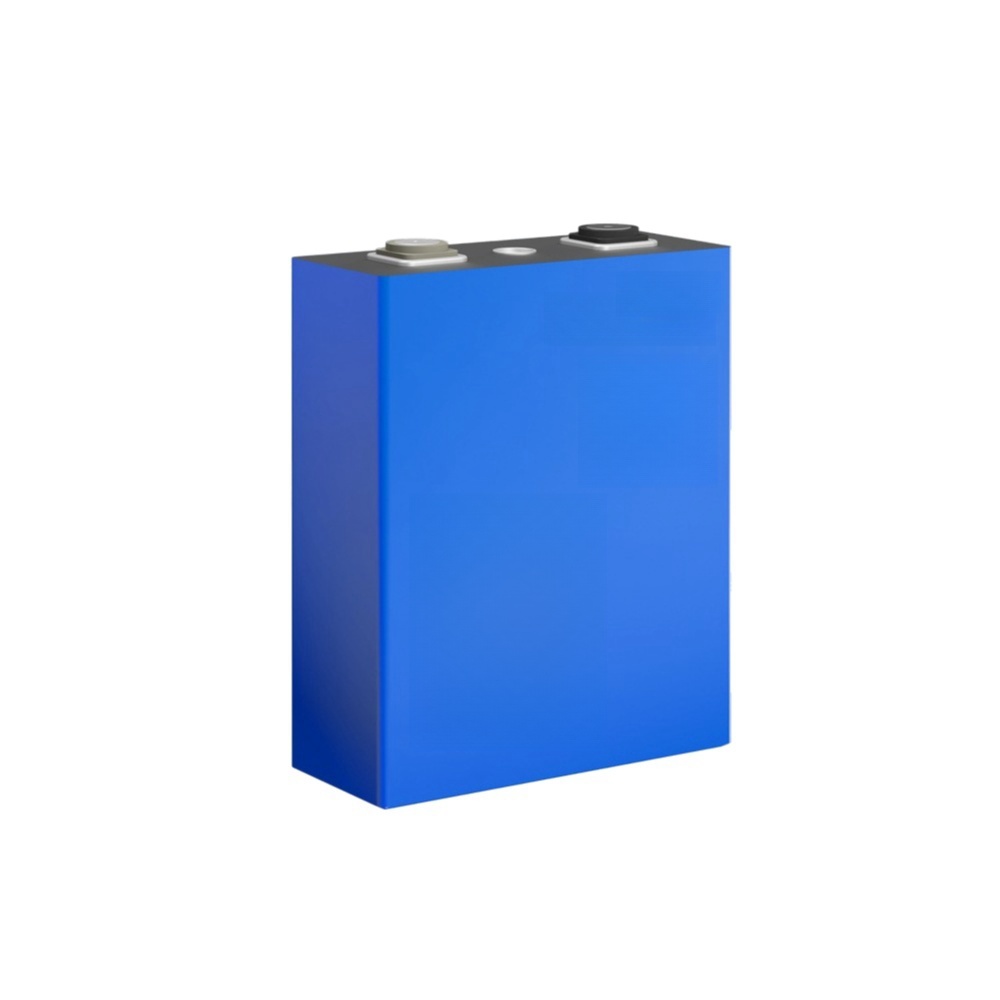

3.2V 314Ah Aluminum Shell LiFePO4 Prismatic Battery Cell

High power LiFePO4 battery GSP71173204 314Ah 3.2V long life LFP battery, suitable for containerized ESS, DIY LiFePO4 battery pack

Feature

1. Ultra-high security platform stability: no fire explosion

2 . Long cycle: thousands of cycles, low electricity cost

3. High energy efficiency: room temperature 25°C/0.5P, energy efficiency ≥95.0%

4.Excellent low temperature: -30°C discharge and -40°C storage

5 . High consistency: achieve high consistency of temperature, life, capacity, internal resistance, voltage, etc

Specifications

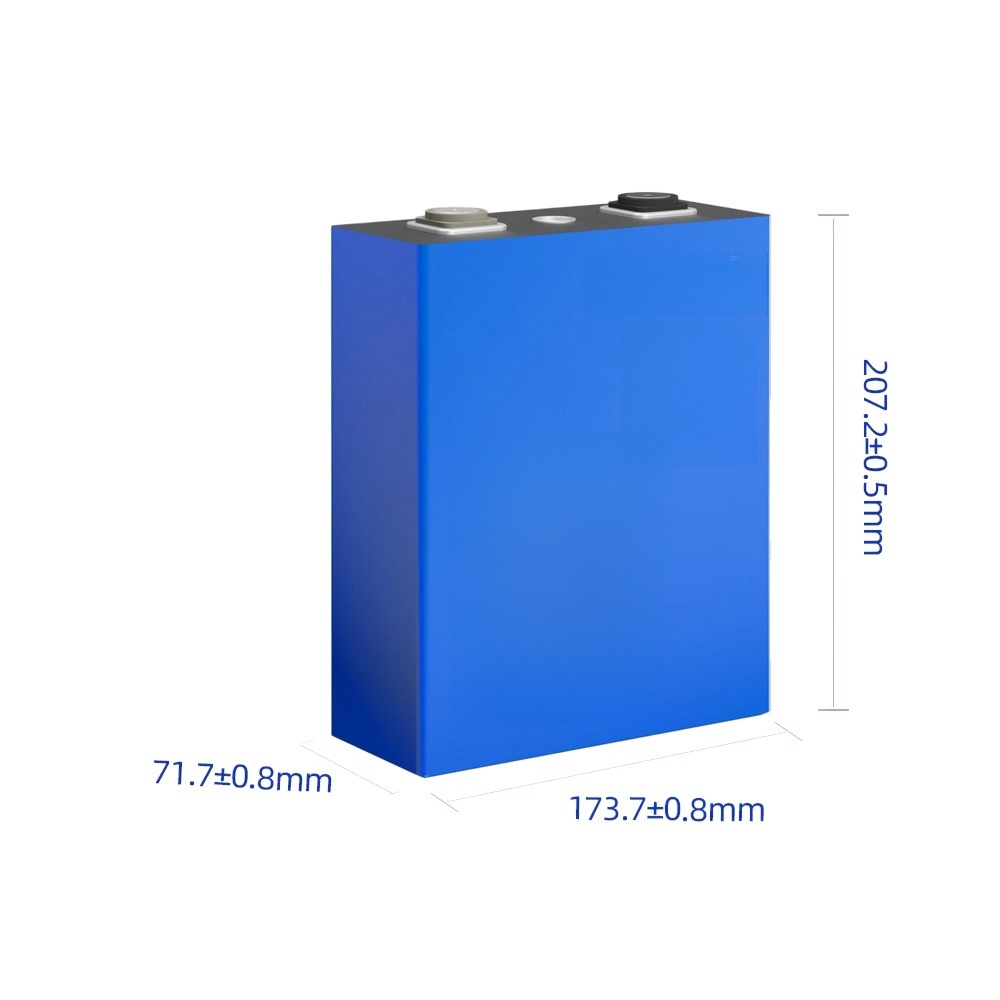

Product Display And Dimension

High Safety Technology

Through acupuncture, thermal runaway, impact, injection, and other 20+ safety tests; At the same time, overcharge does not occur thermal runaway. And through UL/IEC/UN/MSDS/ROHS/GB, etc. And multiple stringent certifications

1/Ultra wetted impedance electrolyte technology  2/High-safety composite diaphragm technology  3/Nanoscale safety coating technology

Applications

1. Communication energy storage

2 . Battery energy storage

3 . Household energy storage

4. New energy ship

5 . Construction truck

6 .New energy vehicle

Notice for Assembling Battery Pack

Shocks, high temperature, or contacts of sharp edge components should not be allowed in battery pack

Cell connection

1) Direct soldering of wire leads or devices to the cell is strictly prohibited.

2) Lead tabs with pre-soldered wiring shall be spot welded to the cells. Direct soldering may cause damage of components, such as separator and insulator, by heat generation

Prevention of short circuit within a battery pack

Enough insulation layers between wiring and the cells shall be used to maintain extra safety protection. The battery pack shall

be structured with no short circuit within the battery pack, which may cause generation of smoke or firing.

Prohibition of disassembly

1) Never disassemble the cells

The disassembling may generate internal short circuit in the cell, which may cause gassing, firing, explosion, or other

problems.

2) Electrolyte is harmful

LIP battery should not have liquid from electrolyte flowing, but in case the electrolyte come into contact with the skin, or eyes, physicians shall flush the electrolyte immediately with fresh water and medical advice is to be sought.
