CATL 3.2V 314Ah CBC00 LiFePO4 Battery Cell For ESS

CATL CBC00 3.2V 314Ah LiFePO4 Battery Cell For ESS, 280ah lifepo4 battery cells upgrade

The CATL 314Ah LiFePO4 battery cell is a high-capacity battery cell that is used for energy storage systems, it is an upgrade of the 280ah lifepo4 battery cells, and the 314ah lifepo4 cell has a 12% higher capacity than the 280ah lifepo4 cell in the same dimensions; It is manufactured by Contemporary Amperex Technology Co. Limited, a Chinese battery manufacturer.

This battery cell has a capacity of 314Ah and a nominal voltage of 3.2V. It is designed to provide high energy density and long cycle life. The battery cell is also known for its high safety performance and reliability.

The 314Ah LiFePO4 battery cell is commonly used in energy storage systems for residential, commercial, and industrial applications. It can be used in conjunction with other battery cells to create larger battery packs with higher capacities.


Specifications


Parameter

Specification

Typical capacity

314 Ah

Typical Energy

1004.8Wh

Operating voltage

2.5~3.65V, T>0°C

2.0~3.65V, T≤0°C

Impedance (1KHz)

0.17±0.05mΩ, Fresh cell

Shipping capacity

99±1Ah

Standard charge power

0.5P, 25±2°C

Max. continuous charge power

0.5P

Standard charge voltage

Cell max voltage 3.65V

Standard discharge power

0.5P, 25±2°C

Maximum discharge power (continuous)

0.5P

Discharge cut-off voltage

2.5V, T>0°C

2.0V, T≤0°C

Residual capacity loss

Per month ≤3.5%, First Month

Operating temperature

Charging: 0~60°C

Discharging: -20~60°C

Cell Weight

5.49±0.30Kg

Storage temperature

-35~60°C

Storage ambient humidity

< 85% ROH, no condensation

dimension(W*H*T)

174.26*204.41*71.65mm

Rest SOC

≥8%

Altitude

<5000m

Cycle performance

7000 Cycles@70%SOH

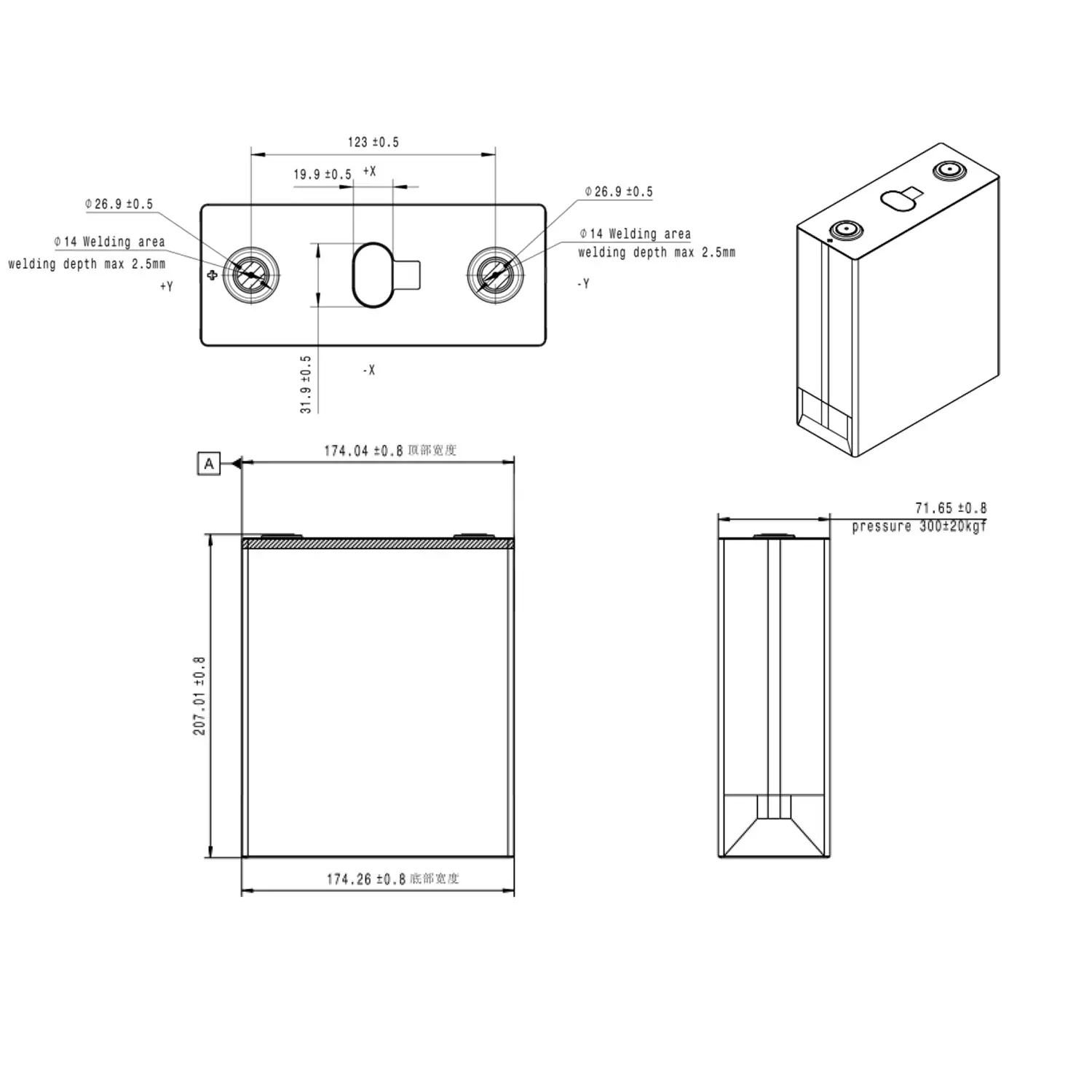

Details and Dimensions

3.2V 314Ah CBC00 LiFePO4 Battery Cell For ESS3.2V 314Ah CBC00 LiFePO4 Battery CellDimension

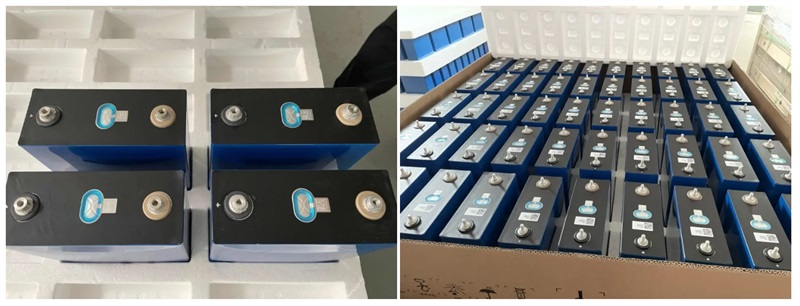

Product Shooting

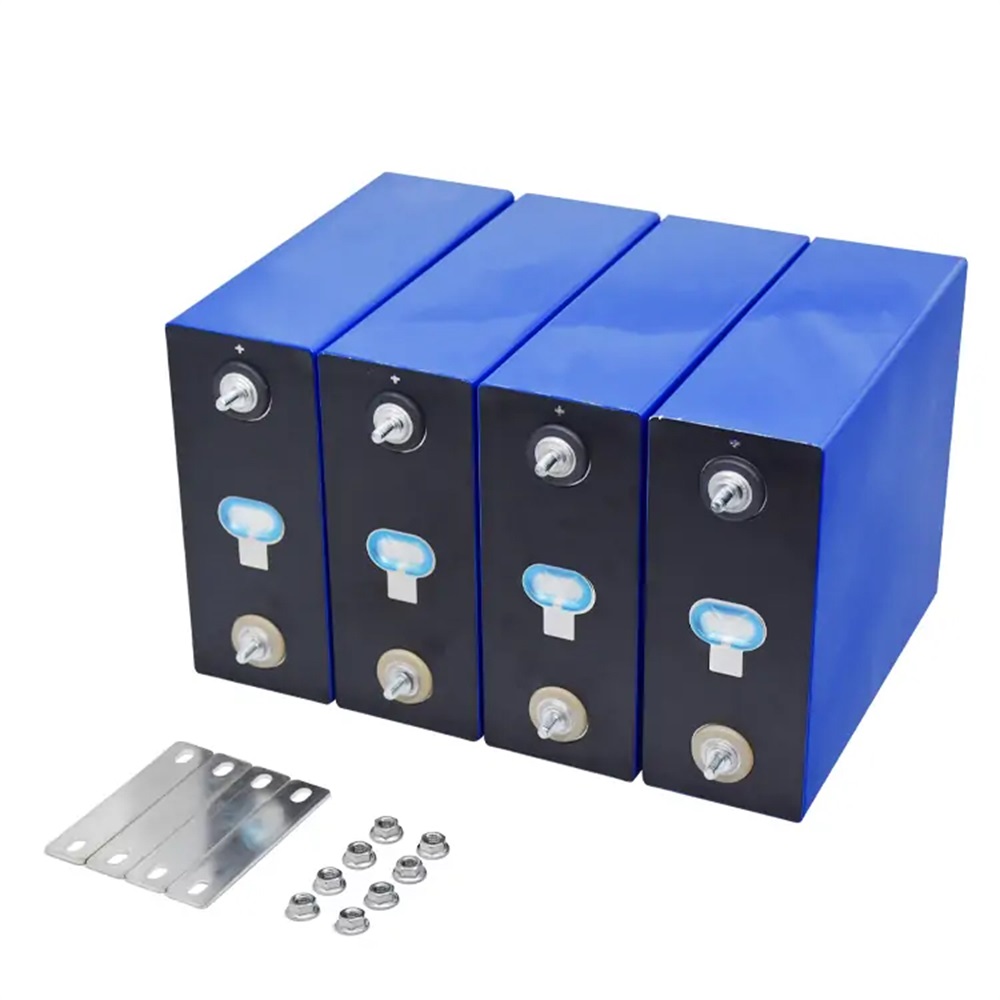

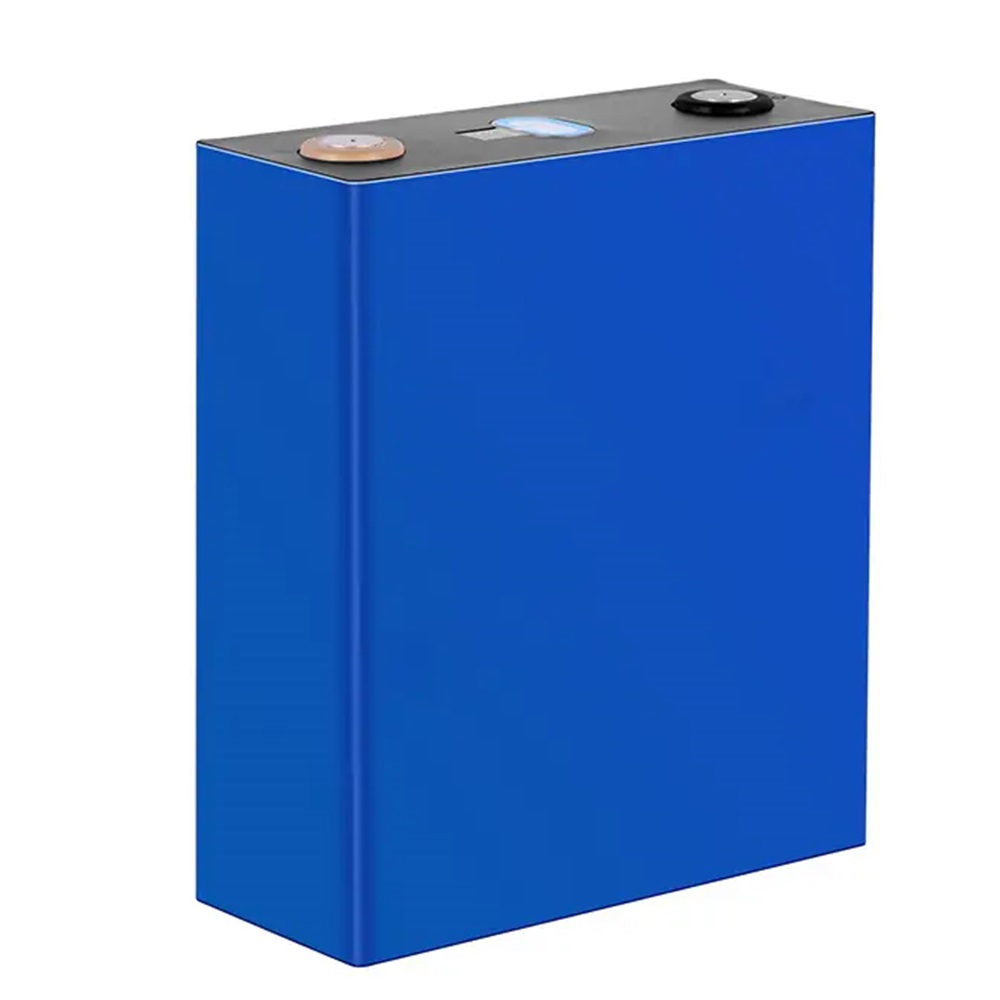

3.2V 314Ah LiFePO4 Battery Cell

Applications

Application: photovoltaic inverter, truck air conditioning power supply, energy storage power supply, two-wheeled electric vehicles, three-wheeled electric vehicles, four-wheeled electric vehicles, emergency power supply, outdoor mobile power supply, portable power supply, solar street lights or monitoring power supply, sanitation cleaning vehicles, tourism vehicles, AGV intelligent transport vehicles, etc...

1. Industrial and commercial energy storage: used to cut peaks and fill valleys to reduce the cost of electricity for enterprises, such as the spinning mill project in Nantong.

2. Power grid side energy storage: peak and frequency regulation, improve the stability of the power grid, such as the 50MW/100MWh power station in Wuxi.

3. Home energy storage: May be used as a home energy storage battery, although it is not explicitly mentioned in the summary, but according to Alibaba's specifications, home energy storage is one of the applicable types.

4. Portable energy storage equipment: such as mobile power supply, outdoor integrated cabinet, etc., suitable for outdoor activities or emergency use.

5. Electric vehicles and equipment: including electric vehicles, electric boats, mining electric locomotives, etc., although it may be more commonly used in power applications, 314Ah May also be suitable as a high-capacity battery.

6. Special environmental applications: such as high altitude and low temperature areas, the EnerD series of Ningde era demonstrates this adaptability.
