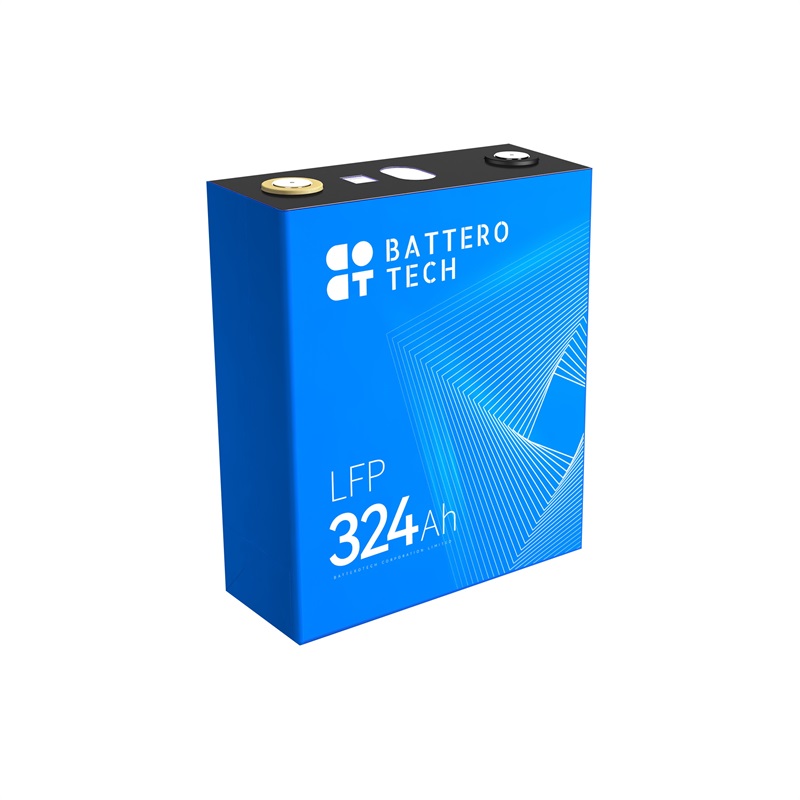

3.2V 324Ah Lithium Ion LiFePO4 Battery Cell
3.2V 324Ah Lithium Ion LiFePO4 Battery Cell For ESS/EV/BEV/PHEV
- Category: LiFePO4 Battery Cell
- Tag: lifepo4 battery
Characteristics
●High energy density
Energy density ≥185 Wh/kg
●Long service life
Service life of more than 5,500 cycles by Step-charge/1C mode.
●High safety and reliability
Meeting the requirements of GB, RoHS and other standards and passing all reliability & abuse tests.
Specifications
Parameter | Specification |
Chemistry | LFP/Gr |
Dimensions | L174*W71.7*H204mm |
Rated capacity | 324Ah |
Rated voltage | 3.2V |
Energy density | ≥185 Wh/kg |
Cycle life | ≥5500 (Step-charge/1C mode) |
Application | BEV |
Test and Certification
Applications
With its advantages of high capacity and stable performance, the LFP324Ah battery is widely used in energy storage systems, electric commercial vehicles and other fields that have high requirements for energy storage and endurance.
