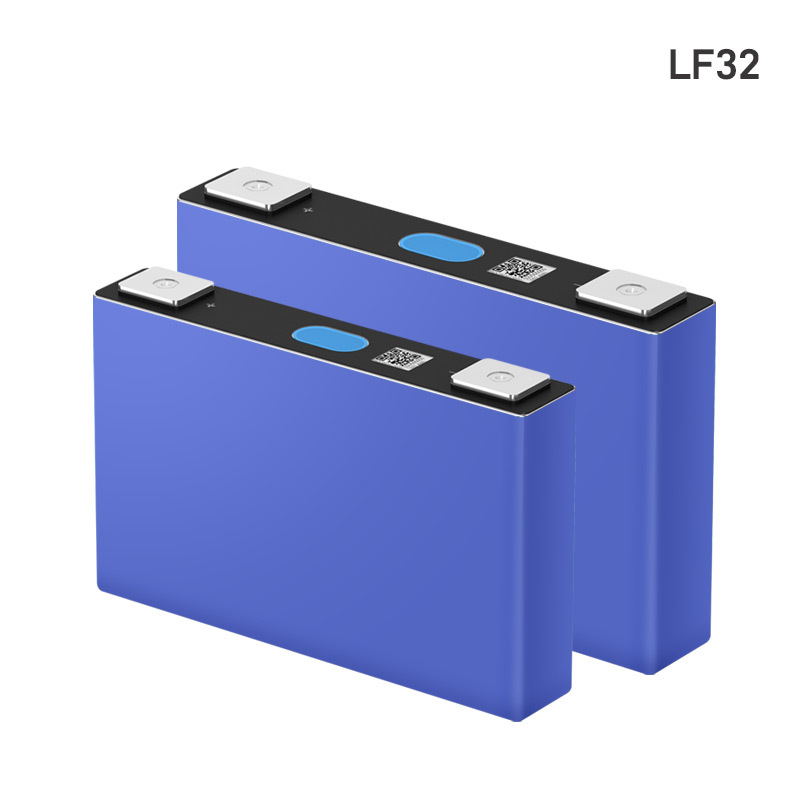

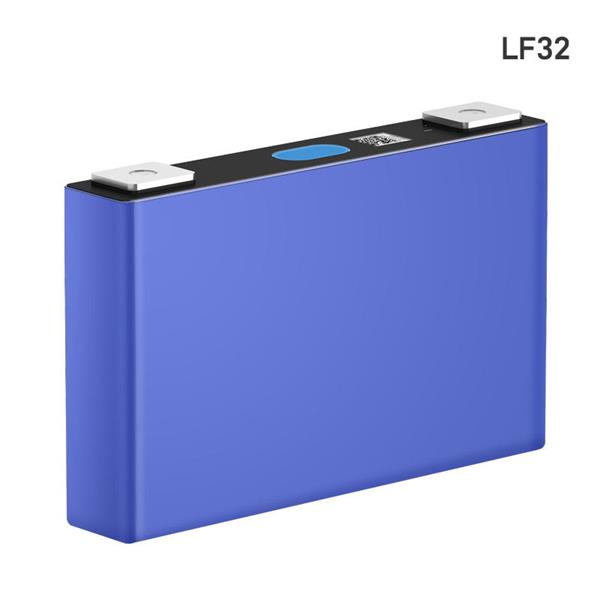

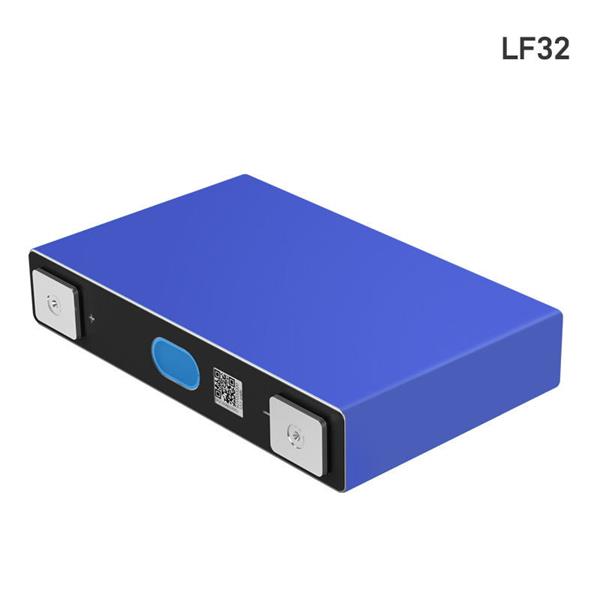

3.2V 32Ah LF32 LiFePO4 Lithium Ion Power Prismatic Aluminum-clad Battery Cell

3.2V 32Ah LF32 LiFePO4 Lithium Ion Power Prismatic Aluminum-clad Battery Cell  For Energy Storage System, EV, DIY LiFePO4 Battery Pack

Features

Intelligent factory design, high-performance consistency.

Square aluminum shell structure, high precision explosion-proof valve, high safety performance.

Low internal resistance, high discharge rate, and stable discharge platform.

Long cycle life, capacity retention rate over 80% after ≥3500 cycle at 1C/1C.

Green environmental protection

Parameters

Battery Brand: EVE

Battery Model: LF32

Min. Capacity: 32Ah

Energy: 102.4Wh

Initial internal resistance: ≤1.5mΩ

Nominal Voltage: 3.2V

Charging Cut-off Voltage: 3.65V

Discharging Cut-off Voltage:2.5V (T>0℃), 2.0V (T≤0℃)

Standard Charge/Discharge Current: 0.5C

Max. Constant Charge/discharge Current: 1C

Recommend SOC window: 10%～90%

Cycle life at 25℃: ≥3500 cycle @1C/1C

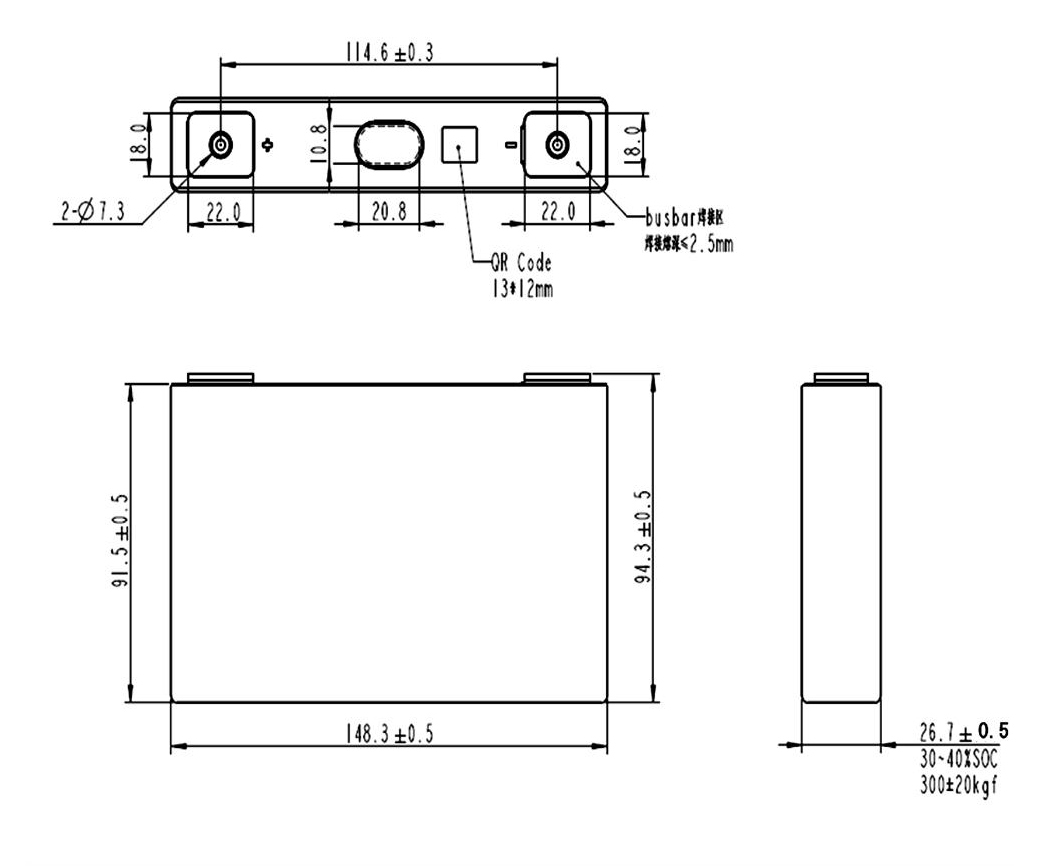

Size: 148.3(W)±0.5*26.7±0.5(T)*94.3±0.5(H)mm

Weight: 725±50g

Details

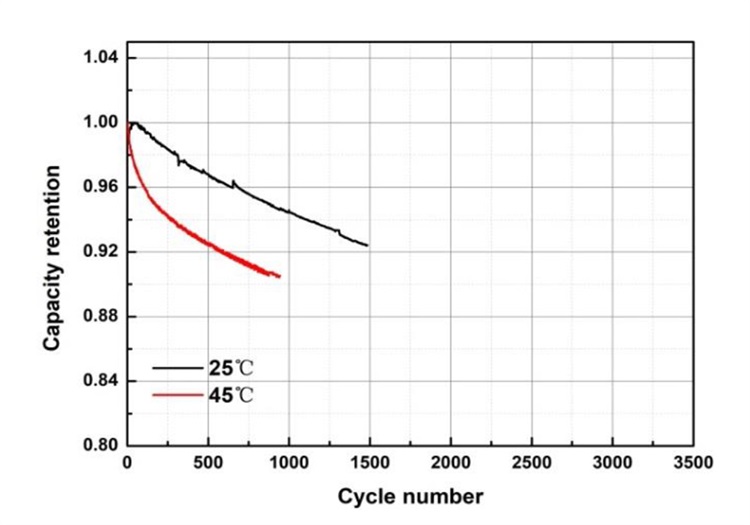

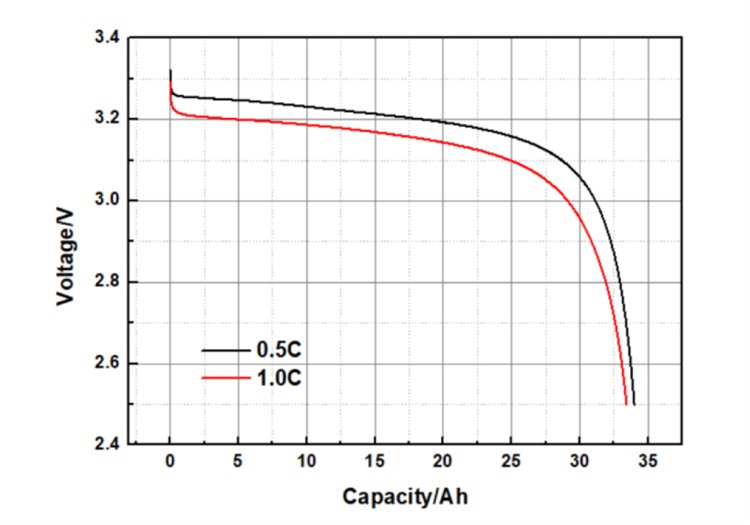

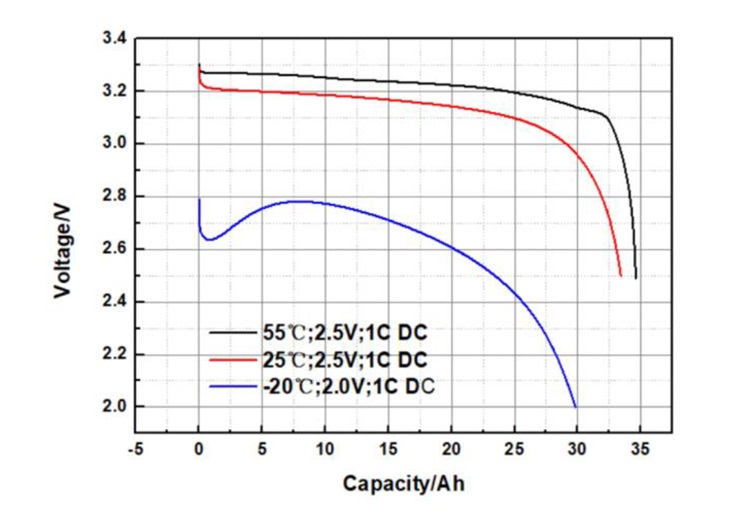

Electrical Performance Diagram

Attentions

1、It is necessary to ensure that the voltage, current and temperature of the cell are monitored and protected when the cell is charged and discharged.

2、Please keep the cell away from heat source, fire source , strong acid, strong alkali and other corrosive environment.

3、Do not short connect or install the battery with incorrect polarity at any time.

4、Do not mix up with cells from different models or manufacturers.

5、Do not use external force to make the cell fall, impact, puncture, do not disassemble the cell or change the external structure.

6、Please keep the cell’s charge under 30% ~ 50%SOC, and avoid direct sunlight or high temperature and humidity environment when the battery is not used for a long time,

7、Please wear protective devices such as rubber gloves when operating the battery.

8、Please immediately stop using if there have leakage, smoking or damage with cell , and contact our company to deal with.
