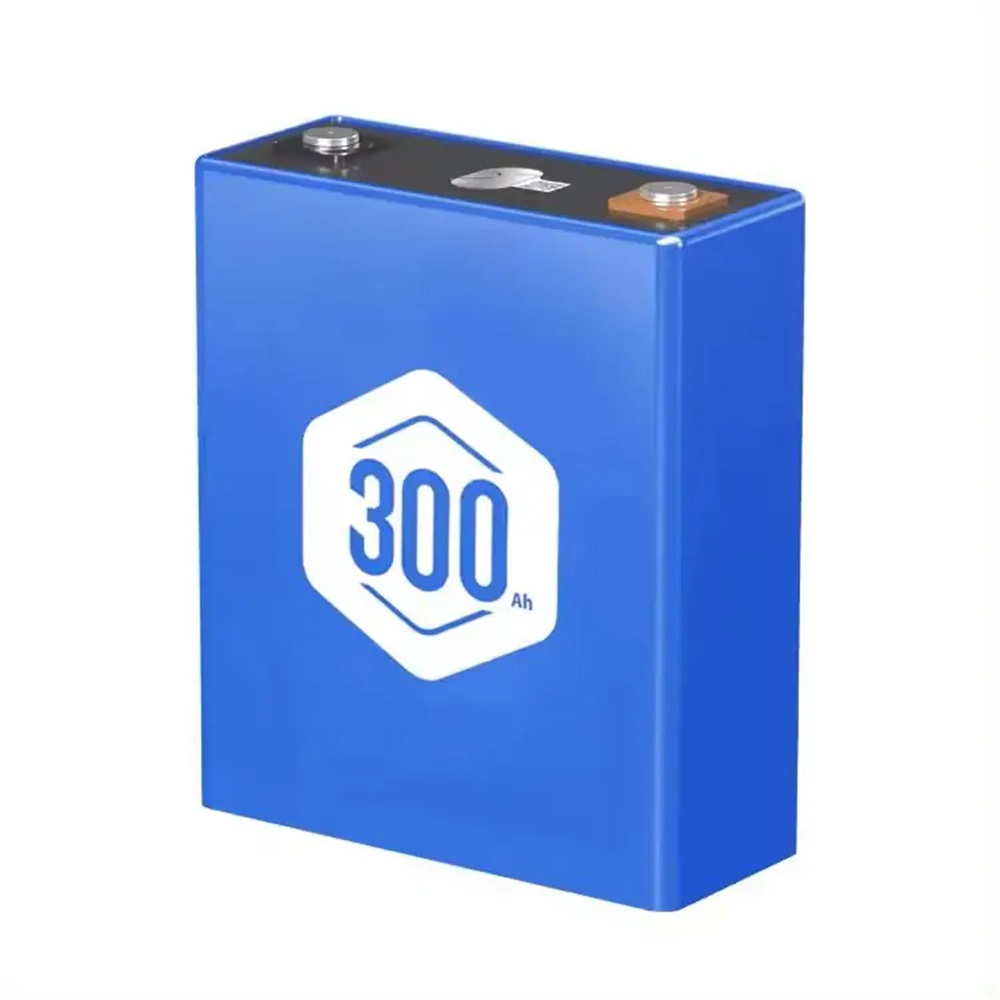

Hithium 3.2V 300Ah LiFePO4 Prismatic Cell
300Ah Prismatic LFP cell with very high cyclic lifetime and improved safety characteristics.
- Category: LiFePO4 Battery Cell
- Tag: lifepo4 battery cell
Tailored for deployment in stationary battery storage systems demanding top-notch safety, reliability, and performance. Ideal for applications such as industrial, utility, and grid services.
1. Product certifications:
IEC 62619, UL 1973, UL 9540A, UN 38.3
2. Company certifications:
ISO 9001, ISO 14001, ISO 45001
3. Environmental Compliance: ROHS, REACH
High safety
1. HiTHIUM-developed prismatic LFP cell with high thermal stability
2. Passes crush and nail penetration test
3. Ultra wide operating temperature range
Low LCOS (Levelised Cost of Storage)
1. Long life cycle > 12.000 cycles at 0,5 P/0,5 P 70 % SOH due to advanced materials and process technologies
2. Adoption of Negative Passivation Technology
Flexible and versatile use
Item | Parameter | Condition |
Chemistry | LFP | N.A. |
Model | LFP71173207/300Ah | N.A. |
Dimension | 204.47*71.65*174.7mm | |
weight | (5.62±0.20)kg | |
Nominal capacity | 300Ah | (25±2)℃, standard charging and discharging |
Nominal voltage | 3.2V | (25±2)℃, standard charging and discharging |
Nominal energy | 960Wh | (25±2)℃, standard charging and discharging |
Operation voltage | 2.5～3.65V (T＞0℃) 2.0～3.65V (T≤0℃) | |
Voltage range of the cell at end of production line | 3.28～3.30V | (25±2)℃,OCV, 27%SOC |
Energy density | ≥170Wh/kg | (25±2)℃, standard charging and discharging |
Self-discharge / per month | ≤3.0% | Fresh cell after 3 months, (25±2)℃, 27%SOC |
Max continuous charge power | 1P | (25±2)℃ |
Max continuous discharge power | 1P | (25±2)℃ |
Operating temperature(discharge) | -30~60℃ | N.A. |
Operating temperature(charge) | 0~60℃ | |
Cycle life | ≥12000 cycles | (25±2)℃,70%DOD |
