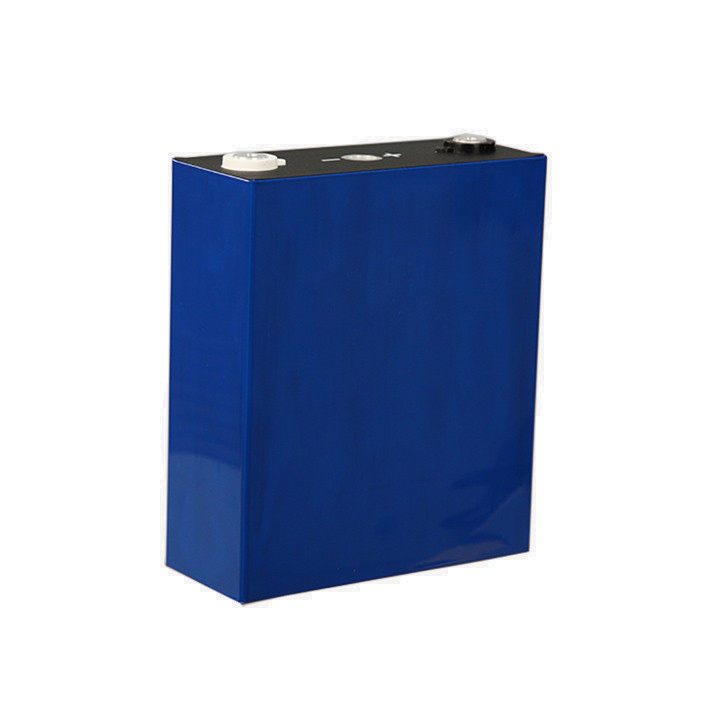

​3.2V 310Ah Prismatic LiFePO4 Battery Cell

3.2V 310AH Lithium Iron Phosphate LiFePO4 Battery Cell For ESS

Features

1. Good safety features

2. Long cycle life

3. Wide temperature range

4. Discharge platform stable


Basic Performance

(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.

(2) Good performance under high temperature, it could work under 65°C temperature. The battery structure is safe and good.

(3) Good performance under low temperature. discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.

(4) Good safety performance: When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform

well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.

(5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).

(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.

(7) Low cost.

(8) No pollution during manufacture and usage.

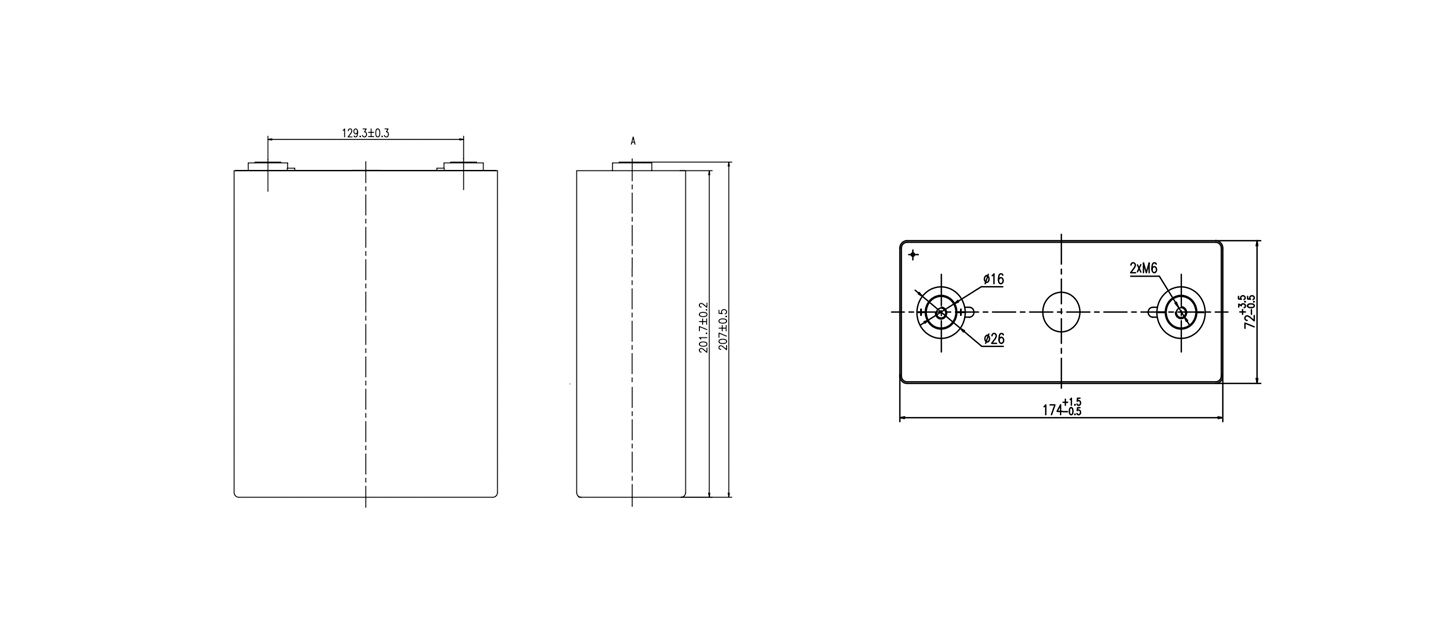

dimension


Specifications

Item

Parameter

Nominal voltage

3.2V

Nominal capacity

310Ah

AC internal resistance

≤0.2mΩ

Standard charging

0.5C

Maximum continuous charging current

1C

Pulse charging current

2C

Charging cut-off voltage

3.65V

Standard discharge

0.5C

Maximum continuous discharge current

1C

Pulse discharge current

2C

Discharge cut-off voltage

2.5V

Cycle life

4000 ( 0.5C/0.5C )

Size

207*174*72mm

Weight

5.45KG

Charging temperature

0-55℃

Discharge temperature

-20-65℃
