3.2V 15Ah 32135 Cylindrical Lifepo4 Battery Cell

3.2V 15Ah 32135 cylindrical lifepo4 battery cell, Individual pricing for large-scale projects and wholesale demands is available.

Specification


Parameter

Specification

Dimension

33.6mm(d) * 139.7mm(h)

Weight

268g

Nominal Capacity

1500mAh

Nominal Voltage

3.2V

AC Resistance

1.5mΩ<R<3mQ

DC Resistance

<8mΩ

Operating Temperature

Charge: -20～55℃

Discharge: -30～60℃

Regular charge(Slow charge)

 Current

3A(0.2C)

Regular charge(Slow charge)

 Voltage

3.65V

maximum pulse discharge rate/C

4500mA(3C)

Room Temperature Cycle Life

2000times


Details

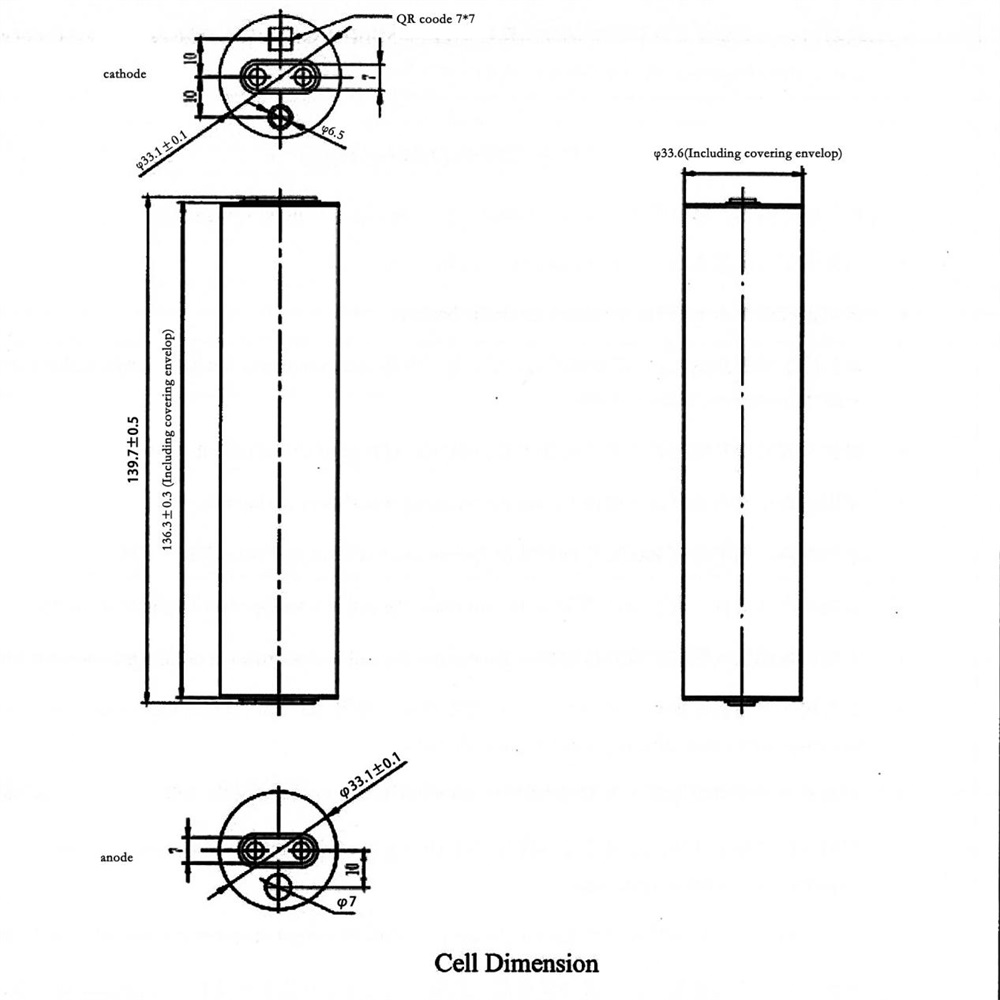

dimension


Features

1. Capacity of 15,500mAh

2. Utilizes lithium iron phosphate (LiFePO4) chemistry for enhanced safety, minimizing the risk of explosion or combustion from impacts, overcharging, or short circuits.

3. Enables rapid charging and high-current discharge, supporting continuous discharge at 1C.

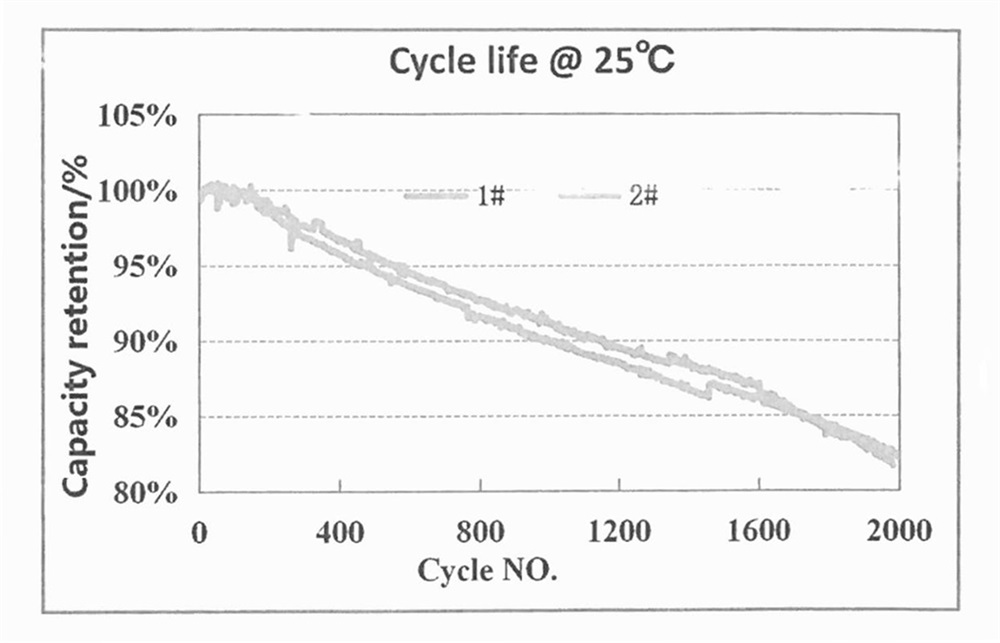

4. Boasts a cycle life of 2000 times at 80% Depth of Discharge (DOD).

5. Facilitates efficient charge and discharge cycles.

6. Offers higher energy density compared to lead-acid batteries.

7. Provides faster charging times and reduced self-discharge.
