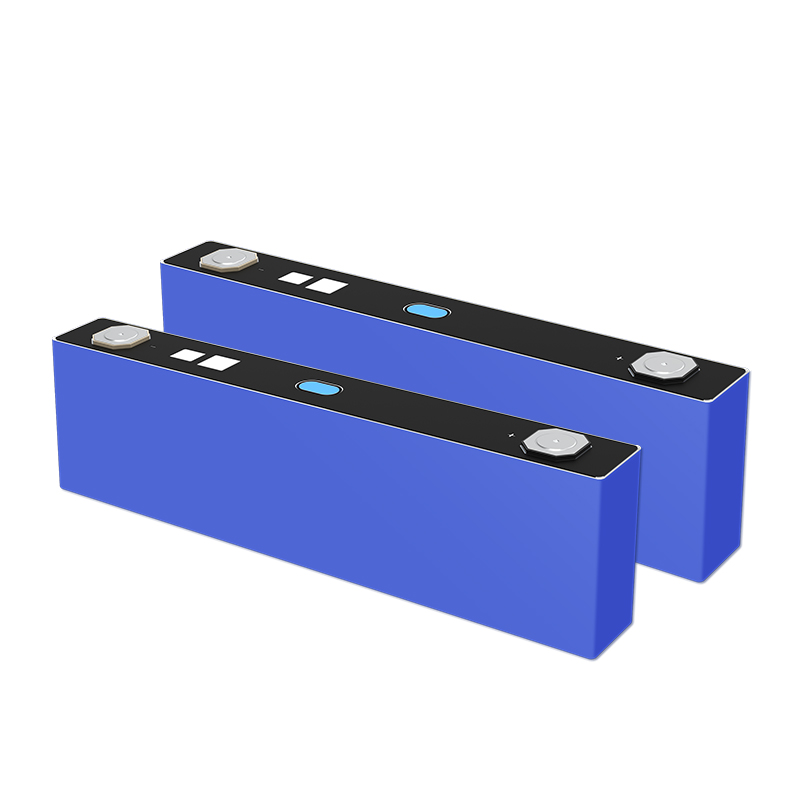

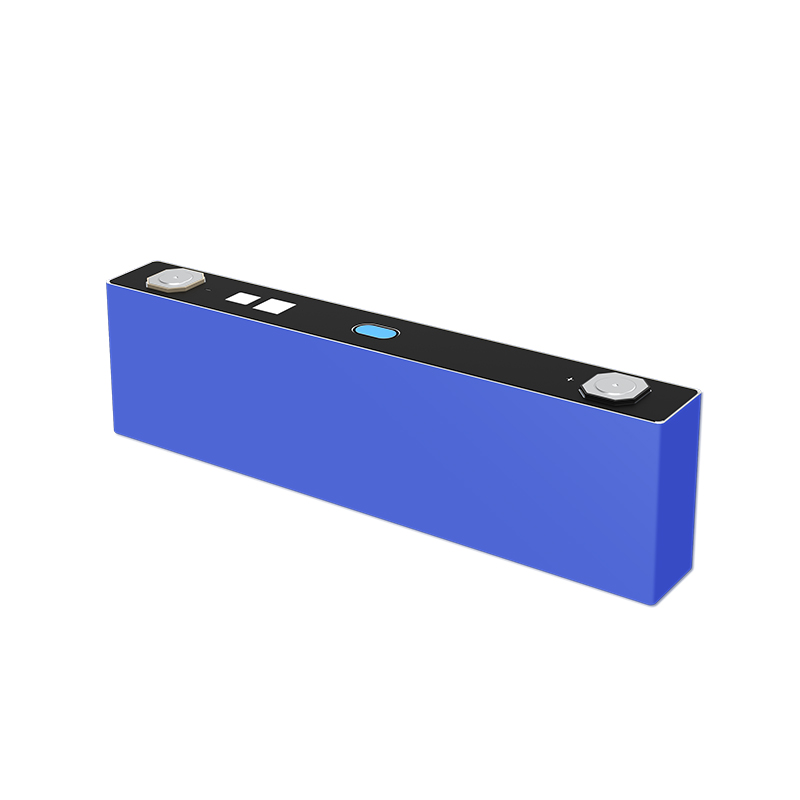

A27-V1 127Ah 3.2V Lithium Ion Prismatic LiFePO4 Battery Cell
A27 127Ah 3.2V Lithium Iron Phosphate Lifepo4 Battery Cell For Electric Vehicle Home Energy Storage
- Category: LiFePO4 Battery Cell
- Tag: lifepo4 battery cell
A27-V1 127Ah 3.2V Lifepo4 Battery Cell For Electric Vehicle Home Energy Storage
Feature of A27 127Ah LiFePO4 Battery
Strong performance
High energy density, high discharge rate, stable charge and discharge, long cycle life
High consistency
Smart factory, highly automated production line and high-precision equipment to ensure battery consistency
Safe and reliable
More than 2856 cell manufacturing control points, with a perfect design process and test system. Obtained GB, CE, IEC, UL and other certifications
For specific models, please consult online sales
Specifications
Item | Specifications |
Model Number | A27 |
Weight | 2220g |
The charging ratio | 1/1C |
The discharge rate | 1/1C(MAX 5C 25℃≥60s) |
Application | electric vehicles AGVHome energy storage Engineering vehicles |
Electric Energy | 408.94Wh |
Product name | EVE 127Ah lifepo4 battery |
Min.Voltage | 3.22V |
Min.Capacity | 127Ah |
Initial IR | ≤0.3mΩ |
Cycle life | 2000cycles |
Certifications
1. International regulatory certification, we have CE、ROHS、RECHAR、BIS、EPR、RCM、PSE、GOST、MIC...
2.In the product testing report, we have IEC62368、IEC62619、IEC62620、CB、GB、CCC、CCS...
3.In international transportation, we have UN38.3 (support sea, land and air transportation)、MSDS、UL、ATEX...
4.Special certificates: ESG、 ASPICE CL2、 ISO26262、 TISAX、Green Factory...
5.We support certification according to the needs of our customers to ensure product quality and safe transportation
Product Application Case
Passenger car solutions, commercial vehicle solutions, engineering power solutions, electric energy storage, industrial and commercial energy storage, household energy storage, communication energy storage, electric ships
Battery Safety Specification
During the use of batteries, the following requirements must be observed
1) Do not remove the battery from its original packaging before use.
2) Do not place the battery scattered together to avoid accidental short circuit.
3) Do not heat the battery above 100C or burn it.
4) Do not weld directly on the surface of the battery, use a battery pre-equipped with welding feet or leads.
5) Do not mix new and used batteries, or batteries from different places of origin.
6) Disassembling and dissecting the battery is strictly prohibited.
7) Short circuit and reverse connection between the positive and negative electrodes of the battery are prohibited.
