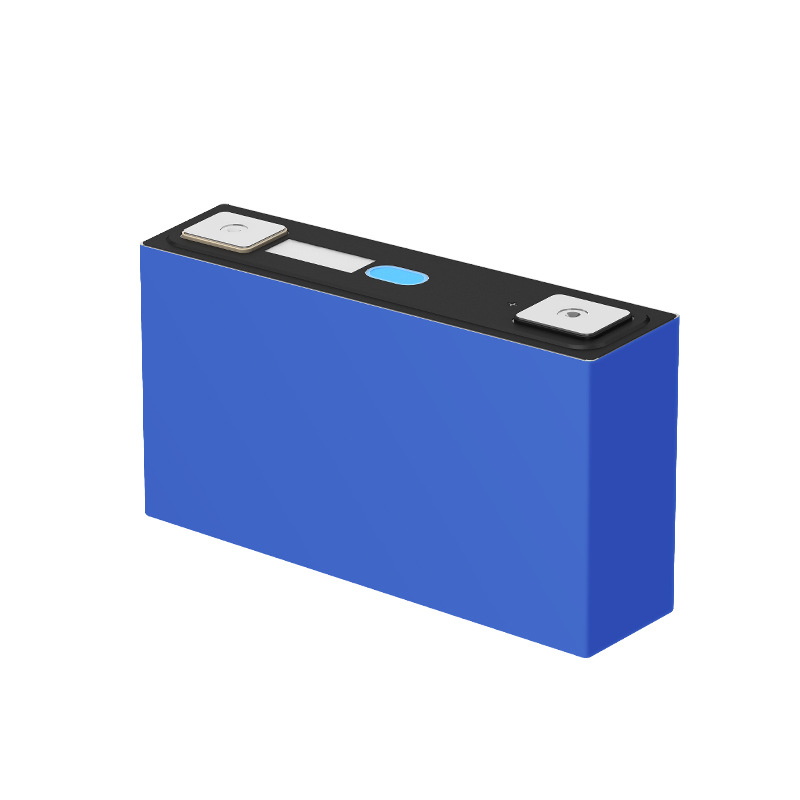

A31-V1 3.2V 132.5Ah Prismatic LiFePO4 Lithium Ion Battery Cell For EV

A31-V1 132.5Ah 3.2V lithium iron phosphate battery ev cell electric vehicle home energy storage battery Fast charge lithium iron phosphate battery

eve .jpg


A31-V1 3.2V 132.5Ah lifepo4 battery cell Feature

· ULTRA-LONG LIFE CYCLE

Long cycle, long calendar life, long warranty, low internal resistance

· HIGH CONSISTENCY

Smart factory, highly automated production line and high-precision equipment.more than 2856 control points to ensure battery consistency

· ULTIMATE SAFETY

High-precision explosion-proof valve design, intrinsic safetyobtained GB, CE, lEC, UL full system certification




A31-V1 132.5Ah 3.2V lithium iron phosphate battery is suitable for electric home energy storage, golf carts, electric vehicles, power systems, solar energy storage systems, electric forklifts. The battery has low internal resistance, high discharge rate, stable discharge platform and wide application scenarios. We provide a comprehensive system of customized solutions, if you need passenger cars, commercial vehicles, engineering power and other solutions, you can contact us, we have a professional team of experts to escort you!


Specification


Parameter

Specification

Remarks

Min. Capacity

132.5Ah

1/3C , 25±2℃, 2.50V-3.65V

Min. Energy

426.7Wh

1/3C , 25±2℃, 2.50V-3.65V

Initial IR

≤0.3mΩ

AC, 1kHz, 21%SOC

Nominal Voltage

3.22V

1/3C, 25±2℃, 2.50V-3.65V

Weight

2370±30g

/

Charging Cut-off Voltage

(Max)

3.65V

/

Discharging Cut-off Voltage

(Min)

2.50V ( >20℃)

2.00V (-30℃≤T≤20℃)

/

Fast Charge Performance

20min (3C )

10%~80%SOC, 25±2℃

Dimension

(194±0.5)x(50.7±0.3)x(112.7±0.4)mm

Cycle

Performance

2000 Cycles

(25℃ fast charge cycle )

Under 300kgf±20kgf

clamping force,

3%~100%DOD, 2.50V-3.65V,

fast charge/1C discharge;

Capacity retention≥80%

3%~100%DOD

1200 Cycles

(35℃ fast charge cycle )

Operating Temperature

-20℃~ 55℃

Charging Temperature

-30℃~55℃

Discharging Temperature

Storage

Temperature



-40℃~55℃ (≥30d )

Delivery SOC State

(21% 3%SOC)

55℃~60℃ (<30d )

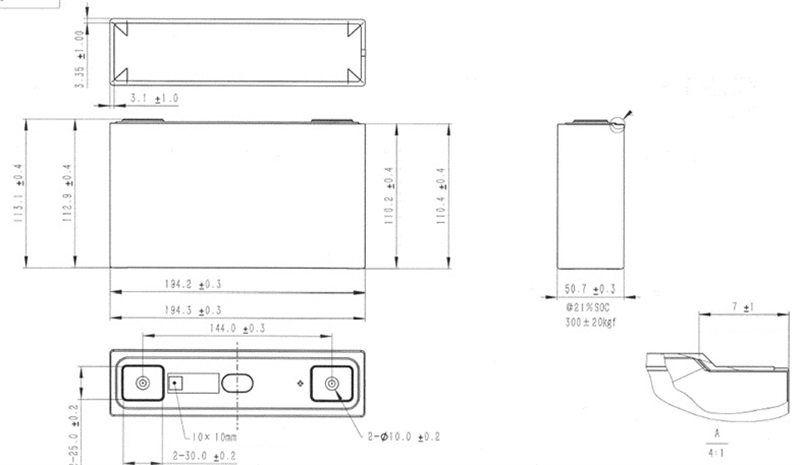

Dimension and Details


dimension


Certification

1. International regulatory certification, CE, ROHS, RECHAR, BIS, EPR, RCM, PSE, GOST, MIC...

2. Product test report, IEC62368, IEC62619, IEC62620, CB, GB, CCC, CCS. ..

3. International transportation, UN38.3 (support for sea, land and air transportation), MSDS, UL, ATEX. ..

4. Special certificates: ESG, ASPICE CL2, ISO26262, TISAX, Green Factory...

We support certification according to customer needs to ensure product quality and transportation safety

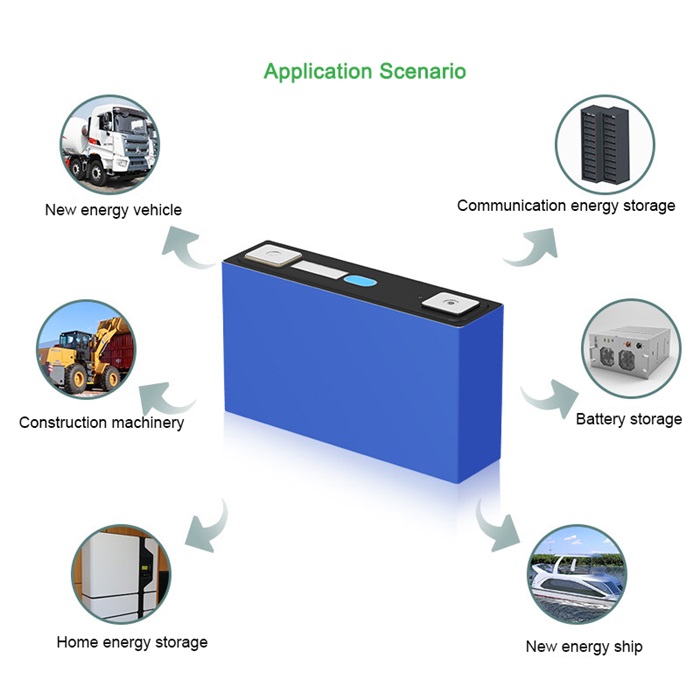

Application

A31-V1 3.2V 132.5Ah Prismatic lifepo4 lithium ion battery cell has a wide range of application scenarios. Available for New energy vehicle, Construction machinery, Home energy storage, New energy ship, Battery storage,  Communication energy storage and other areas

APPLICATIONS
