BAKCBBL150 3.2V 150Ah DIY LiFePO4 Prismatic Lithium Battery Cells

BAKCBBL150 3.2V 150Ah lifepo4 prismatic lithium battery cell can be diy Lifepo4 Battery Pack, Solar system, Energy Storage (ESS), Electric vehicles, Golf carts, RV

BAKCBBL150 3.2V 150Ah lifepo4 prismatic lithium battery cells


Applications

DIY Lifepo4 Battery Pack, Solar system, Energy Storage (ESS), Electric vehicles, Golf carts, RV


Battery Features

· High Energy Density

· Long Cycle Life

· Good performance at high/low temperature

· High-rate continuous discharge

· Automatic production, good consistency

· Environment-Friendly

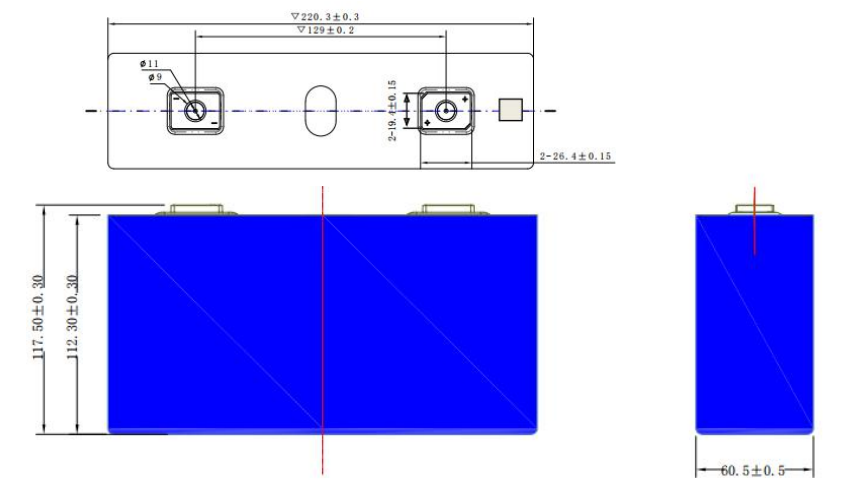

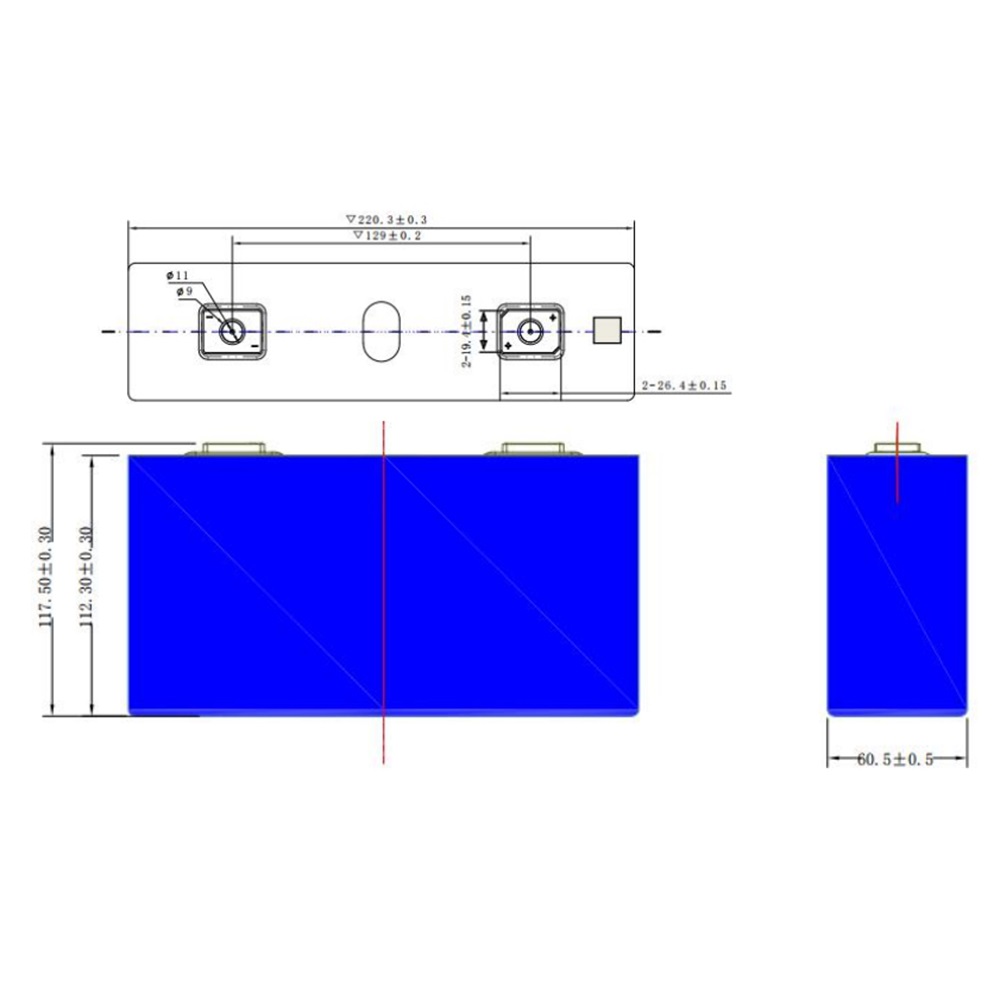

Battery Dimensions

BAKCBBL150 3.2V 150Ah lifepo4 prismatic lithium battery cells dimensionBAKCBBL150 3.2V 150Ah lifepo4 prismatic lithium battery cells

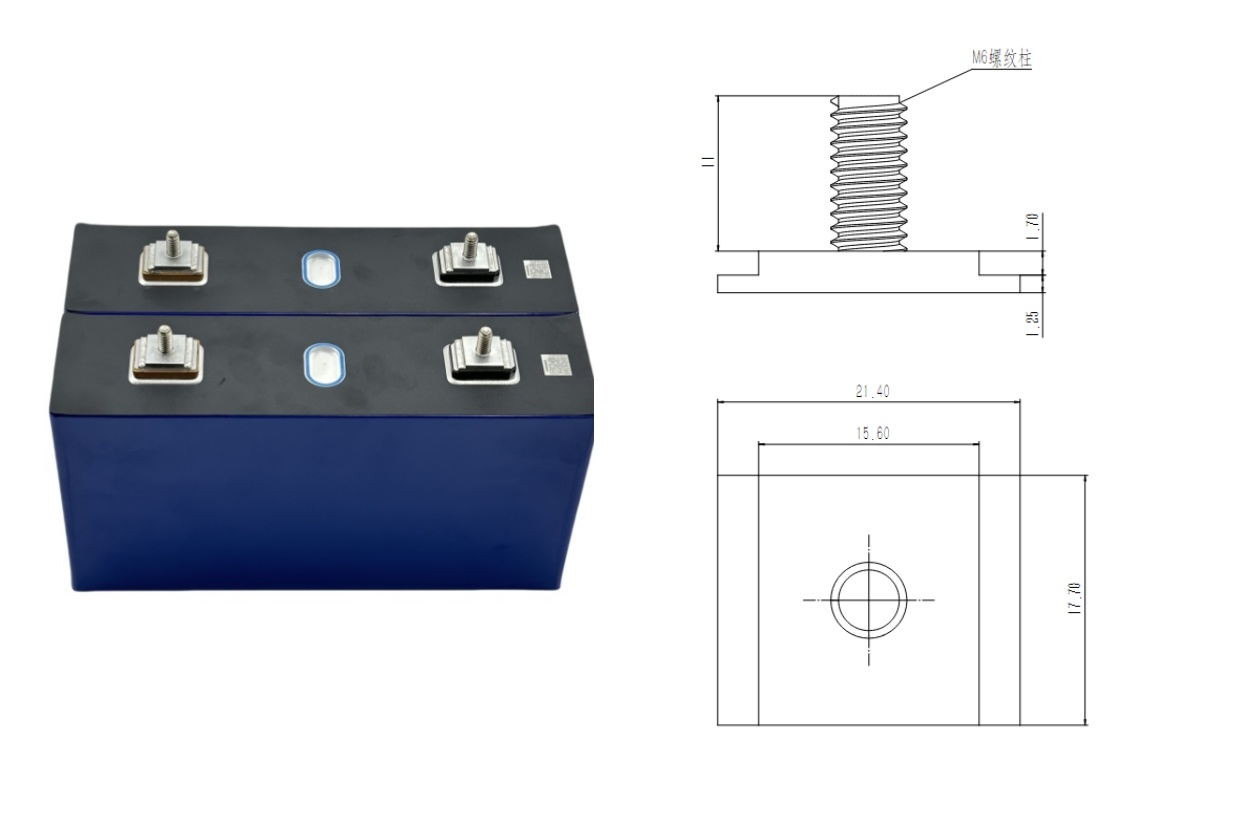

Welding Dimensions of the Pole

We offer pole welding services

Welding dimensions of the pole

Parameters


Item

Parameter

Minimal capacity

150Ah

Typical capacity

152Ah

Nominal voltage

3.2V (0.5C)

Charge ending voltage

3.65V

Discharge ending voltage

2.5V (>0°C) 2.0V (≤0°C)

Nominal energy

480Wh

Max. charge limited current at room temperature (not for cycle)

225A (Continuous)

400A (50%SOC, 10s)

Max. discharge limited current at room temperature (not for cycle)

300A (Continuous)

400A (50%SOC, 10s)

Charge temperature range

0~+55°C

Discharge temperature range

-20~+55°C

Internal resistance

≤0.6mΩ

(AC Impedance, 1000 Hz)

typical: 0.3mΩ

Weight

2.98±0.10kg



Warning and cautions in handling the lithium-ion cell

· Don’t immerse the battery in water and seawater. Please put it in cool and dry environment if no using.

· Don’t use and leave the cell near a heat source such as fire or heater.

· Do not use or leave the cell under the blazing sun (or in heated car by sunshine).

· Being charged, using the battery charger specifically for that purpose.

· Don’t reverse the positive and negative terminals.

· Do not disassemble or modify the cell.

· Do not use the cell with conspicuous damage or deformation.

· Don’t connect the cell to an electrical outlet directly.

· Don’t discard the cell in fire or heater

· Do not short circuit, over-charge or over-discharge the cell.

· Battery pack designing and packing Prohibition injury batteries.
