Blade battery: Lithium iron phosphate cathode for safety, long cycles. Excellent temp performance, wide range, high energy density.

Evlithium Blade battery is made of lithium iron phosphate as cathode material; Excellent safety features and long cycle life; Good temperature performance, wide operating temperature range, high energy density, and is environment friendly.


· Innovative structure, good thermal stability, higher safety performance than the traditional battery; in the case of high temperature, overcharge, extrusion, acupuncture, etc., the probability of hot cell is reduced, effectively improving safety.

· The energy density per unit volume is one-third higher than that of traditional batteries, which brings better spatial performance for new energy;

· Light battery weight, corresponding to overcoming the weight consumption of energy reduction, improves battery life;

· The material cost performance ratio advantage is obvious.


Whether powering your home or business, the BYD LiFePO4 Blade Battery 3.2V 138Ah is an excellent choice for reliable energy that lasts, giving you greater peace of mind knowing your system isn't going to quit at the worst possible time.  With BYD's high standards for quality assurance and testing of their products, you can rest assured that when you choose this model, you're getting a dependable product from a trusted name in battery power solutions worldwide!



Item

Parameters

Nominal Voltage

3.2V

Nominal Capacity

138Ah

Charging Method

CC

Charge Current

Standard charging current: 0.2C

Max. continuous charging current: 1.5C@ 23℃

Charging cut-off voltage

3.8V

Discharge Current

Standard discharging current: 0.2C

Max. discharging current: 2C

Discharging cut-off voltage

2.0V

DCIR@50%SOC

30s, 1.5C, 3.0±0.2mΩ

Working Temperature

Charge: -10~+50℃, Discharge: -20~+55℃

Storage Temperature

-10~30℃ (＜1year, SOC: 30%~60%)

Shipping Status

Voltage: 2.5-4.35V, SOC:25%~50%

Cycle Life

≥4000 times

Size

960(L)*13.5(T)*90(W)mm

Weight

2.63 ± 0.1Kg



BYD LiFePO4 Blade Battery

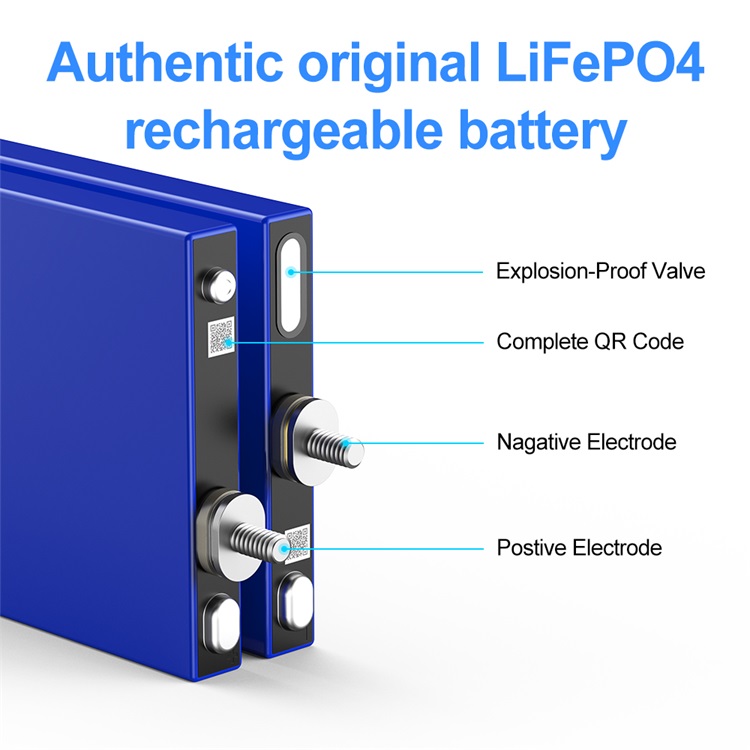

*The original 138Ah LiFePO4 battery cells do not have screws; instead, we offer M6 studs with laser welding on the terminals to facilitate convenient connections.


detail

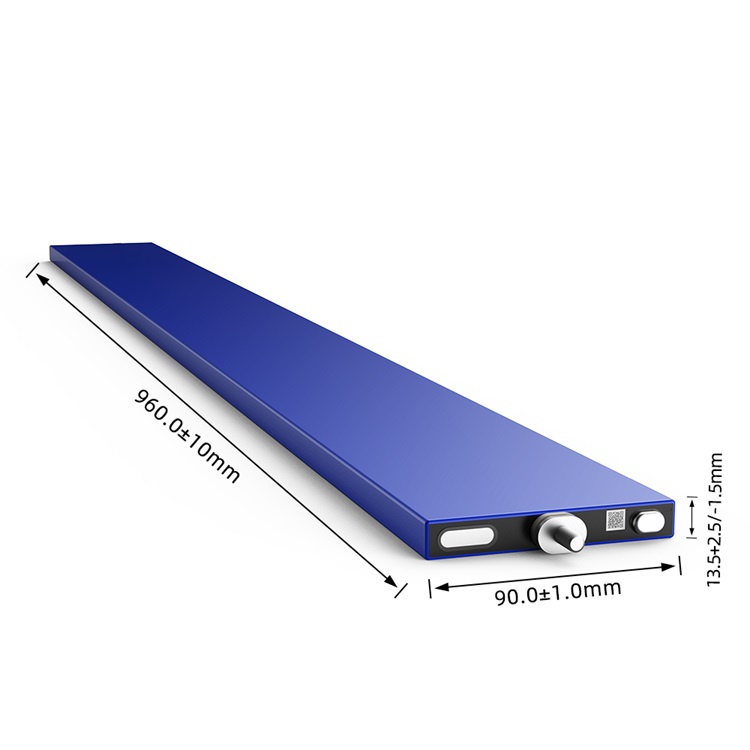

dimension

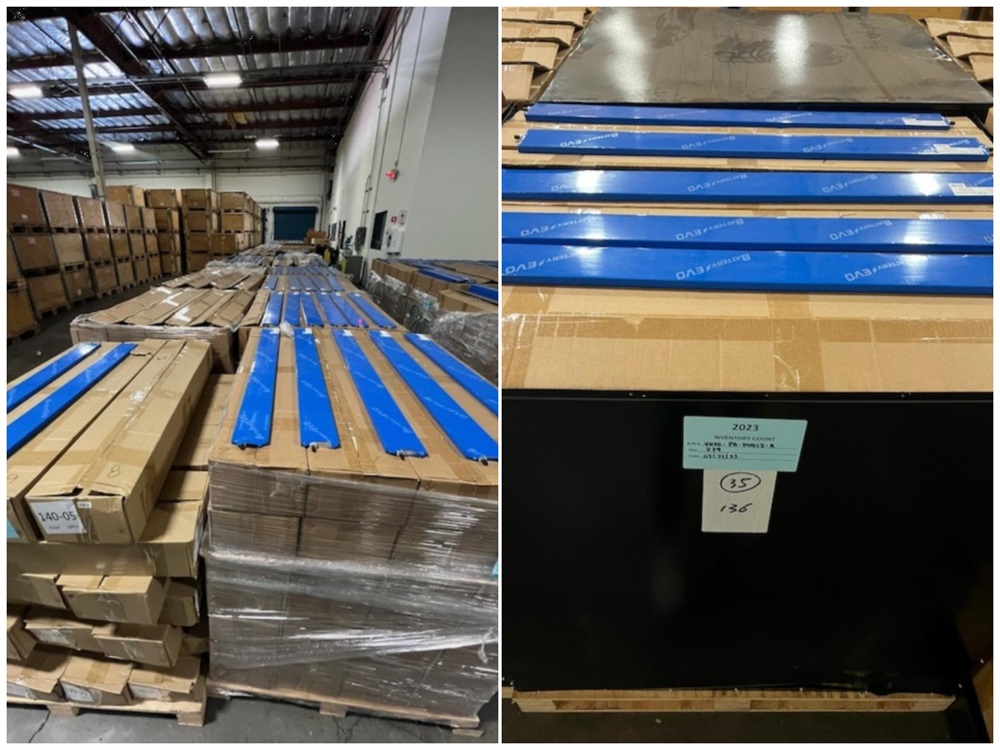

Now, we have lots of138Ah Blade LiFePO4 cells available in our inventory, located in California, USA.

If you require these cells, please don't hesitate to get in touch with us. We're here to assist with your needs!
