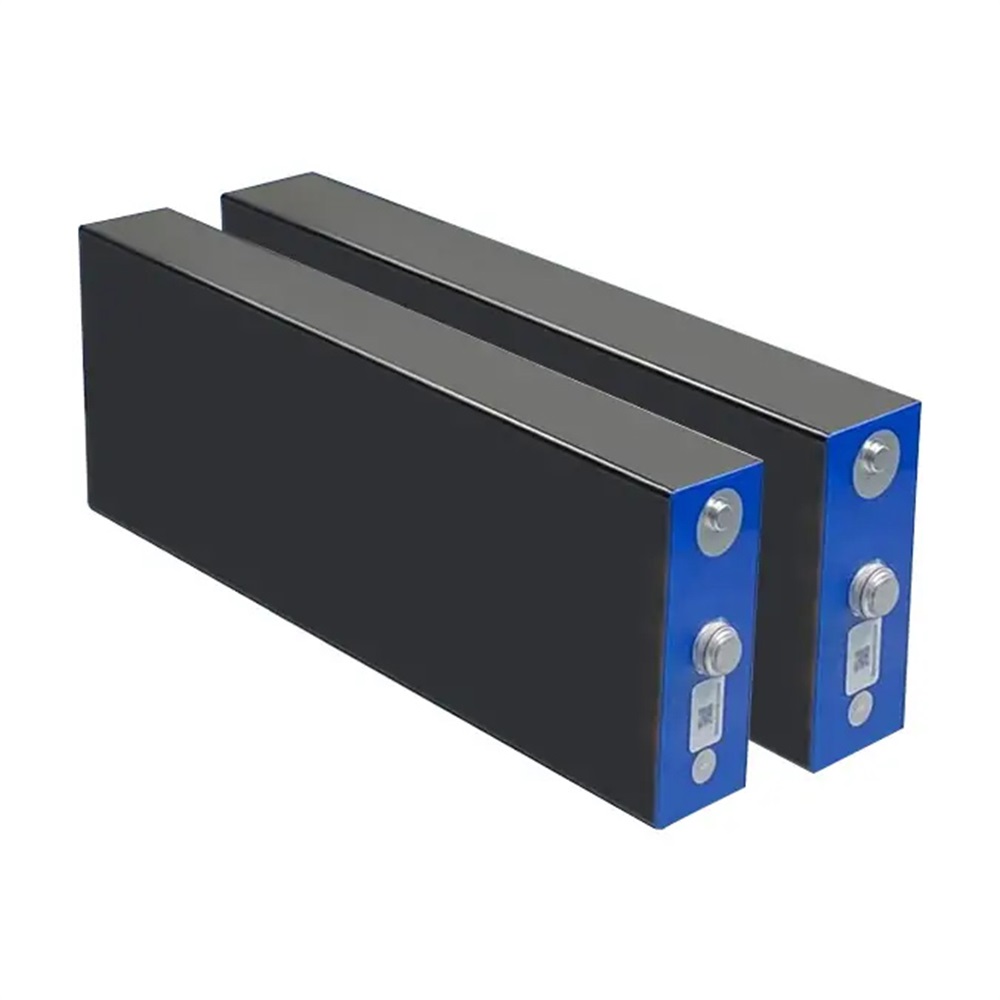

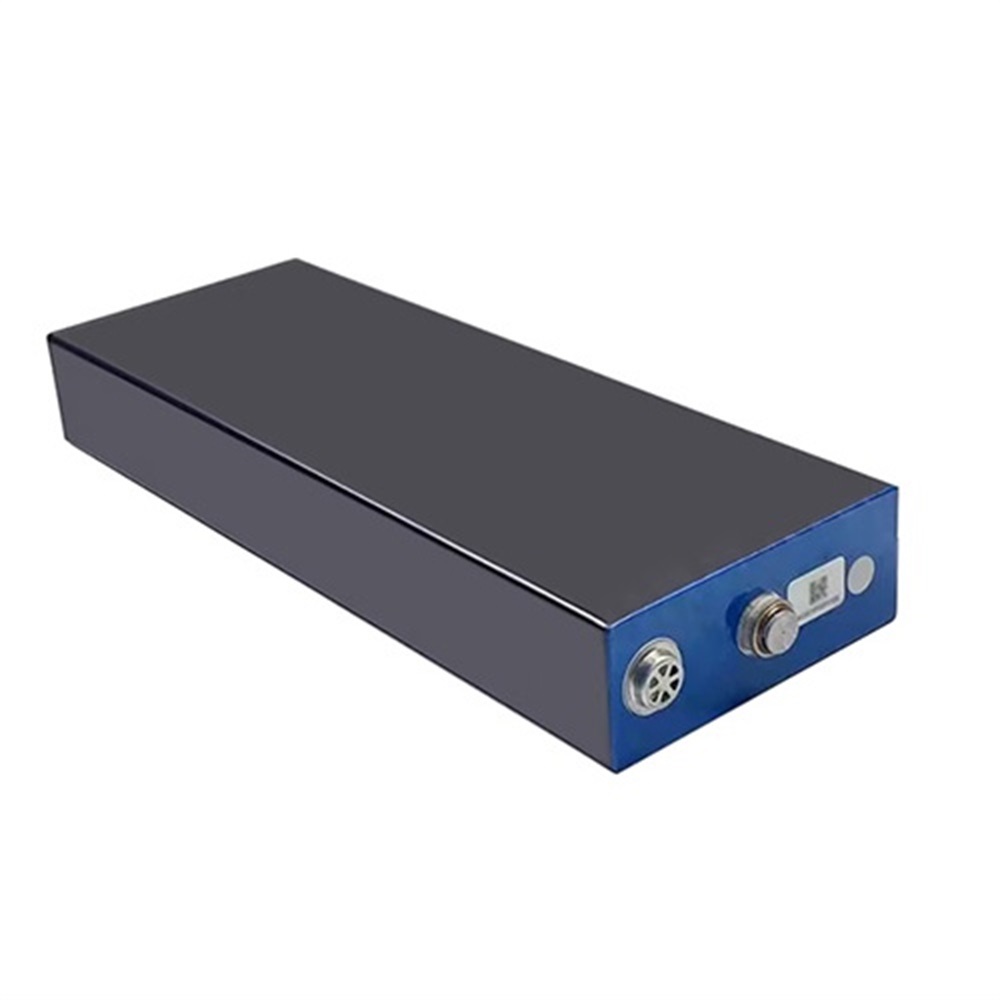

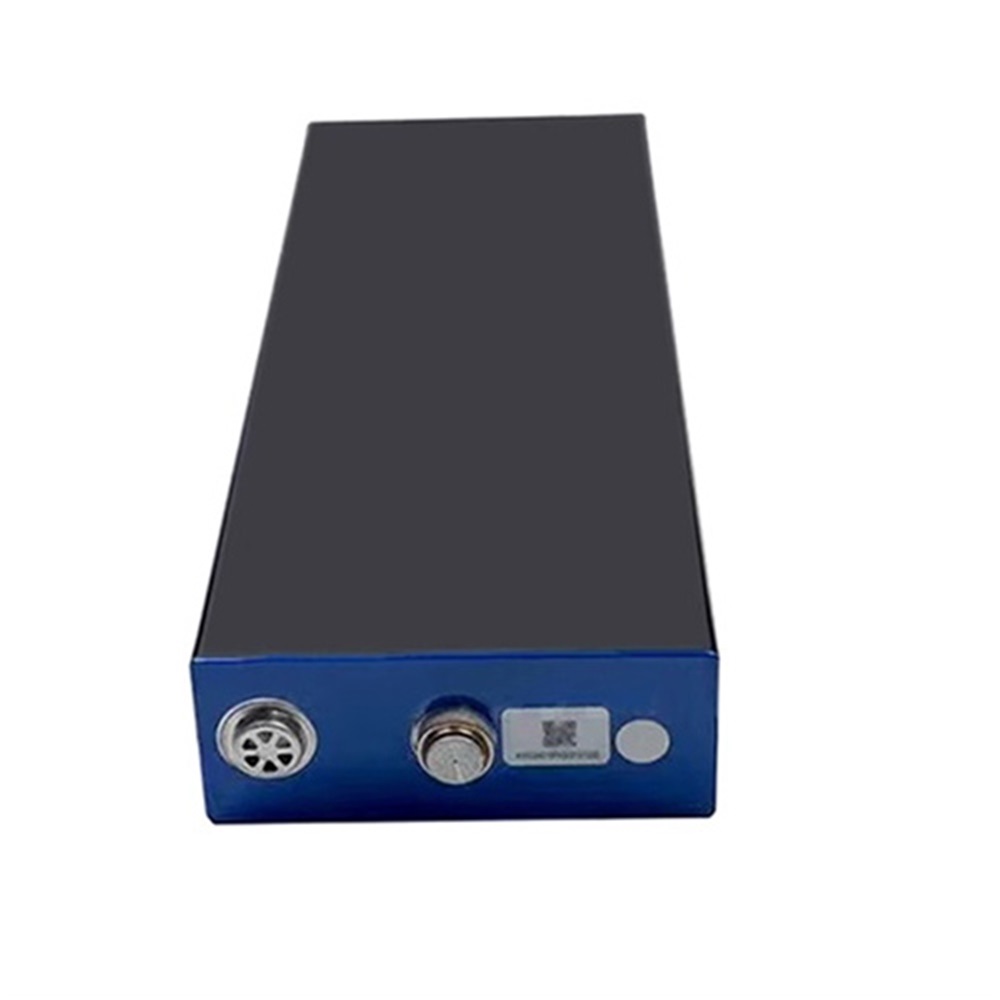

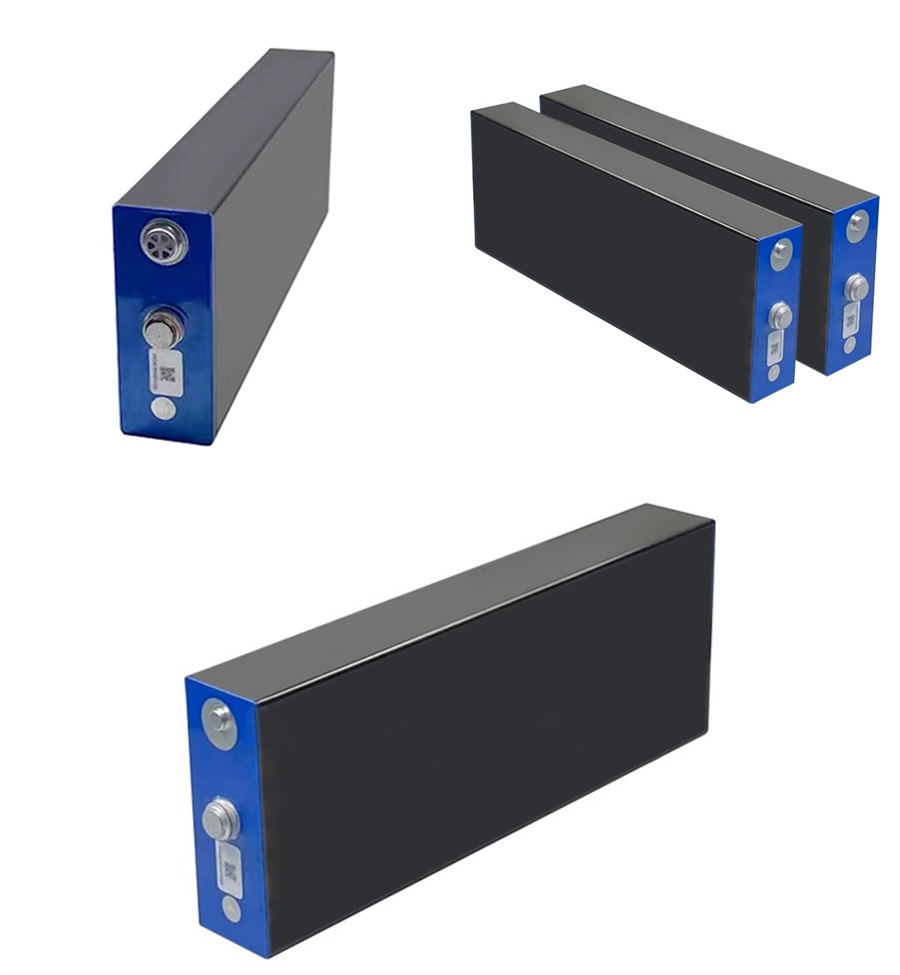

C15FHE 3.2V 320Ah Blade LiFePO4 Battery Cell
C15FHE 3.2V 320Ah Blade LiFePO4 Battery Cell for ev, energy storage
- Category: LiFePO4 Battery Cell
- Tag: lifepo4 battery cell
C15 Battery Features
Using lithium iron phosphate as the positive electrode material
possesses outstanding safety characteristics and an extremely long cycle life.
It exhibits good temperature performance, with a wide operating temperature range for the battery.
It also boasts high energy density and is environmentally friendly.
Specifications
Items | Parameters |
Nominal voltage | 3.2V |
Nominal capacity | 320ah |
Nominal energy | 1024Wh |
Standard charge method | Constant current (CC) |
Standard charge current | 64A@23℃ |
Max. Continuous charge current | 320A@23℃ |
Charge cut-off voltage | 3.8V/Cell |
Standard discharge method | Constant current (CC) |
Discharge cut-off voltage | 2.00V/Cell |
Standard discharge current | 64A@23℃ |
Max. Continuous discharge current | 400A@23℃ |
Max. Charge power | 1800W(BOL/23℃/50%SOC/10S) |
Max. Discharge power | 2500W(BOL/23℃/50%SOC/10S) |
Shipment voltage | 3.25V~3.35V |
Shipment SOC | 30%~60% |
Dimensions | 416(L)*145(W)*57.5(T)mm |
Weight | 6.85±0.1kg |
