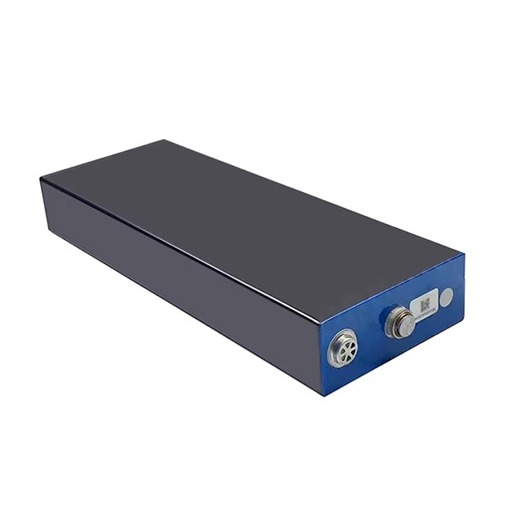

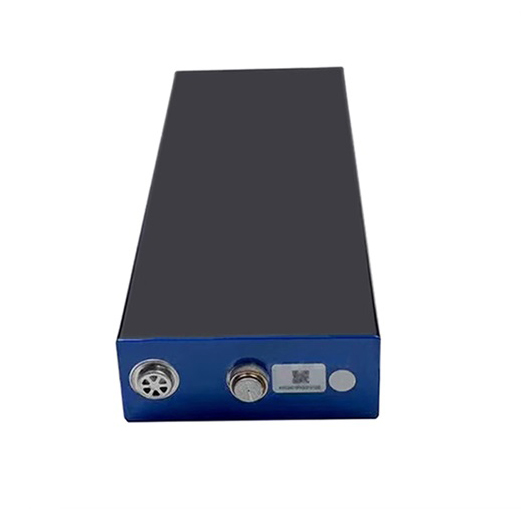

C15FKZD 3.2V 335Ah LiFePO4 Battery Cell For ESS

C15FKZD 3.2V 335Ah LiFePO4 Battery Cell For ESS

Features of BYD C15FKZD 335Ah LiFePO4 Battery Cell

Using lithium iron phosphate as the positive electrode material

possesses outstanding safety characteristics and an extremely long cycle life.

It exhibits good temperature performance, with a wide operating temperature range for the battery.

It also boasts high energy density and is environmentally friendly.


Specification

Items

Parameters

Product Material System

LiFePO4+Graphite

Nominal Voltage

3.2V, 25℃,0.5C,BOL

Nominal Capacity

335Ah, 25℃, 0.5C, 2.0~3.80V, Fresh cell

Rated energy

1072Wh

Standard charging protocol

CC

Standard charging current

170A, 23°C

Max. Continuous Charging Current

335A, 23°C

Charging cutoff voltage

3.8V

Discharging protocol

CC

Discharging cutoff voltage

2.0V

Standard discharging current

170A, 23°C

Max. Continuous discharging current

335A, 23°C

Shipping OCV

25%~60%

Cell Dimensions

416.0mm*145.5mm*57.5mm

Cell weight

6.6±0.2 Kg

Charging ambient temperature

0~+50℃

Discharging ambient temperature

-20~+55℃

Short-term storage ambient temperature

-20~+50℃, <3months, 20~60% SOC

Long-term storage ambient temperature

-20~+50℃, <1 year, 30~60% SOC

Storage humidity

5%~95%

Altitude requirement

≤4000m

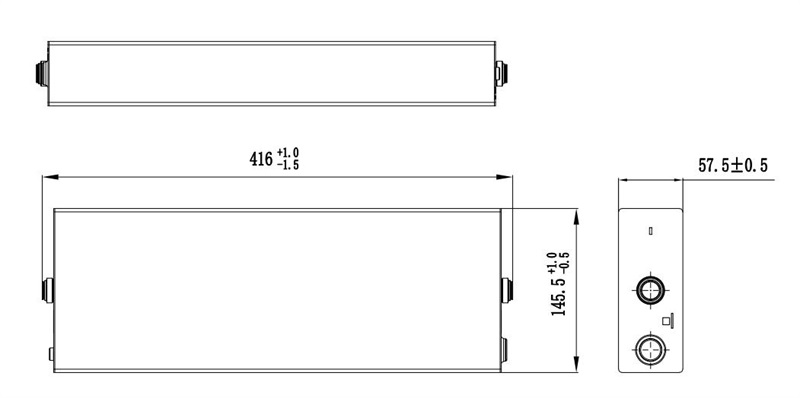

dimension


*Please keep the side stand during the cell test.

*The maximum torque of the pole column is 4N·m


Transportation and storage

Transportation

1. Cells should be conditioned to < 50% SOC and boxed for transportation;

2. Avoid violent vibration, shock or crush;

3. Cell should be protected from strong sunlight and rain. Long-term high temperature

4. exposure or heavy rain may damage the cells or induced internal short-circuit.

Cell storage

1. For long-time storage over 30 days:

2. Keep the cells in a dry and well-ventilated room;

3. Suggested cell storage temperature range of 0~30℃,cell storage SOC level: 30~50% SOC; cell storage voltage : 3.0-3.3V;

4.Avoid contacting with corrosive chemicals;

5. Keep away from ignition or heat sources;

6. Perform one charge-discharge cycle every three months.

7. Avoid placing the cell stand on end for long-time;

8. Avoid violent shock or crush.
