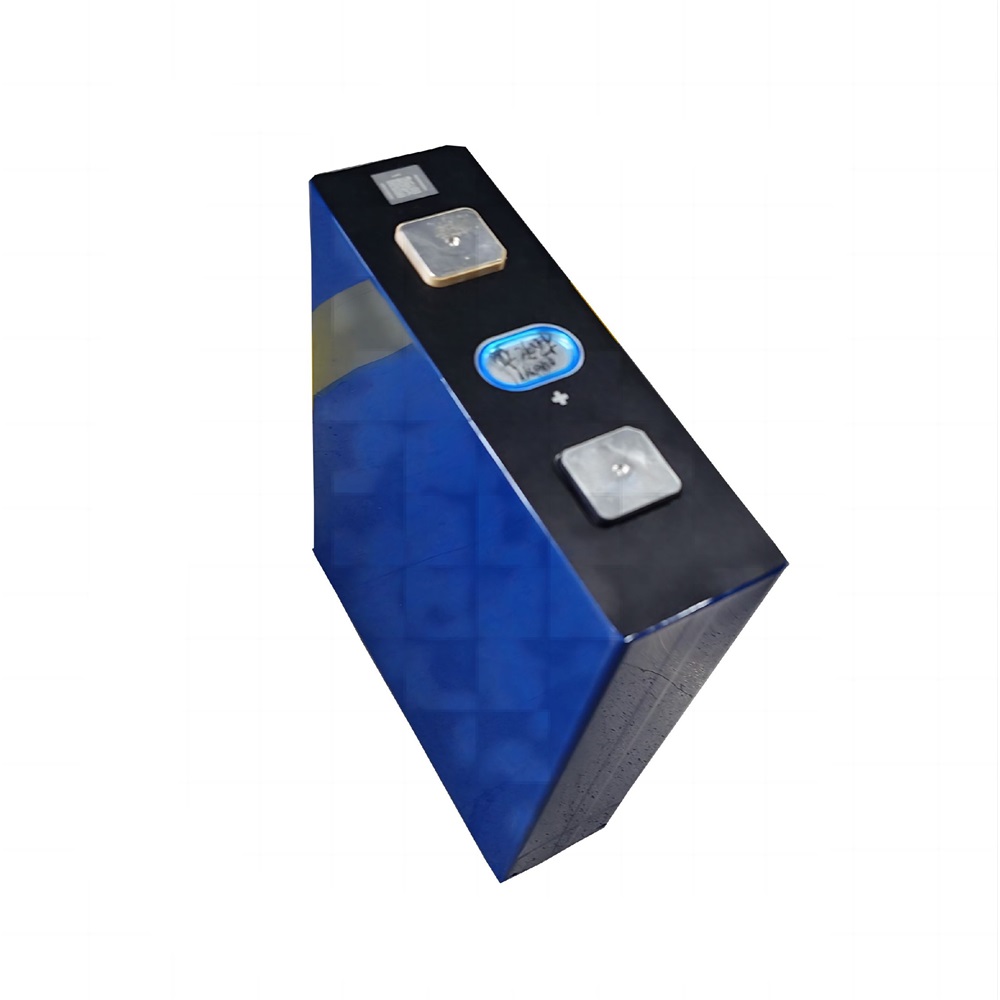

CB41-230Ah Li-ion battery

Nominal Capacity 230Ah Nominal Voltage 3.2V

CB41-230Ah Li-ion battery Nominal Capacity 230Ah Nominal Voltage 3.2V


Specification



No.

Item

Specification

Comment

3. 1

Nominal Capacity

230Ah

25±2℃ , 1C/1C

3.2

Nominal Voltage

3.2V


3.3

Operating voltage

2.5-3.65V

0℃T55℃

2.0-3.65V

-30℃T0℃



3.4

Standard Discharging

Current



115A

25±2℃



3.5

Maximum Continuous Discharging Current

230A

25±2℃



3.6

Maximum Discharging

Current

460A

@60s SOC≥20%



3.7

Standard Charging

Current

115A

25±2℃



3.8

Maximum Continuous

Charging Current

230A

25±2℃



3.9

Maximum Charging

Current

460A

@60s SOC≤80%

3.10

Working Temperature

0℃T55℃

Charge

-30℃T55℃

Discharge





3. 11

Storage Temperature

-30℃~60℃

Storage ambient humidity < 95%ROH no condensation





3. 12

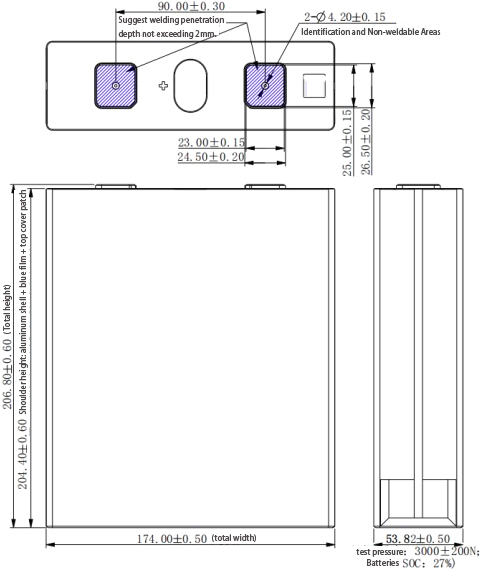

Dimension

Thickness: 53.82±0.5mm

Width: 174.0±0.5mm

Shoulder height: 204.4±0.6mm

Total height : 206.8±0.6mm

@3000±200N 27%

3.13

Cathode Material

LiFePO4


3. 14

Cell Weight

4. 19±0. 12kg


3.15

Energy Density

180Wh/kg


3.16

Standard Charging

Method(CC&CV)

In an ambient temperature of

25±2℃, battery is charged with

constant current of 0.5I1(A) until 3.65V. Then it is charged at a

constant voltage of 3.65V until the  current is less than 0.05I1(A), then rest 1 hour.
