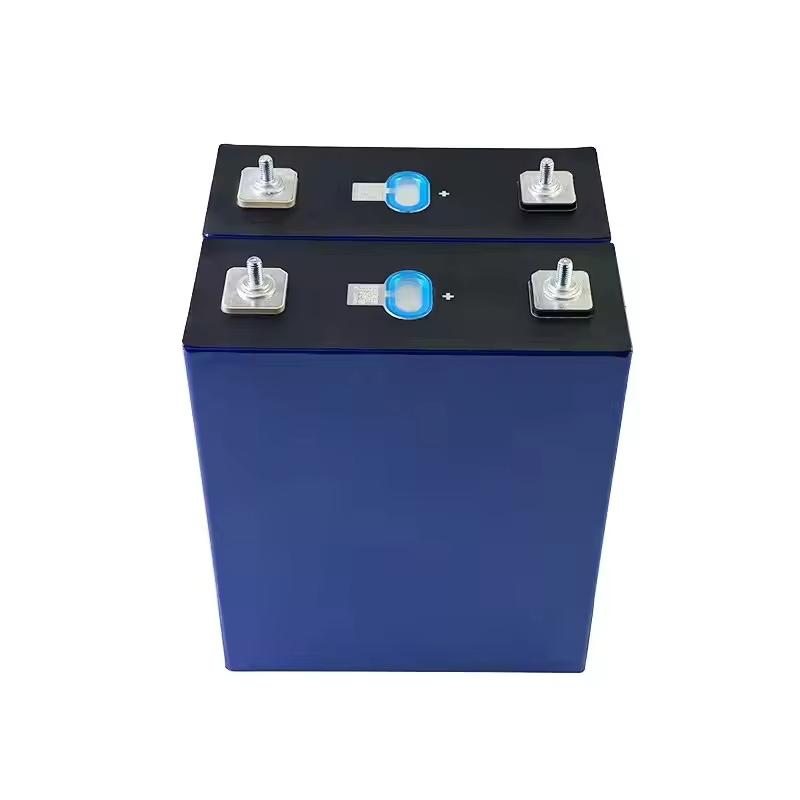

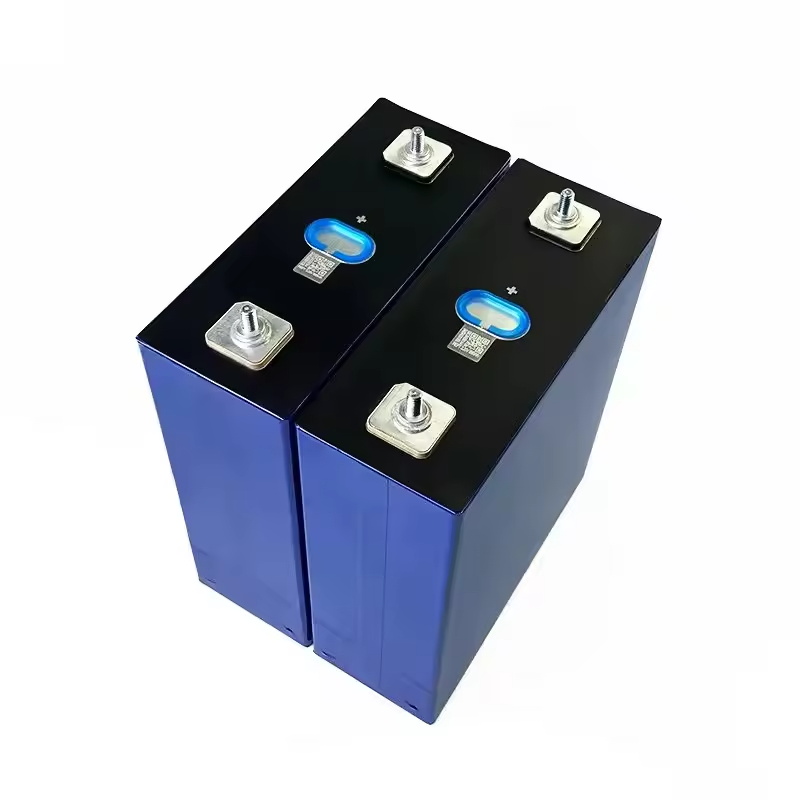

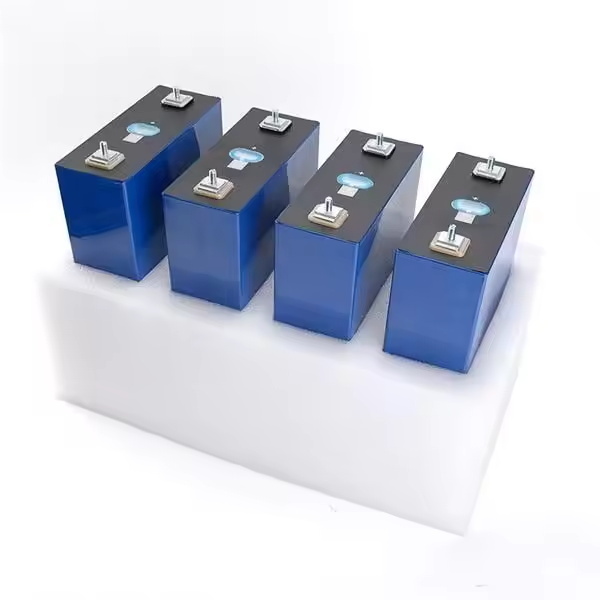

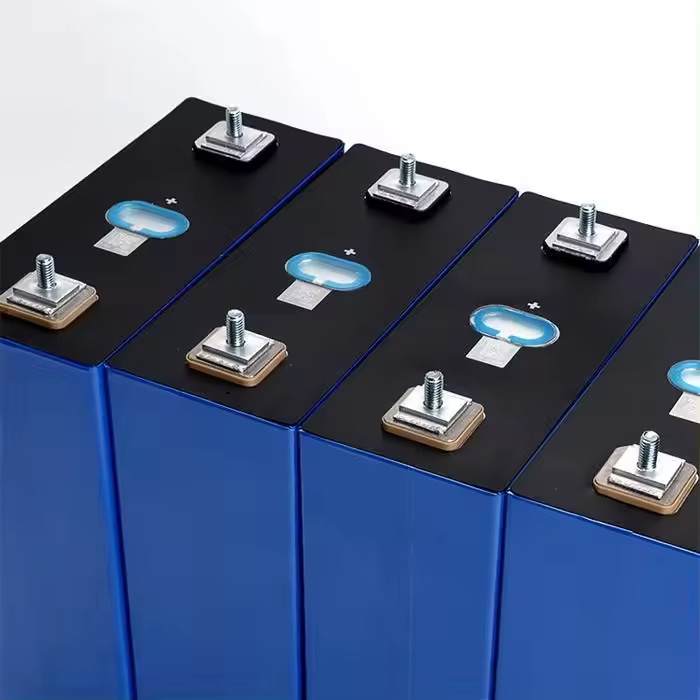

CB75 3.2V 314Ah Prismatic LiFePO4 Battery Cell
CB75 3.2V 314Ah lithium Prismatic LiFePO4 Battery Cell with 8000 cycles for ESS
- Category: LiFePO4 Battery Cell
- Tag: lifepo4 battery cell
Renowned for its outstanding energy density, extended cycle life, and advanced safety features, the 3.2V 314Ah Prismatic LiFePO4 Battery Cell stands out as a high-performance lithium iron phosphate (LiFePO4) battery. Its prismatic cell design ensures heightened stability, enabling efficient energy storage and discharge.
Key Features and Advantages:
1. High Energy Density: The battery cell, with a remarkable energy density of 314Ah, offers an impressive power-to-weight ratio. Ideal for applications requiring compact and lightweight energy storage solutions, such as electric vehicles (EVs), renewable energy systems, and portable devices.
2. Long Cycle Life: With a capacity for thousands of charge-discharge cycles, the battery cell ensures longevity and reliability, minimizing the need for frequent replacements and reducing overall costs.
3. Enhanced Safety: Built on the safety foundation of LiFePO4 chemistry, the battery cell exhibits exceptional thermal stability, a low risk of thermal runaway, and reduced susceptibility to overcharging. These safety features make it a preferred choice for critical applications where reliability and accident prevention are paramount.
4. Fast Charging Capability: Supporting high-speed charging, the battery cell significantly reduces charging times compared to conventional technologies. This feature is particularly valuable in applications demanding quick turnaround times, such as electric vehicles and energy storage systems.
Item | Specification |
Nominal Capacity | 314Ah |
Nominal Voltage | 3.2V |
Nominal Energy | 1004.8Wh |
Operating Voltage | 2.5~3.65V |
2.0~3.65V | |
Standard Charging Power | 502.4W |
Standard Discharging Power | 502.4W |
Working Temperature | Charge: 0℃~55℃ Discharge: -30℃~60℃ |
Storage Temperature | -30℃~60℃ |

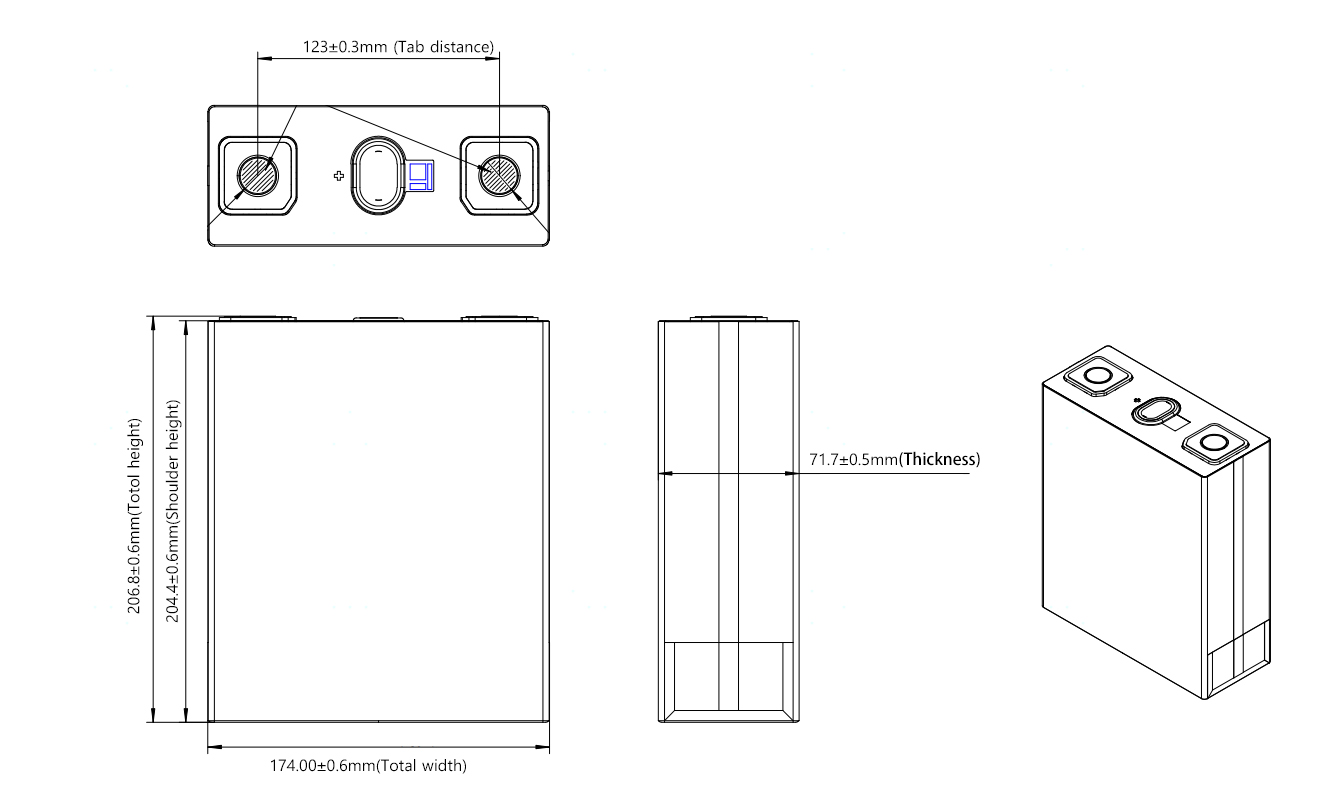

Dimension | 71.7(T)*174.0(W)*206.8(H)mm |
Cathode Material | LiFePO4 |
Cell Weight | 5.75±0.2kg |
Energy Efficiency | ≥94.5% |
Energy Density | 175Wh/kg/394Wh/L |
IMP(1KHz) | ≤0.3mΩ |
Shipping capacity | 125.6±3Ah |
Cycle Life | ≥8,000 cycles |
Standard charge power | 0.5P |
Maximum continuous charge power | 1P |
Standard charge voltage | 3.65V |
Standard charge temperature | 25±2℃ |
Standard discharge power | 0.5P |
Maximum continuous discharge power | 1P |
Standard discharge temperature | 25±2℃ |
Discharge temperature range | -30-60℃ |
Applications:
1. Electric Vehicles (EVs): The REPT 3.2V 314Ah Prismatic LiFePO4 Battery Cell plays a crucial role in powering the next generation of electric vehicles. Its high energy density, long cycle life, and fast charging capability make it an excellent choice for electric cars, buses, and electric bikes.
2. Renewable Energy Systems: In the era of renewable energy, efficient energy storage is vital for grid stabilization and energy management. The REPT battery cell's ability to store and deliver energy reliably positions it as an ideal candidate for renewable energy systems, including solar and wind farms.
3. Portable Devices: From smartphones to medical devices, portable electronics demand lightweight and long-lasting power sources. The compact form factor, high energy density, and extended cycle life of the REPT battery cell make it an excellent choice for various portable devices, ensuring prolonged usage without frequent recharging.
