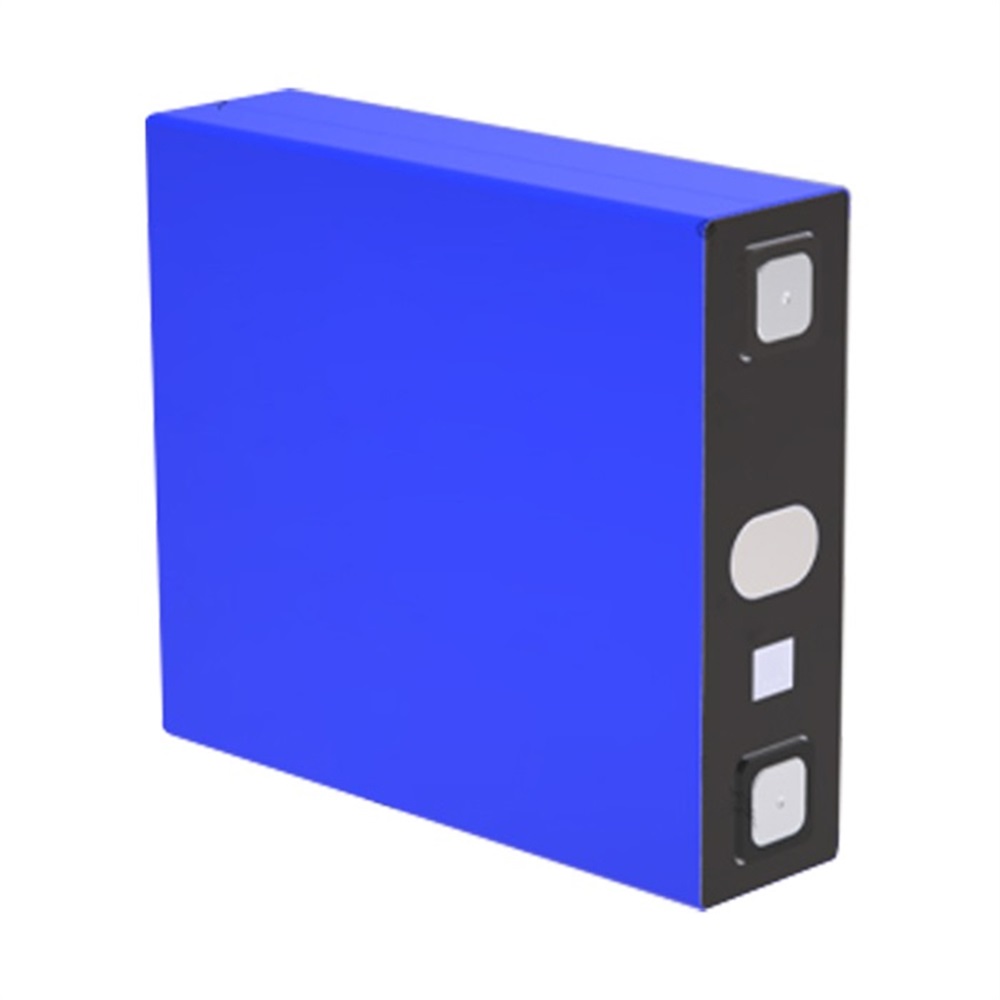

3.2V CBA54173200-206Ah LiFePO4 Lithium Ion Prismatic Battery Cell
3.2V CBA54173200-206Ah LiFePO4 Lithium Ion Prismatic Battery Cell with the size of 54*173*200mm and a cycle life more than 6000times.
- Category: LiFePO4 Battery Cell
- Tag: lifepo4 battery cell
Feature
High safety
lithium iron phosphate prismatic aluminum shell cell with good safety.
Long life
unique material process selection to ensure first-class cell cycle life.
Low cost
accurate design, excellent technology, and controllable management to create a cost advantage
Product Parameters
Item | Specifications | Remarks |
Nominal Capacity | 206Ah | N/A |
Nominal Voltage | 3.2V | |
Nominal Current | 100A | |
AC Internal Resistance | ＜0.3mΩ | 1KHZ, 50mA |
Weight | 4000±120g | |
Dimension | 54.3*173.8*200.3mm | |
Energy Density | ≥164Wh/Kg | |
Maximum Charging Voltage | 3.65V | |
Minimum Discharge Voltage | 2.5V | 0℃<T≤60℃ |
2.0V | -20℃<T≤0℃ | |
Operating Temperature | Charge: 0℃<T≤55℃ | |
Discharge: -20℃<T≤60℃ | ||
Maximum Continuous Current | Charge: 200A | |
Discharge: 200A | ||
Peak Charging Current | 412A | |
Peak discharging Current | 412A | |
Normal Temperature Cycle Life | ≥6000 cycles | 0.5C/0.5C 100%DOD |
Details
