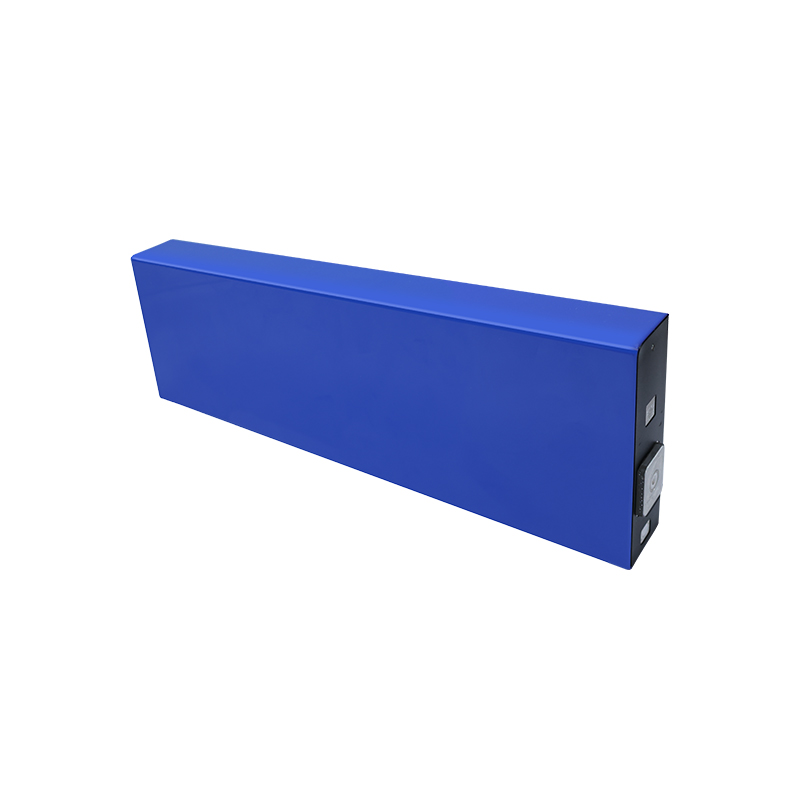

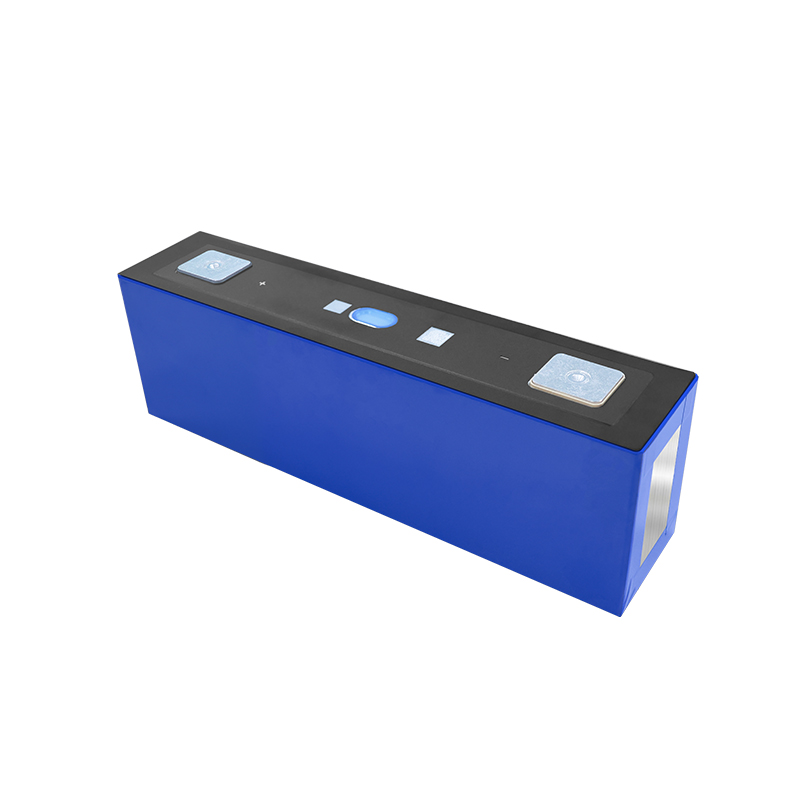

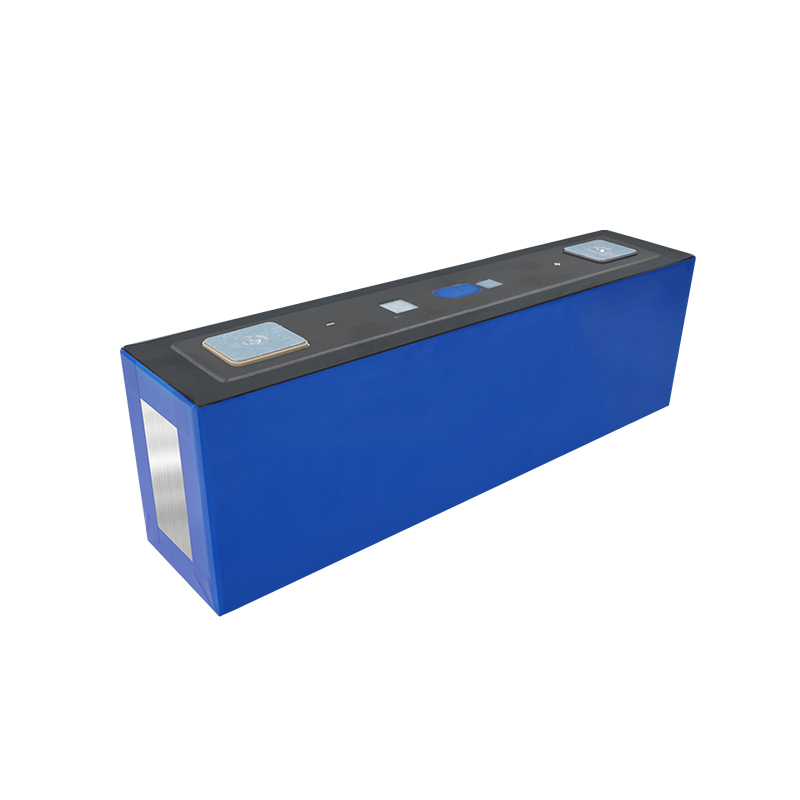

EVE A22 178.1Ah 3.2V Lifepo4 Battery Cell For ESS

Provide customized EVE A22 178.1Ah 3.2v lifepo4 battery pack service.

EVE A22 178.1Ah 3.2V Lifepo4 Battery Cell For Electric Vehicle Home Energy Storage Battery

EVE A22 178.1Ah 3.2V Lifepo4 Battery Cell For Electric Vehicle Home Energy Storage Battery EVE A22 178.1Ah 3.2V Lifepo4 Battery Cell For Electric Vehicle Home Energy Storage Battery

Feature

Strong performance

High energy density, high discharge rate, stable charge and discharge, long cycle life

High consistency

Smart factory, highly automated production line and high-precision equipment to ensure battery consistency

Safe and reliable

More than 2856 cell manufacturing control points, with a perfect design process and test system. Obtained GB, CE, IEC, UL and other certifications

For specific models, please consult online sales


Specifications


Brand Name

EVE

Model Number

A22

Weight

3170g

The charging ratio

1/1C

The discharge rate

1/1C

Application

electric vehicles\AGV\Home energy storage\Engineering vehicles

Electric Energy

573.5Wh

Product name

EVE 178.1Ah lifepo4 battery

Min. Voltage

3.22V

Min .Capacity

178.1Ah

Initial IR

≤0.3mΩ

Cycle life

2000cycles


EVE A22 BATTER


Certifications of EVE A22 Battery

1. International regulatory certification, we have CE、ROHS、RECHAR、BIS、EPR、RCM、PSE、GOST、MIC...

2.In the product testing report, we have IEC62368、IEC62619、IEC62620、CB、GB、CCC、CCS...

3.In international transportation, we have UN38.3 (support sea, land and air transportation)、MSDS、UL、ATEX...

4.Special certificates: ESG、 ASPICE CL2、 ISO26262、 TISAX、Green Factory...

5.We support certification according to the needs of our customers to ensure product quality and safe transportation

Certifications


Product Application Case

Passenger car solutions, commercial vehicle solutions, engineering power solutions, electric energy storage, industrial and commercial energy storage, household energy storage, communication energy storage, electric ships

EVE A22 APPLICATIONS

Battery Safety Specification

During the use of batteries, the following requirements must be observed

1) Do not remove the battery from its original packaging before use.

2) Do not place the battery scattered together to avoid accidental short circuit.

3) Do not heat the battery above 100C or burn it.

4) Do not weld directly on the surface of the battery, use a battery pre-equipped with welding feet or leads.

5) Do not mix new and used batteries, or batteries from different places of origin.

6) Disassembling and dissecting the battery is strictly prohibited.

7) Short circuit and reverse connection between the positive and negative electrodes of the battery are prohibited.
