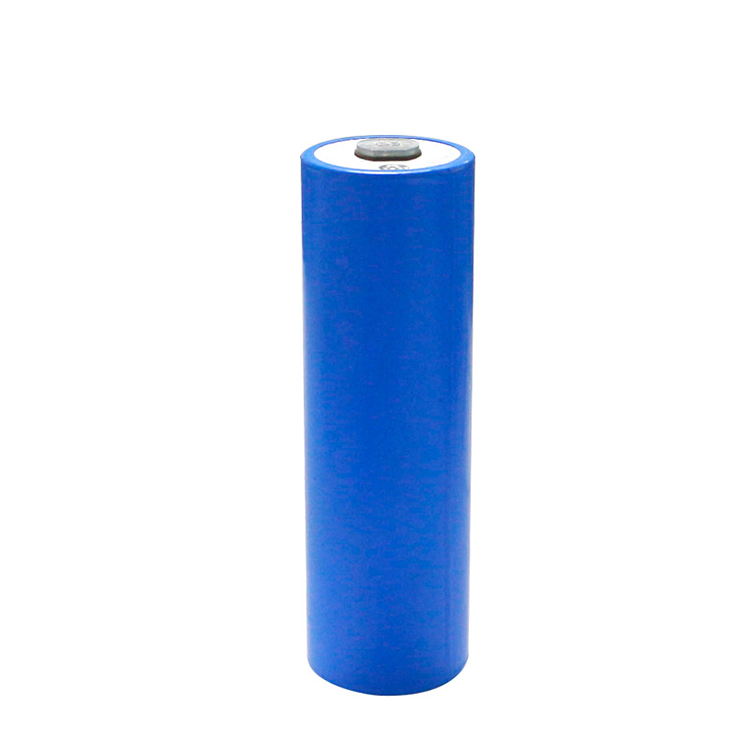

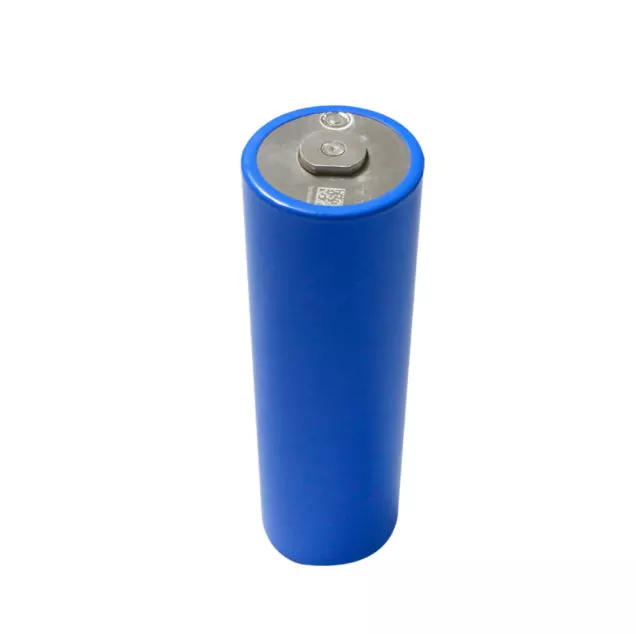

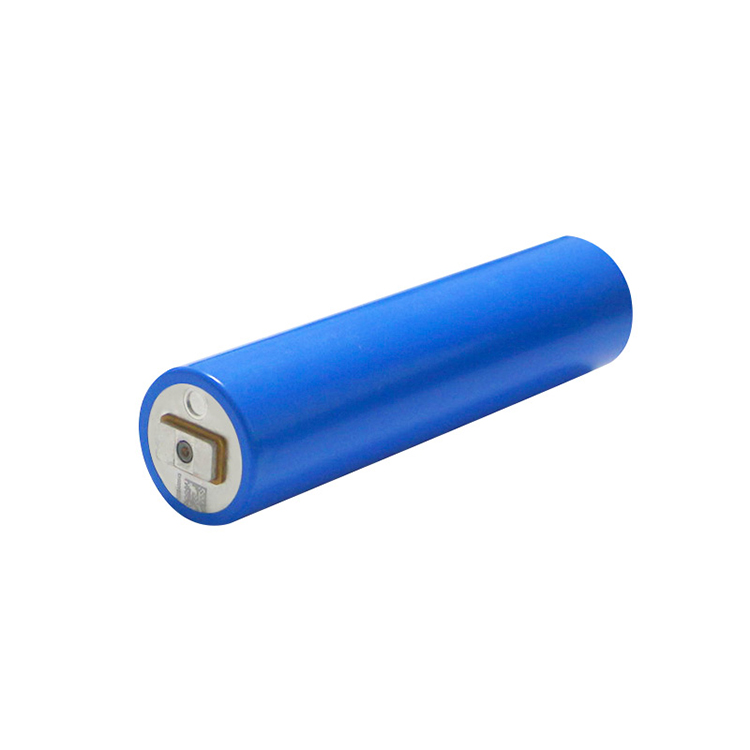

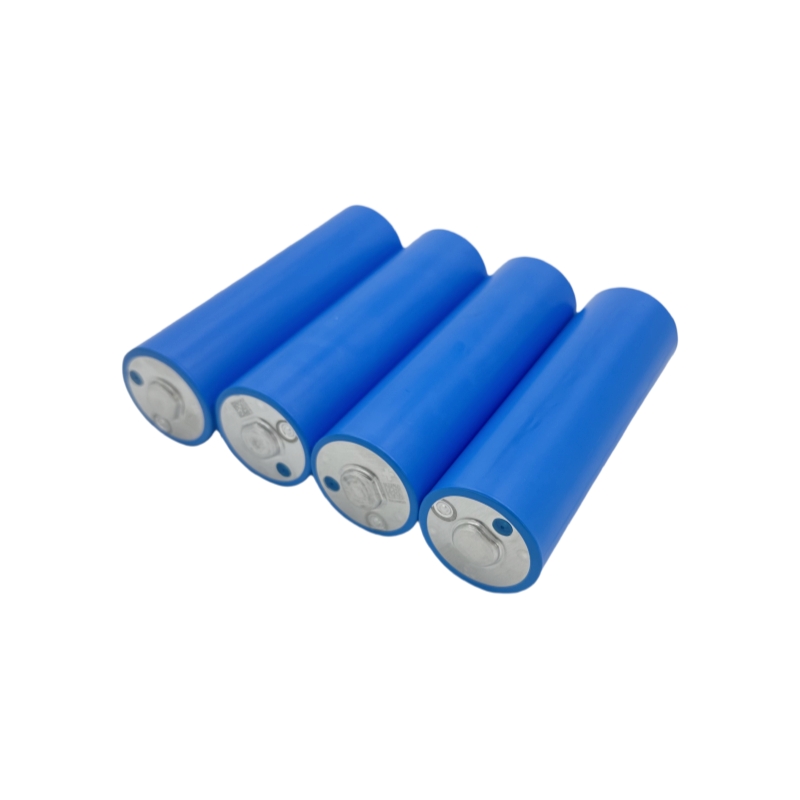

EVE C40 40135 Cylindrical LiFePO4 20Ah 3.2 V Cells

EVE C40 40135 Cylindrical LiFePO4 20Ah 3.2 V Cells For BESS/Power tools.ect.

EVE C40 40135 Cylindrical LiFePO4 20Ah 3.2 V Cells


eve battery cell40132 lifepo4 cell

Features:

High energy density: up to 285wh/kg

High rate discharge: Capable of maximum 50A continuous discharge, and 100A at pulse discharge

Fast charging: Up to 8A charging

Long cycle life at room temperature: Meet the requirements of long operating life

High-safety: Pass CB, UL1642, UN38.3

Excellent high temperature and low temperature cycle: between 0~55℃

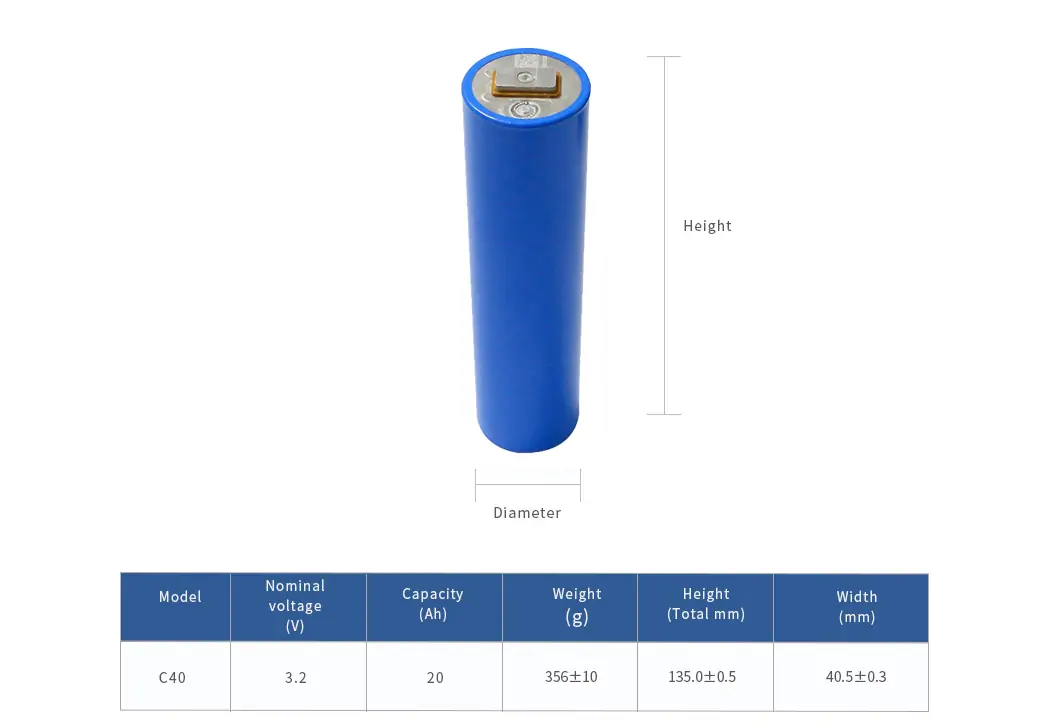

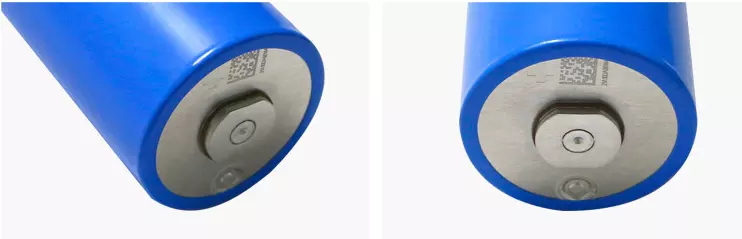

EVE C40 40135 Details



Specifications:



Items

Parameters

Nominal Capacity

20000mAh

Nominal Voltage

3.2V

AC-IR

≤3mΩ

DC-IR

≤8mΩ

End-of-charge Voltage

3.65V

End-of-charge Current

1000mA

End-of-discharge Voltage

2.5V

Storage Humidity

≤70%RH

Weight

356±10g

Standard Charging Current

10000mA

Standard Discharge Current

10000mA

Max Continuous Discharge Current

60000mA

Model Name

C40-40135

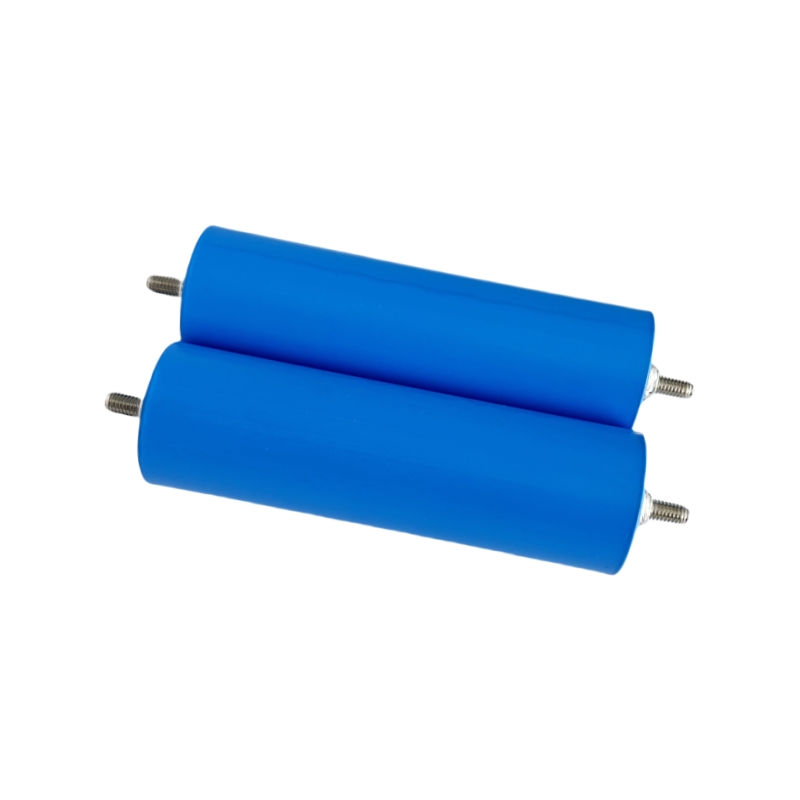

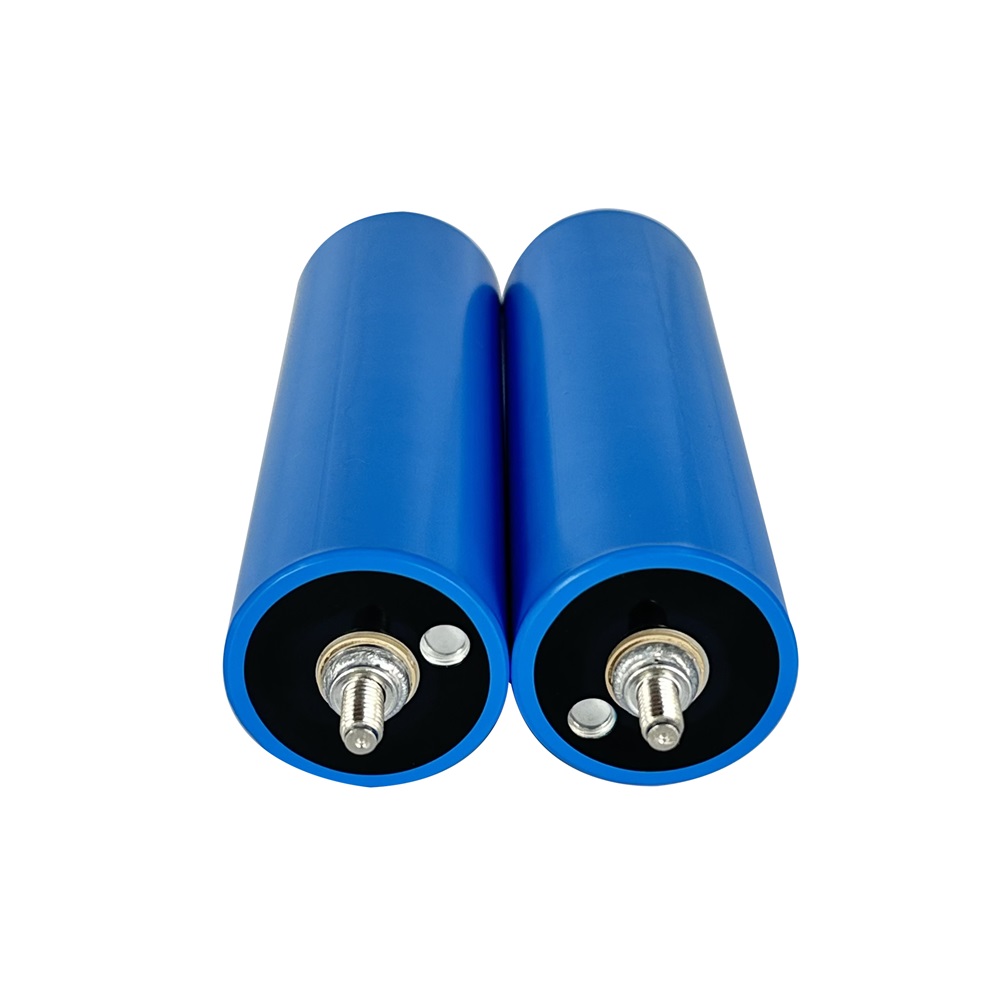

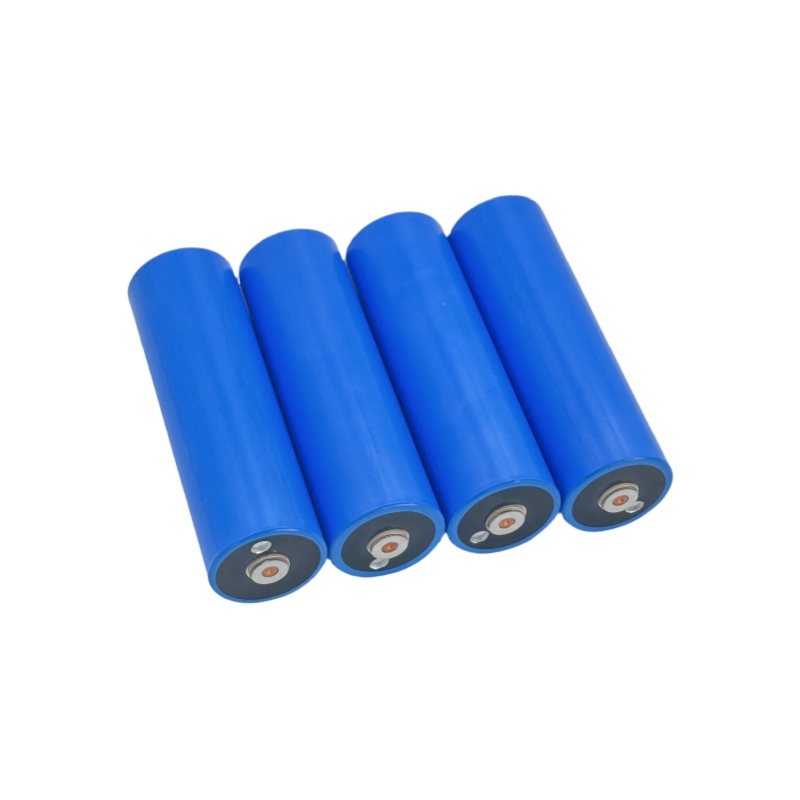

40135 cylindrical lifepo4 battery cell


Applications:

Applications: Power tools, gardening tools, electric two-wheelers, vacuum cleaner, sweeping robot, BESS, etc.

Applications


Lithium batteries are products of high profession and technology. Any application and replace of Lithium batteries shall be conducted by professional technologist.

Before using,please learn the corresponding Technique Specification carefully. While using, the following regulations must be observed:

1) Do not remove the battery from its original packaging before use.

2) Do not place the batteries piecemeal in case of accidental short circuiting.

3) Do not heat the battery above 100°C or incinerate it.

5) Do not weld directly on the surface of the battery, but use a battery with pre-installed weld pins or leads.

6) Do not mix new batteries with used ones, or with batteries of different origins.

7) Any disassembly or dissection of batteries is strictly prohibited.

8) It is strictly forbidden to short-circuit or reverse connection between the positive and negative terminals.
