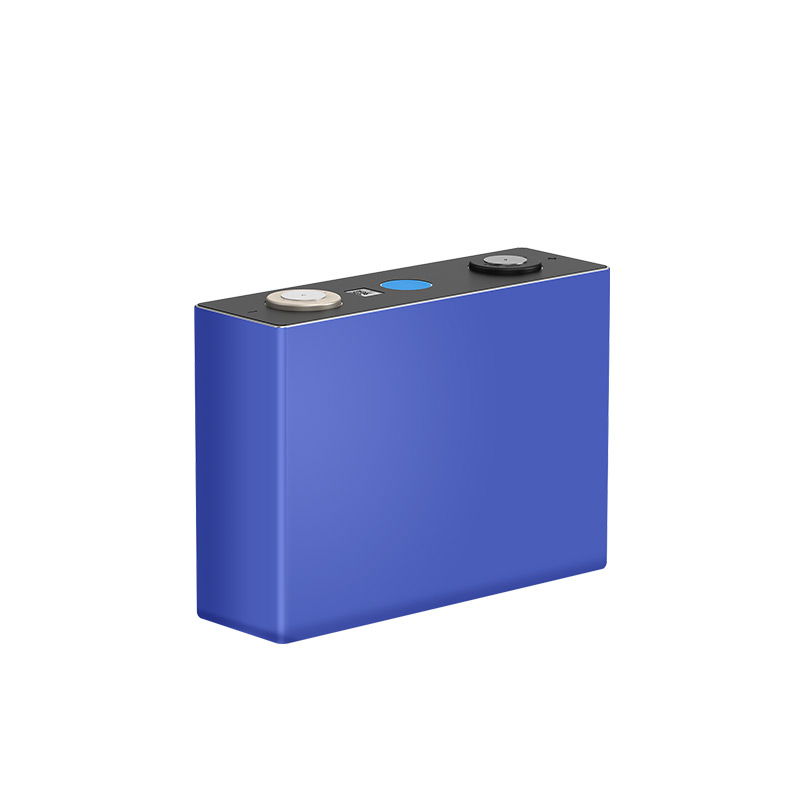

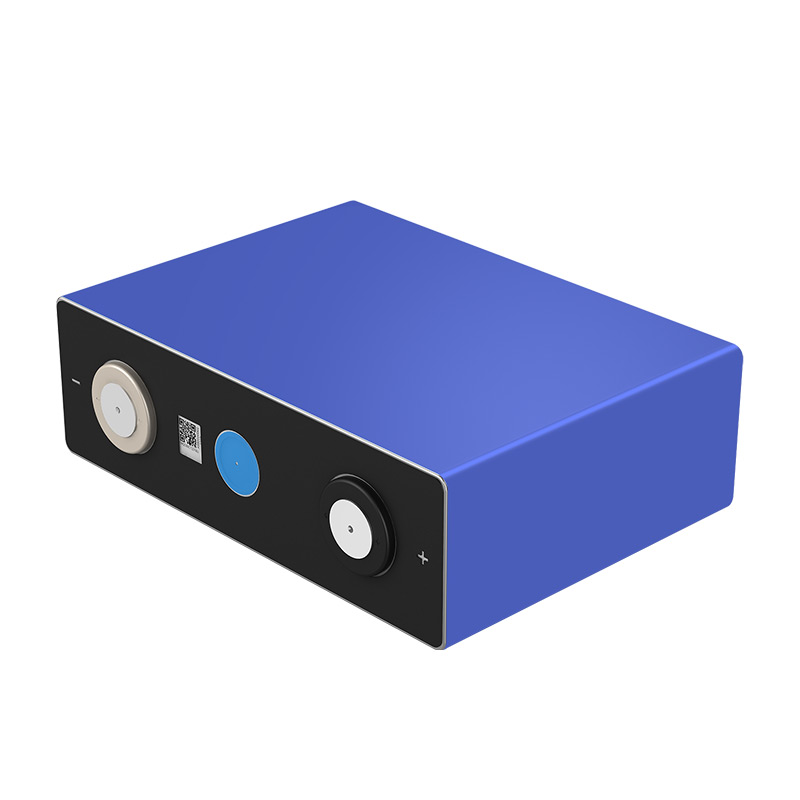

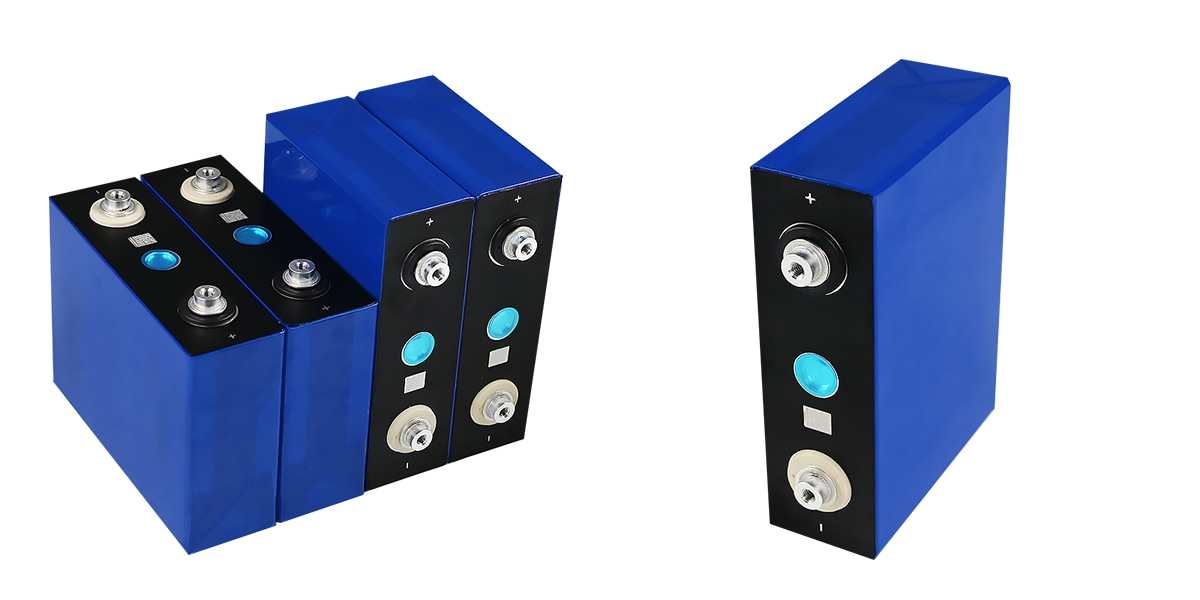

EVE LF100LA 3.2V 100Ah Power LiFePO4 Battery Cell

EVE LF100LA 3.2V 100Ah Power LiFePO4 Battery Cell WIth More 4000 Cycel, it can be used as lead-acid to lithium.

EVE LF10OLA 3.2V 100Ah 320wh prismatic LFP cell with Aluminum Shell ≥4000 cycle Rechargeable for RV, EV, Golf carts, ESS, and solar system. etc. The battery can be used as lead-acid to lithium


EVE LF100LA Features

· Intelligent factory design, and high-performance consistency.

· Square aluminum shell structure, high precision explosion-proof valve, high safety performance.

· Low internal resistance, high discharge rate, and stable discharge platform.

Long cycle life, capacity retention rate over 80% after 4000 cycles at 1C/1C.Green environmental protection


Specifications


Parameter

Specification

Battery Brand

EVE

Battery Model

LF100LA

Min. Capacity

100Ah

Min. Energy

320wh

Initial internal resistance

≤0.5mΩ

Nominal Voltage

3.2V

Charging Cut-off Voltage

3.65V

Discharging Cut-off Voltage

2.5V (T>0℃), 2.0V (T≤0℃)

Standard Charge Current

50A0.5C

Max. Constant Charge/discharge Current

100A 1.0C

Max. Pulse charging/discharging Current

200A 2C(30s)

Cycle Life

4000 Cycles @80% DOD

Charging Temperature

0'C~55°

Dimension

118.5+0.50mm(H)*160+0.50mm(w)*50.1+0.5mm(T)

Weight

1.98+0.05 kg

Encapsulation mode

U-shaped capsule

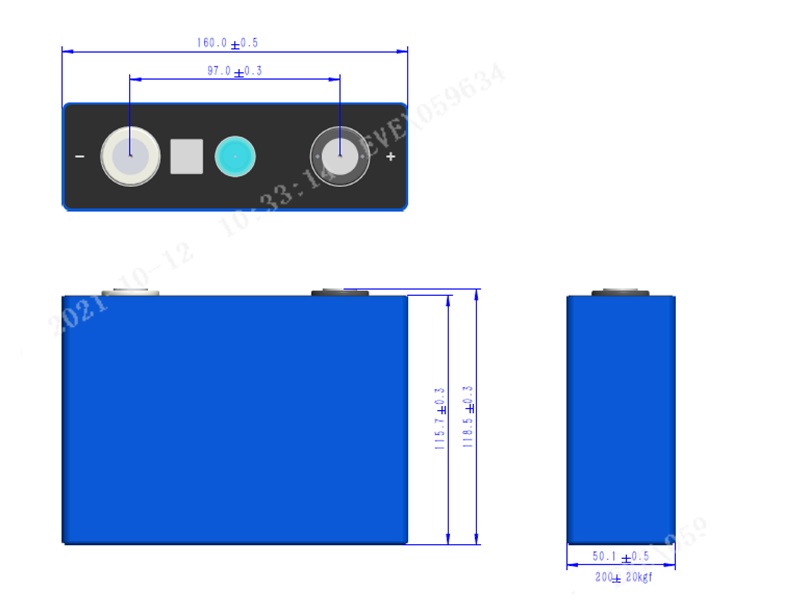

Cell Drawing of LF100LA

EVE lf 100la lifepo4 battery cell

Each weld service includes a complimentary set of busbars, bolts, and washers per cell.

Prior to delivery, we ensure all cells are matched in terms of capacity, voltage, and resistance.

Additionally, we offer customized plastic holders for effortless connection in constructing battery modules.

EVE LF100LA 3.2V 100Ah Power LiFePO4 Battery Cell

EVE LF100LA 3.2V 100Ah Power LiFePO4 Battery Cell


Operation Precautions

· It is strictly forbidden to immerse the battery in water, when it is not in use, it should be placed in a cool and dry environmentIt is forbidden to use and leave the battery next to heat and high temperature sources, such as fire, heater, etc.

· Please use a special charger for lithium-ion batteries when charging

· During usage, it is strictly prohibited to reverse the positive and negative terminals of the battery

· Do not throw the battery in the fire or heater

· It is forbidden to use metal to directly connect the positive and negative terminals of the battery to short-circuitIt is forbidden to transport or store the battery with metal, such as hairpins, necklaces, etc.

· It is forbidden to knock or throw, step on, or bend the battery.

· lt is forbidden to directly weld the battery or pierce the battery with nails or other sharp objects is forbidden to use or place the battery under high temperatures (under hot sunlight, otherwise it may cause the battery to overheat fail to function, and shorten its life.

· It is forbidden to use it in places with strong static electricity and strong magnetic fields; otherwise it will easily damage battery safety protection device and bring hiddendangers of safety.

· If the batteryleaks and the electrolte splashes on the skin or clothes,immediately wash the afected area with running water fthe batery leaks and the electrolyte entersthe open parts ofthe human body such as the eyes, mouth,nose,et.,immediately rinse the eyes with a large amount of waterand send toa doctor fortreatment immediately.otherwise it will cause serious harm to the human body.

· If the battery emits peculiar smell, heat, discoloration, deformation, or any abnormality during use, storage, or charging immediately remove the battery from the device or charger and stop using it
