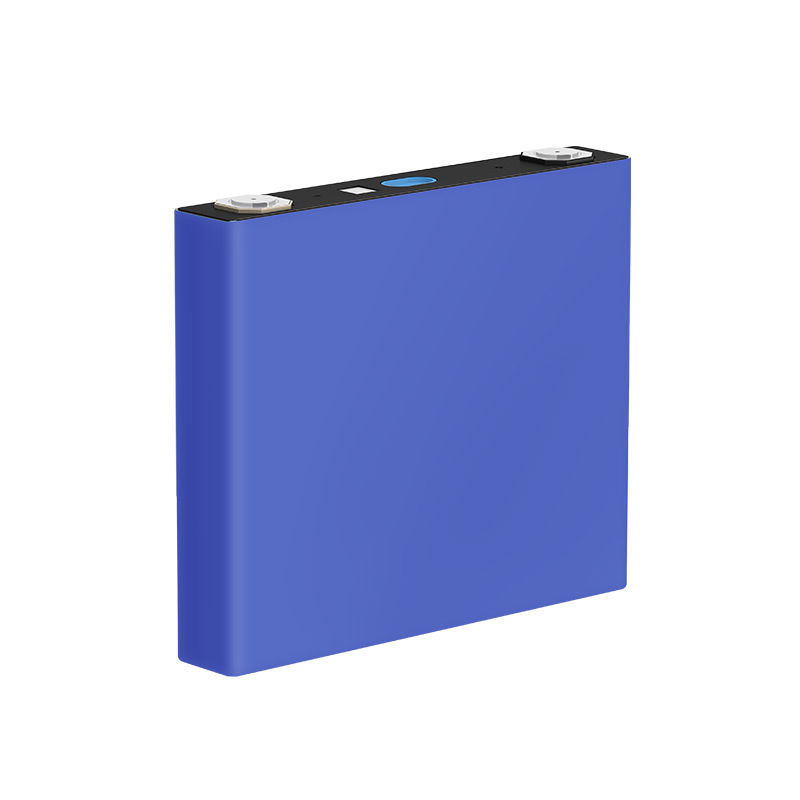

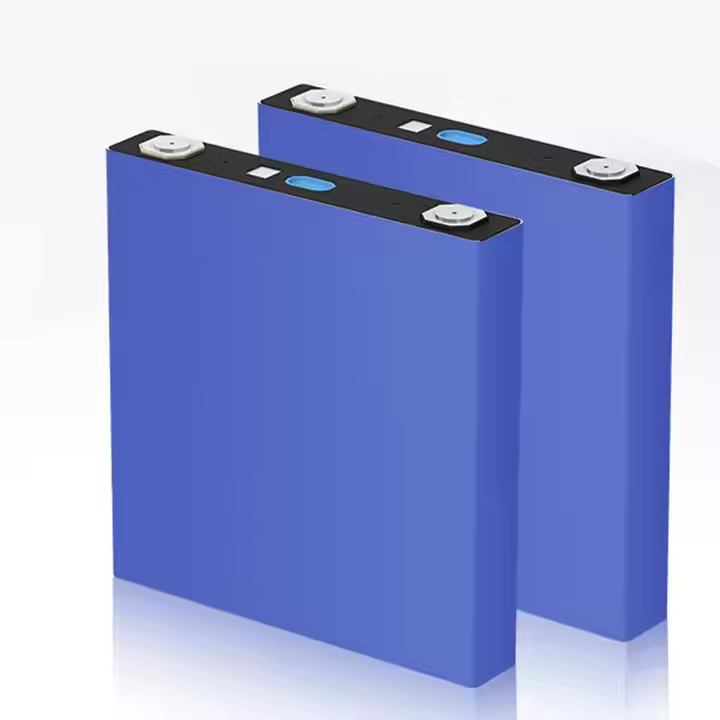

EVE LF125P 3.2V 125Ah LiFePO4 Battery Cell With 3C High Rate

EVE LF125P 3.2V 125Ah LiFePO4 battery cell with 3C high charge/discharge rate for reliable, high-performance energy storage.

Features

Automated: Automated production/Product consistency

Ultra-Safe: Explosion-proof/ No leakage

Stable :Low IR / High CR / Discharge steadily

Customized Custom-mad e:CustomerDemand Customization

Super Lo ng:Ultra-long life cycle

Environmentally Frien dly:Passed environmental system certification


Specifications



Parameter

Specification

Nominal Capacity

125Ah

Nominal Voltage

3.22V

Initial IR

0.40 m2 + 0.05 mΩ

Weight

2390g士 71g

Charging Cut-off Voltage

3.65 V

Discharging Cut-off Voltage

2.5 VT>0℃)2.0VT≤ 0℃)

Charging Temperature

-10 ℃~65℃

Discharging temperature

-35℃~65℃

Storage Temperature

-20℃~45℃

Model Name

LF125P

Cycle Life

4000 Cycles

Standard Charging/Discharging Current

125A

Maximum continues Charging/Discharging current

375A,

3C 25+2°C

Maximum instantaneous Charging

current

500A, 30 s,≤ 40% SOC, 25°℃+ 2°℃

Maximum Instantaneous

Discharging Current

625A, 30 s,≥ 30% SOC, 25'℃ + 2°℃

Height(H) with terminal

172.00 mm 士 0.50 mm

Height(h) without terminal

169.30 mm 士 0.50 mm

Length

200.70 mm 士0.50 mm

Thickness

33.25 mm + 0.50 mm



Details

details

Applications

Excavators, heavy trucks, forklifts, passenger cars

applications

EVE Prismatic LiFePO4 Cell Series
