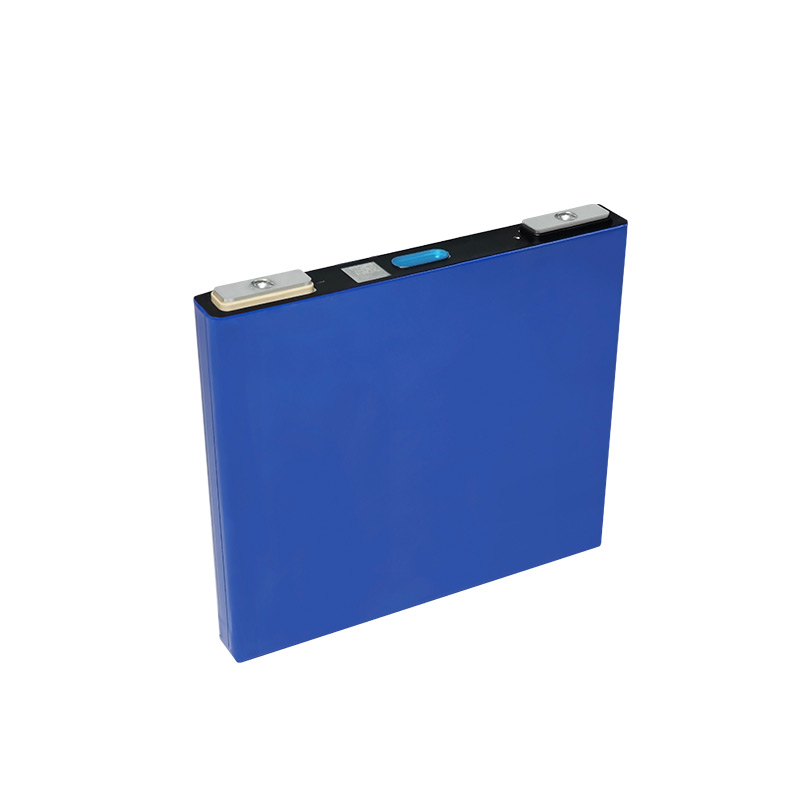

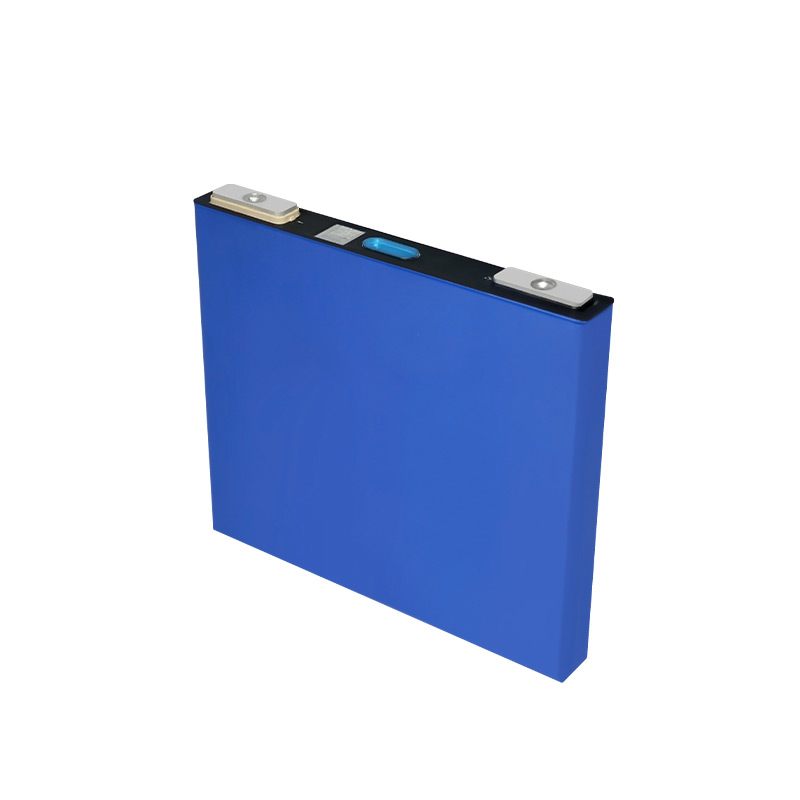

EVE LF22K 3.2V 22Ah LF11 LiFePO4 Battery Cell Wiht 4500 Cycle Life

EVE LF22K lifepo4 battery LF11 3.22V 22Ah power cell starting power commercial vehicle

Feature

Strong performance

High energy density, high discharge rate, stable charge and discharge, long cycle life

High consistency

Smart factory, highly automated production line and high-precision equipment to ensure battery consistency

Safe and reliable

More than 2856 cell manufacturing control points, with a perfect design process and test system. Obtained GB, CE, IEC, UL and other certifications

For specific models, please consult online sales

Specifications


Brand Name

EVE

Model Number

LF22K/LF

Weight

628±10g

The charging ratio

1C(3C)

The discharge rate

1C(3C)

Anode Material

LFP

Electric Energy

70.84Wh

Product name

EVE 22Ah 3.2V lifepo4 Battery

Capacity

22.0 Ah

Initial internal Resistance

0.43±0.1mΩ

Nominal Voltage

3.22V

Operational temperature

-30~60℃

Storage temperature

-40~70℃

Cycle life

4500cycles 25℃ Cycle(3C/3C)

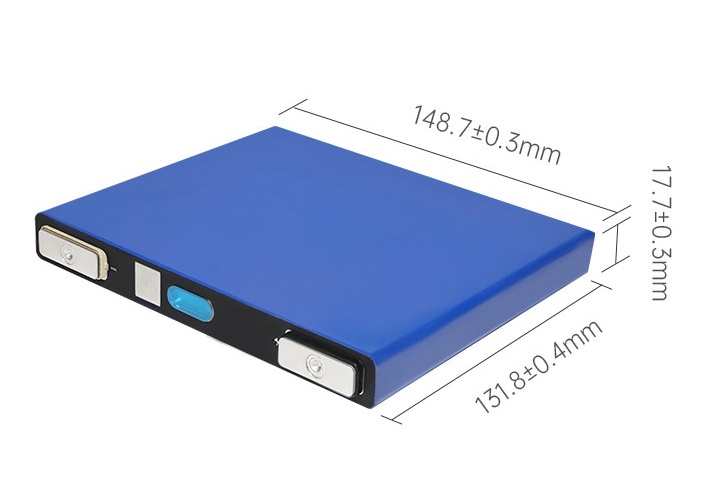

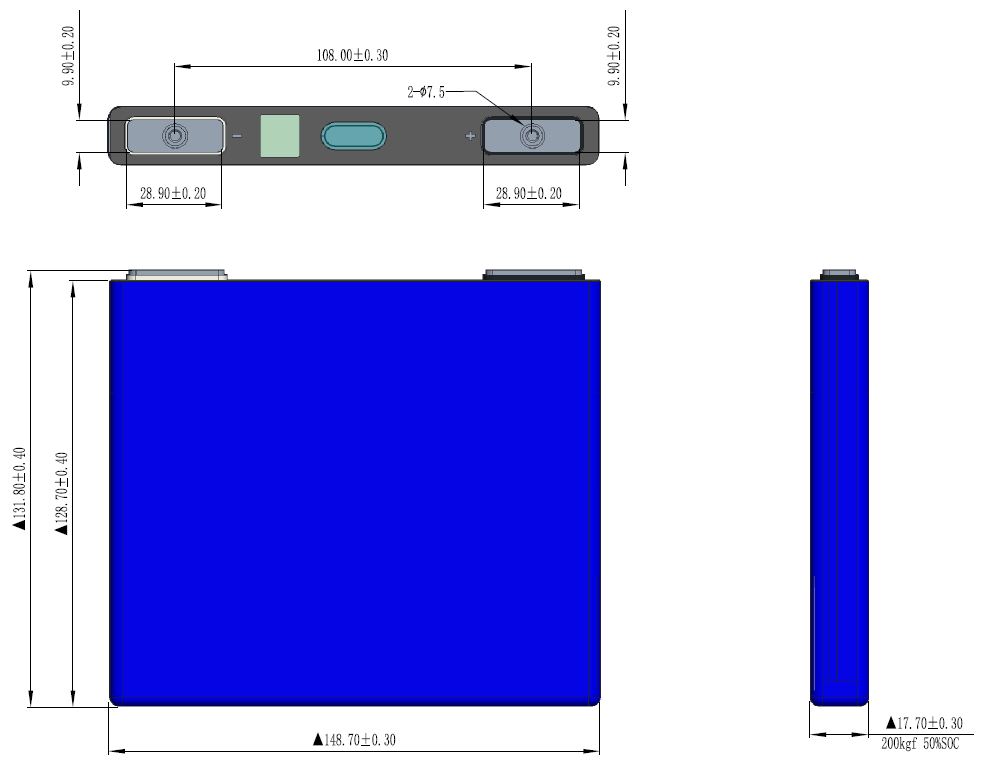

Dimension and Details



EVE LF22K  22Ah 3.2V Lifepo4 Battery Cell 12V Battery Pack Cell Ev Power System Lithium Ion Lifepo4 Battery


Certifications

1. International regulatory certification, we have CE、ROHS、RECHAR、BIS、EPR、RCM、PSE、GOST、MIC...

2.In the product testing report, we have IEC62368、IEC62619、IEC62620、CB、GB、CCC、CCS...

3.In international transportation, we have UN38.3 (support sea, land and air transportation)、MSDS、UL、ATEX...

4.Special certificates: ESG、 ASPICE CL2、 ISO26262、 TISAX、Green Factory...

5.We support certification according to the needs of our customers to ensure product quality and safe transportation


Certifications


Product Application Case

Passenger car solutions, commercial vehicle solutions, engineering power solutions, electric energy storage, industrial and commercial energy storage, household energy storage, communication energy storage, electric ships


Battery Safety Specification

During the use of batteries, the following requirements must be observed

1) Do not remove the battery from its original packaging before use.

2) Do not place the battery scattered together to avoid accidental short circuit.

3) Do not heat the battery above 100C or burn it.

4) Do not weld directly on the surface of the battery, use a battery pre-equipped with welding feet or leads.

5) Do not mix new and used batteries, or batteries from different places of origin.

6) Disassembling and dissecting the battery is strictly prohibited.

7) Short circuit and reverse connection between the positive and negative electrodes of the battery are prohibited.
