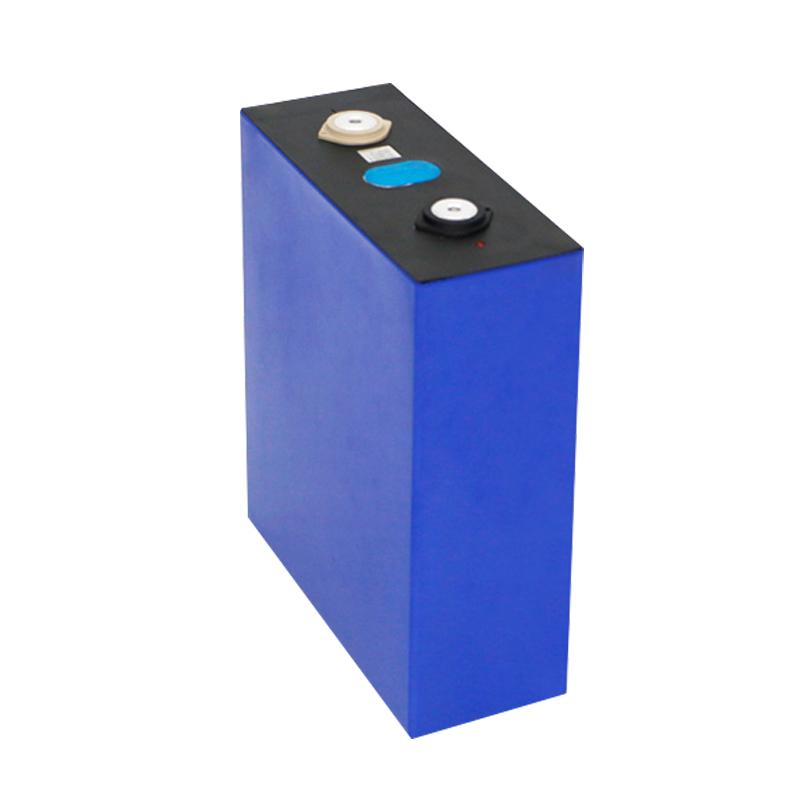

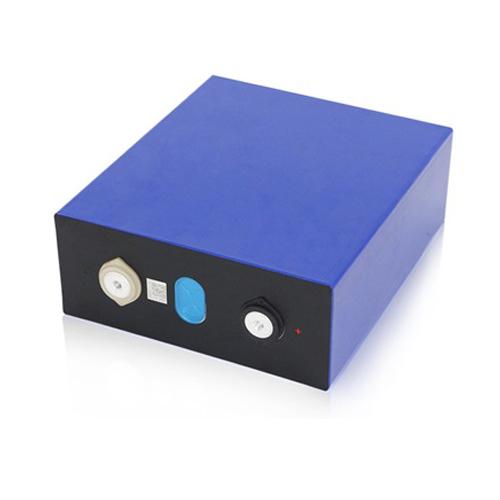

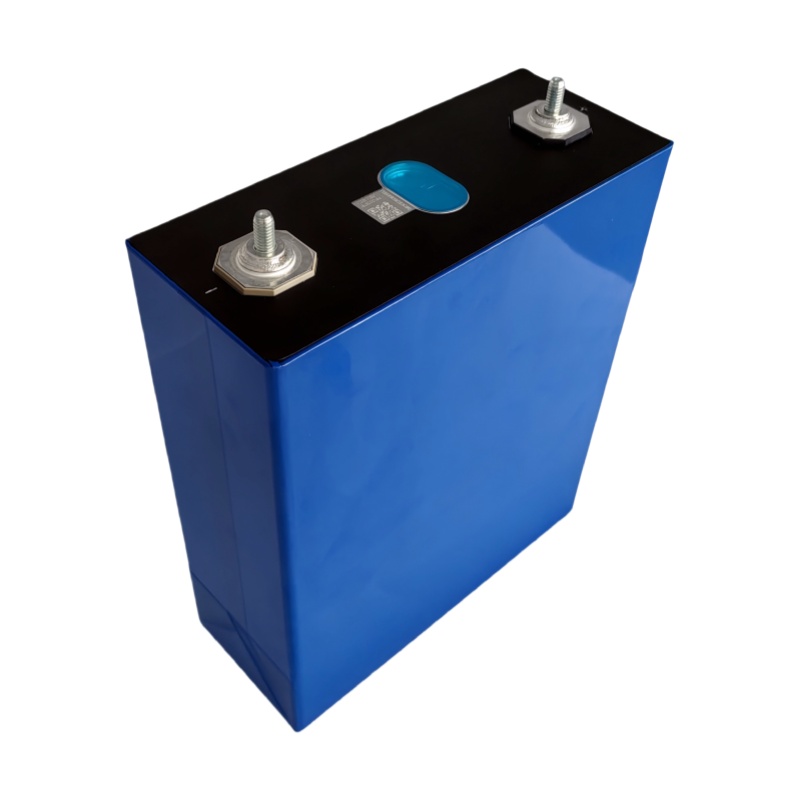

EVE LF280K Prismatic 280Ah 3.2V LiFePO4 Battery Cell

EVE Brand New Grade A LF280K 3.2 V 280ah LiFePO4 Battery Cell With 6000 life cycles and 2C discharge rate.

EVE LF280K Prismatic 280Ah 3.2V LiFePO4 Battery for RV Solar System Storage



EVE 280Ah cells      2(1).jpg


Nominal Voltage:3.2V

Nominal capacity:280Ah

Working voltage:2.5V~3.65V

AC impedance resistance(1khz):≤0.25mΩ

Max. pulse charge / discharge current: 2C (30S)

Dimension: 207(H)*72(T)*173.7(W)mm

Weight: 5.42±0.3kg

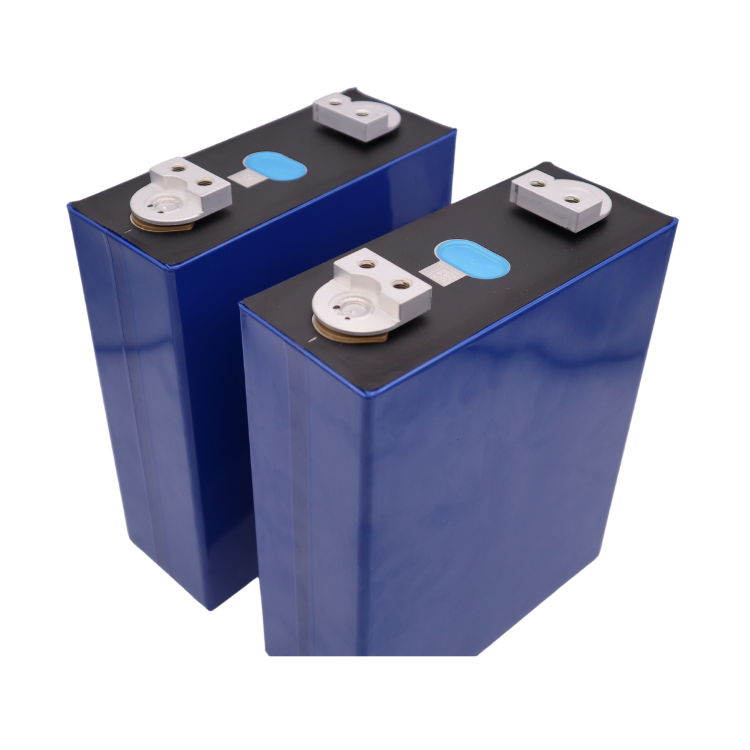

LF280K with m6 threaded hole

280ah lifepo4 280ah lifepo4


280ah lifepo4         dimension of 280ah lifepo4 battery

Welding Parameter of Al Busbar

Laser Welding Depth: ≤2.5 mm

Max Pressure Force on Terminals: 700 N

Max Torque Force on Terminals: 6 N m

Max Temperature on Terminals: 130℃


Parameters:


Item

Parameter

Nominal Capacity

280ah

Typical Voltage

3.2V

AC Impedance Resistance (1KHz)

≤0.25mΩ

Standard charge / discharge Current

0.5C

Cut off voltage of charge / discharge

3.65V / 2.5V

Max. continuous charge / discharge current

1C

Max. pulse charge / discharge current(30S)

2C

Recommended scope of SOC

10%~90%

Charging temperature

0~55℃

Discharging temperature

-30~55℃

Storage temperature Short-term (within 1 month)

-20~45℃

Storage temperature Long-term (within 1 year)

0~35℃

Storage humidity range

<90%

Self-Discharge rate per month

≤3%/month

Dimension

207*72*173.7mm

Weight

5.42±0.3kg

Cycle life at 25℃

≥6000 cycles @0.5C



Electric Performance Curve




       Cycle curve(charge/discharge: 0.5C/0.5C, 3.65V-2.5V)


              Cycle curve(charge/discharge: 0.5C/0.5C, 3.65V-2.5V)




Details:

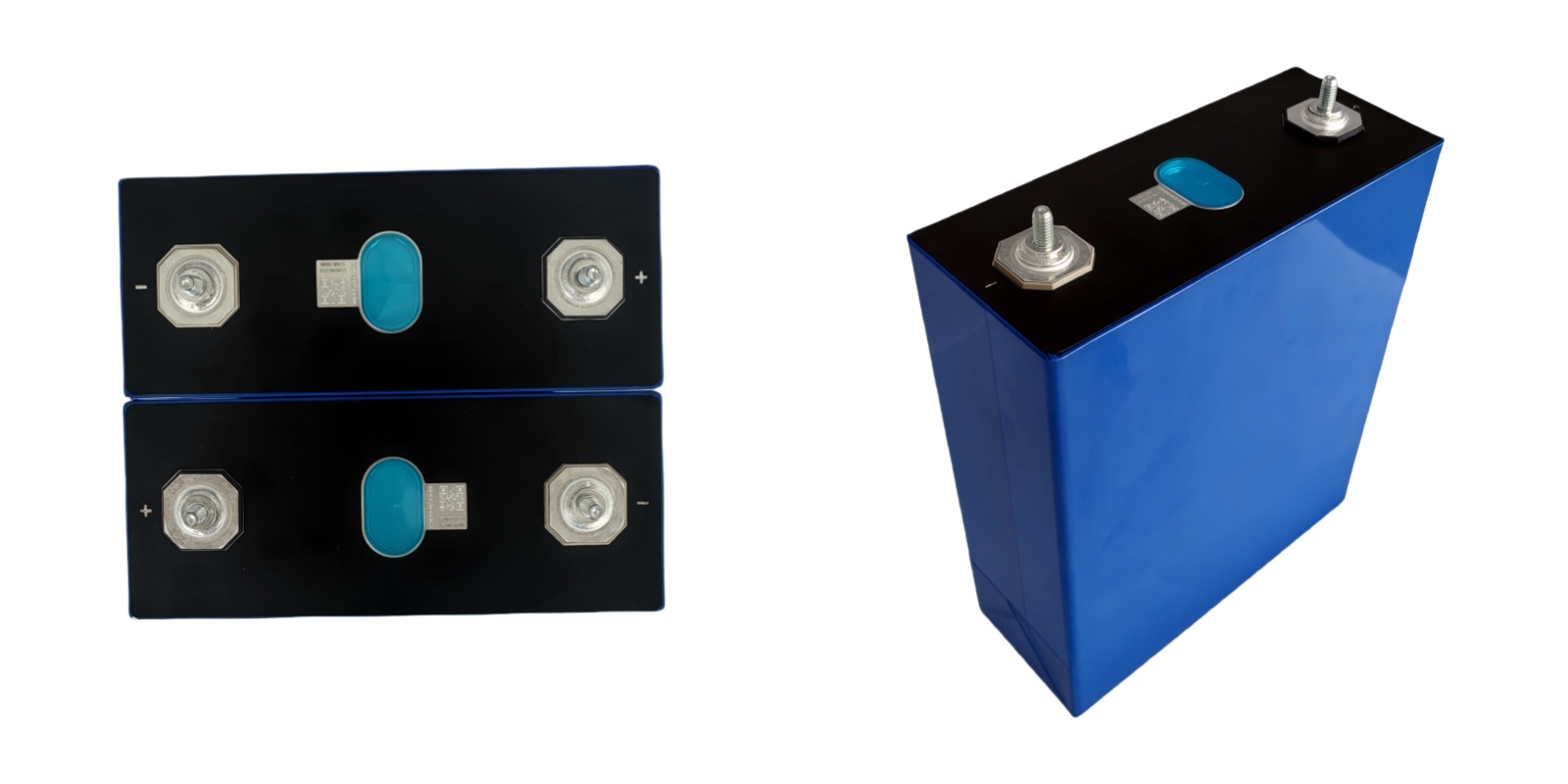

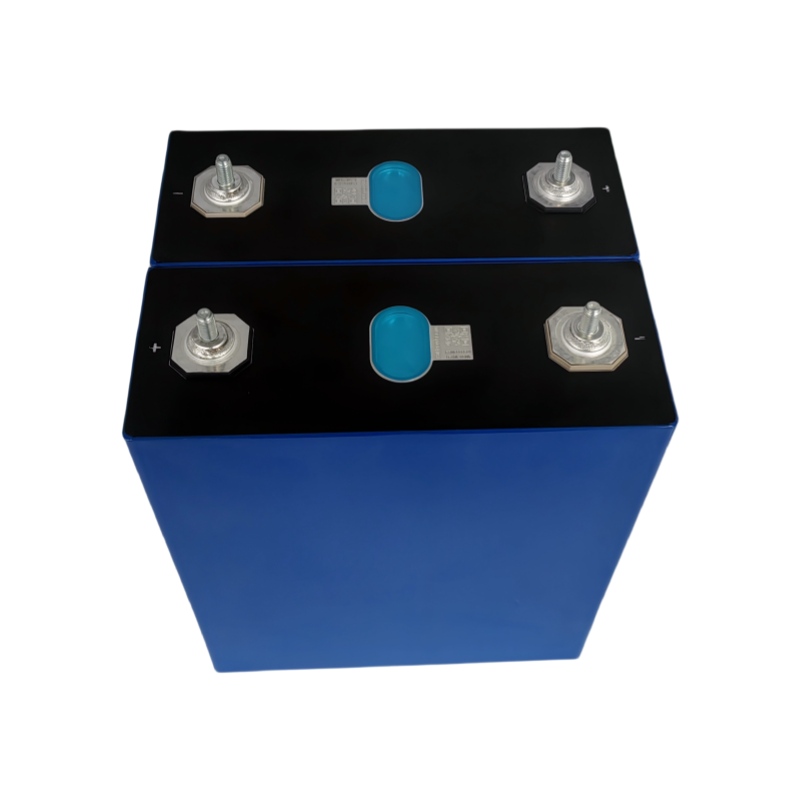

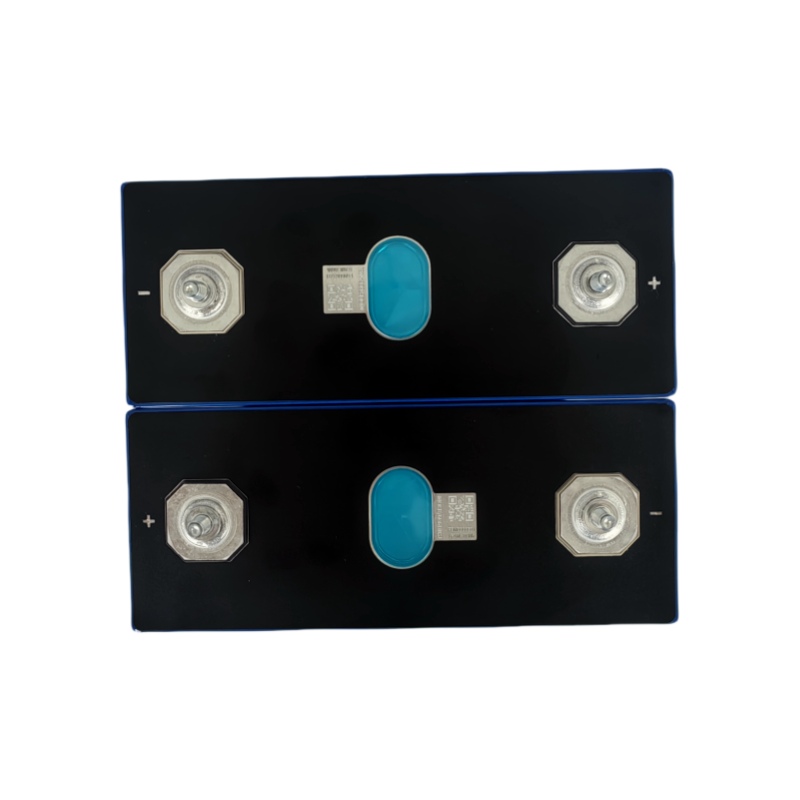

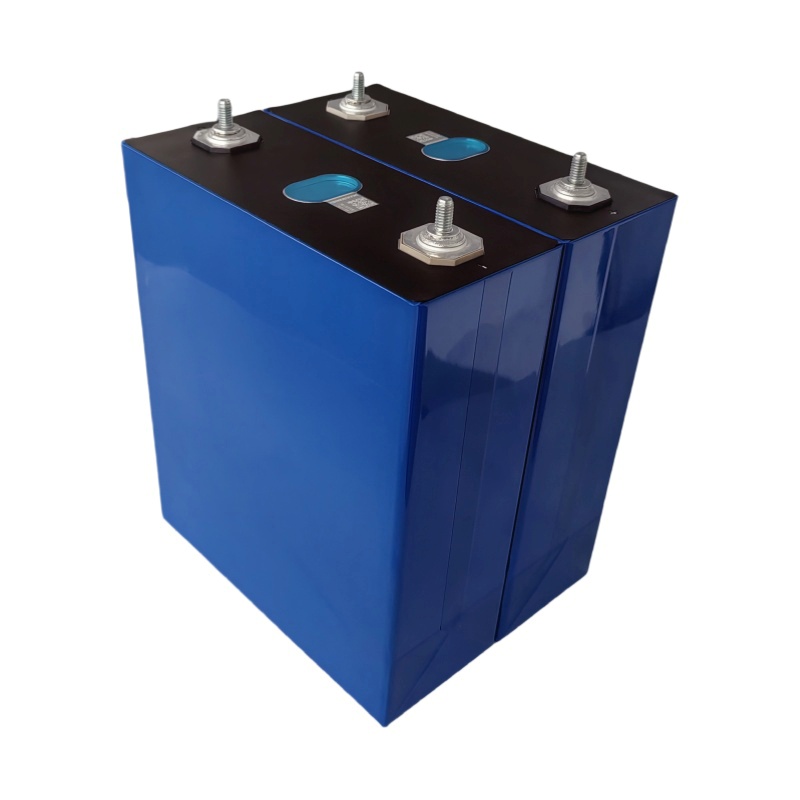

280ah battery cells without welding 280ah battery cells without welding
