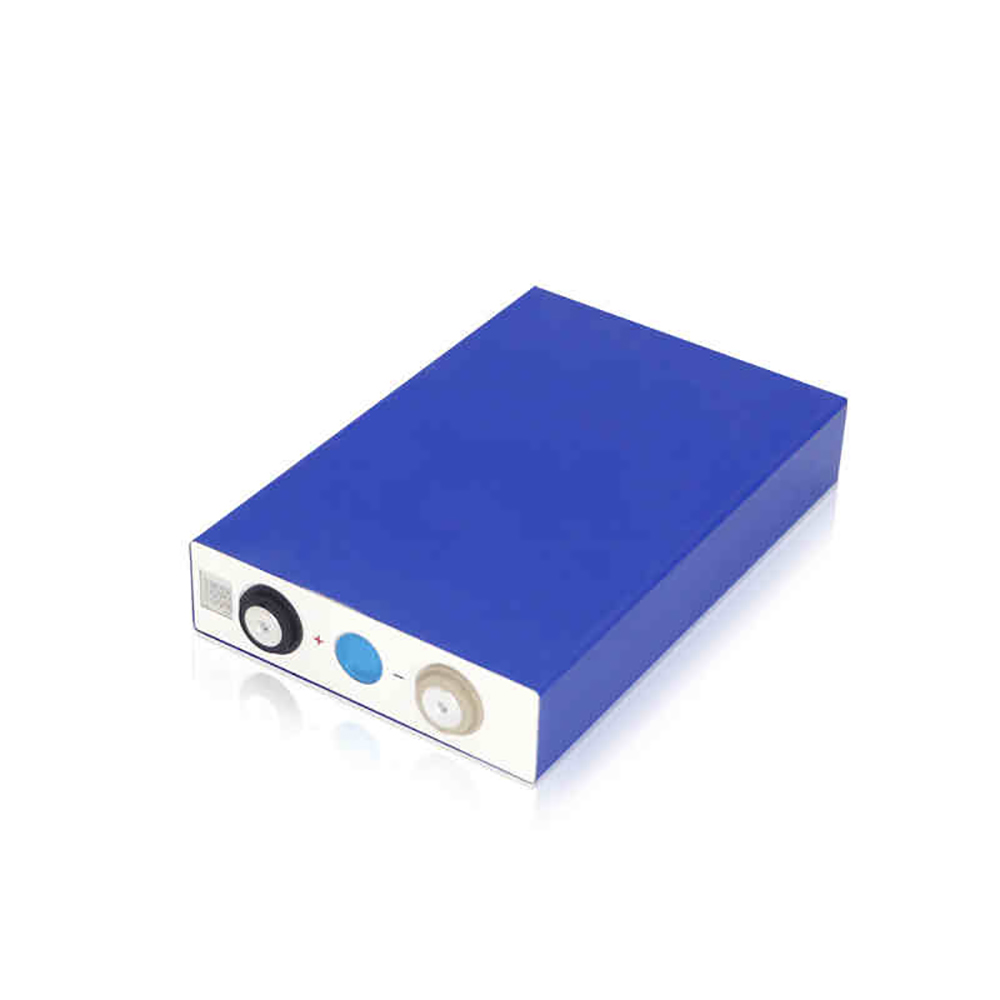

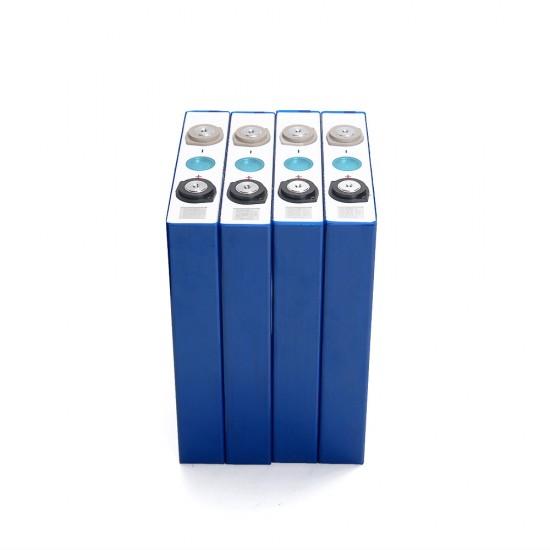

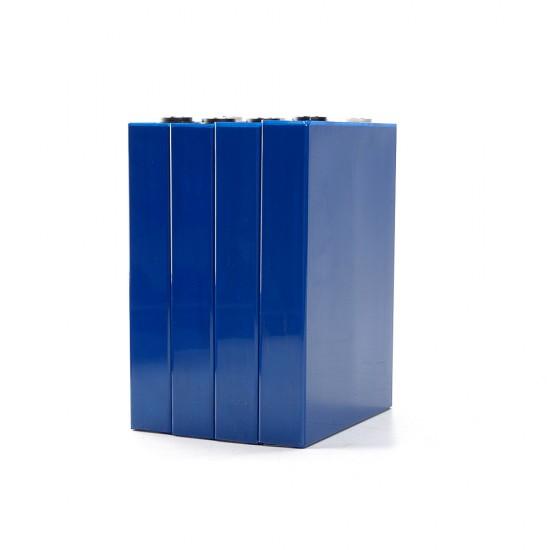

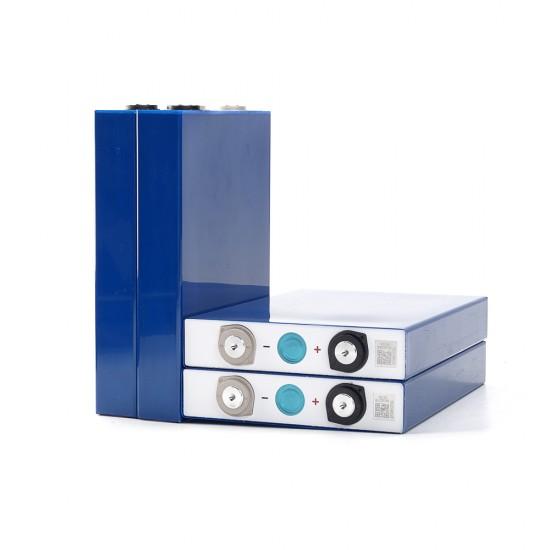

EVE 3.2V 50Ah LF50K Prismatic LiFePO4 Battery Cell for RV/Solar System Storage

3.2V 50Ah LiFePO4 Lithium iron phosphate lifepo4 prismatic cells for energy storage system, Engine starting battery, electric bicycle/motorcycle, etc.

EVE Lifepo4 3.2V 50ah Power Lithium ion Battery for RV/Solar System Storage

eve lf50keve lf50k


Features

1.This is EVE 3.2V 50Ah, Only Top Grade, Brande new with Factory intact QR code, the discharge capacity of each cell can reach 100Ah after our test.

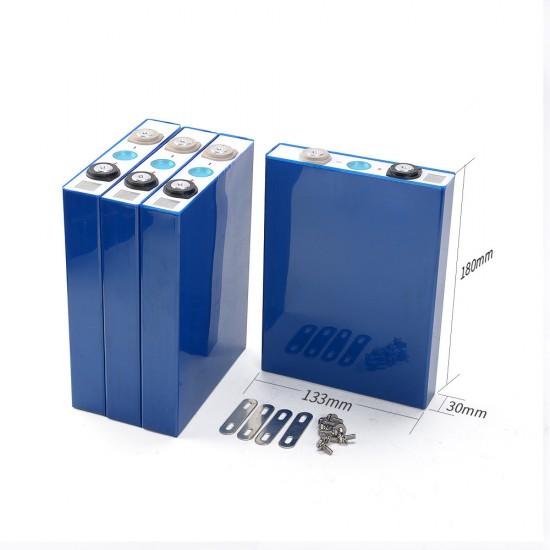

2.The price come with FREE busbar and bolts/screws, one battery will come with one busbar and two bolts/screws.

3. M4 busbars size: 79x20x2mm, cooper plated with nickel

4. Each battery’s voltage and internal resistance has been matched and balanced before delivery from China, we still suggest you top balance them again since the long sea delivery time.

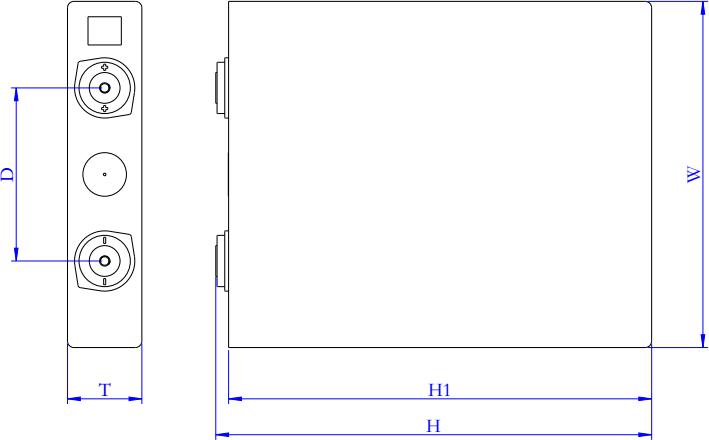

LF50KLF50K dimension


Item

Parameter

Size

W

Width

135±1mm

T

Thickness

29.3±0. 7mm

H

High(total)

185±1mm

H1

High(subject)

180±1mm

D

Tabs Distance

67.5±1.0mm


The pole column is the double aluminum pole structure with the M4 internal thread mode.

The effective thread hole depth is 6mm, and the batteries should be connected by laser welding.


Specifications



Item

Parameter

Average capacity

Minimum capacity

54Ah

53Ah

Nominal capacity

50Ah

Nominal voltage

3.2V

Working voltage

2.5V~3.65V

AC impedance resistance

≤0.7mΩ

SOC of shipment

30%~40%SOC

Standard charge
  discharge

Charge/Discharge current

0.5C/0.5C

Cut off voltage of charge/discharge

3.65V/2.5V

Max charge
  current

Continuous charge

3C

Pulse charge (30s)

5C

Max discharge
  current

Continuous discharge

3C

Pulse discharge (30s)

5C

Recommend SOC window

10%~90%SOC

Charging temperature

0℃~55℃

Discharging temperature

-20℃~55℃

Storage   temperature

One month

-20℃~45℃

One year

0℃~35℃

Self-discharge rate

≤3﹪/month

Weight

1395±50g

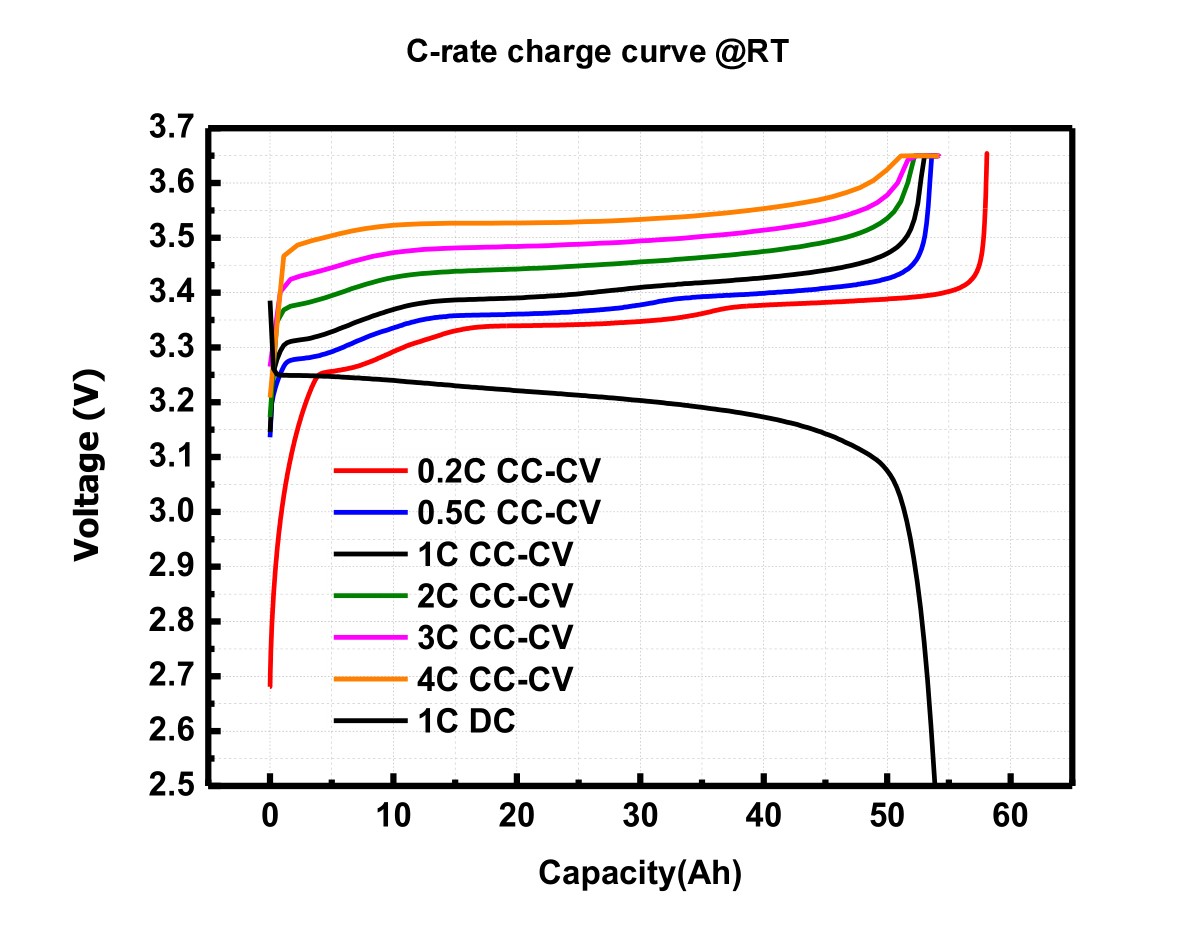

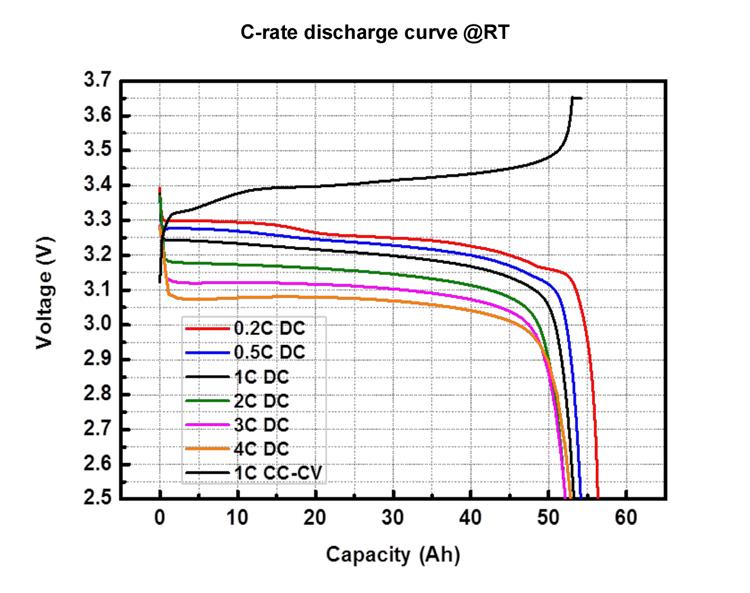

Battery product performance curves


1633924341748001.jpg    1633924222794349.jpg


Attentions

1. Do not immerse the battery in water and keep it dry when not using;

2. Do not strike, throw or subject the battery near a fire or in extremely hot conditions;

3. Charge with specified charge according to charging requirement;

4. Do not reverse the positive (+) and negative (-) terminals;

5. Do not put the battery into a fire or apply direct heat to it;

6. Do not short-circuit the battery by connecting wires or other metal objects to the positive (+) and negative (-) terminals;

7. Do not ship or store the battery metal objects, such as necklaces, hairpins, etc;

8. Do not knock, throw, tread, bend, etc;

9. Do not directly solder the battery terminals;

10. Do not pierce the battery casing with a nail or other sharp object.
