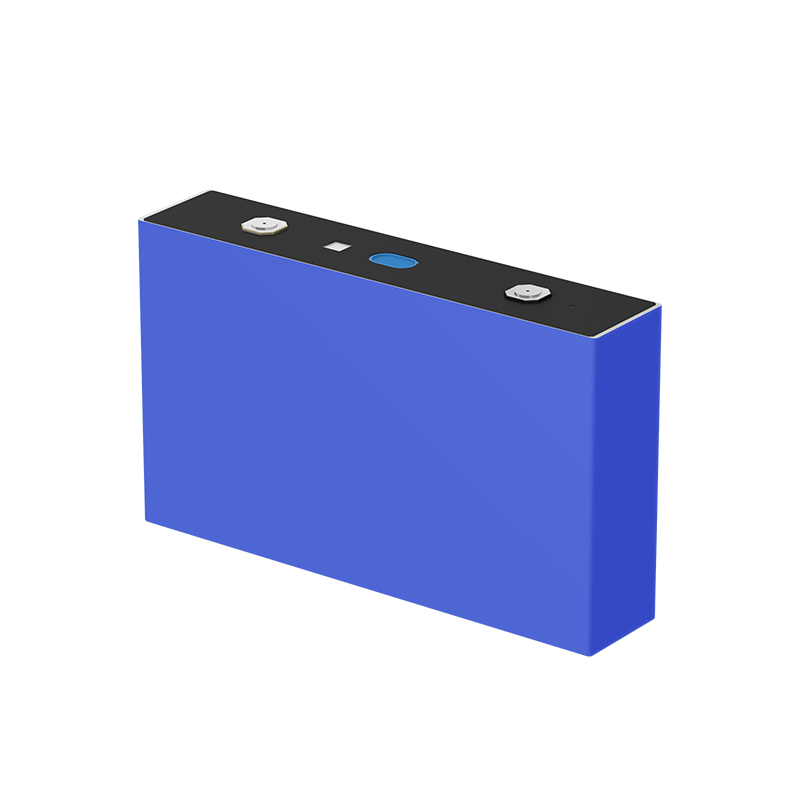

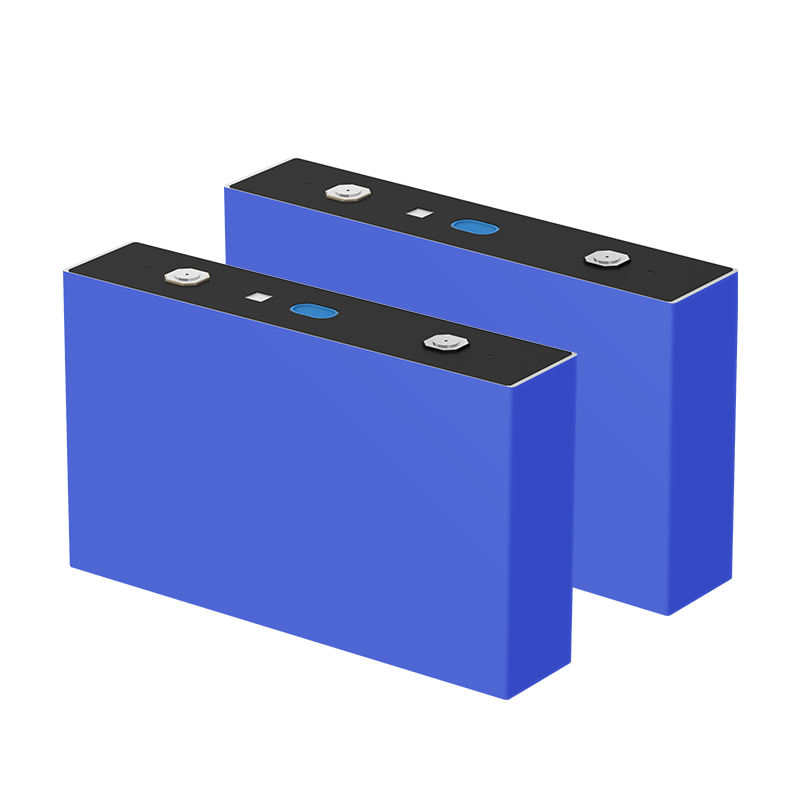

EVE MB56 628Ah 3.2 V LiFePO4 Prismatic Battery Cell

EVE MB56 3.2V 628Ah Prismatic Single 3.2 V LiFePO4 Prismatic Battery Cell With High Capacity

The EVE MB56 628Ah ultra-high capacity cell simplifies the energy storage system, reducing the number of data collection points in power stations of the same scale by half. According to calculations, this can reduce the lifecycle operation and maintenance costs of energy storage stations by 30%, while operation and maintenance time can be reduced from 336 hours per year to 232 hours.

We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!

Product Features

· High Consistency: Fully automated production lines and high-precision equipment ensure battery consistency.

· Stable Performance: Low internal resistance, high discharge rate, and stable discharge.

· Long Lifespan: Up to 8000 cycles, with a capacity retention rate of ≥70% under (25°C 0.5C/0.5C) conditions.

· High Safety: High-precision explosion-proof valve design, ensuring safety with no leakage.

· Environmentally Friendly: Certified by environmental management systems.

· Customization: Tailored to customer requirements.

Specification



Items

Specifications

Remarks

Nominal Capacity

628Ah

0.5P / 0.5P, 25℃ ± 2℃, 2.5 V ~ 3.65 V
Fresh cell

Nominal Energy

2009.6 Wh

Nominal Voltage

3.2V

/

End-of-charge Voltage (Umax)

3.65 V

/

End-of-discharge Voltage (Umin)

2.5 V (T >0℃)
2.0 V (T ≤0℃)

/

Cycle Life

8000 cycles, 70% SOH

25℃ Cycle

Standard Charging Power

0.5P

25℃ ± 2℃

Max. Continuous Charging Power

0.5P

25℃ ± 2℃

Standard Discharging Power

0.5P

25℃ ± 2℃

Max. Continuous Discharging Power

0.5P

25℃ ± 2℃

Initial Internal Resistance

0.10 mΩ ± 0.05 mΩ

AC, 1 kHz, Delivery SOC,
Fresh cell

Weight

11500 g ±300 g

/

Dimensions
(With insulation film)

Height1
207.2 mm ±0.5 mm

With Terminal

Height2
205.1 mm ±0.5 mm

Without Terminal

Length
352.3 mm ±0.5 mm

/

Thickness
71.7 mm ±0.5 mm

(300 kgf ±20 kgf compression force,
Delivery SOC)

Center distance between
the poles
180.0 mm ±0.3 mm

/

Charging Temperature

0℃ ~ 60℃

/

Discharging Temperature

-30℃ ~ 60℃

/

Storage
Temperature 1 year

0℃ ~ 35℃

Delivery SOC status

Storage
Temperature 1 month

-20℃ ~ 45℃

Self-discharge
First Month

≤3.5% / M

Delivery SOC status, 25°C ±2°C
storage

Self-discharge
After First Month

≤3.0% / M



Dimension and Details

Diagram of the cell size and appearance of EVE MB56 628Ah


Certification

1. International regulatory certification, we have CE、ROHS、RECHAR、BIS、EPR、RCM、PSE、GOST、MIC...

2. In the product testing report, we have IEC62368、IEC62619、IEC62620、CB、GB、CCC、CCS...

3. In international transportation, we have UN38.3 (support sea, land and air transportation)、MSDS、UL、ATEX...

4. Special certificates: ESG、 ASPICE CL2、 ISO26262、 TISAX、Green Factory...

5. We support certification according to the needs of our customers to ensure product quality and safe transportation

Applications

The Prismatic LFP Cell is widely used in the following scenarios.Please consult online customer service for specific models
