F602000C-50Ah 3.2V Cylindrical LiFePO4 Cell

F602000C-50Ah 3.2V Cylindrical LiFePO4 battery Cell with high capacity, Low internal resistance, low-temperature rise, high rate, long life, high safety and other

F602000C-50Ah 3.2V Cylindrical LiFePO4 Cell



The 50ah cylindrical lifepo4 cell uses an innovative lithium battery production process, low pollution and high quality. Independent development of low-pressure safety system, higher reliability.

Compared with the traditional cylindrical battery, based on maintaining high specific energy and high consistency, it has a high capacity, Low internal resistance, low-temperature rise, high rate, long life, high safety and other advantages. Suitable for new energy storage, steam Car, ship, warehousing logistics, construction machinery and other fields.


Advantages

Full-tab

High Rate C

Low Resistance

Even Temperature Rise

High Energy Density

High Consistency

Excel. under various Temperature

Long Cycle Life

Low Pollution

High Safety


Specifications


Item

Parameters

Standard Capacity

50Ah

Nominal Voltage

3.2V

Energy Density

≥145Wh/kg

Specific Power

≥400W/kg

Charging Cut-off Voltage

3.65V

Discharging Cut-off Voltage

2.5V

Initial impedance

0.4±0.2mΩ AC 1kHz

Max. Continuous Charging Current

1C

Max. Continuous Discharging Current

1C

Max. Pulse Charging Current

2C@30 s,25±2 ℃

Max. Pulse Discharging Current

3C@30 s,25±2 ℃

RT cycle Life

3000Cycles≥80%, 1C/1C, 25±2 ℃

Operating environment

Charging: 0 ℃~55 ℃, Discharging: -20 ℃~55 ℃

Relative humidity: ≤85% RH

Cell weight

1100±100g

Pack mode

The cell needs to be horizontally packed.




drawing



details

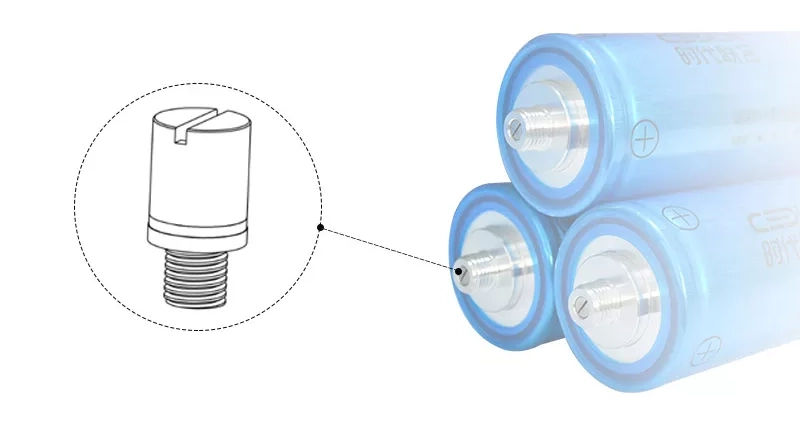

Self-development low-pressure relief valve system which can balance the internal and external pressure of the battery automatically, also resolved the expansion probile of the traditional battery, with high safety and reliability


Application

E-vehicle, Construction Machinery, Material Handling, electric low-speed vehicle, marine, energy storage
