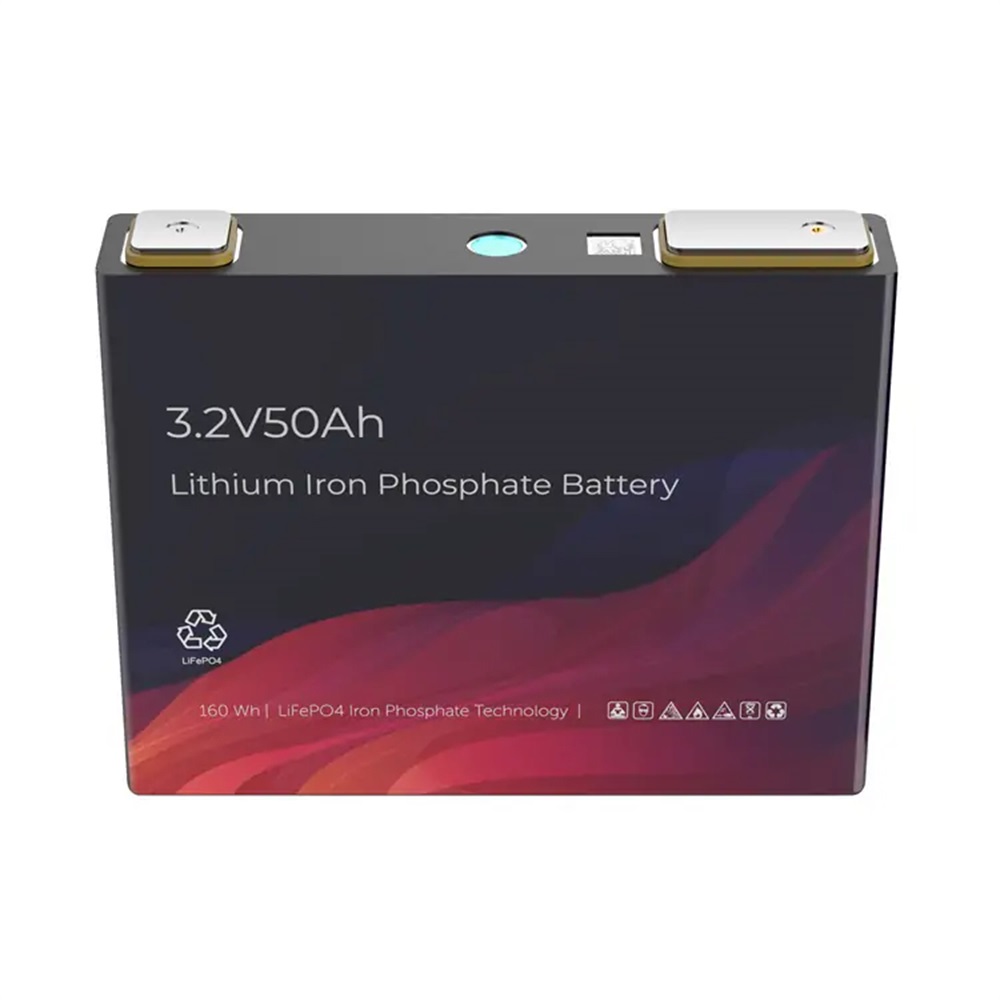

Green Cell LiFePO4 50Ah 3.2V Rechargeable Battery
3.2V green cell lifepo4 50ah lithium iron phosphate with ≥4000cycles cycle life.
- Category: LiFePO4 Battery Cell
- Tag: lifepo4 battery cell
3.2-50 green cell lifepo4 50Ah 3.2V rechargeable prismatic lifepo4 battery cell
Nominal Capacity: 50Ah
Nominal Voltage: 3.2V
DC Internal Resistance: ≤2.5mΩ
Energy Density: ≥175Wh/kg
Weight: 966g±30g
Dimension: 28.0mm*148.5mm*116mm
Our prismatic aluminum shell lifepo4 cell has the performance of lightweight, high stability, and long cycle life. It can be customized according to the product's dimension, providing more flexibility for battery design. It is widely used in the power field, communication base station, backup power supply, household, commercial energy storage systems, etc.
Features of 3.2V 50Ah lifepo4 cell
1. Long cycle life and high reliability
2. Small size, lightweight, high energy density, green environmental protection
3. Wide working temperature range, good high and low-temperature performance
4. Excellent heat dissipation performance
Parameters of 3.2V 50Ah lifepo4 cell
Item | Parameter |
Nominal Capacity | 50Ah |
Nominal Voltage | 966g±30g |
Working Voltage | 2.5V～3.65V @-5℃～60℃ 2.0V～3.65V @-30℃～-5℃ |
AC Internal Resistance | 0.5 mΩ≤R≤1.0mΩ |
DC Internal Resistance | ≤2.5mΩ |
Energy Density | ≥175Wh/kg |
Rated Power | 50W |
Max. Continuous Charging Current | 1C (25℃＜T≤35℃) |
Max. Continuous Discharge Current | 1.5C (25℃＜T≤35℃) |
Operating discharge temperature range | -20～60℃ |
Cycle Life | ≥4000cycles (80%DOD) |
Size | 28.0mm*148.5mm*116mm |
Weight | 966g±30g |
