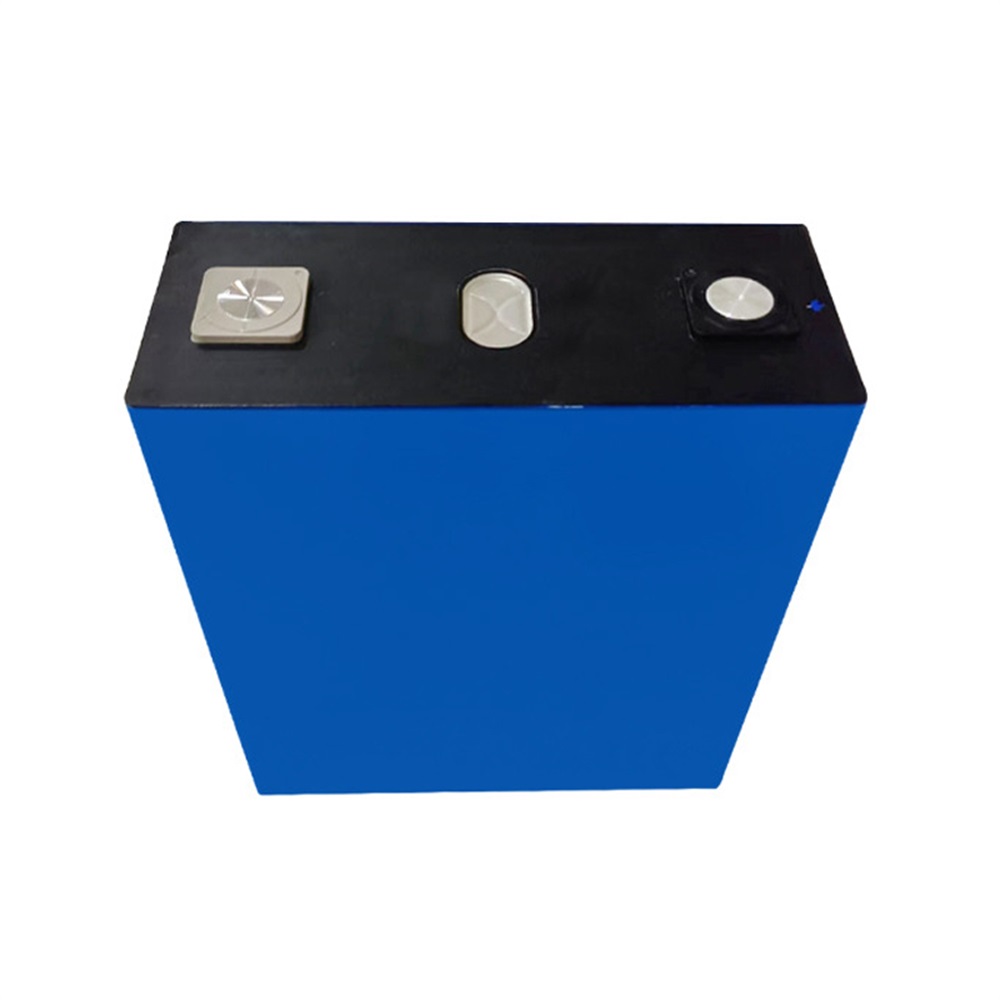

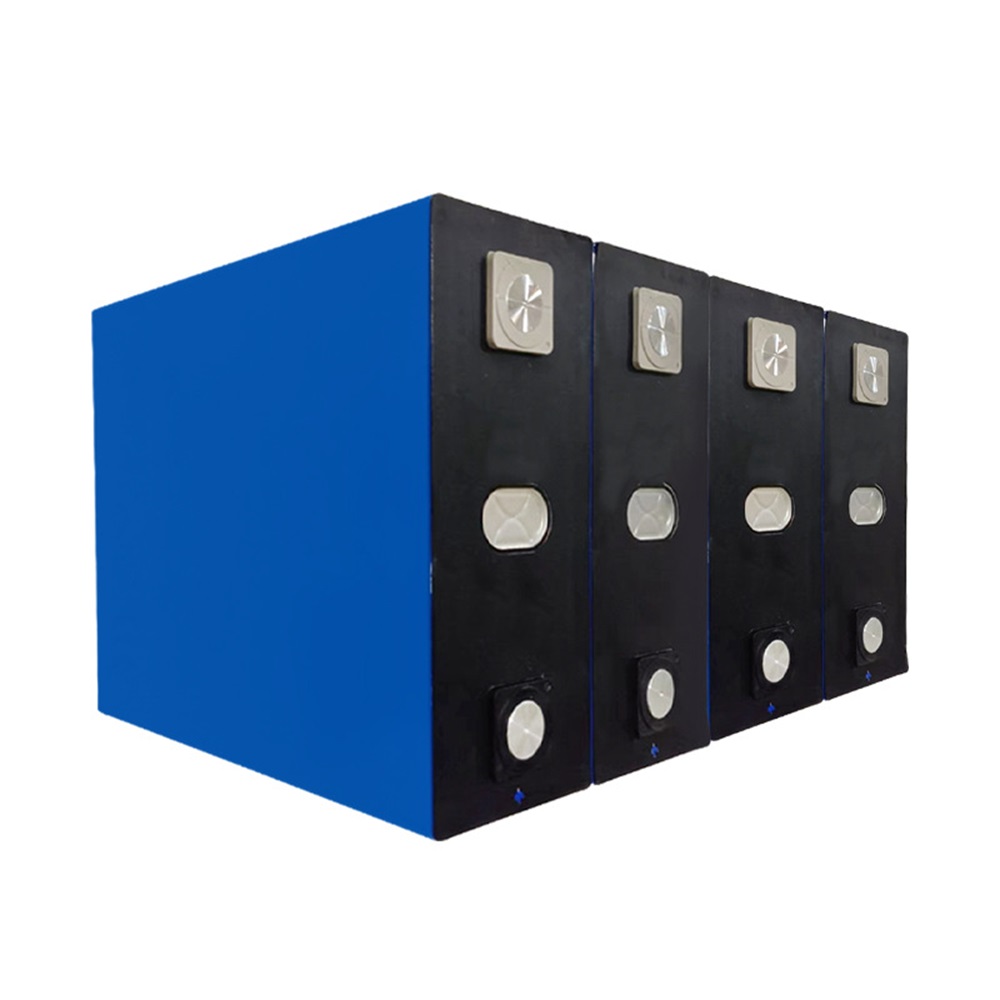

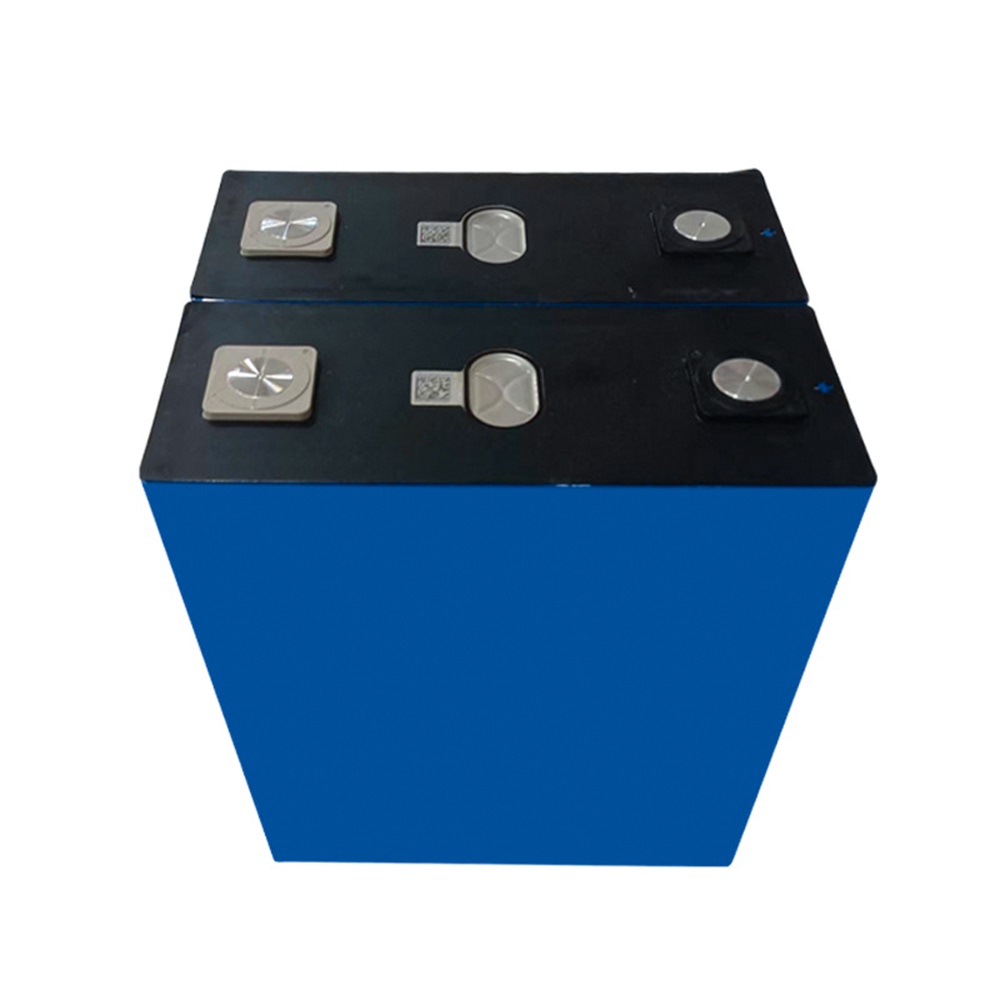

Hithium Battery 3.2V 314Ah LiFePO4 Prismatic Cell

Hithium 3.2V 314ah Prismatic LFP cell with very high cyclic lifetime and improved safety characteristics.

Specially optimised for use in stationary battery storage systems with the highest requirements on safety, reliability and performance. Suitable e.g. for industrial, utility, and grid serving applications.

1. Product certifications:

2. IEC 62619, UL 1973, UL 9540A, UN 38.3

3. Company certifications:

4. ISO 9001, ISO 14001, ISO 45001

5. Environmental Compliance: ROHS, REACH


High safety

1. HiTHIUM-developed prismatic LFP cell with high thermal stability

2. Passes crush and nail penetration test

3. Ultra wide operating temperature range


Low LCOS (Levelised Cost of Storage)

Long life cycle > 11.000 cycles at 0,5 P/0,5 P 70% SOH due to advanced materials and process technologies


Flexible and versatile use


Hithium Battery LiFePO4 BESS Cell 314 Ah

Prismatic LFP cell optimized for use in stationary BESS


Items

Parameters

Nominal Capacity

314 Ah, 0.5 P / 0.5 P, 25°C +/- 2.0

Nominal Energy

1,004.8Wh, 0.5 P / 0.5 P, 25°C +/- 2.0

Cell Chemistry

LiFePo4 (LFP)

Nominal Cycles

> 11,000, 0.5 P / 0.5 P, 25°C +/- 2.0, 70% SOH

Energy density

> 175Wh/kg

Industry Standard (Type)

LFP71173207

Nominal Voltage

3.2 V, 0.5 P / 0.5 P, 25°C +/- 2.0

Operating Voltage

T>0°C, 2.50~3.65 V, T≤0°C, 2.00~3.65 V

AC Resistance (1 kHz)

0.20mΩ +/- 0,05

Max. self-discharge rate

3% / month

Nominal SOC at delivery

27 %

Max. continuous charge rate

1P

Max. continuous discharge rate

1P

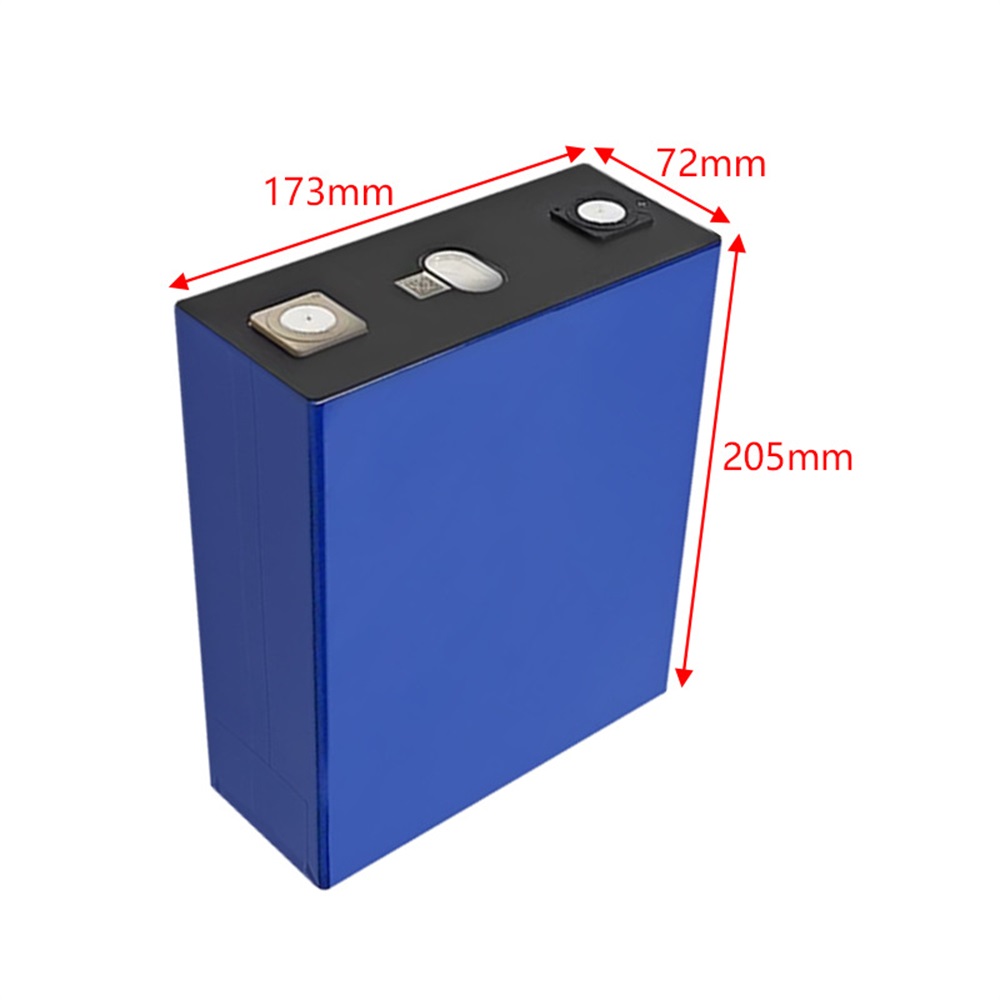

Dimensions (L x W x H)

174.7 x 71.70 x 207.11 mm

Type

prismatic

Weight

5.65 kg +/- 0.2

Volume

2.59 l

Charging

0 °C~60 °C

Discharging

-30 °C~60 °C

Certificates and Reports

UN 38.3, UL 9540A, UL 1973, IEC 62619

Compliance

ROHS, REACH
