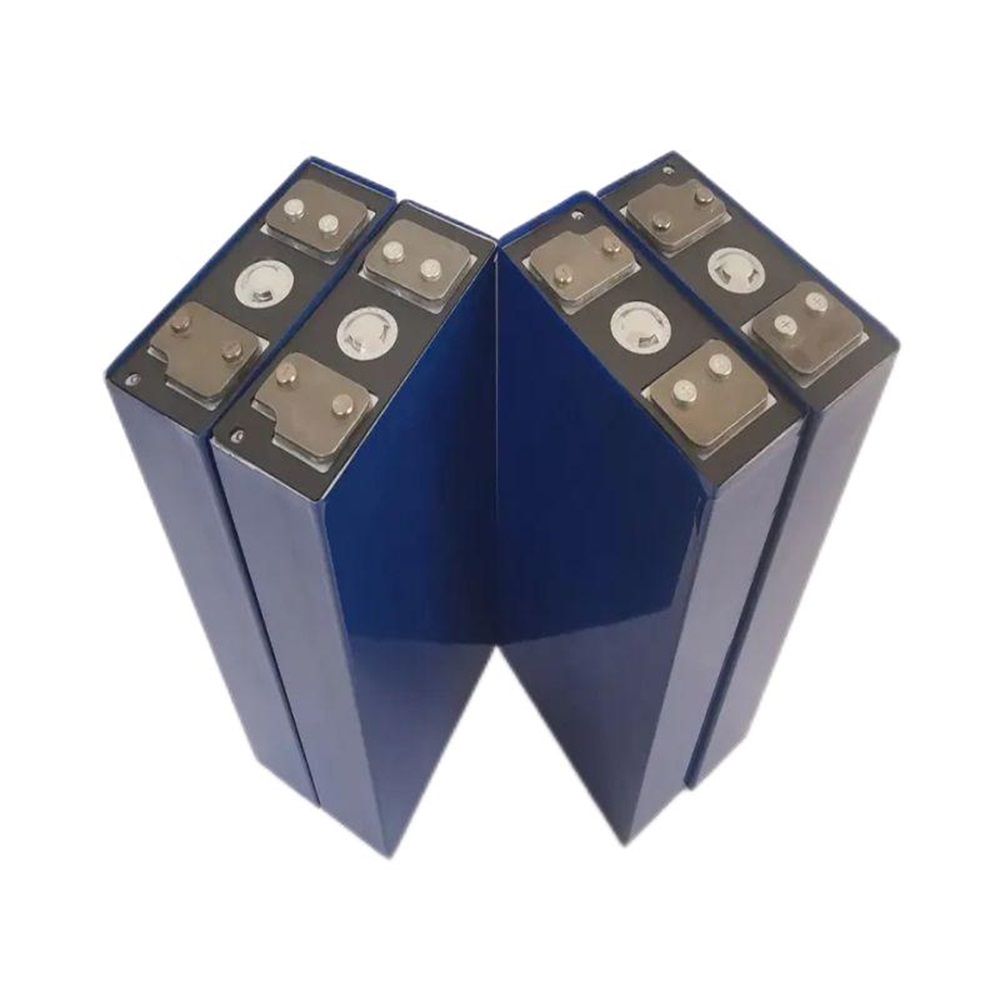

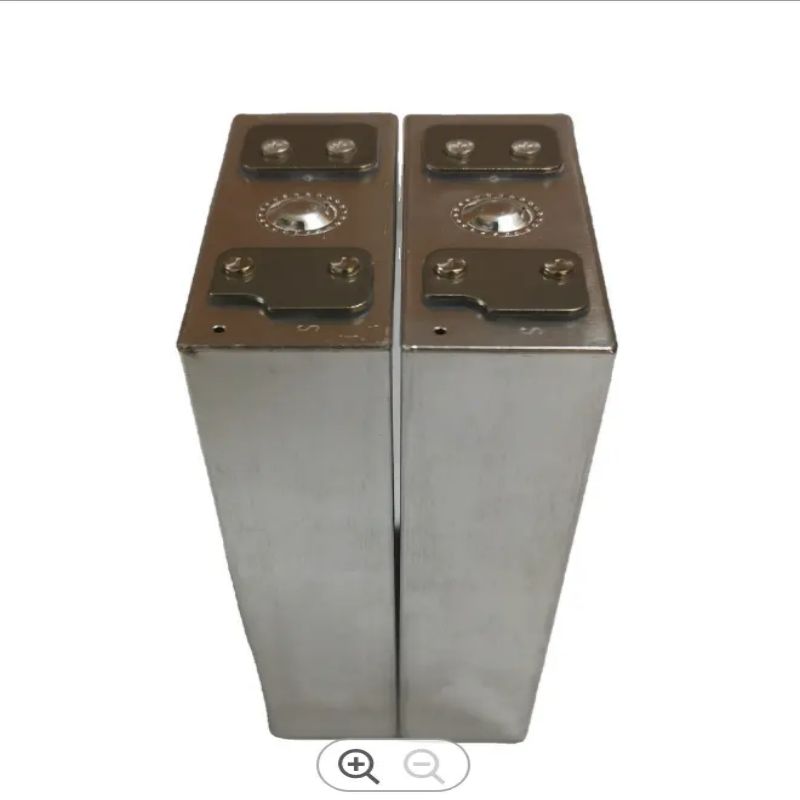

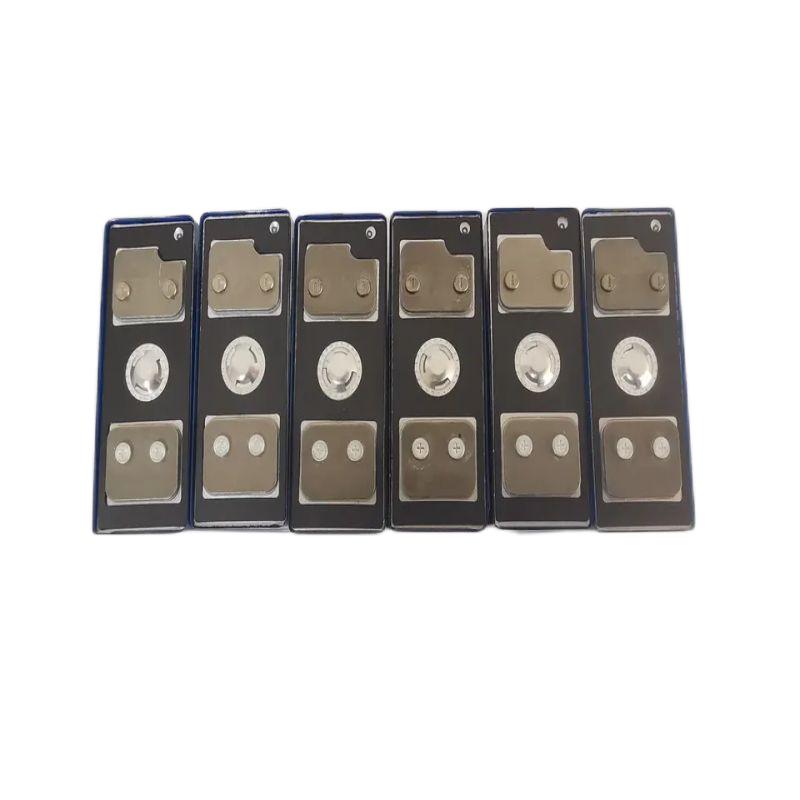

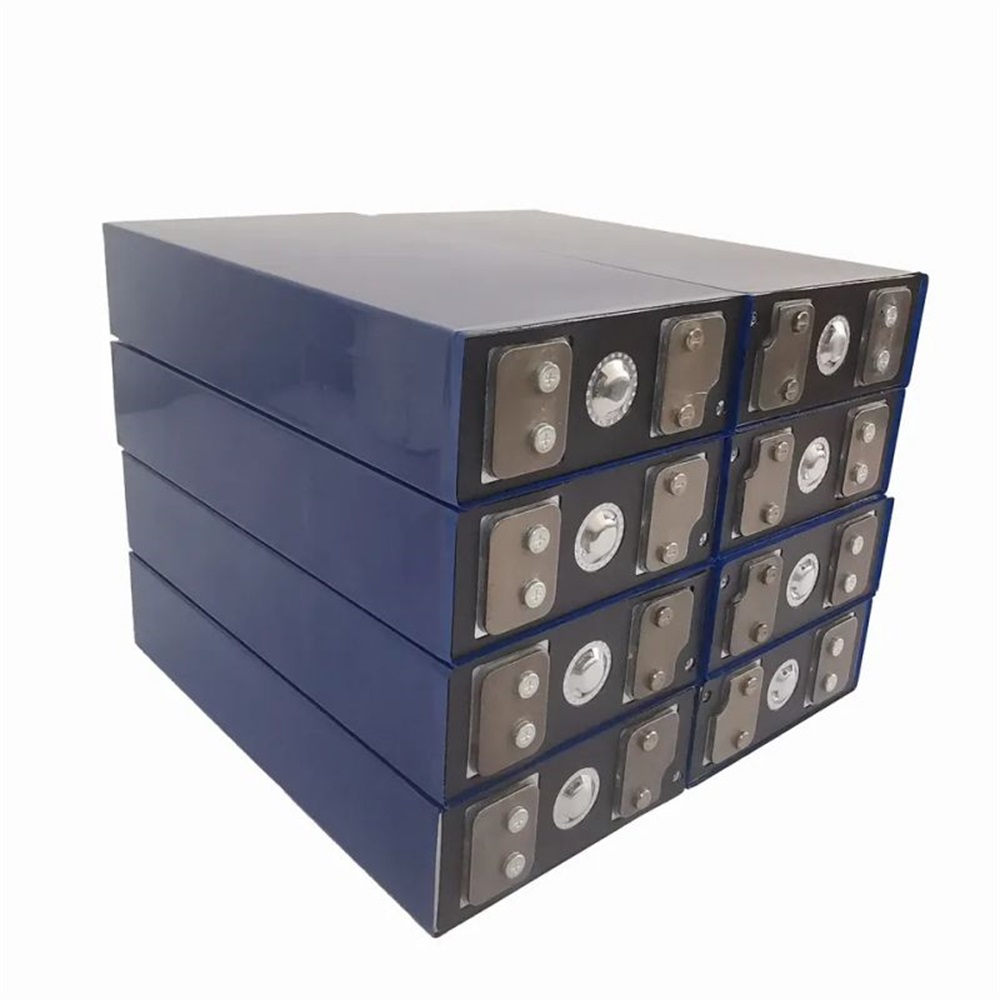

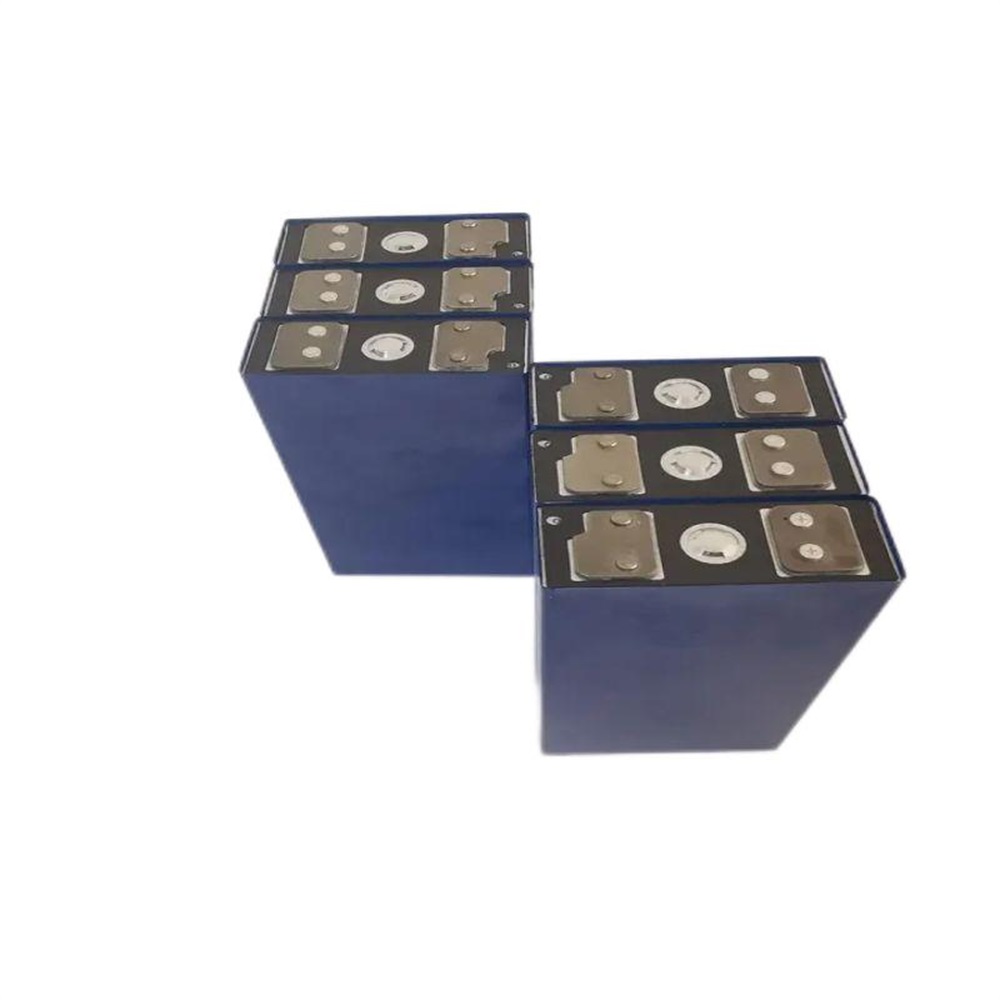

IFP2770134AC 3.2V 23Ah LiFePO4 Battery

Purchase the IFP2770134AC 3.2V 23Ah LiFePO4 Battery for energy storage applications. With its high-quality design and reliability, this battery provides ef

IFP2770134AC 3.2V 23Ah LiFePO4 Battery For Energy storage Battery

IFP2770134AC 3.2V 23Ah LiFePO4 BatteryIFP2770134AC 3.2V 23Ah LiFePO4 Battery


The IFP2770134AC 3.2V 23Ah LiFePO4 Battery is a high-quality energy storage solution designed for various applications. With advanced LiFePO4 technology, it delivers exceptional performance, reliability, and safety.



Items

Criteria

Remarks

Shell

3003

Aluminum Alloy 3003

Nominal Capacity

23Ah

At RT. Discharge Current:         0.5C( 11.5A) cut-off voltage: 2.0V

Energy

73.6Wh


Nominal Voltage

3.2V


Open Circuit Voltage

3.2-3.4V


Internal Impedance

≤5mΩ

AC 1kHz after standard charge

End of Charge Voltage

3.65V±0.05V

0.05C  (1. 15A)

Std. Charge Current

11.5A

0.5C

Std. Discharge Current

11.5A

0.5C

Max. Continuous Charge Current

23A

1C

Max. Continuous Discharge Current

23A

1C

Discharge cut-offVoltage

2.0V


Operating Temperature

0~+45

Charging

-20~+55

Discharging

Storage Temperature

- 10~+45

Less than 1 month

- 10~+35

Less than 6 month

Weight

<510g
