3.2 V 25ah Prismatic LiFePO4 Power Battery Cell

3.2V 25Ah high rate power lithium iron phosphate lifepo4 cells for energy storage, electric vehicle, electric forklift, goft carts, etc.

FP2770180AD25A 25ah 3.2 Volt Lithium Battery High Rate LiFePO4 Power Battery LiFePO4 Cells

3.2 V 25ah Prismatic LiFePO4 Power Battery Cell3.2 V 25ah Prismatic LiFePO4 Power Battery Cell


Parameters


Items

Criteria

Shell

Aluminum Alloy 3003

Nominal Capacity

25Ah

Energy

80Wh

Nominal Voltage

3.2V

Open Circuit Voltage

3.2-3.4V

Internal Impedance

≤6.0mΩ

End of Charge Voltage

3.65V±0.05V

Std. Charge Current

25A(1C)

Std. Discharge Current

25A(1C)

Max. Continuous Charge Current

50A(2C)

Max. Continuous Discharge Current

75A(3C)

Max. Pulse Discharge Current(10s)

125A(5C)

Discharge cut-off Voltage

2.5V

Operating Temperature

0~+45℃

-20~+55℃

Storage Temperature

-10~+45℃

-10~+35℃

Weight

<625g

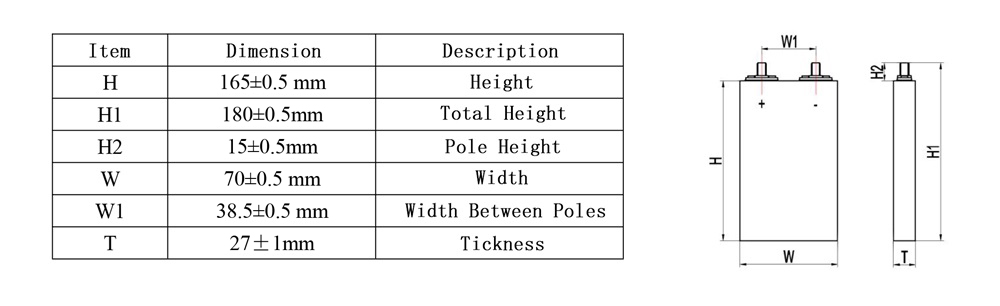

Battery Size Draft

details and dimension


Application Area

3.2V 25Ah prismatic power lithium lfp battery cells, can be widely used in communication station, UAV, Golf carts, electric forklifts, e-wheelchair, lawn mover, low speed vehicles, etc.


application
