3.2 v 100Ah prismaitc lifepo4 battery cell

The 3.2v 100Ah prismatic lifepo4 battery cell has an energy density of up to 180, representing the highest level in the lithium iron phosphate battery industry today.

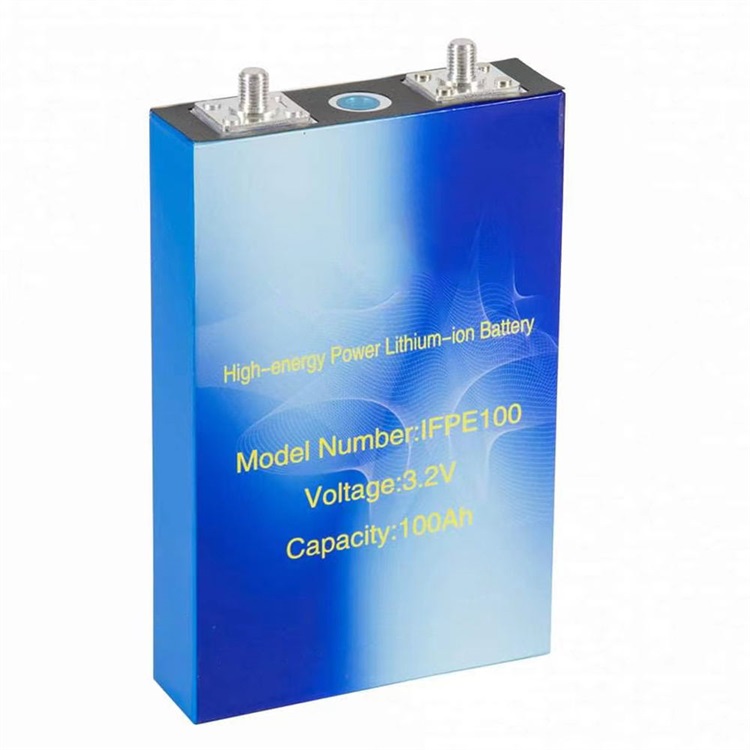

IFPE100I 3.2 v 100ah Prismatic LiFePO4 Battery Cell

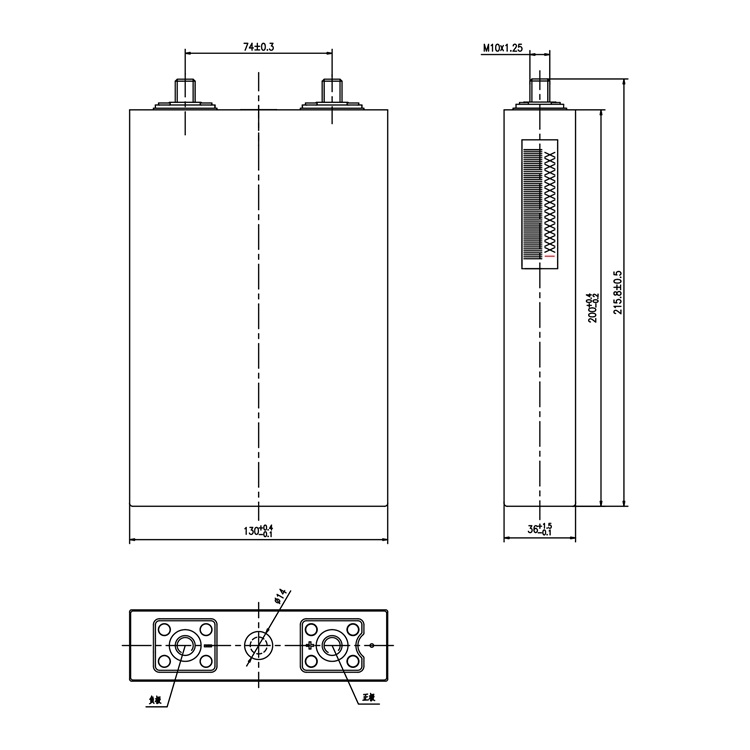

IFPE100I 3.2 v 100ah Prismatic LiFePO4 Battery Celldimension


More than 20 years of R&D accumulation and automatic production process to ensure the product high performance, high quality, high reliability in EV and ESS applications.

The energy density reaches up to 180, representing the highest level of lithium iron phosphate battery industry today.

The lifepo4 cell has the characteristic of high specific power, high specific energy, resistance to over-charge and over-discharge, fast charge, long cycle life, maintenance-free, non-detrimental element, safe and reliable, etc.


Applications

1. DIY Lifepo4 battery Pack

2. Solar system

3. Energy storage (ESS)

4. Electric vehicles

5. Golf carts

6.  RV


Specifications

Items

Parameters

Rated capacity

100 Ah

Nominal voltage

3.2V

AC internal resistance

≤0.8mΩ

DC internal resistance

≤1.6mΩ

Weight

2.00±0.05kg

Energy Density

≥155Wh/kg

Operating voltage

2.5V~3.65V

Operating temperature Range

Charging: 0~60°C

Discharging: -20~65°C

Cycle life

≥4000cycles

Dimension

36*130*212mm

Standard charging

0.5C

Max. Continuous Charging Current

1C

Max. Pulse Charging Current

2C (30s/5min) ,25±2℃

Discharging cut-off voltage

3.65V

Max. Continuous Discharging Current

1C

Max. Pulse Discharging Current

2C(30s/5min) ,25±2℃



Details

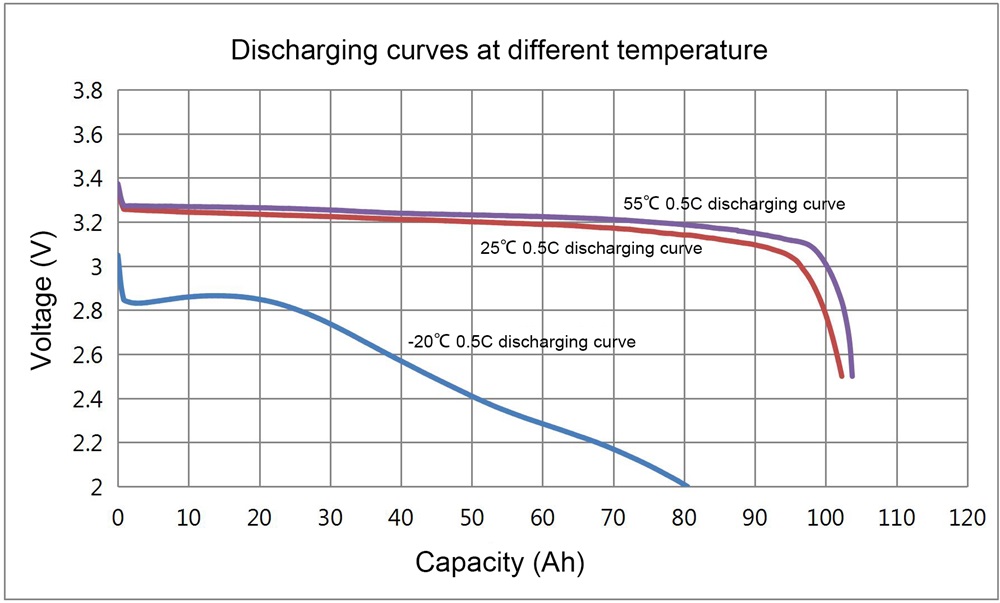

discharging curve

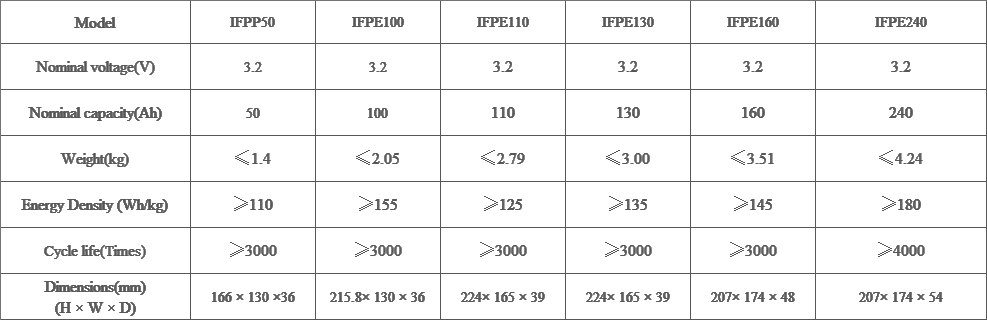

All capacity we provide


All capacity we provide
