IFPP36115200-50 3.2V 50Ah Prismatic LiFePO4 Cell
IFPP36115200-50 3.2V 50Ah Prismatic LiFePO4 Cell with more than 3500 cycles.
- Category: LiFePO4 Battery Cell
- Tag: lifepo4 battery cell
Battery Features
Type of positive and negative pole: bolt or tapped thread
Nominal Voltage: 3.2V
Rated Capacity: 50Ah
Internal Resistance: 0.7mΩ
Dimension: 36*115*200mm
Weight: 1500g

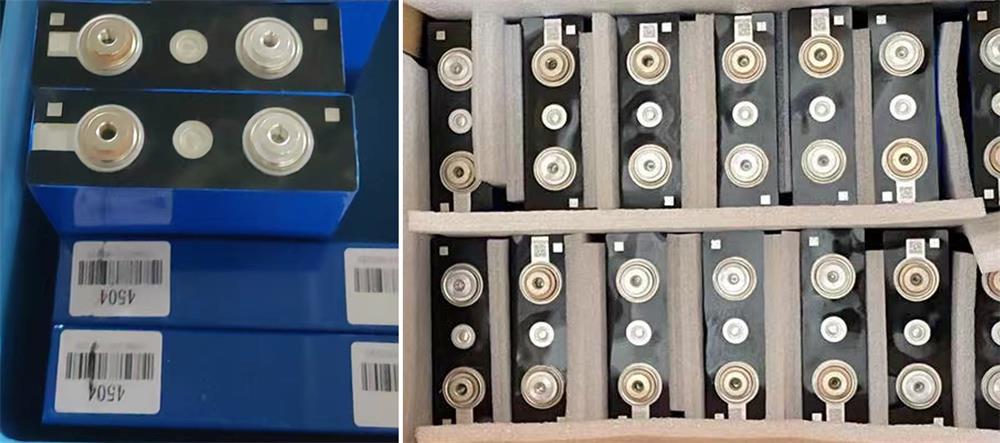

Battery Details

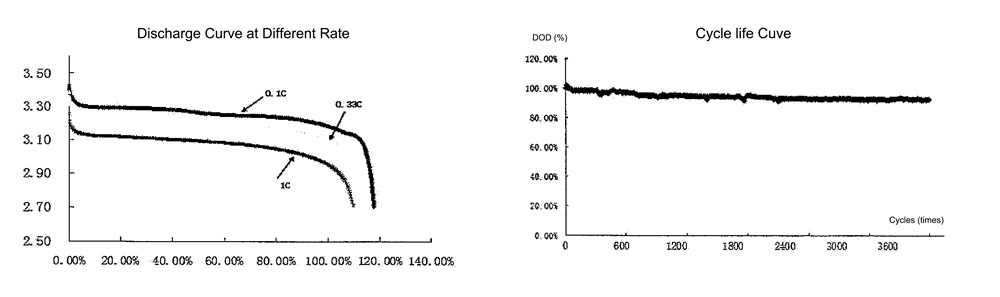

Discharging and cycle curves
Specifications
Items | Specifications |
Charging Voltage | 3.65V |
Nominal Voltage | 3.2V |
Rated Capacity | 50Ah |
Standard Charging Current | 0.33C |
Max. Continuous Chare Current | 1C |
Max. Continuous Discharge Current | 3C (30S, 25±2℃) |
Discharge Cut-off Voltage | 2.5V |
Operating Temperature Relative humidity | Charging: 0~45℃, 65%±20%RH Discharging: -20~60℃, 65%±20%RH |
Recommended Storage Temperature | 15~35℃ |
Cell Weight | Approx, 1.5kg |
Impedance | ≤0.6mΩ |
Cell Dimension (T*W*L) | 36.2*115.2*192mm |
Cycle Life | ≥3500 cycles @ 25℃ 0.5C, 80%DOD |
