LF100LA 3.2v 320kwh 100ah LiFePO4 Battery Prismatic LFP cell with more than 4000 cycles

LF100LA 3.2v 320kwh 100ah LiFePO4 Battery Prismatic LFP cell with more than 4000 cycles

EVE LF100LA Features

Intelligent factory design, high-performance consistency.

Square aluminum shell structure, high precision explosion-proof valve, high safety performance.

Low internal resistance, high discharge rate, and stable discharge platform.

Long cycle life, capacity retention rate over 80% after 4000 cycles at 1C/1C.

Green environmental protection


Specification

Battery Brand: EVE

Battery Model: LF100LA

Min. Capacity: 100Ah

Min. Energy: 320Wh

Initial internal resistance: ≤0.5mΩ

Nominal Voltage: 3.2V

Charging Cut-off Voltage: 3.65V

Discharging Cut-off Voltage:2.5V (T>0℃), 2.0V (T≤0℃)

Standard Charging Current: 50A(0.5C)

Max. Continuous charging/discharging Current: 100A 1.0C

Max. Pulse charging/discharging Current: 200A 2C(30S)

Cycle Life: 4000 Cycles @80% DOD

Charging Temperature: 0℃~55℃

Discharging Temperature: -20℃~55℃

Dimension: 118.5±0.50mm(H)*160±0.50mm(w)*50.1±0.5mm(T)

Weight: 1.98±0.05 kg

Encapsulation mode: U-shaped capsule

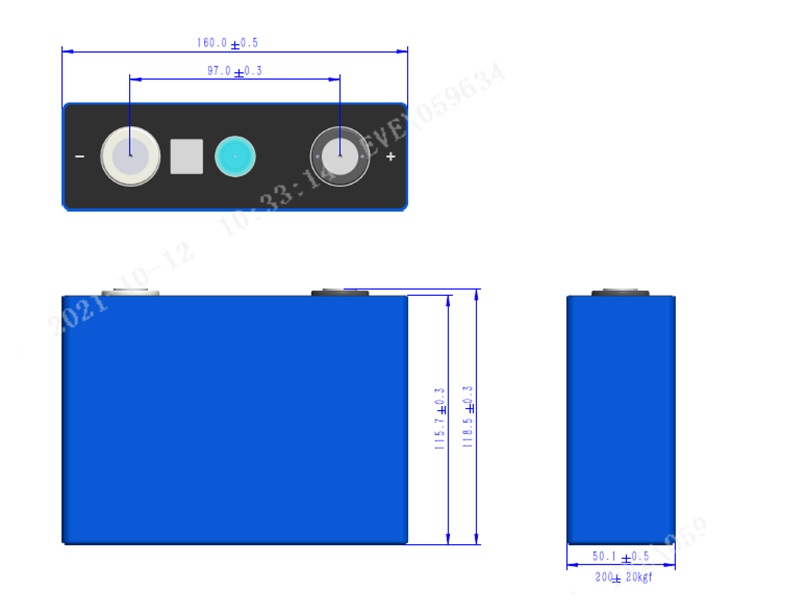

Cell Drawing of LF100LA

dimension


Each weld service includes a complimentary set of busbar, bolt, and washer per cell.

Prior to delivery, we ensure all cells are matched in terms of capacity, voltage, and resistance.

Additionally, we offer customized plastic holders for effortless connection in constructing battery modules.


LF100LA 3.2v 320kwh 100ah LiFePO4 Battery cellLF100LA 3.2v 320kwh 100ah LiFePO4 Battery cell

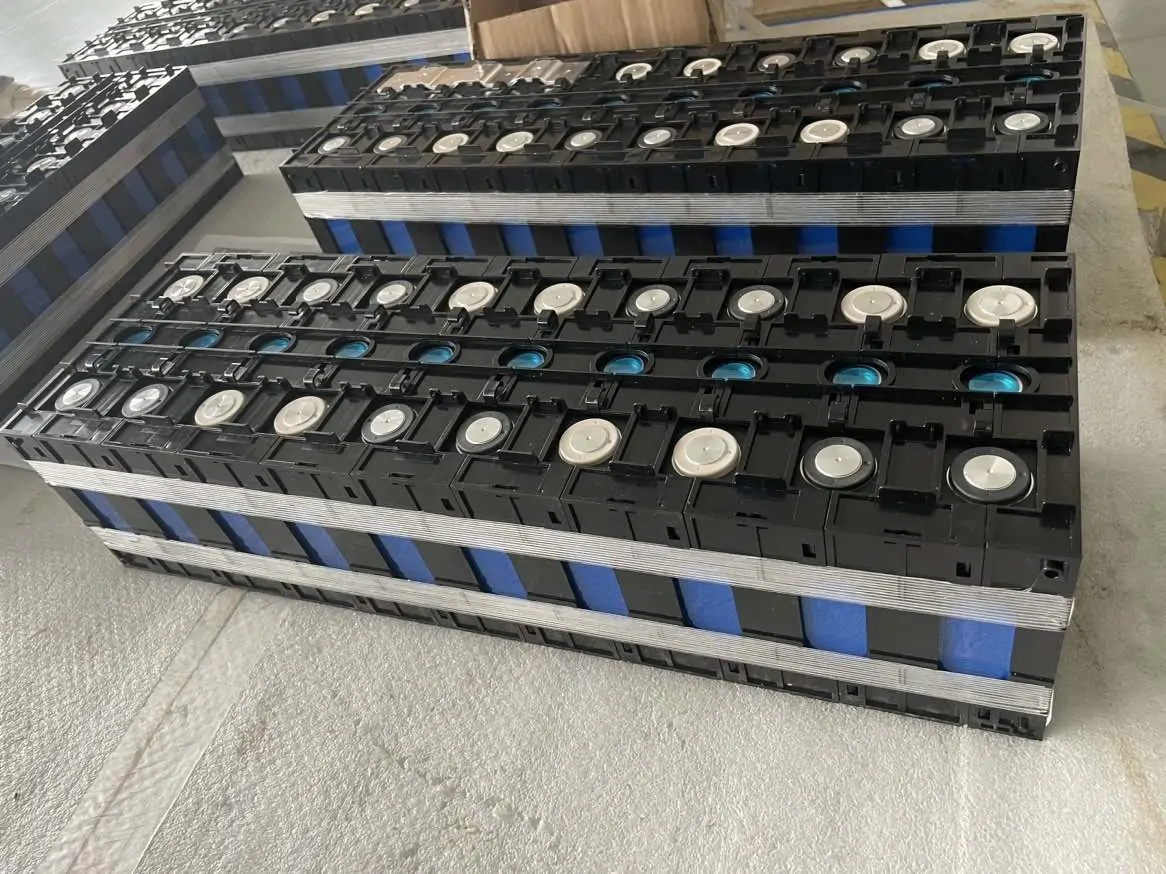

pack


Operation Precautions

It is strictly forbidden to immerse the battery in water. When it is not in use, it should be placed in a cool and dry environment

It is forbidden to use and leave the battery next to heat and high temperature sources, such as fire, heater, etc.

Please use a special charger for lithium-ion batteries when charging

During usage, it is strictly prohibited to reverse the positive and negative terminals of the battery

Do not throw the battery in the fire or heater

It is forbidden to use metal to directly connect the positive and negative terminals of the battery to short-circuit

It is forbidden to transport or store the battery with metal, such as hairpins, necklaces, etc.

It is forbidden to knock or throw, step on, or bend the battery.

It is forbidden to directly weld the battery or pierce the battery with nails or other sharp objects

It is forbidden to use or place the battery under high temperature (under hot sunlight), otherwise it may cause the battery to overheat or fail to function and shorten its life.

It is forbidden to use it in places with strong static electricity and strong magnetic fields; otherwise it will easily damage the battery safety protection device and bring hidden dangers of safety.

If the battery leaks and the electrolyte splashes on the skin or clothes, immediately wash the affected area with running water. If the battery leaks and the electrolyte enters the open parts of the human body such as the eyes, mouth, nose, etc., immediately rinse the eyes with a large amount of water and send to a doctor for treatment immediately, otherwise it will cause serious harm to the human body.

If the battery emits peculiar smell, heat, discoloration, deformation, or any abnormality during use, storage, or charging, immediately remove the battery from the device or charger and stop using it.

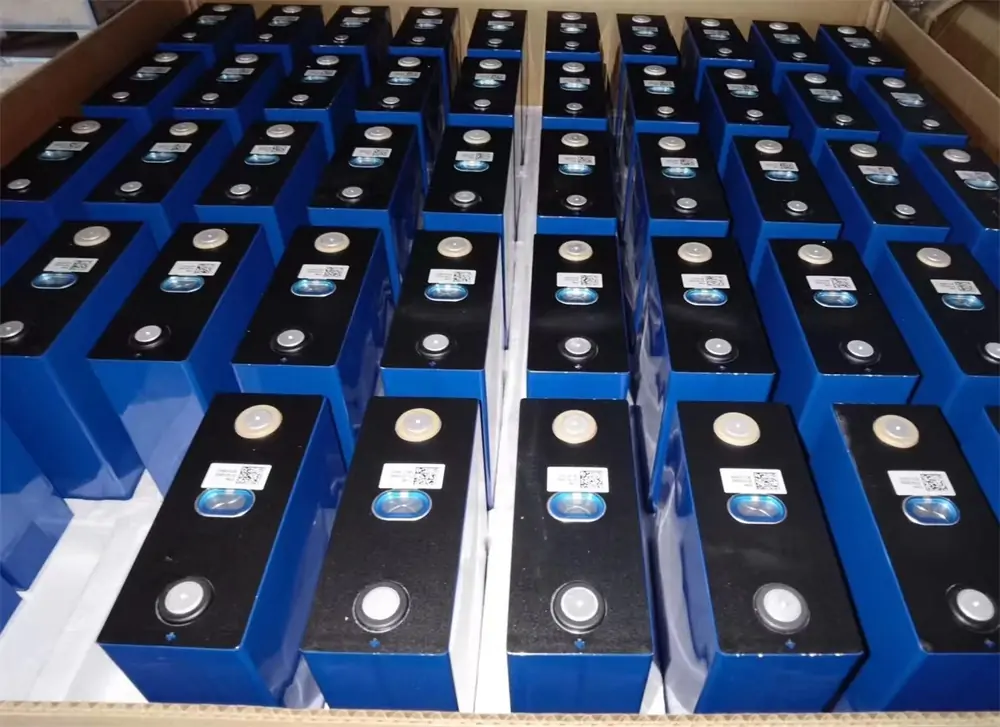

Recent Shipment EVE LF100LA 100Ah LiFePO4 Battery Cell:


Recent Shipment EVE LF100LA 100Ah LiFePO4 Battery Cell
