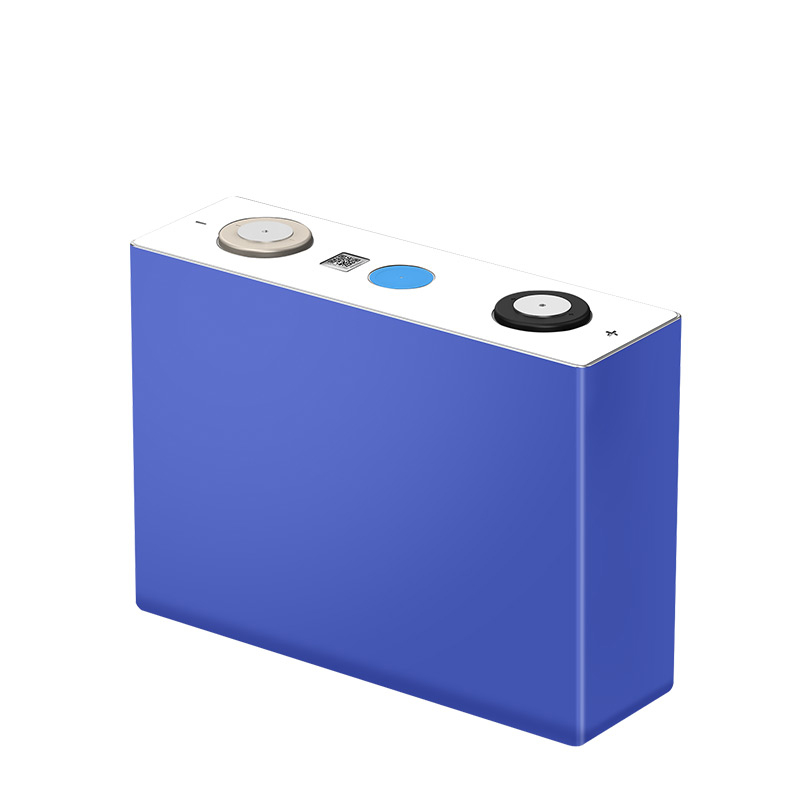

LF100MA 3.2v 100ah Lifepo4 Prismatic LFP Grade a Battery Cell

LF100MA Features

Intelligent factory design, high-performance consistency.

Square aluminum shell structure, high precision explosion-proof valve, high safety performance.

Low internal resistance, high discharge rate, and stable discharge platform.

Long cycle life, capacity retention rate over 80% after 4000 cycles at 1C/1C.

Green environmental protection

Specification

Typical Capacity: 100Ah

Typical Voltage: 3.2V

AC Impedance Resistance(1KHz): ≤0.5mΩ

Standard Charge / discharge current: 0.5C/0.5C

Operating Voltage: 2.5V~3.65V

Maximum continuous charge/discharge current: 1C/1C

Maximum pulse charge/discharge current(30s): 2C/2C

Recommended scope of SOC: 10%～90%

Charging Temperature: 0℃～55℃

Discharging Temperature: -20℃～55℃

Dimension: 118.5*115.7*97.0mm

Battery weight: 1.92±0.1kg

Encapsulation mode: U-shaped capsule

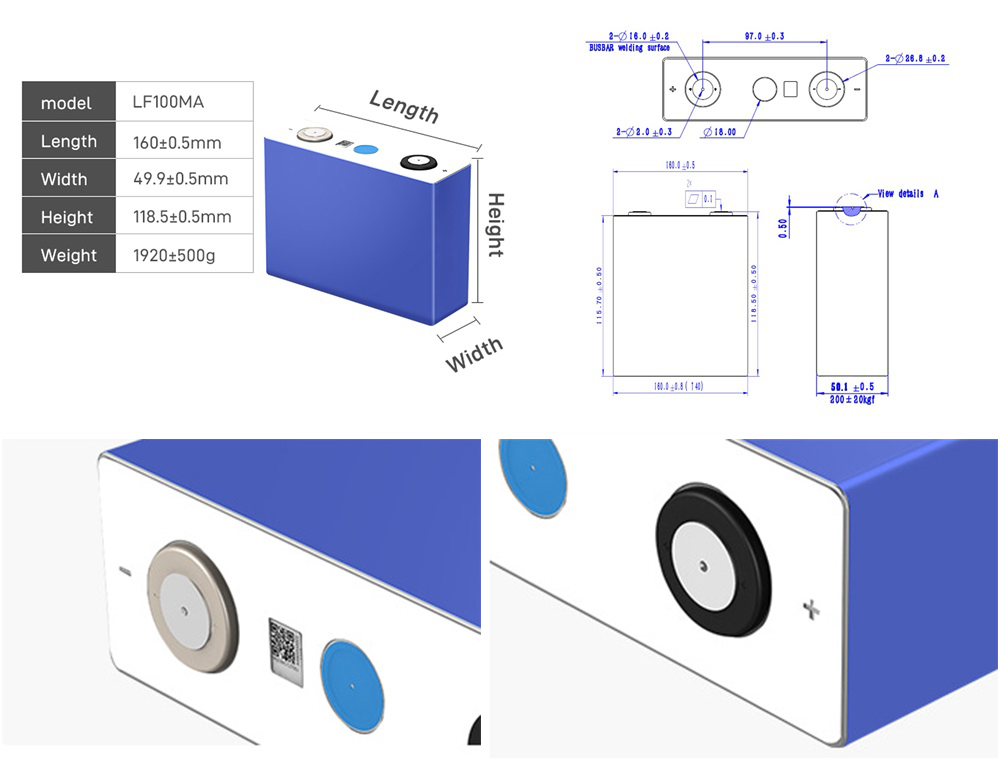

Two-dimensional graphs of Battery：

Attention

1. When the battery is charged and discharged, the conditions for monitoring and protecting the battery voltage, current and temperature shall be ensured.

2. Please keep the battery away from the heat source, fire source and other corrosive environments such as heating, strong acid and strong alkali.

3. Do not short circuit the battery or install it with incorrect polarity at any time，otherwise it can cause serious damage to the battery and cause danger.

4. Do not mix batteries of different models or manufacturers.

5. Do not use external force to make the battery fall, impact or puncture. Do not disassemble the battery or change the external structure.

6. When the battery is not used for a long time, please keep the battery in the state of 30%-50% SOC, and avoid the environment of strong direct sunlight or high temperature and humidity.

7. When operating the battery, it is necessary to wear rubber gloves and other protective devices.

8. In case of leakage, smoke or damage of battery, please stop using immediately and contact our company for handling.
