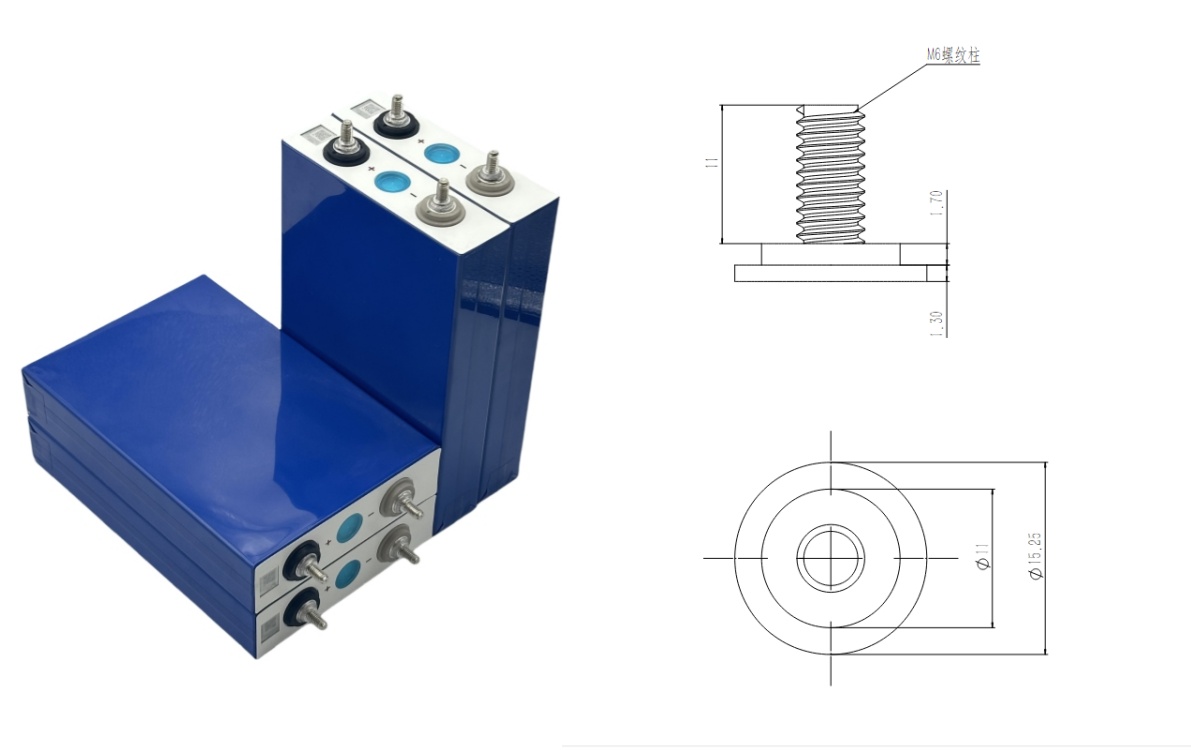

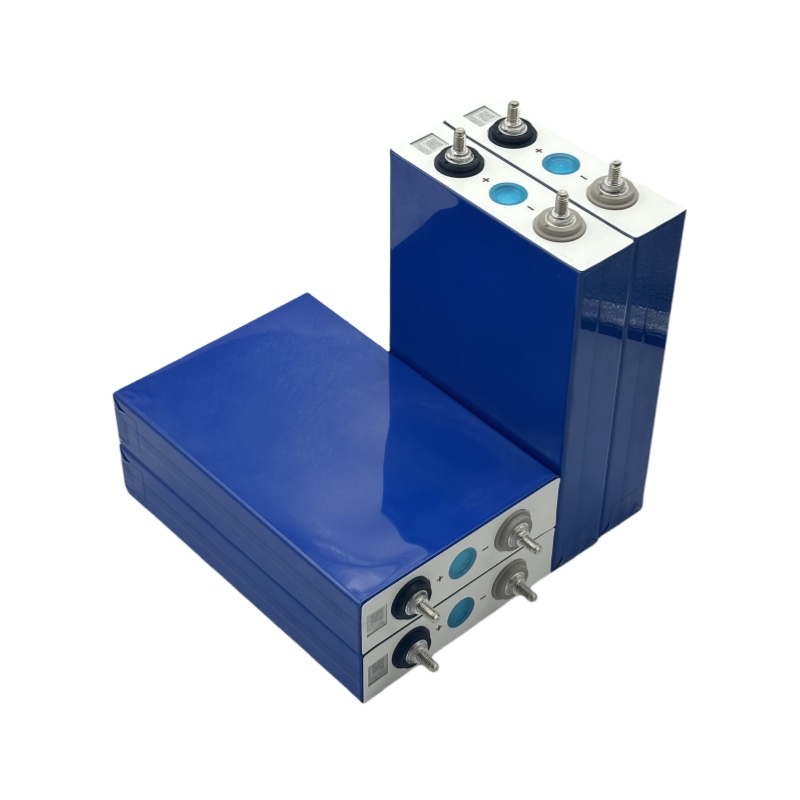

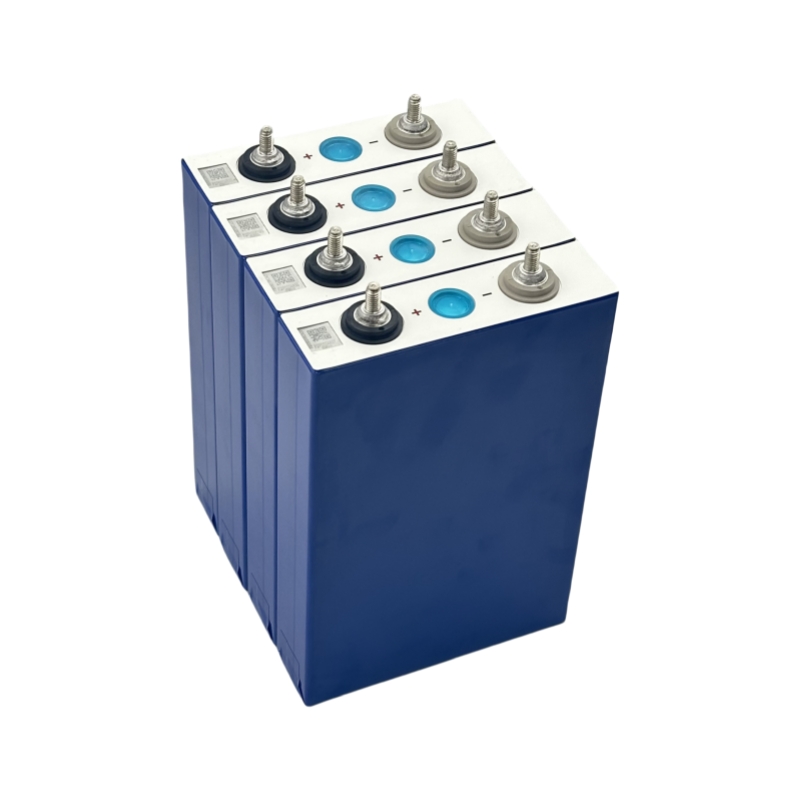

LF105 105ah prismatic lifepo4 3.2v rechargeable battery Cells

LF105 105ah prismatic lifepo4 3.2v rechargeable battery cells with original QR Code Grade A

LF105 3.2V 105Ah LiFePO4 Lithium Battery Rechargeable Lithium Battery Cells With Original QR Code Grade A

We provide 3.2V105Ah high-power Lithium iron phosphate LiFePO4 prismatic cell which has long cycles for used for electric vehicles, golf cart, solar system, energy storage system, yacht, etc.

Product Specification


Item

Parameter

Remark

Typical Capacity

106.5 Ah @ 1.0C

discharge

Discharge current

 1.0C with 2.5V

cut off. (25±2)



Minimum Capacity

105.0 Ah @ 1.0C

discharge

Typical Voltage

3.2V

Under 0.5CA cc-discharge



AC Impedance Resistance

0.32mΩ±0.05mΩ


Charge current

CC-CV

Max Charge Current

1C

The maximum charge

current of the battery does

not exceed 1C Cut

under 0℃~45.

Cut-off Voltage

3.65V

Discharge

Max Discharge Current

3C

Preference value.

Cut-off Voltage

2.5V

Charging time

Standard

2.0h

0.5C charge (time is a reference)

Quick-charge

1.0h

1C charge (time is reference)

Recommend SOC Window

SOC10%~90%


Charging Temperature

0~65


Discharging Temperature

-35~65


Storage Temperature

One month

-20~45


One year

0~35


Storage Humidity

<70﹪


Cycle life

≥4000cycle

25℃, 80% DOD

Weight

1980g±60g

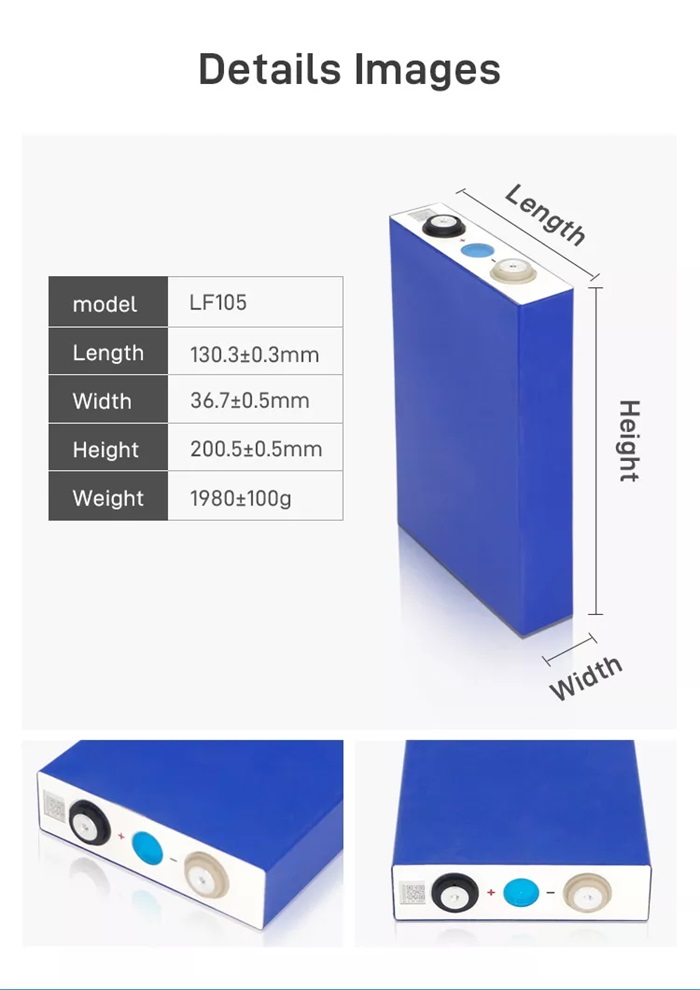

Dimension(W*T*H)

130.3*36.35*200.5mm



Welding Parameter of Al Busbar

Laser Welding Depth: ≤ 2.0 mm

Max Pressure Force on Poles: 700 N

Max Torque Force on Poles: 6 N·m

Max Temperature Force on Poles: 130 ℃


Welding Parameter of Al Busbar

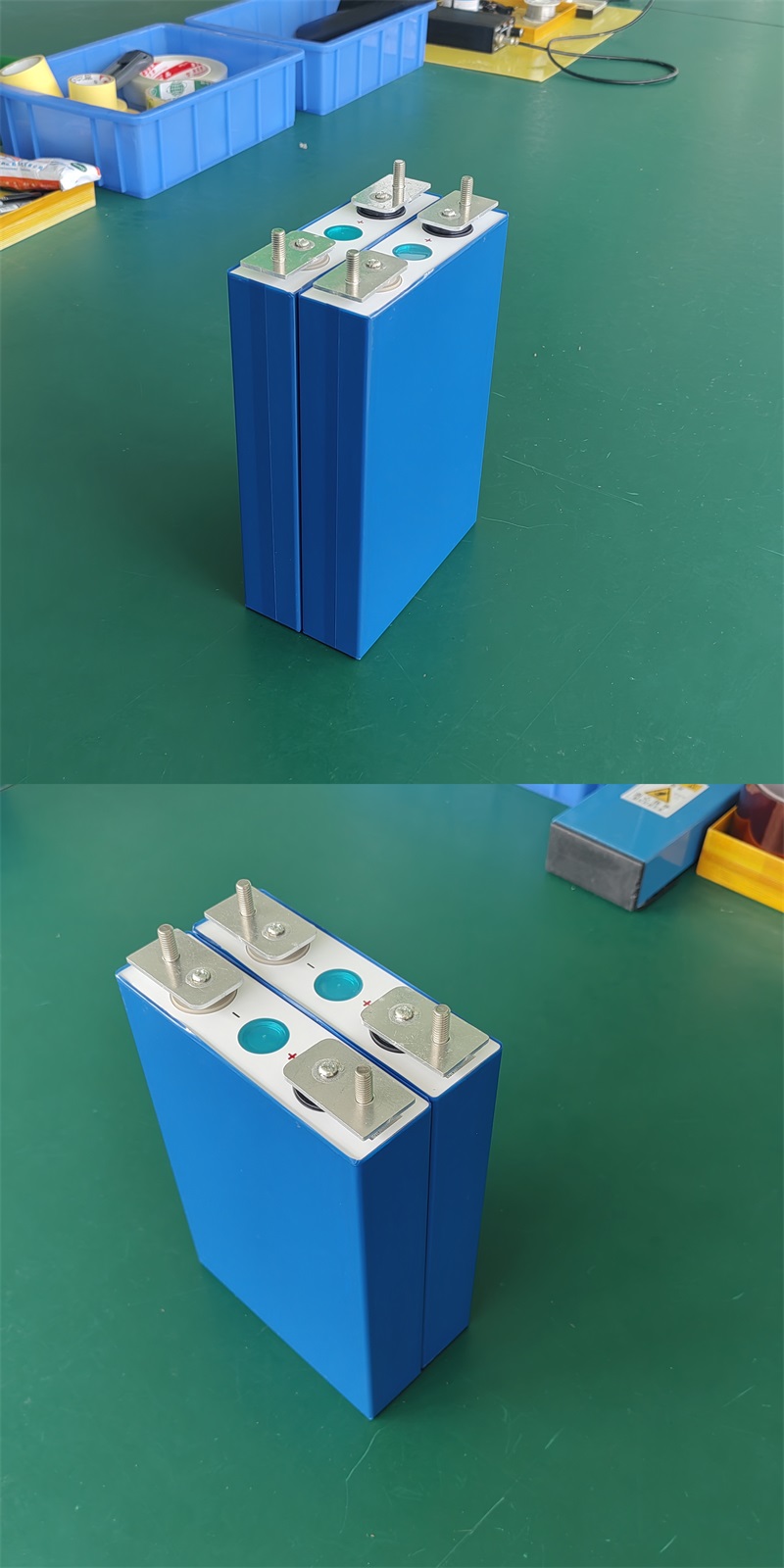

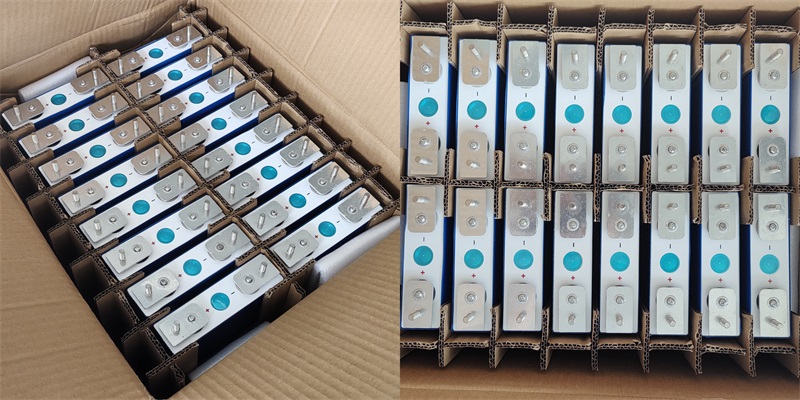

details

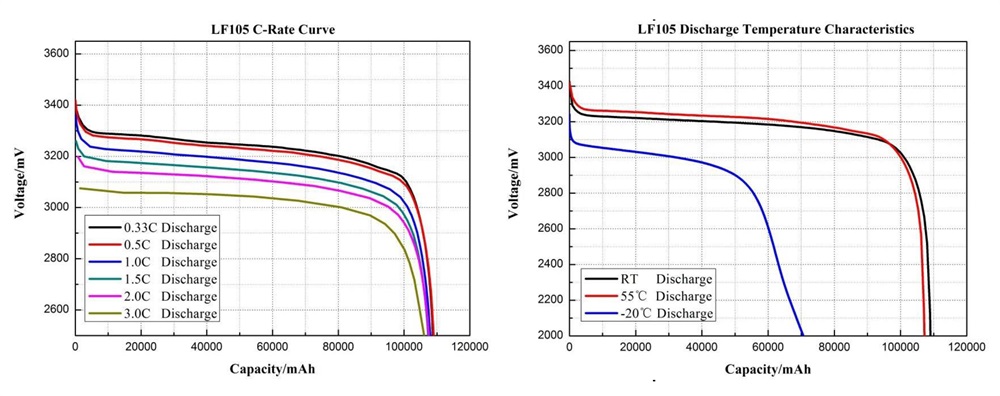

curve

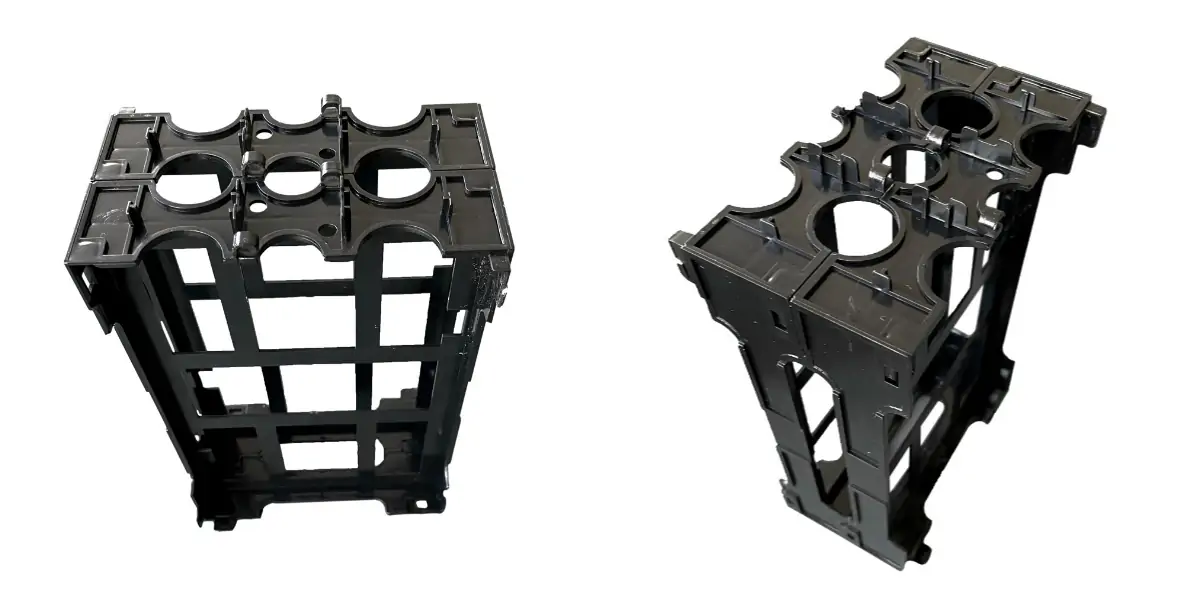

Now we provide the customized braket for EVE LF105 105Ah LiFePO4 Battery cell, The holders serve a dual purpose, not only simplifying the battery module installation but also maintaining proper spacing between the batteries. This prevents battery expansion and enhances heat dissipation, thereby boosting battery performance.


customized braket for LF105 105Ah LiFePO4 Battery cell

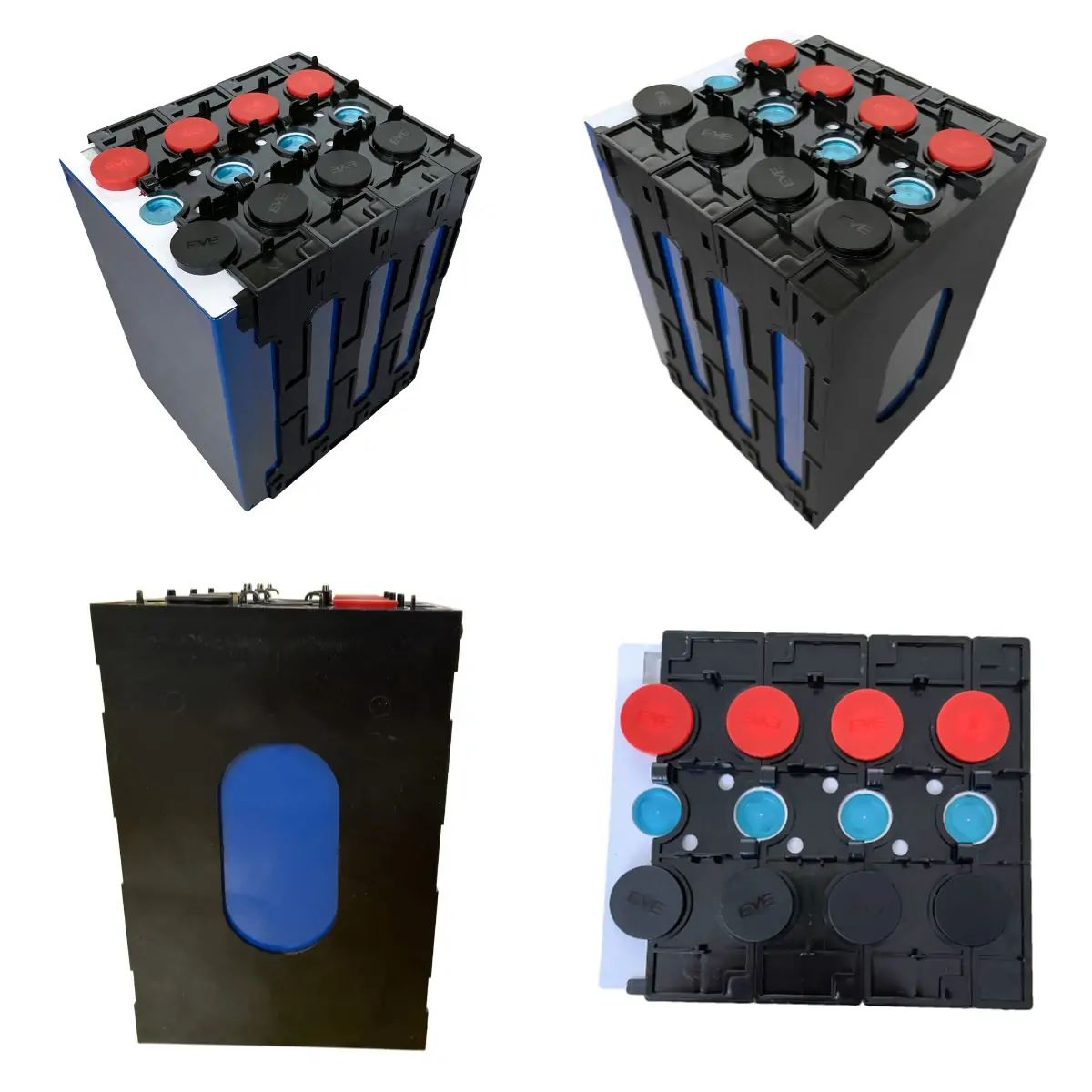

These are the real photos after the battery installation bracket:

customized braket



 Application

application



(1) We ordered the batteries directly from EVE. Grade A, brand new, guaranteed sufficient capacity.

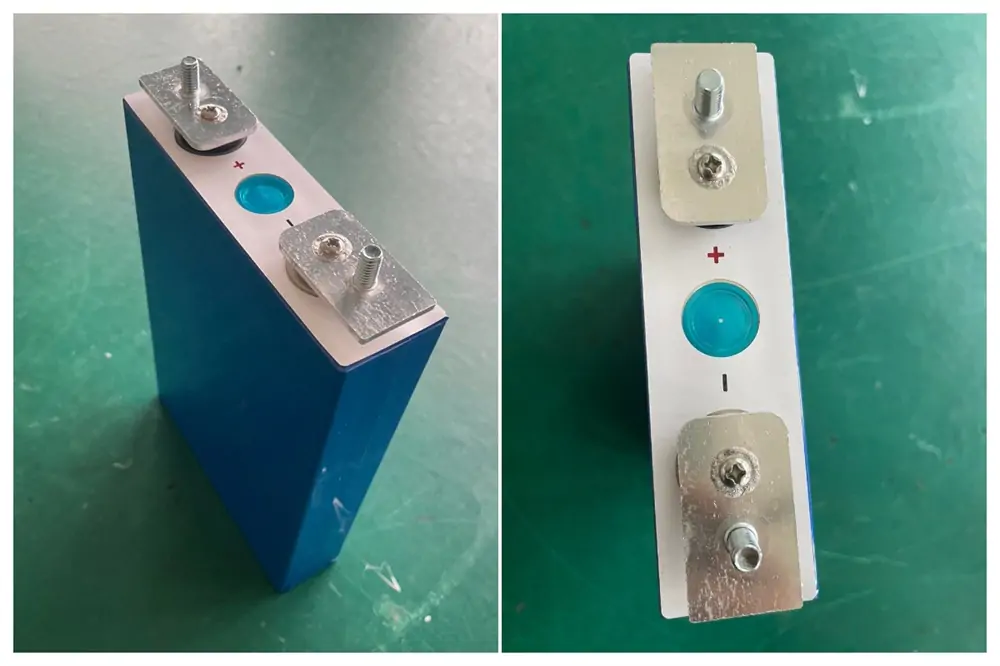

(2) We will give you bus bars and nuts for free. (Busbar material-copper, 1pcs 105AH battery ---1pcs busbar, 2pcs screws and 2pcs washers). requirements about that, please let we know.

(3) These batteries wth certificates, such as CE, MSDS, UN, UL, if you need them, please contact us.
