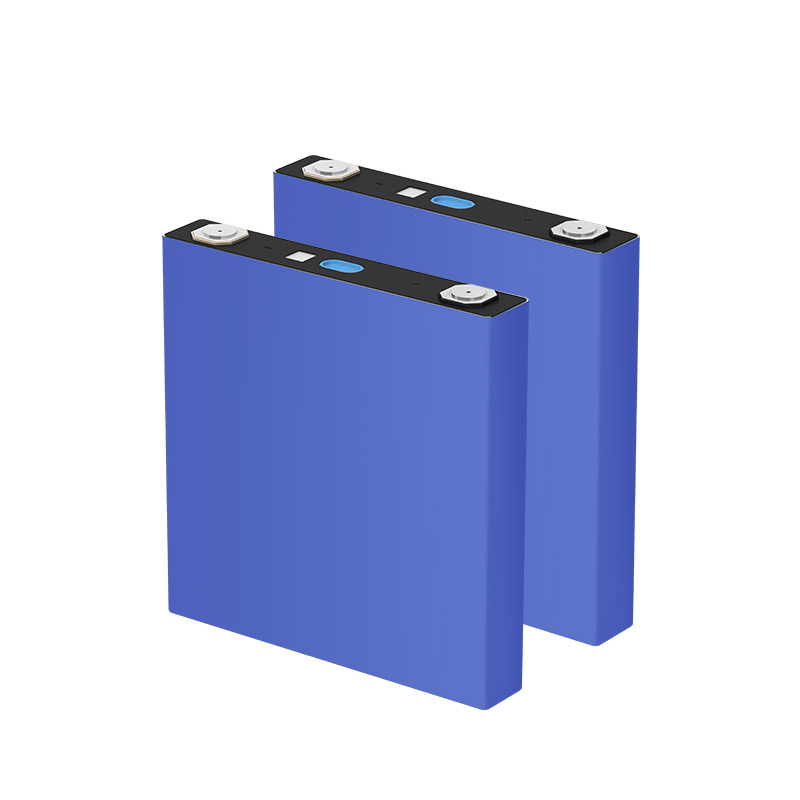

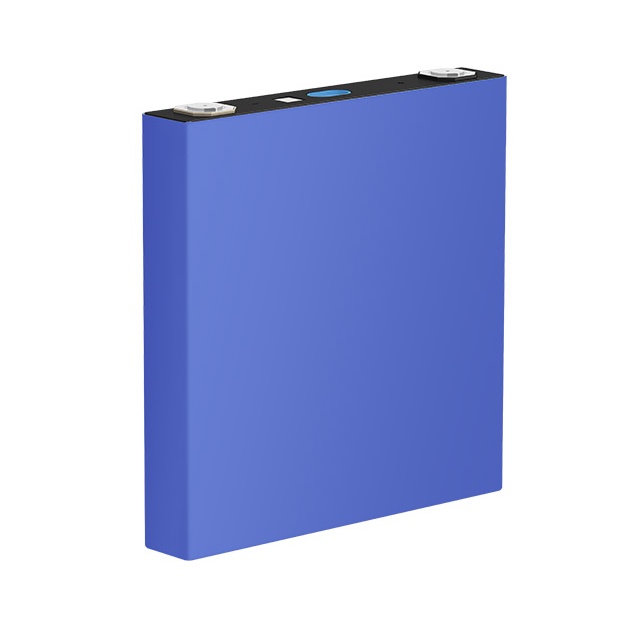

LF150 3.2V 150AH Prismatic LiFePO4 Battery Cell

LF150 3.2V 150Ah 480Wh Prismatic LFP Battery Cell With Aluminum Shell ≥4000 Cycle Rechargeable for RV, EV, golf carts, ESS, and solar system. etc.

LF150 3.2V 150AH Prismatic LiFePO4 Battery CellLF150 3.2V 150AH Prismatic LiFePO4 Battery Cell


LF150 3.2V 150Ah 480Wh Prismatic LFP Battery Cell With Aluminum Shell ≥4000 Cycle Rechargeable for RV, EV, golf carts, ESS, and solar system. etc.


LF150 Features

Intelligent factory design, high-performance consistency.

Square aluminum shell structure, high precision explosion-proof valve, high safety performance.

Low internal resistance, high discharge rate, and stable discharge platform.

Long cycle life, capacity retention rate over 80% after 4000 cycles at 1C/1C.

Green environmental protection


Specification

Item

Parameter

Model Number

LF150

Battery Type

LFP

Place of Origin

Hubei, China

Nominal Capacity

150Ah

Nominal Electricity

483.0Wh

Initial IR(1KHz)

≤0.4mΩ

Standard Charging Current

75.0 A(0.5C)

Standard Discharging Current

75.0 A(0.5C)

Standard Charge-discharge rate

0.5C(MAX 3C)

Cycling Performance

4000 Cycles (25℃),2000 Cycles(45℃)

Storage Temperature

0 ℃ ~ 35 ℃(3months)

Charging Temperature

-10℃~65℃

Discharging Temperature

-35℃~65℃

Cycles

4000cycles(0.5C/0.5C@80%DOD)

Weight

2830 g ± 84 g

Dimension

207(H)*200.7(W)*33.25(T)mm

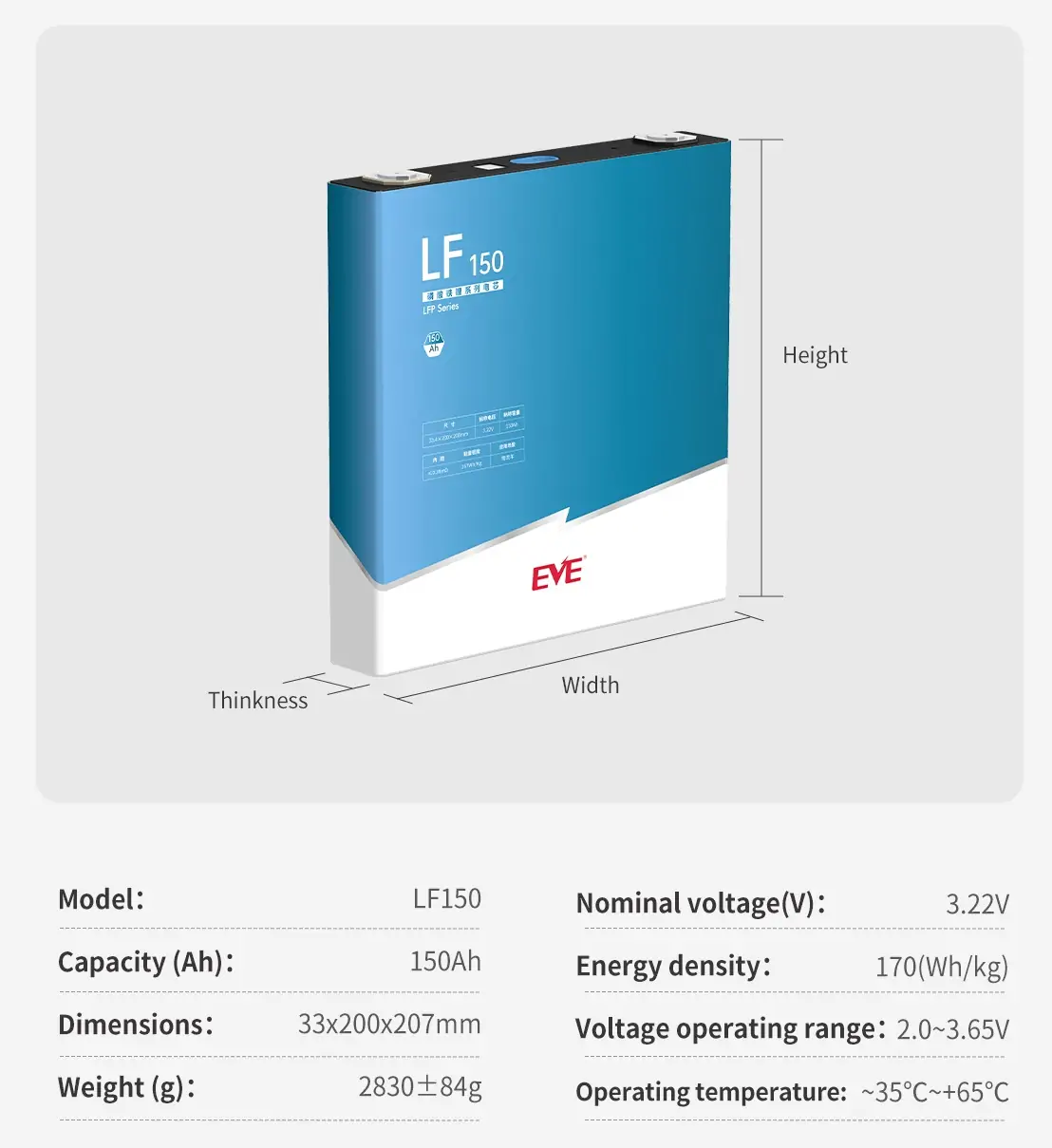

Cell Drawing of LF150

Cell Drawing of LF150

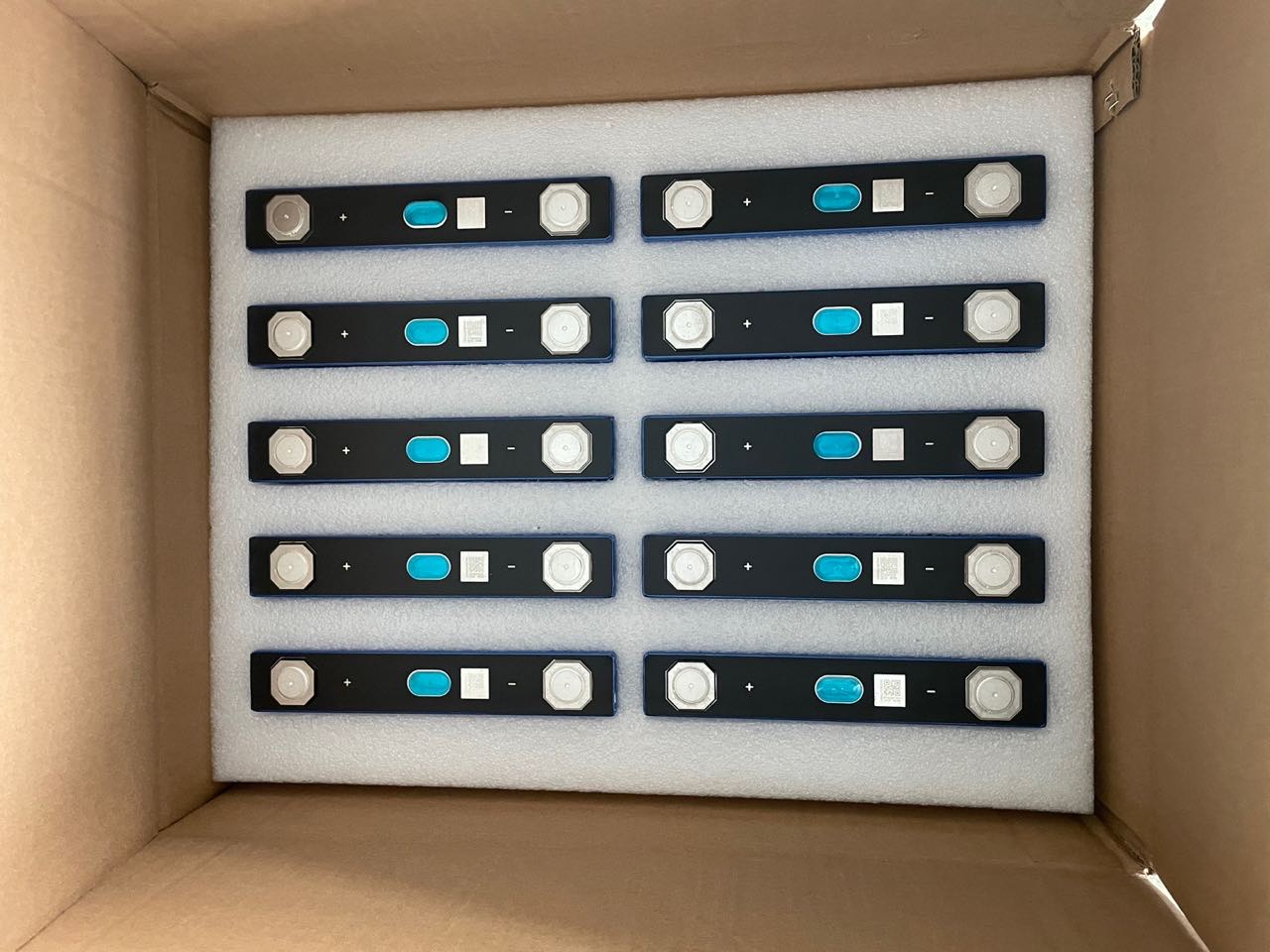

Packing Details of LF150

Packing Details of LF150



Operation Precautions

· It is strictly forbidden to immerse the battery in water. When it is not in use, it should be placed in a cool and dry environment

· It is forbidden to use and leave the battery next to heat and high temperature sources, such as fire, heater, etc.

· Please use a special charger for lithium-ion batteries when charging

· During usage, it is strictly prohibited to reverse the positive and negative terminals of the battery

· Do not throw the battery in the fire or heater

· It is forbidden to use metal to directly connect the positive and negative terminals of the battery to short-circuit

· It is forbidden to transport or store the battery with metal, such as hairpins, necklaces, etc.

· It is forbidden to knock or throw, step on, or bend the battery.

· It is forbidden to directly weld the battery or pierce the battery with nails or other sharp objects

· It is forbidden to use or place the battery under high temperature (under hot sunlight), otherwise it may cause the battery to overheat or fail to function and shorten its life.

· It is forbidden to use it in places with strong static electricity and strong magnetic fields; otherwise it will easily damage the battery safety protection device and bring hidden dangers of safety.

· If the battery leaks and the electrolyte splashes on the skin or clothes, immediately wash the affected area with running water. If the battery leaks and the electrolyte enters the open parts of the human body such as the eyes, mouth, nose, etc., immediately rinse the eyes with a large amount of water and send to a doctor for treatment immediately, otherwise it will cause serious harm to the human body.

· If the battery emits peculiar smell, heat, discoloration, deformation, or any abnormality during use, storage, or charging, immediately remove the battery from the device or charger and stop using it.
