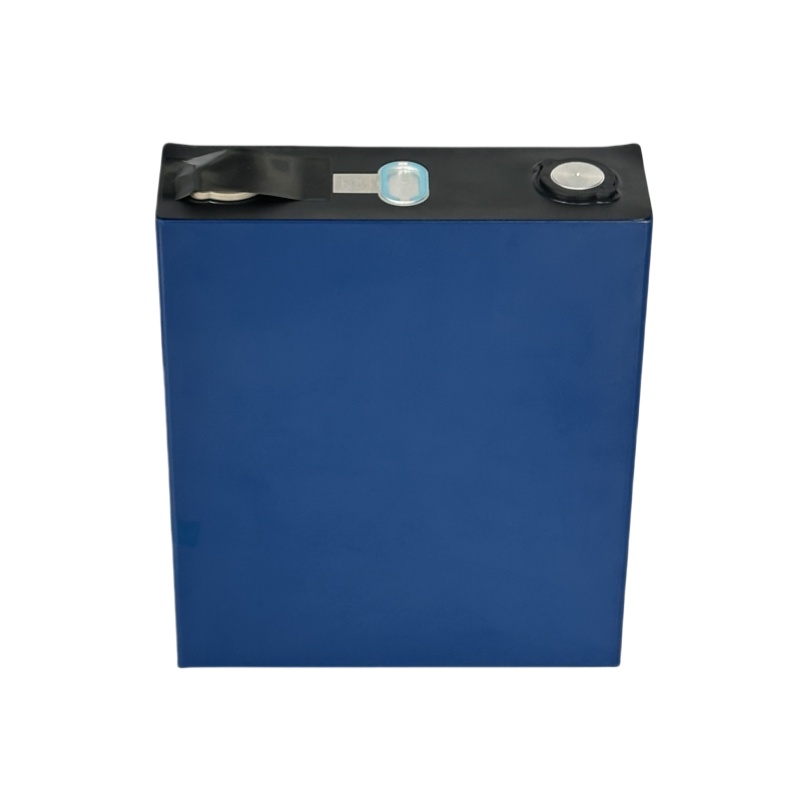

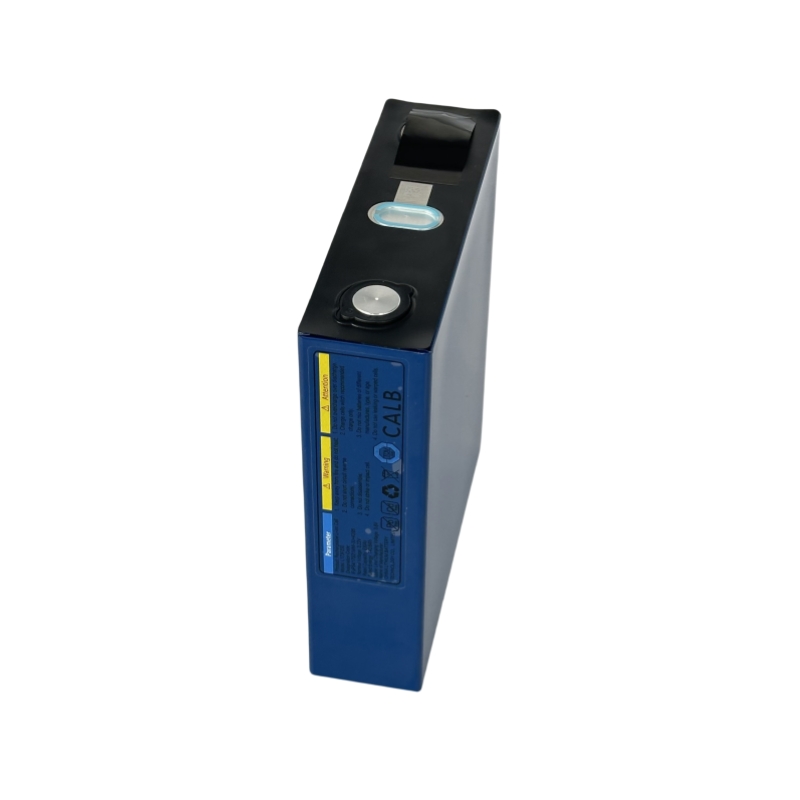

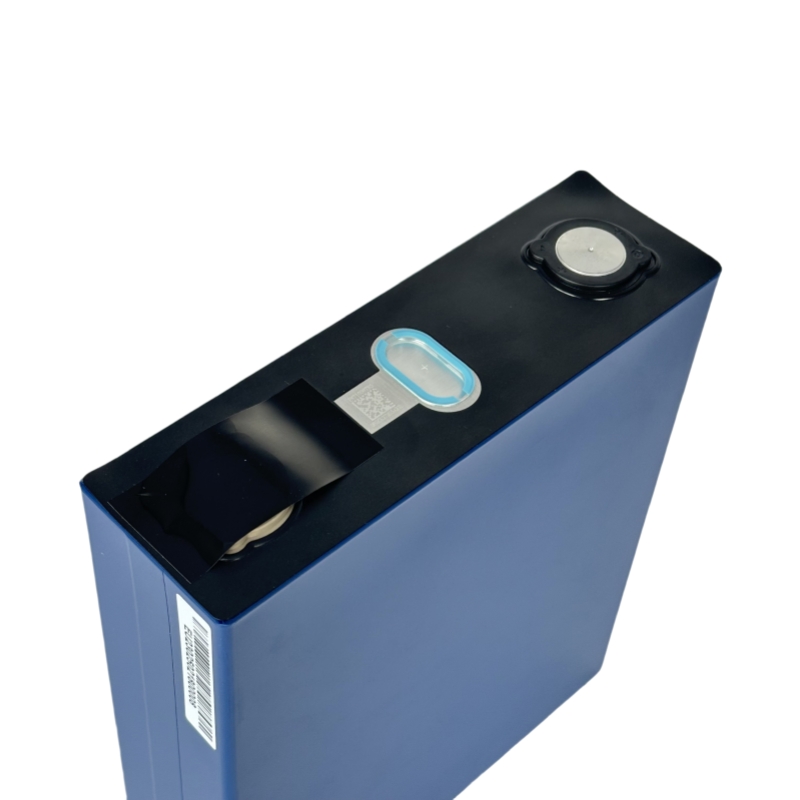

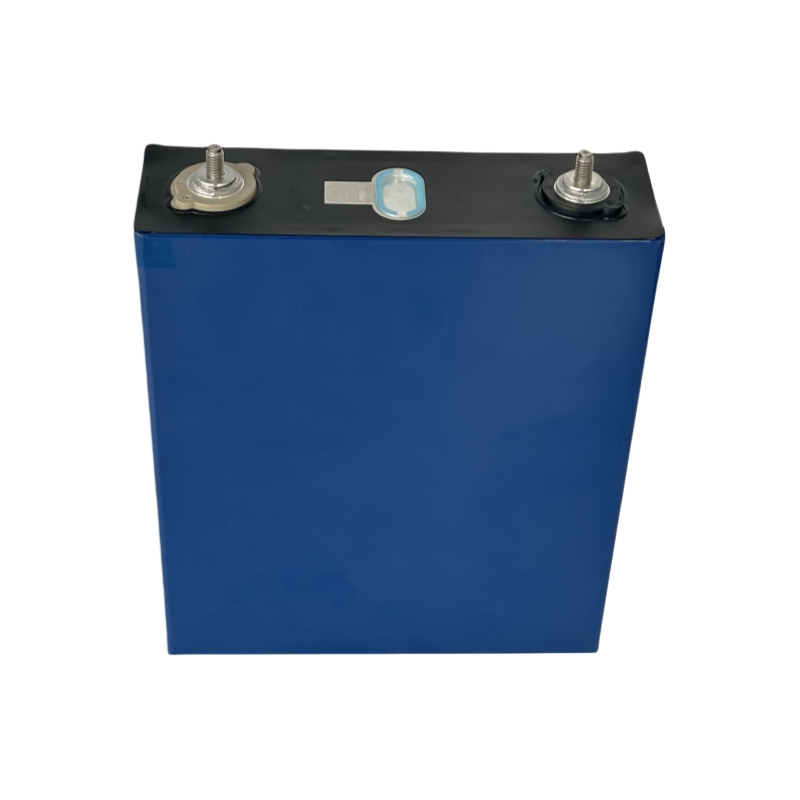

L173F230 230Ah LiFePO4 3.2 V Battery Cell

CALB L173F230 3.2V 230Ah lifepo4 battery cell can be welded pole

CALB (China Aviation Lithium Battery) is a well known and respected manufactor of LiFePO4 cells,We can now supply three new models that were produced by CALB,

They are both high quality prismatic lithium ion batteries have the shell of aluminum,they have high-rate charging and discharging performance,high energy density, long cycle life and a wide working temperature range.CALB 68Ah 80Ah 176Ah 230Ah LiFePO4 Lithium Battery can be widely used in  RV/solar system/ yacht/golf carts/ energy storage and solar system.

Please read USER MANUAL before use.

Features

-Qualified for RoHS & CCC winth high safely

-More than 4000 cycles under the designed working condition

-Anti-explosion safely valve applied

-Ceramic membrane technology applied to enhance safety

-High energy density:176wh/kg

-High charge/discharge rates


Dimension and Details:

CALB Battery dimesnionDERAILS


Parameters of 230ah lifepo4 battery cells


Items

Parameter

Module

L173F230

Nominal Voltage

3.2V

Nominal Capacity

230Ah

Dimension

173.4*53.7*207.2mm

Internal Resistance

0.3mΩ

Charging Time

Standard Charge

~4h

Fast Charge

~1h

Max. Continuous Charge/Discharge Current

230A(1C)

Operating

Temperature

Charging Temperature

0~55°C

Discharging Temperature

-36~65°C

Weight

4.17±0.16kg

Shell Material

Aluminum

Cycle Life

≥4000 cycles

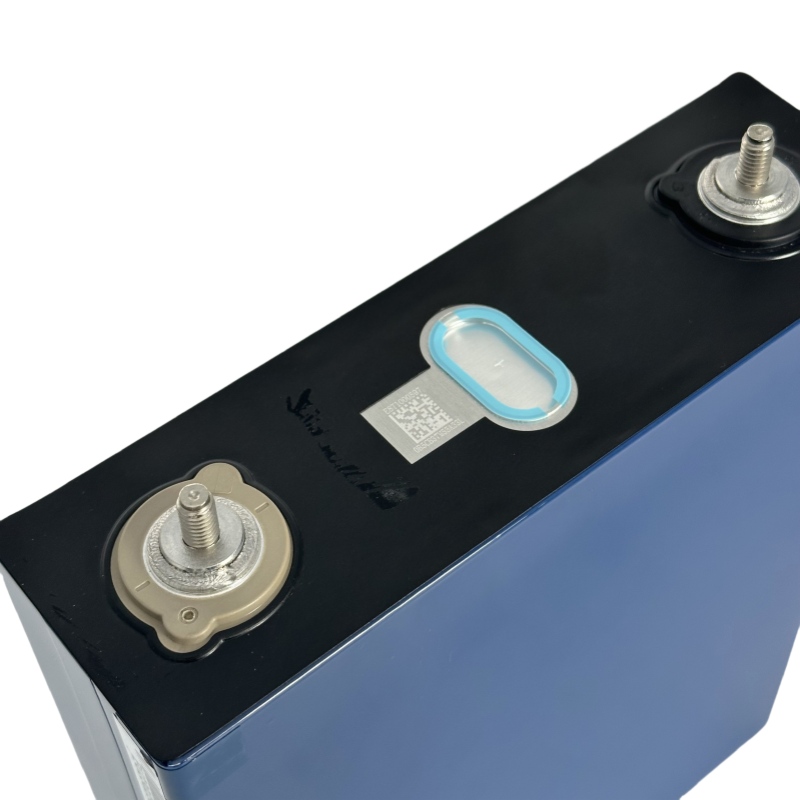

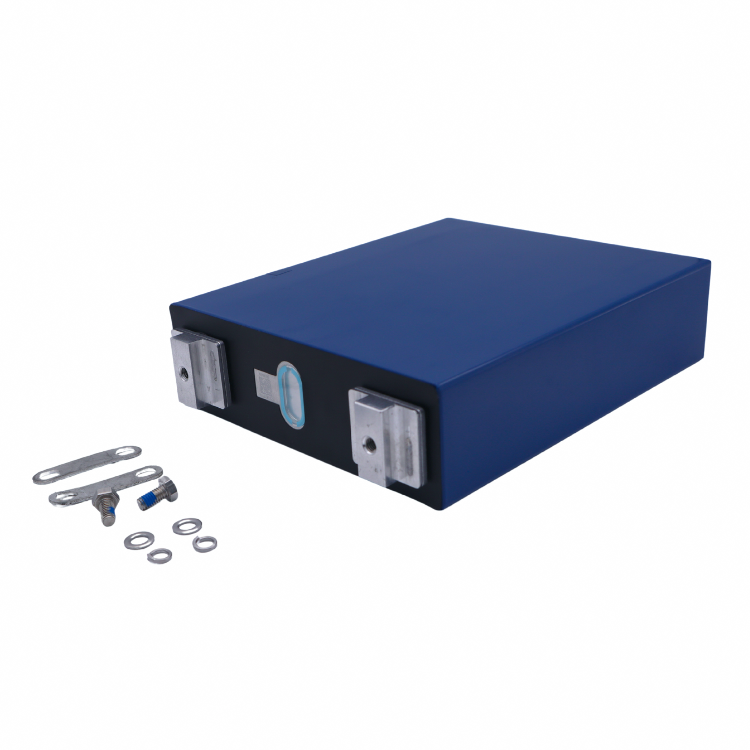

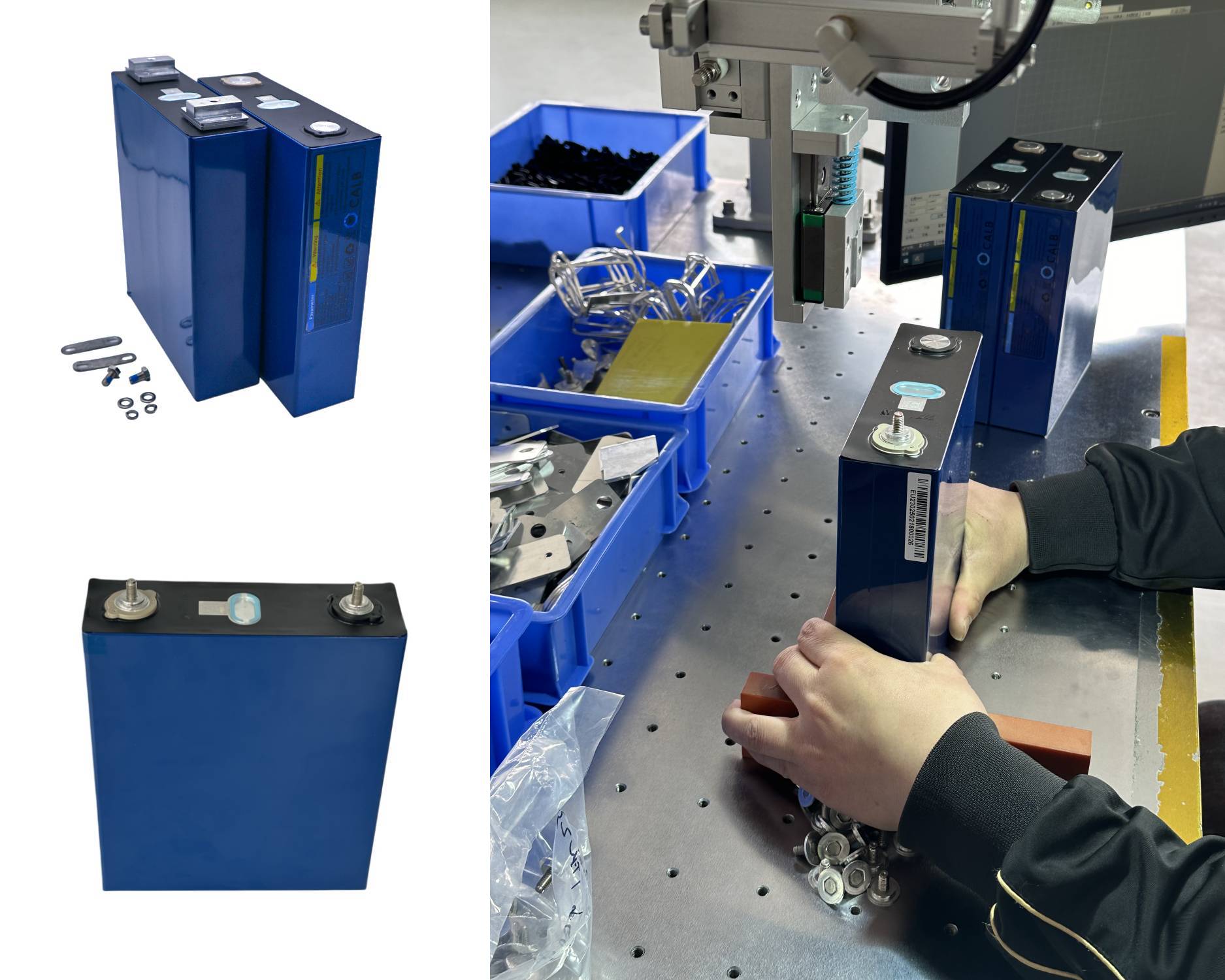

Welded Pole

We offer pole welding services, please state your requirements if required.

 Welded pole

details

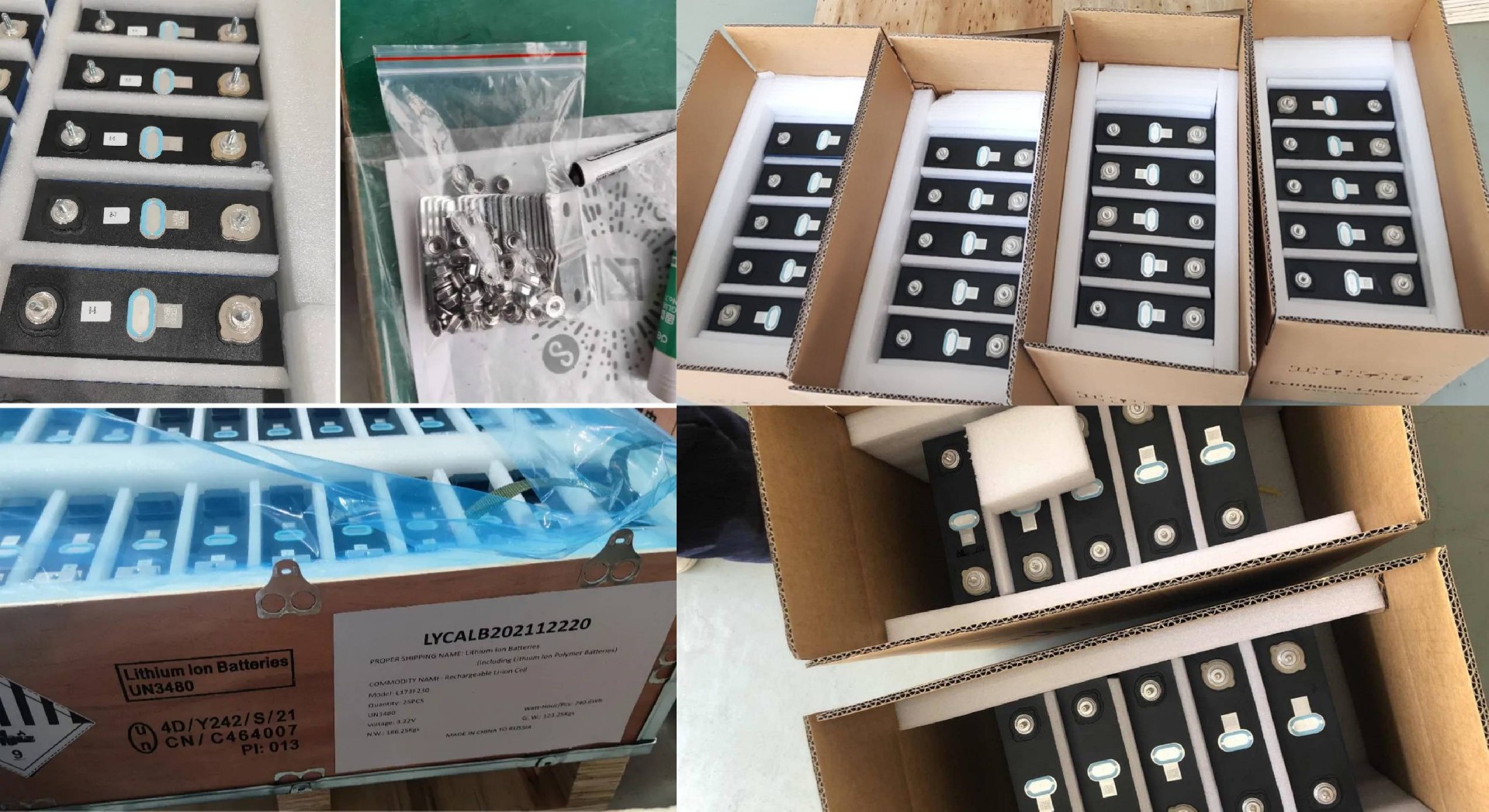

Packing and Delivery

We will choose the right packing and shipping method according to the shipping requirements and distance, as well as your needs.

calb l173f230 230ah lifepo4 cell

l173f230 230ah lifepo4 cells

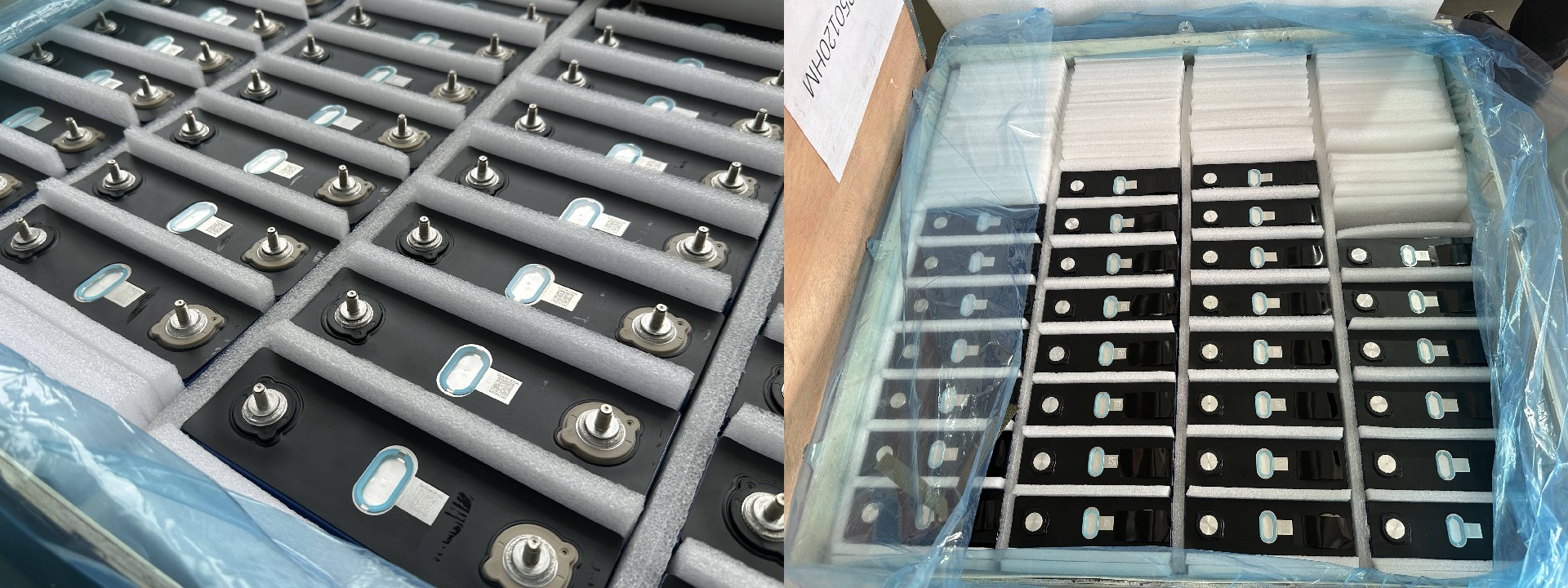

Newly Updated Shipment Records for Our Clients' CALB L173F230 230Ah lifepo4 battery Cells Orders

Packing and delivery
