LFP6228082-161Ah 3.2V 161Ah Grade A LiFePO4 Battery Cell
LFP6228082-161Ah Grade A 161Ah LiFePO4 battery cells are brand new with complete QR code, longer working time with high performance, for DIY Battery Project(RV, EV, E-boats, yacht, golf cart
- Category: LiFePO4 Battery Cell
- Tag:
Brand new Grade A LFP6228082-161Ah LiFePO4 battery cells with complete QR code, longer working time with high performance, for DIY Battery Project(RV, EV, E-boats, yacht, golf cart, UPS, solar power system, etc)
Specifications
Parameter | Specification |
Model | LFP6228082 |
Battery Type | LiFePO4 |
Nominal voltage | 3.2V |
Operational voltage | 2.5V – 3.65V |
Nominal capacity | 161Ah |
Impedance (1KHz) | ≤0.4±0.05mΩ |
Weight | 3.1±0.3kg |
Fast charge current | 161A(1C) |
Max. continous charge/discharge current | 161A(1C) |
Dimension | 280*82*62±0.8mm |
Terminal | M6 Laser Welding Screw Hole |
Cycle performance | ≥3500 Cycles |
Charging temperature | 0℃~50℃ |
Discharging temperature | -20℃~55℃ |

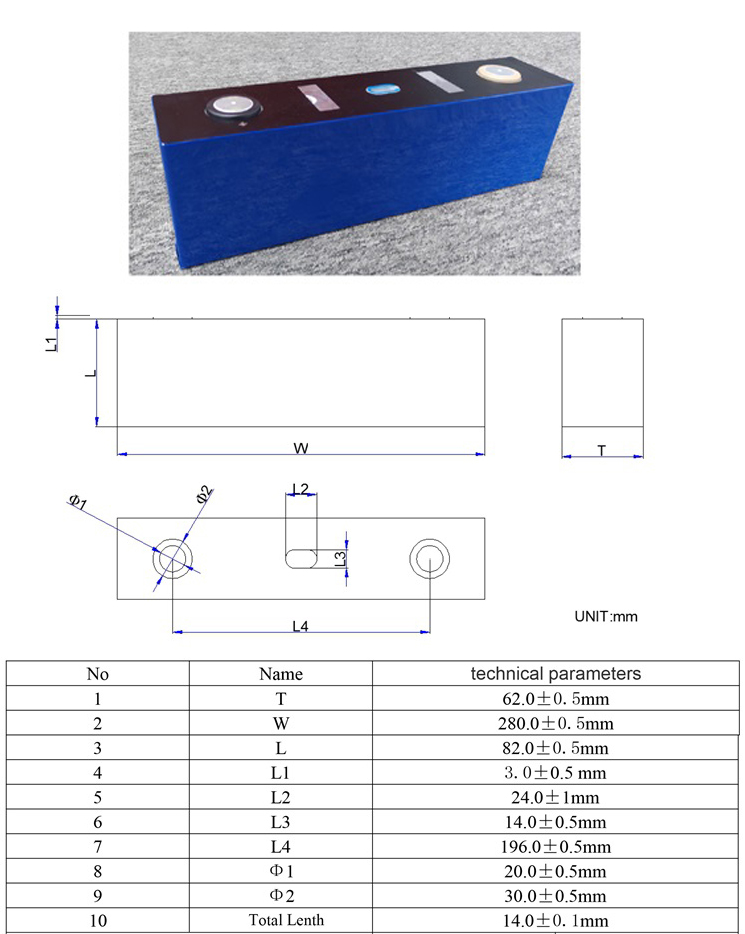

Details and Dimension
161Ah Charging/Discharge Curve
Wide Range of Applications
Electric forklift/electric vehicle/two-wheeled/three-wheeled/four-wheeled/ATV/environmental protection vehicle/sewage vehicle/sweeper/cutting green car and other power battery pack
