Lithium battery 100ah 12v lifepo4 pack for Boat/solar system/RV

lithium battery 100ah 12v lifepo4 pack used for energy storage, solar system, rv, marine, golf cart.

Specifications


Nominal voltage

12.8V

Nominal capacity

100ah

Combination

1P4S

Charging cut-off voltage

14.8V

Discharging cut-off voltage

8.4V

Maximum continuous discharge current

120A

Standard charging current

30A

Charging suitable temperature

0~45℃

Discharging suitable temperature

-40~55℃

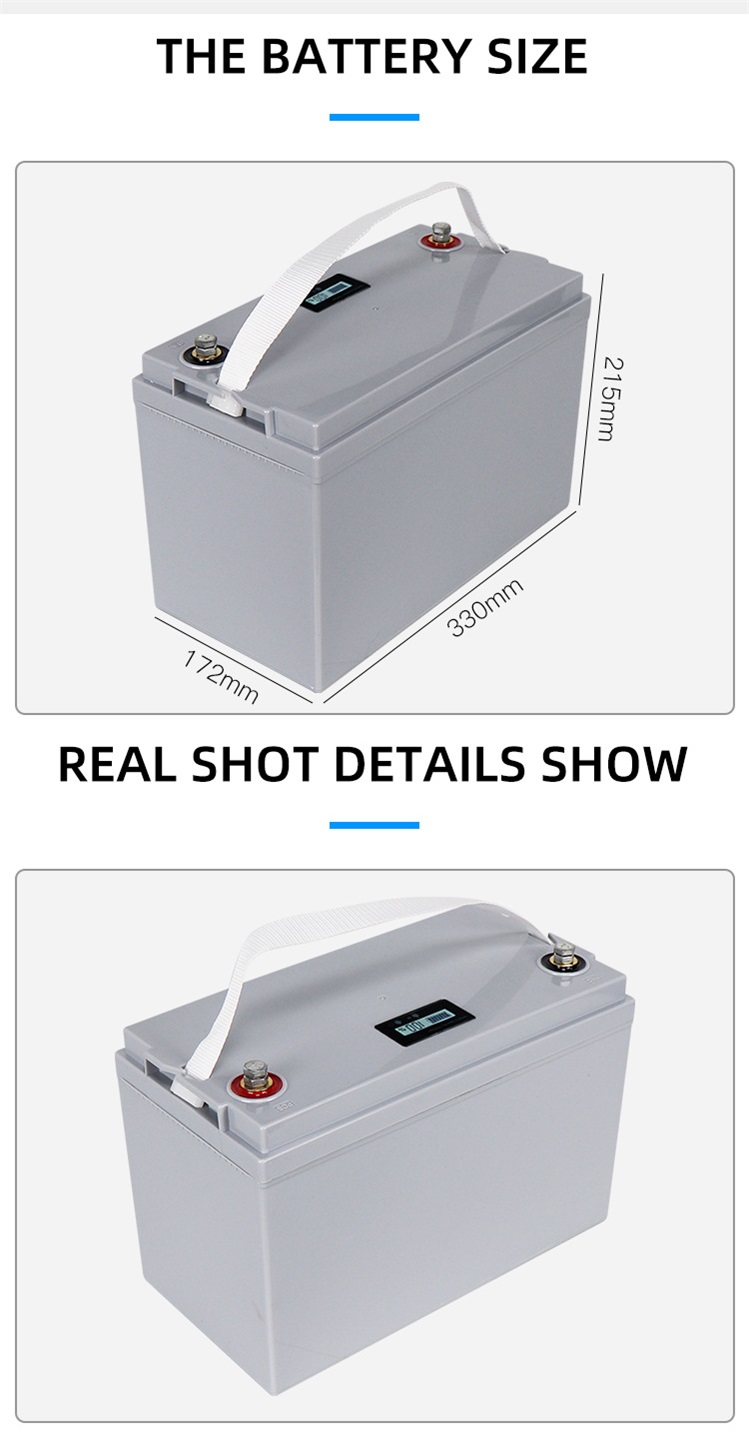

Size

330*215*172

Weight

13kg



Management System

Single over-voltage protection value:3.7V

Over-pressure release value: 3.6V

Single undervoltage protection value: 2.45V

Under-voltage release value: 2.7V

Over-current protection value: 120A


Applactions

application


Main applications of Lithium battery 100ah 12v lifepo4 pack:

1. E-bike, e-scooter, e-motorcycle, lithium golf cart, e-wheelchair

2. Remote control cars, electric boat, toys

3. solar and wind power generation energy storage system, solar systems

4. RV, Camping, yacht, lithium marine battery


dimension
