Lifepo4 3.2V 304Ah 310ah LF304 prismatic lithium iron phosphate battery cell
Lifepo4 3.2V 304Ah 310ah LF304 prismatic lithium iron phosphate battery cell
- Category: LiFePO4 Battery Cell
- Tag: lifepo4 battery cell
Brand New Grade A 3.2V 304Ah 310ah prismatic lithium iron phosphate lifepo4 battery cell for electric vehicle, power tools. e-scooters, RV, yacht, energy storage, etc.
Battery Features
A Grade, New, with all test report
Highly safe, no fires, no explosions.
High Power Performance
High Energy Density
High Gravimetric and Volumetric Power Density.
Long Cycle life
Parameters
Nominal Voltage | 3.2V |
Nominal Capacity | 304Ah |
Cycle Life(25°C) | >3500 cycles |
Cycle Life(45°C) | >1800 cycles |
Working Voltage | 2.5-3.65V |
Internal Resistance | ≤ 0.5mΩ |
End of discharge Voltage | 2.5V |
Charge Method | CC/CV |
Standard charge and discharge Charge/Discharge Current | 0.5C/0.5C |
Continuous Charge/Discharge Current | 1C/1C |
Pulse Charge/Discharge Current（30s） | 2C/2C |
Recommended SOC window | 10%-90% |
Charging Working Temperature | 0℃-60℃ |
Discharging Working Temperature | -30℃-60℃ |

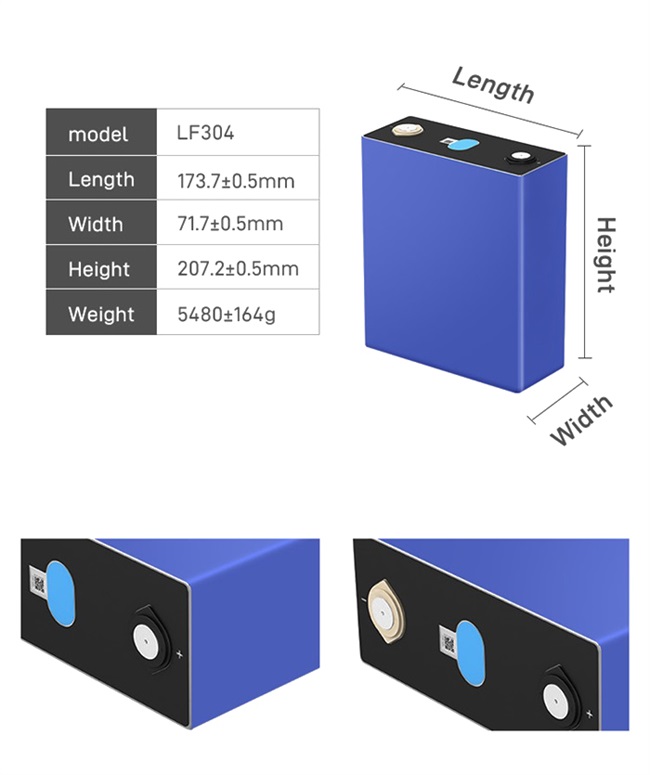

Dimensions(mm) | L173.5*W72.0*H208.8mm |
Weight | 5.49KGS |
Shell Material | Aluminum |
Detail images
LiFePO4 Battery Cell Models
Model | Capacity | Internal Resistance | Weight | Dimension |
32Ah | 1.5mΩ | 725±50g | 148.3*26.7*94.3±0.5mm | |
50Ah | 0.7mΩ | 1.4kg | 185.3*135.3*29.3mm | |
50Ah | 0.5mΩ | 1.05kg | 148.3*26.7*129.8mm | |
LF80 | 80Ah | 0.7mΩ | 1.395kg | 135*29.3*185mm |
90Ah | 0.5mΩ | 2.0kg | 200.5*130.3*36.7mm | |
100Ah | 0.5mΩ | 1.92kg | 118.5*115.7*97.0mm | |
100Ah | 0.5mΩ | 1.98kg | 118.5*160*50mm | |
105Ah | 0.5mΩ | 2.0kg | 200.5*130.3*36.7mm | |
230AH | 0.5mΩ | 4.14kg | 207.2*53.85*173.93mm | |
280Ah | 0.25mΩ | 5.42kg | 207.5*173.7*72mm | |
304Ah | 0.5mΩ | 5.49kg | 208.8*173.5*72mm |
